• AMD Socket AM5：Supports AMD Ryzen™ 7000 Series Processors
  • Unparalleled Performance：Direct 6+2+1 Phases Digital VRM Solution
  • Dual Channel DDR5：4*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
  • SuperSpeed Storage：3*PCIe 4.0/3.0 M.2 Connectors
  • EZ-Latch：PCIe x16 Slot with Quick Release Design
  • Fast Networks：GbE LAN & 802.11ac Wi-Fi
  • Extended Connectivity：HDMI, USB-C® 5Gb/s
  • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
OVERVIEW
PERFORMANCE
CONNECTIVITY
PERSONALIZATION
ULTRA DURABLE

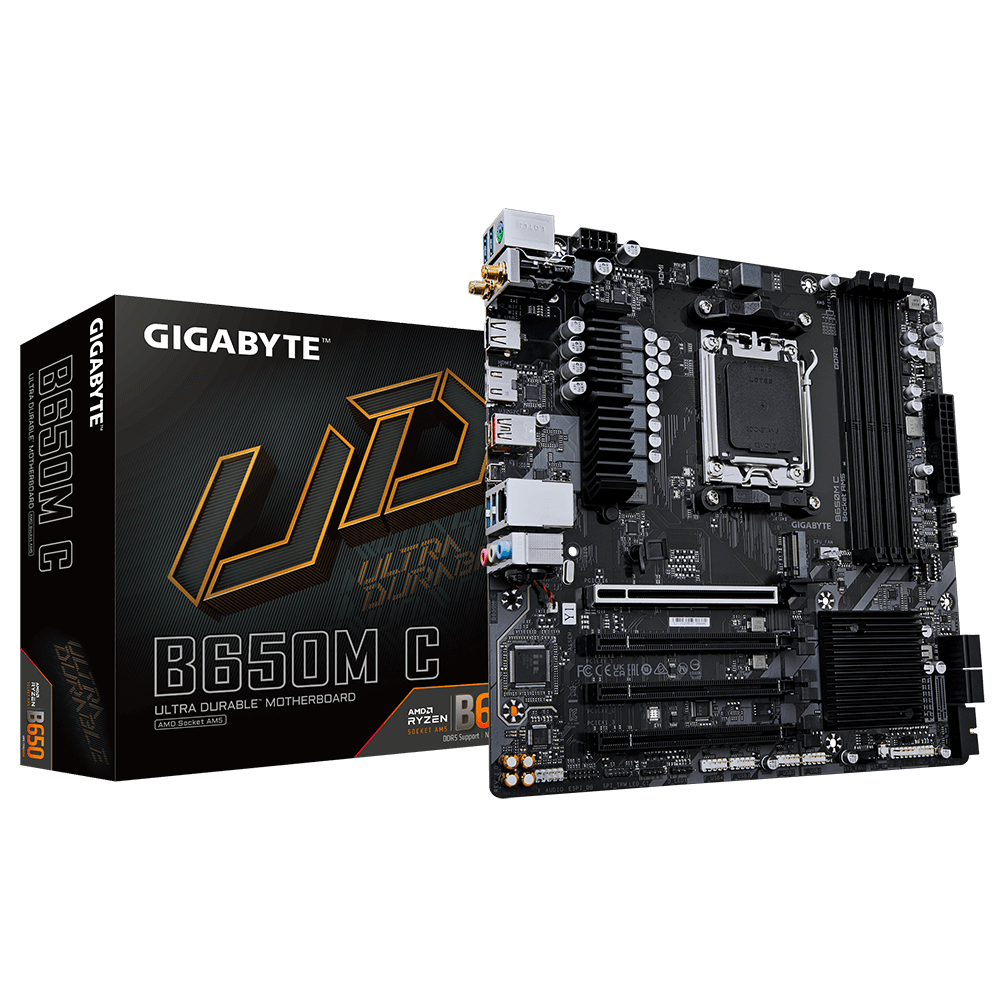

B650M C
OVERVIEW
PERFORMANCE
CONNECTIVITY
PERSONALIZATION
ULTRA DURABLE
Performance
Connectivity
1
Solid Pin CPU Power Connector
2
Direct 6+2+1 Digital VRM Design
  1. 60A Smart Power Stage*
  2. 6-Layer 2X Copper PCB
  3. PCIe 4.0 Ready Mid-Loss PCB
* Power Stage maximum current capacity is based on VCORE Phase.
3
Design Ready for PCI Express 4.0
  1. 1* 25110 PCIe 4.0 x4 M.2 & 2* 2260 PCIe 3.0 x1 M.2
  2. 1* PCIe 4.0 x16 with Ultra Durable™ Armor
  3. 3* PCIe 3.0 x1
4
Dual Channel SMD DDR5 Memory
5
Socket AM5 Supports AMD Ryzen™ 7000 Series Processors
6
Smart Fan 6
  1. 4*PWM/DC Fan Headers
  2. Dual Fan Curve Mode
7
PCIe EZ-Latch
8
Multi-Key
  1. Multiple function set by BIOS
  2. Reset/RGB Switch/Direct to BIOS/Safe Mode
1
4* USB 3.2 Gen1
2
Dual Band 802.11ac Wi-Fi with Ultra Durable Antenna
3
1* USB 2.0
4
HDMI
5
USB 3.2 Gen 2 Type-A + USB 3.2 Gen 1 Type-C
6
Q-FLASH PLUS Button
7
GbE LAN
8
Front USB 3.2 Gen2 Type-C
9
4*SATA 6Gb/s
10
RGB FUSION
  1. 1*Addressable LED Header
  2. 1*RGB LED Header
PERFORMANCE
Direct Digital VRM Design
PCIe 4.0 Hardware Design
EXPO & XMP Support
Smart Fan 6
OC GUIDE

To ensure maximum Turbo Boost and overclocking performance of AMD's new generation CPU, GIGABYTE UD series motherboard equip the best VRM design ever built with the highest quality components.

To unleash full potential of multi-cores CPU performance

For CPU integrated GPU performance and memory control

Provide stable power for CPU-connected PCIe lanes

GIGABYTE B650 Motherboards are ready to work with the PCIe 4.0 devices which are expected to experience twice bandwidth than the current PCIe 3.0 devices. To reach the high speed and maintain good signal integrity, GIGABYTE R&D uses the low impedance PCB to provide the maximum performance.
1. PCIe 4.0 x16 slot with faster bandwidth and lower impedance.
2. M.2 PCIe 4.0 x4 slot with lower impedance.
3. PCIe 4.0 Ready Mid-Loss PCB.
CONNECTIVITY
802.11ac Wi-Fi
GbE LAN
Front & Rear USB-C®
Hi-Fi Audio
Faster and Better Coverage with Dual Band 802.11ac Wi-Fi + BT 4.2 Module
The onboard 802.11ac Wi-Fi module supports Dual Band and up to 433 Mbps, 3x faster Wi-Fi speed than 802.11n and also support BLUETOOTH 4.2.
GbE LAN with Bandwidth Management
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
Connecting the Future - USB Type-C®
The USB Type-C with front USB 3.2 Gen 2 and rear USB 3.2 Gen1 ports provide with speeds up to 10Gbps & 5Gbps. With doubled bandwidth compared to the previous generation as well as backward compatibility with USB 2.0, the improved USB protocol is available now over the new reversible USB Type-C™ and the traditional USB Type-A connector for better compatibility over a wider range of devices.
High-End Audio Capacitors
AORUS motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
AORUS motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.

* Photo for reference only.
PERSONALIZATION
UEFI BIOS
GIGABYTE Control Center
Multi-Key
Friendly User Interface
The EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.
My Favorites
Add constantly used items into the favorite menu for quick access.
Storage Information
Show all kinds of storage information including SATA, PCIE and M.2 interface.
Changelog
List all changes before saving and exiting bios. Quickly review overall settings modification.
Intuitive Load Line Curve
Clearly show each loadline calibration setting in an intuitive curve graph.
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.
  1. Unified software platform for all Gigabyte supported products
  2. Intuitive user interface for an eased experience
  3. Modularized control components only for installed hardware
  4. Auto update function to keep system up to date and support future products
LEARN MORE
Multi-key
A multi-function reset button that can be reconfigured to other function in BIOS for different user scenarios.
  • RGB Switch
    Turn off all lighting effect on motherboard.
  • Direct-To-BIOS
    Boot into BIOS menu directly without pressing any keyboard button.
  • Safe Mode
    Boot into BIOS safe mode to change specific option without losing other BIOS settings.
* Photo for reference only.
ULTRA DURABLE
DIY Friendly
Q-Flash Plus
PCIe EZ-Latch
Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.
Photo for reference only.
STEP 1.
Plug 24pin & 8pin power supply cable on motherboard
STEP 2.
Download motherboard BIOS file and rename to "gigabyte.bin", save to USB flashdrive, and plug USB flashdrive into Q-Flash USB port
STEP 3.
Press Q-Flash Plus button, and motherboard will start updating BIOS automatically.
