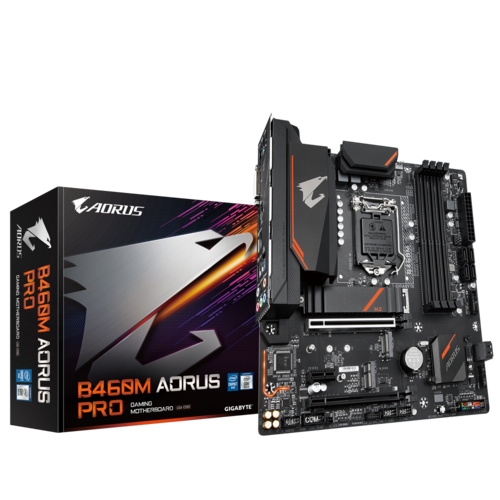

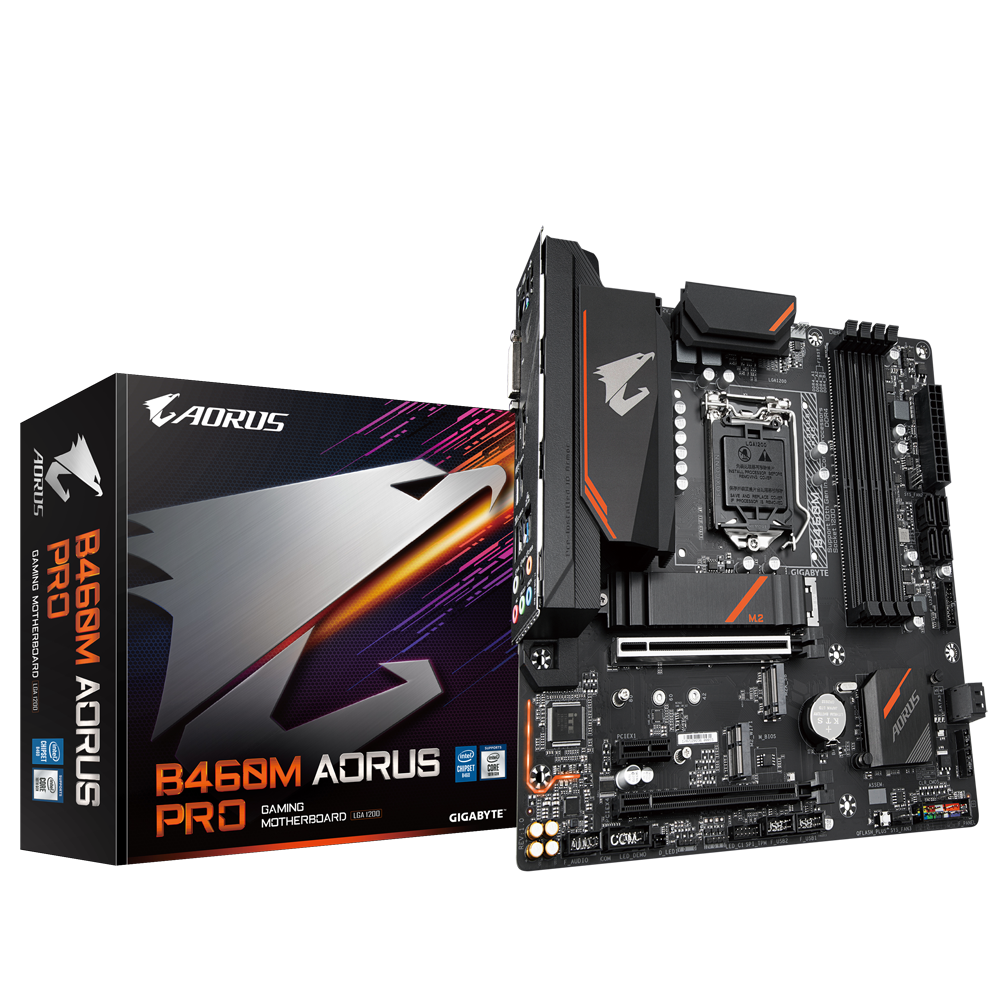

Intel® B460 AORUS Motherboard with RGB Fusion 2.0 with Digital LEDs, Intel® GbE LAN with cFosSpeed, Advanced Thermal Design with Enlarged Heatsink, USB 3.2 Gen1 Type-C , Dual M.2 Slots, M.2 E-key Slot for PCIe WIFI Module Upgradable

  • Supports 10th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Advanced Thermal Design with Enlarged Heatsink
  • Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Ultra-Fast NVMe PCIe 3.0 x4 M.2 with Thermal Guard
  • Blazing Fast Intel® GbE LAN with cFosSpeed
  • Intel® USB 3.2 Gen1 Type-C™ Support
  • M.2 E-key Slot for PCIe WIFI Module Upgradable
  • AMP-UP Audio with ALC1200 with Nichicon MW Audio Capacitors
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Pre-installed IO Shield for Easy and Quick Installation
  • Q-Flash Plus Update BIOS without Installing the CPU、Memory and Graphics Card
  • Intel® Optane™ Memory Ready
Direct Power Design
AORUS performance
Advanced Thermal Solution
Next Generation Connectivity
AORUS AUDIO
AORUS STYLE
Ultra Durable
GIGABYTE BIOS & APP CENTER
Direct Power Design
AORUS performance
Advanced Thermal Solution
Next Generation Connectivity
AORUS AUDIO
AORUS STYLE
Ultra Durable
GIGABYTE BIOS & APP CENTER
1
4+2 Hybrid Digital VRM Solution
  1. Premium Choke and Capacitor
2
DisplayPort
3
Onboard HDMI
4
USB 3.2 Gen1 Type-C
5
Q-Flash Plus USB Port
6
Intel® GbE LAN
7
Advanced Thermal Design
  1. Enlarged Heatsink
  2. 5 W/mK LAIRD Thermal Conductivity Pad
8
2* M.2 Connectors
  1. One with Thermal Guard
  2. NVMe PCIe 3.0 x4
9
AMP-UP Audio
  1. ALC 1200 Audio Codec
  2. Audio Noise Guard
  3. High-End Audio Capacitors
  4. Nichicon MW Capacitors
10
RGB FUSION 2.0
  1. Addressable LED Header*2
  2. RGB LED Header*2
11
Solid Pin Power Connectors
  1. 24 pin ATX Power Connector
  2. 8 pin CPU Power Connector
12
Dual Channel DDR4, 4 DIMMs
13
Supports 10th Gen. Intel® Core™ Processors
14
Ultra Durable PCIe Armor
  1. Running 1 x16
15
Q-FLASH Onboard Button
Direct Power Design
4+2 Hybrid Digital VRM Solution with Low RDS(on) MOSFET
GIGABYTE 400 series motherboards use a 4+2 Hybrid digital PWM + Lower RDS(on) MOSFETs design to support the latest Intel® Core™ CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.
Benefits of Lower RDS(on) MOSFETs
  • Optimized gate charge to minimize switching losses.
  • Lower temperature, smaller size, better thermal characteristics.
AORUS PERFORMANCE
Single 32GB Support
The maximum memory capacity on the B460 motherboard is 128GB. After Intel updated the memory reference code, a single slot can support up to 32GB. Therefore with populated 2 DIMM per channel on both channel, total memory capacity is 128GB, which was only available on High End Desktop (HEDT) platforms. For users who always run out of memory capacity, there is more bandwidth now for memory-intensive application such as rendering and video editing.
Dual PCIe Gen3 x4 M.2
AORUS Gaming Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential.
Pre-installed I/O Shield Armor
Durable design and easy installation
  • With an integrated base plate, GIGABYTE Motherboards give users a strong foundation to build their Gaming PCs.
  • With an integrated I/O shield, building a GIGABYTE Ultra Durable PC is even easier.
Advanced Thermal Solution
1. Enlarged MOSFET Heatsinks
Enlarged Heatsink increases surface area to improve thermal efficiency with better airflow and heat exchange.
2. 5 W/mK LAIRD Thermal Conductivity Pad
By using 1.5mm thicker 5 W/mK thermal conductivity pads, it can transfer 2.7x more heat compared to traditional thermal pads in the same time.
3. M.2 Thermal Guard
Built-in M.2 heatsinks prevent high-speed, large capacity PCIe 3.0 SSDs from throttling due to overheating.
AORUS M.2 Thermal Guard
GIGABYTE Ultra-Efficient M.2 Thermal Guard
With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
Thermal Throttling As Temperature Rises
Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

Fan / Water Pump Connectors
Internal Temperature Sensors
Temperature Sensors
Hybrid Fan Headers
■ 4 Fan / Water Pump Connectors
■ 6 Temperature Sensors
■ All Fan Pin Headers Upgraded to Hybrid Fan Headers
■ Interoperable Fans and Sensors
■ Intuitive UI for Fan Control
* Different models have a different number of fan pin headers and temperature sensors. Smart Fan 5 function may vary by model.
Hybrid Fan Pin Headers

Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate through the Hybrid Fan Pin Headers—giving you absolute mastery over your PC.
All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.

New Smart Fan 5 Software
Choose from different modes, Quiet to Full Speed, to match your system usage preferences.
For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.
Next Generation Connectivity
Intel® GbE LAN with cFosSpeed Internet Accelerator Networking

Intel® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.



Connecting the Future - USB Type-C™
The World's Next Universal Connector
The USB Type-C™ is a new reversible connector that is loaded with useful features such as USB 3.2 Gen1 support and faster charging capabilities. Powered by the Intel® controller, this little port is the better USB Type-C™.
Soar Free With WIFI
M.2 E key slot for PCIe WIFI module Upgardable
WIFI module Upgrade kit offers an easy way to upgrade WIFI Upgradeable motherboards with new and faster Gigabit WIFI connectivity without having to upgrade to a whole new system.
AORUS AUDIO
High Quality Onboard Audio Design

Delivers high quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.

The below photos are for reference only.

  • Audio Noise Guard with
    LED Trace Path Lighting
  • High-End Audio
    Components
AORUS STYLE
Multi-Zone Light Show Design
Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.
Note: Lighting effects depicted are for demonstration purposes only. Actual lighting effects may vary by model.
With an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.
Sync with one click
Individual control as you wish

Ultra Durable
GIGABYTE is reputable for its product durability and high quality manufacturing process. Needless to say, we use the best components we can find for the B460 AORUS motherboard and reinforce every slot to make each of them solid and durable.
PCIe Armor
Patented Double Locking Bracket
Solid Pin
Q-Flash Plus
Ultra Durable™ PCIe Armor
Industry Leading Ultra Durable™ PCIe Armor
The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.
GIGABYTE Patented Double Locking Bracket
Solid Pin Power Connectors
B460 AORUS motherboards feature solid plated ATX 24pin & ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.
Solid Pin Power connector advantages
  1. Larger contact area for electricity
  2. More metal quantity to sustain higher power and generated heat
  3. Ultra durable and longer lifespan
Q-Flash Plus
Update the BIOS easily without installing the CPU, memory and graphics card.
GIGABYTE BIOS & APP CENTER
Good software goes hand in hand with perfect hardware. B460M AORUS PRO bundled several useful and intuitive software to help users to control every aspect of motherboard.
BIOS
APP Center
Easy Tune
System Information Viewer
BIOS
New User Interface
All new EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.
My Favorites
Add constantly used items into the favorite menu for quick access.
Storage Information
Show all kinds of storage information including SATA, PCIE and M.2 interface.
Changelog
List all changes before saving and exiting bios. Quickly review overall settings modification.
Intuitive Load Line Curve
Clearly show each loadline calibration setting in an intuitive curve graph.
APP CENTER
GIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep updated with the latest utilities and drivers version.
EasyTune™
GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.
System Information Viewer
GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.
