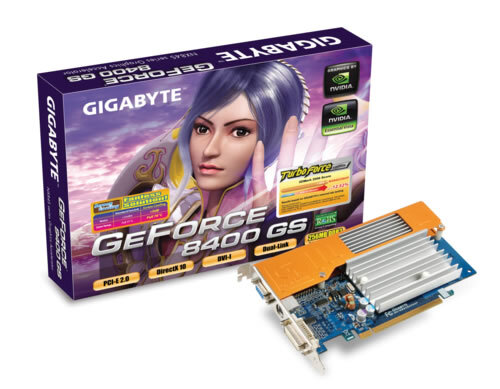

• Powered by GeForce 8400 GS GPU
  • Supports PCI Express 2.0
  • Microsoft DirectX 10.0 and OpenGL 2.0 support
  • Integrated with 256MB GDDR2 memory and 64-bit memory interface
  • Supports PureVideo technology
  • Features DVI-I / D-sub / HDTV
  • GIGABYTE’s Turbo Force Edition guarantee
  • RoHS Compliant
    As a citizen of the global village, GIGABYTE exert ourselves to be a pioneer in environment care. Give the whole of Earth a promise that our products do not contain any of the restricted substances in concentrations and applications banned by the RoHS Directive, and are capable of being worked on at the higher temperatures required for lead free solder. One Earth and GIGABYTE Cares!
  • Dual-link DVI
    Able to drive two of the industry's largest and highest resolution flat-panel displays up to 2560x1600.
  • TurboCache Technology
    By allowing the graphics processing unit (GPU) to share the capacity and bandwidth of dedicated video memory and dynamically available system memory, TurboCache turbocharges performance and provides larger total graphics memory.
    Key features of the TurboCache architecture:
    * Patented hardware and software technologies that render directly to system memory.
    * A TurboCache Manager (TCM), which dynamically allocates memory for maximum system performance.
    * Intelligent software algorithms that maximize application performance.
    * Bidirectional PCI Express® bandwidth, in conjunction with TurboCache architecture, which improves graphics price/performance.
  • nView® Multi-Display Technology
    Advanced technology provides the ultimate in viewing flexibility and control for multiple monitors. NVIDIA GPUs are enabled to support multi-displays, but graphics cards vary.
  • PureVideo™
    PureVideo™ technology ensures support for new video formats, while its motion estimation engine (MEE) allows the card to record and play video files simultaneously without interrupting system performance. An added value PureVideo™ provides is its high-definition MPEG-2 and WMV HD hardware accelerator that take on much of the heavy lifting during playback of Hi-Def video. Other video playback enhancements include a unique color correction mechanism that will help to create a home theater from a PC.
  • OpenGL 2.0® Optimizations and Support
    Ensure top-notch compatibility and performance for all OpenGL 2.0 application.
  • Microsoft® DirectX® 10.0 Shader Model 4.0
    Provide infinite program command length creating photorealistic scenes and environments in games, without compromising overall PC performance.
  • PCI Express
    Designed to run perfectly with the next-generation PCI Express bus architecture. This new bus doubles the bandwidth of AGP 8X delivering over 4 GB/sec. in both upstream and downstream data transfers.
  • HDCP Support
    High-Bandwidth Digital Content Protection (HDCP) is a form of copy protection technology designed to prevent transmission of non-encrypted high-definition content as it travels across DVI or HDMI digital connections.
  • Turbo Force Technology
    GIGABYTE's proprietary Turbo Force technology that comprises T3 technology and V-tuner2 overclocking application. T3 technology comprises a series of performance tuning process that ensure maximum stability and enhance over 10% performance.
    * Performance Assurance Tuning: By using a special verification process to make sure the card maintains excellent performance during tough environmental conditions.
    * Stability Tuning: Unique process to measure the chip feature of the GPU and leave enough margin to assure Stability.
    * Power Optimization Tuning: Set the best power balance for the selected clock to enhance product stability and avoid overheating.
  • Screen-Cooling
    The extended heatsink makes the low profile PCB to standard ATX size. This stylish heatsink with special screen design uses the natural air flow in the case to cool down. Therefore, GIGABYTE Screen-Cooling technology provides customers the same high performance in the ultra silent environment. Furthermore, the extended metal cover is able to protect the VGA cable and provides a useful handling. This new “Screen-Cooling” technology creates both cooling ability and outlook. It also creates a new trend for cooling thinking.
  • GIGABYTE V-tuner3
    GIGABYTE's monitoring and overclocking tool V-tuner 3 enables users to dynamically optimize the memory and GPU frequencies; moreover, demonstrates real-time temperature for models integrated with hardware thermal sensor chip.

    What's new with V-tuner3:
    *Auto detect most suitable OC Clock
    *Resume back to original CLK(BIOS Clock) while abnormal shut down
    *Use GPU internal Diode to get temp information, no more H/W monitor chip
    *Show 2D/3D CLK at the same time and tuning separately
    *Save CLK to enable OC every booting
  • Display Support
    *Dual integrated 400MHz RAMDACs for analog display resolutions up to and including 2048x1536 at 75Hz.
    *Dual-link DVI capability to drive the industry's largest and highest resolution digital flat panel displays up to 2560x1600 at 60 Hz.
    *Integrated HDTV encoder provides analog TV-output (Component/Composite/S-Video) up to 1080i resolution....more information
