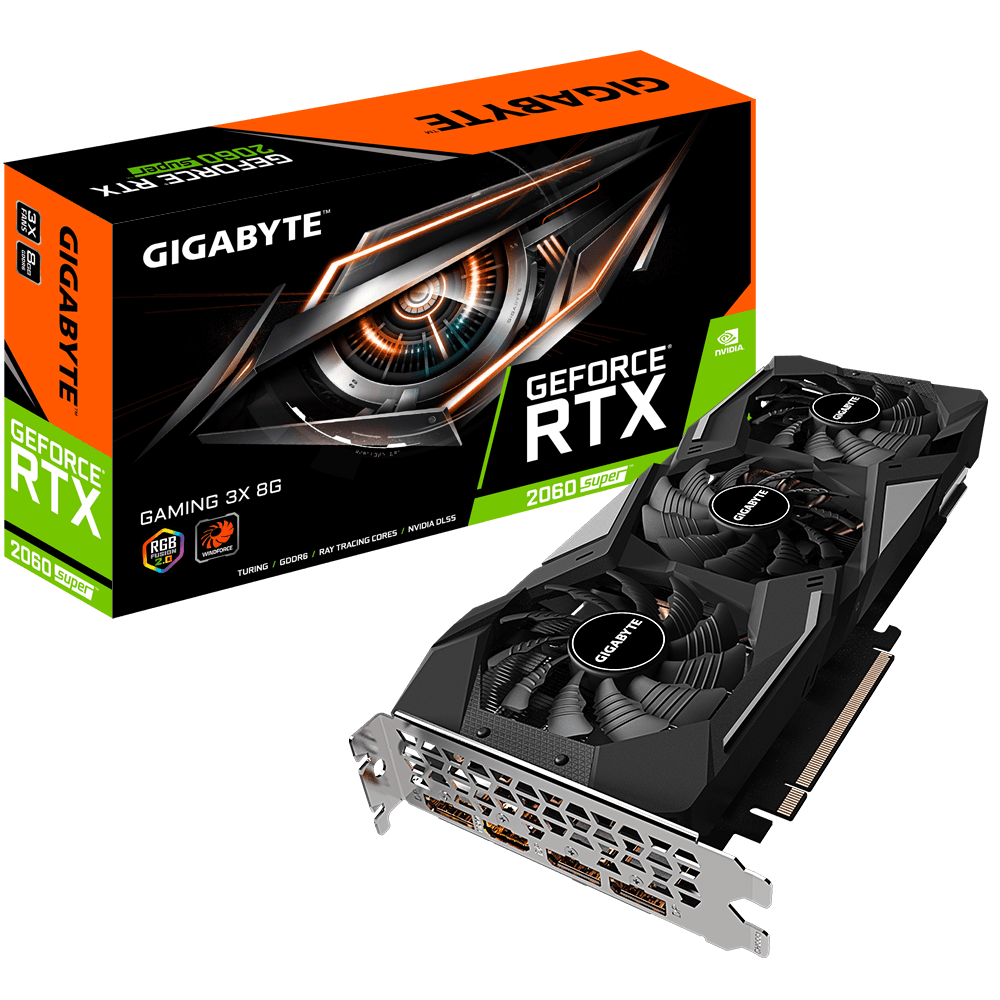

GeForce® RTX 2060 SUPER™ GAMING 3X 8G
Features
Powered by GeForce® RTX 2060 SUPER™
Integrated with 8GB GDDR6 256-bit memory interface
WINDFORCE 3X Cooling System with alternate spinning fans
RGB Fusion 2.0 – 16.7M colors synchronize with other AORUS devices
Metal Back Plate
Core Clock
1650 MHz
WINDFORCE 3X COOLING SYSTEM
The WINDFORCE 3X cooling system features 3x 80mm unique blade fans, alternate spinning fan, 4 composite copper heat pipes, heat-pipe direct touch and 3D active fan functionality, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.
ALTERNATE SPINNING
The GIGABYTE “Alternate Spinning” is the only solution that can solve the turbulent airflow of three fans. The biggest problem with the three fans is turbulence. Since the fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the middle fan in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
ALTERNATE SPINNING
Smooth Airflow
better heat dissipation
STANDARD SPINNING
Turbulent Airflow
worse heat dissipation
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.
HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU, enhancing heat transfer. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.
COMPOSITE HEAT-PIPE
The composite heat-pipe combines thermal conductivity and phase transition to efficiently manage the heat transfer between two solid interfaces which increases cooling capacity.
CYCLING
Smoothly cycles through all colors
CONSISTENT
Choose a color for static light
FLASH
Choose a color for flash effect
DUAL FLASH
Choose a color for double flash effect
BREATHING
Choose a color to fade in and out
BUILT STRONG
Extreme durability and overclocking
The graphics card uses the 6+2 power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life. (Reference card is 5+2 power phase)
POWER INDICATORS
The smart power LED indicator alerts the player when any PCI-E power supply is abnormal.
Light on :
power cable disconnected
Light off :
stable power supply
Blinking :
abnormal power supply
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
Protection Metal Back Plate
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
IN TOTAL COMMAND
The interface and functionality of the software is subject to each model.
AORUS Engine
The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.
* All the images in this page are for illustration only.
* คำว่ำ HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress และโลโก้ HDMI เป็ นเคร ื่องหมำยกำรค้ำหรือเครื่องหมำยกำรค้ำจดทะเบียนของ HDMI Licensing Administrator, Inc.
*รายละเอียดสเปค และคุณลักษณะต่างๆ ของผลิตภัณฑ์อาจแตกต่างกันไปแต่ละประเทศ เราจึงขอแนะนำให้ท่านตรวจสอบรายละเอียดเหล่านี้กับตัวแทนจำหน่ายในประเทศของท่าน สีของผลิตภัณฑ์อาจแตกต่างจากที่ท่านเห็น อันเนื่องมาจากหลายสาเหตุ เช่น การตั้งค่าจอมอนิเตอร์ที่แตกต่างกันไป ถึงแม้ว่าเราจะพยายามนำเสนอข้อมูลที่ครอบคลุมและแม่นยำที่สุดก็ตาม ดังนั้นเราจึงขอสงวนสิทธิ์ในการปรับเปลี่ยนหรือแก้ไขโดยไม่ต้องแจ้งให้ทราบล่วงหน้า
* GIGABYTE graphics cards, except those labeled “Mining Series”, are intended only for use with desktop PCs. Other types of use, such as blockchain computing or cryptocurrency mining, will render the product warranty void.
