H262-P61

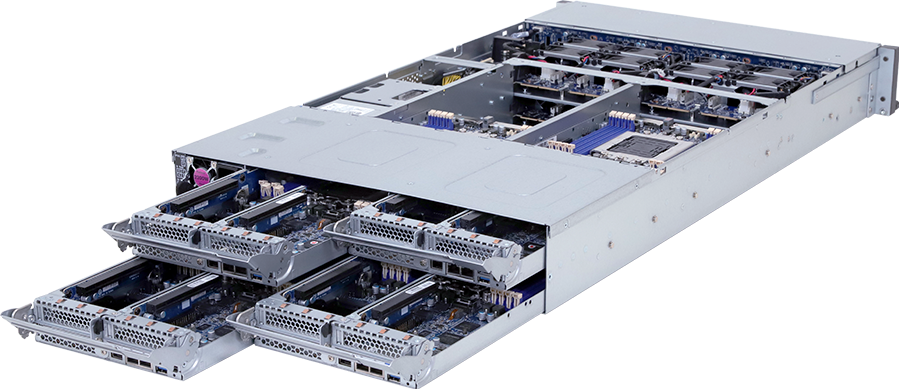

High Density Arm Server - Ampere® Altra® Max - 2U 4-Node 8-Bay SATA
- 2U-4 node rear access server system
- Hardware-level root of trust support
- Ampere® Altra® Max or Altra® Processors
- Dual processor, 7nm technology
- 8-Channel RDIMM/LRDIMM DDR4 per processor, 64 x DIMMs
- 8 x 1Gb/s LAN ports (Intel® I350-AM2)
- 4 x Dedicated management ports
- 1 x CMC port
- 8 x 2.5" SATA hot-swappable bays
- 4 x M.2 slots with PCIe Gen4 x4 interface
- 8 x LP PCIe Gen4 x16 slots
- 4 x OCP 3.0 Gen4 x16 slots
- Dual 2200W (240V) 80 PLUS Platinum redundant power supply
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Dimensions (WxHxD, mm)
2U 4-Node - Rear access
440 x 87.5 x 840
440 x 87.5 x 840
Motherboard
MP62-HD0
CPU
Ampere® Altra® Max or Altra® Processor
Dual processor, 7nm technology
Up to 128-core per processor, TDP up to 250W
NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Dual processor, 7nm technology
Up to 128-core per processor, TDP up to 250W
NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable
Socket
Per Node:
2 x LGA 4926
Total:
8 x LGA 4926
2 x LGA 4926
Total:
8 x LGA 4926
Chipset
System on Chip
Memory
Per node:
16 x DIMM slots
Total:
64 x DIMM slots
DDR4 memory supported only
8-Channel memory per processor architecture
RDIMM modules up to 256GB supported
LRDIMM modules up to 256GB supported
Up to 4TB of memory capacity supported per processor
Memory speed: Up to 3200 MHz
16 x DIMM slots
Total:
64 x DIMM slots
DDR4 memory supported only
8-Channel memory per processor architecture
RDIMM modules up to 256GB supported
LRDIMM modules up to 256GB supported
Up to 4TB of memory capacity supported per processor
Memory speed: Up to 3200 MHz
LAN
Per node:
2 x 1GbE LAN ports (1 x Intel® I350-AM2)
1 x Dedicated management port
Total:
8 x 1GbE LAN ports (4 x Intel® I350-AM2)
4 x Dedicated management ports
1 x 10/100/1000 *CMC port
*CMC: Chassis Management Controller, to monitor all status of computing nodes
2 x 1GbE LAN ports (1 x Intel® I350-AM2)
1 x Dedicated management port
Total:
8 x 1GbE LAN ports (4 x Intel® I350-AM2)
4 x Dedicated management ports
1 x 10/100/1000 *CMC port
*CMC: Chassis Management Controller, to monitor all status of computing nodes
Video
Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Management chip on CMC board:
Integrated in Aspeed® AST2520A2-GP
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM
Management chip on CMC board:
Integrated in Aspeed® AST2520A2-GP
Storage
Per node:
2 x 2.5" SATA hot-swappable bays
Total:
8 x 2.5" SATA hot-swappable bays
2 x 2.5" SATA hot-swappable bays
Total:
8 x 2.5" SATA hot-swappable bays
SAS
N/A
RAID
N/A
Expansion Slots
Per node:
Riser Card CRSH01E:
- 1 x PCIe x16 (Gen4 x16) low-profile slot, from CPU_0
Riser Card CRSH01H:
- 1 x PCIe x16 (Gen4 x16) low-profile slot, from CPU_0
1 x OCP 3.0 slot with PCIe Gen4 x8 or x16 bandwidth*, from CPU_0
1 x M.2 slot:
- M-key
- PCIe Gen4 x4, from CPU_0
- Supports 2280/22110 cards
Total:
Riser Card CRSH01E x 4:
- 4 x PCIe x16 (Gen4 x16) low-profile slots, from CPU_0
Riser Card CRSH01H x 4:
- 4 x PCIe x16 (Gen4 x16) low-profile slots, from CPU_0
4 x OCP 3.0 slots with PCIe Gen4 x8 or x16 bandwidth*, from CPU_0
4 x M.2 slots:
- M-key
- PCIe Gen4 x4, from CPU_0
- Supports 2280/22110 cards
NOTE: Gen4 x16 available for Ampere Altra Max processors only
Riser Card CRSH01E:
- 1 x PCIe x16 (Gen4 x16) low-profile slot, from CPU_0
Riser Card CRSH01H:
- 1 x PCIe x16 (Gen4 x16) low-profile slot, from CPU_0
1 x OCP 3.0 slot with PCIe Gen4 x8 or x16 bandwidth*, from CPU_0
1 x M.2 slot:
- M-key
- PCIe Gen4 x4, from CPU_0
- Supports 2280/22110 cards
Total:
Riser Card CRSH01E x 4:
- 4 x PCIe x16 (Gen4 x16) low-profile slots, from CPU_0
Riser Card CRSH01H x 4:
- 4 x PCIe x16 (Gen4 x16) low-profile slots, from CPU_0
4 x OCP 3.0 slots with PCIe Gen4 x8 or x16 bandwidth*, from CPU_0
4 x M.2 slots:
- M-key
- PCIe Gen4 x4, from CPU_0
- Supports 2280/22110 cards
NOTE: Gen4 x16 available for Ampere Altra Max processors only
Internal I/O
Per node:
1 x M.2 slot
1 x TPM header
1 x BMC SGPIO header
1 x JTAG BMC header
1 x PLD header
1 x Clear CMOS jumper
1 x IPMB connector
1 x M.2 slot
1 x TPM header
1 x BMC SGPIO header
1 x JTAG BMC header
1 x PLD header
1 x Clear CMOS jumper
1 x IPMB connector
Front I/O
Per node:
1 x Power button with LED
1 x ID button with LED
1 x Status LED
1 x System reset button
Total:
4 x Power buttons with LED
4 x ID buttons with LED
4 x Status LEDs
4 x System reset buttons
*1 x CMC status LED
*Only one CMC status LED per system
1 x Power button with LED
1 x ID button with LED
1 x Status LED
1 x System reset button
Total:
4 x Power buttons with LED
4 x ID buttons with LED
4 x Status LEDs
4 x System reset buttons
*1 x CMC status LED
*Only one CMC status LED per system
Rear I/O
Per node:
2 x USB 3.2 Gen1
1 x Mini-DP
2 x RJ45
1 x RJ45 MLAN
Total:
8 x USB 3.2 Gen1
4 x Mini DP
8 x RJ45
4 x RJ45 MLAN
*1 x CMC port
*Only one CMC port per system
2 x USB 3.2 Gen1
1 x Mini-DP
2 x RJ45
1 x RJ45 MLAN
Total:
8 x USB 3.2 Gen1
4 x Mini DP
8 x RJ45
4 x RJ45 MLAN
*1 x CMC port
*Only one CMC port per system
Backplane Board
Speed and bandwidth:
SATA 6Gb/s
SATA 6Gb/s
TPM
1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Optional TPM2.0 kit: CTM010
Power Supply
Dual 2200W 80 PLUS Platinum redundant power supply
AC Input:
- 100-127V~/ 14A, 47-63Hz
- 200-240V~/ 12.6A, 47-63Hz
DC Input:
- 240Vdc/ 12.6A
DC Output: - Max 1200W/ 100-127V~ + 12.12V/ 95.6A + 12Vsb/ 3.5A - Max 2200W/ 200-240V~
+ 12.12V/ 178.1A + 12Vsb/ 3.5A
NOTE: System power supply requires C19 power cord
- 240Vdc/ 12.6A
DC Output: - Max 1200W/ 100-127V~ + 12.12V/ 95.6A + 12Vsb/ 3.5A - Max 2200W/ 200-240V~
+ 12.12V/ 178.1A + 12Vsb/ 3.5A
NOTE: System power supply requires C19 power cord
System Management
Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Red Hat Enterprise Linux 8.3 (aarch64) or later
Red Hat Enterprise Linux 8.5 (aarch64) or later
SUSE Linux Enterprise Server 15 SP2 (aarch64) or later
SUSE Linux Enterprise Server 15 SP3 (aarch64) or later
Ubuntu 18.04.5 LTS (aarch64) or later
Ubuntu 20.04.1 LTS (aarch64) or later
Fedora Server 33-1.2 (aarch64) or later
Fedora Server 35-1.2 (aarch64) or later
OracleLinux R8 U2
OracleLinux R8 U5
Debian 10.9 (Buster)
Debian 11.1
Red Hat Enterprise Linux 8.5 (aarch64) or later
SUSE Linux Enterprise Server 15 SP2 (aarch64) or later
SUSE Linux Enterprise Server 15 SP3 (aarch64) or later
Ubuntu 18.04.5 LTS (aarch64) or later
Ubuntu 20.04.1 LTS (aarch64) or later
Fedora Server 33-1.2 (aarch64) or later
Fedora Server 35-1.2 (aarch64) or later
OracleLinux R8 U2
OracleLinux R8 U5
Debian 10.9 (Buster)
Debian 11.1
System Fans
8 x 80x80x38mm (16,300rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
1180 x 779 x 300 mm
Packaging Content
1 x H262-P61
8 x CPU heatsinks
1 x 3-Section Rail Kit
8 x CPU heatsinks
1 x 3-Section Rail Kit
Part Numbers
- Barebone package: 6NH262P61MR-00-1*
- Motherboard: 9MP62HD0NR-00
- 3-Section Rail kit: 25HB2-AN6103-K0R
- CPU heatsink: 25ST1-45320B-A3R/25ST1-45320C-C1R
- Backplane board - CBPH080: 9CBPH080NR-00
- Riser card - CRSH01E: 9CRSH01ENR-00
- Riser card - CRSH01H: 9CRSH01HNR-00
- Fan module: 25ST2-883828-D0R/25ST2-88382A-D0R
- Power Supply: 25EP0-222003-D0S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- Ring topology kit: 6NH262Z65SR-00-100
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Motherboard: 9MP62HD0NR-00
- 3-Section Rail kit: 25HB2-AN6103-K0R
- CPU heatsink: 25ST1-45320B-A3R/25ST1-45320C-C1R
- Backplane board - CBPH080: 9CBPH080NR-00
- Riser card - CRSH01E: 9CRSH01ENR-00
- Riser card - CRSH01H: 9CRSH01HNR-00
- Fan module: 25ST2-883828-D0R/25ST2-88382A-D0R
- Power Supply: 25EP0-222003-D0S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- Ring topology kit: 6NH262Z65SR-00-100
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SUPPORT
BIOS
Utility
Firmware
QVL
BIOS
Warning:
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
Because BIOS flashing is potentially risky, if you do not encounter problems using the current version of BIOS, it is recommended that you not flash the BIOS. To flash the BIOS, do it with caution. Inadequate BIOS flashing may result in system malfunction.
What is a BETA?
BETA describes a new version that is reliable yet may not include all the features of the final product. During this phase we are previewing new features and gathering customer input to insure our product provides the best experience possible.
- All
- All
- Windows Server 2022
- Windows Server 2019
- Windows Server 2016 R2 64bit
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Windows Server 2012 64bit
- Windows 10 64bit
- Ubuntu
- Linux CentOS
- Linux
Utility
Description
Version
Size
Date
GSM CLI
Version : 2.1.77
147.89 MB
Sep 27, 2024
OS: Windows Server 2012 64bit,Windows Server 2012 R2 64bit,Linux CentOS,Windows 10 64bit,Ubuntu,Windows Server 2016 R2 64bit,Windows Server 2019,Windows Server 2022
GSM Server
Version : 2.12
926.33 MB
Jan 18, 2023
OS: Linux,Windows Server 2016 64bit,Windows Server 2019
GSM Agent
Ubuntu Server for ARM 22.04.1 LTS
(Including installation guide)
Ubuntu Server for ARM 22.04.1 LTS
(Including installation guide)
Version : 2.5
226.76 MB
Oct 14, 2022
OS: Ubuntu
Firmware
Description
Version
Size
Date
BMC firmware with embedded GIGABYTE Management Console (AST2600)
Version : 13.06.09
123.77 MB
Sep 05, 2024
Engelska
GIGABYTE Management Console Web GUI Tool
GCT Diagnostic Analyzer
GCT Diagnostic Analyzer
Version : 1.0
2519.27 MB
Aug 15, 2024
Engelska
CMC Firmware (AST2520)
Note: Please make sure the system CMC firmware version is 12.40.19 or later before updating BMC firmware
Note: Please make sure the system CMC firmware version is 12.40.19 or later before updating BMC firmware
Version : 12.41.36
83.16 MB
Nov 02, 2023
Engelska
Manual
Description
Version
Size
Date
User Guide - GIGABYTE Management Console (AMI AST2600)
Version : 1.0
11.72 MB
Aug 12, 2024
Engelska
Description
Version
Size
Date
RESOURCES
Articles
Video
Others
Back to H262-P61
