GA-Z97X-Game Plus (rev. 1.0)
Intel® Z97 Chipset
![](/FileUpload/Global/Other/2/Photo/3826.png)
- تدعم الجيل الرابع و الخامس من معالجات Core™ من إنتل
- البرنامج الصوتى SoundBlaster X-Fi MB3 gaming من Creative
- مكثفات صوتية عالية الجودة
- خاصية منع التشوش الصوتى ذات المسار المميز بإضاءة LED
- شريحة صوت Realtek ALC1150 لصوت فائق الوضوح بمعدل نقاء 115dB SNR مع مكبر صوت خلفى مدمج
- شريحة التوصيل الشبكى المخصصة للألعاب Killer™ E2200
- دعم تركيب العديد من كروت الجرافيك
- دعم واجهات SATA Express لسرعة نقل بيانات تصل إلى 10 Gb/s
- واجهات M.2 لتركيب وحدات تخزين SSD لسرعة نقل بيانات تصل إلى 10 Gb/s
- مكثفات صلبة فائقة التحمل ذات عمرطويل
- مركز للتطبيقات APP Center يشمل أداة EasyTune™ و Cloud Station™
- تقنية UEFI DualBIOS™ من جيجابايت
-
-
High Quality Audio CapacitorsGIGABYTE motherboards use high end audio capacitors. These professional audio capacitors deliver the highest quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.
-
GIGABYTE AMP-UP Audio™ TechnologyGIGABYTE G1™ Gaming motherboards are equipped with the GIGABYTE exclusive AMP-UP Audio Technology, which provides the industry’s highest level of onboard audio features and technologies. With GIGABYTE AMP-UP Audio, gamers and audiophiles are able to experience crisp, ultra realistic sound effects while gaming, and the richest possible sound experience when listening to their favorite music and movies.
-
Realtek ALC1150 115dB SNR HD AudioThe ALC1150 is a high-performance multi-channel High Definition Audio Codec that delivers an exceptional audio listening experience with up to 115dB SNR, ensuring users get the best possible audio quality from their PC.
The ALC1150 provides ten DAC channels that simultaneously support 7.1-channel sound playback, plus 2 channels of independent stereo sound output (multiple streaming) through the front panel stereo outputs. Two stereo ADCs are integrated and can support a microphone array with Acoustic Echo Cancellation (AEC), Beam Forming (BF), and Noise Suppression (NS) technologies. The ALC1150 incorporates Realtek proprietary converter technology to achieve Front differential output 115dB Signal-to-Noise ratio (SNR) playback (DAC) quality and 104dB SNR recording (ADC) quality. -
Built-in Rear Audio Amplifier
Specially designed for gamers, GIGABYTE motherboards utilize a high-capacity amplifier which is able to drive 600Ω loads, giving gamers a fuller range of dynamic sound with crisper details and less distortion when using high quality professional headphones. -
Additional Sound Blaster X-Fi MB3GIGABYTE G1™ Gaming motherboards also include Sound Blaster X-Fi MB3 software suite. Sound Blaster X-Fi MB3 software suite is a powerful audio platform offering premium audio quality, effects and features for gamers. It features SBX Pro Studio™ suite of technologies, which is designed to give you the fullest audio experience.
-

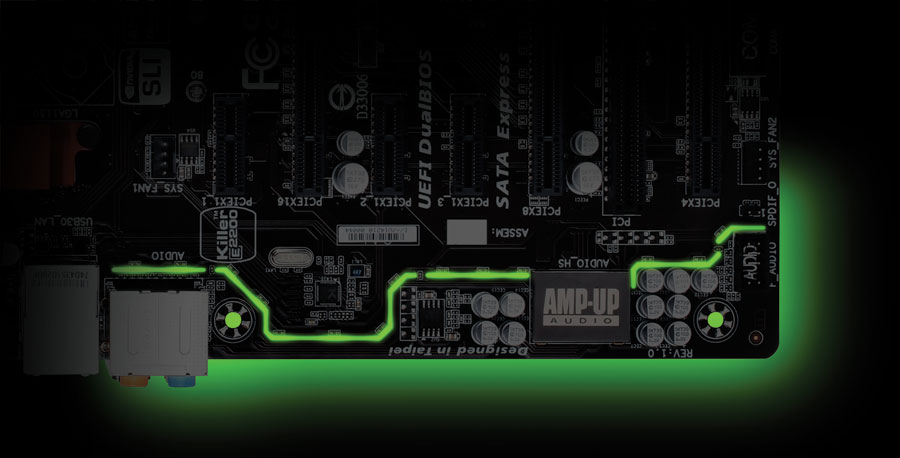

Dedicated Audio Hardware Zone+ Separation on the PCB layer protects the board's sensitive analog audio components.
+ Separate analog and digital ground to protect against Electromagnetic Interference (EMI).
+ LED trace path lighting illuminates to show the separation of the PCB layers.
-
من خلال وضع القنوات الصوتية اليمنى و اليسرى على طبقات منفصلة من اللوحة الرئيسية تستطيع سلسلة لوحات جيجابايت فائقة التحمل منع تداخل الإشارات و الحفاظ على أعلى جودة صوتية. القنوات الصوتية اليسرى
بطبقات اللوحة الرئيسيةالقنوات الصوتية اليمنى
بطبقات اللوحة الرئيسيةالصور السابقة للاطلاع فقط.
-
-
Killer™ E2200 Gaming NetworkNO LAG, JUST FRAG!
GIGABYTE G1™ Gaming motherboards feature the Killer™ E2200 from Qualcomm Atheros, a high-performance, adaptive gigabit Ethernet controller that offers better online gaming and online media performance compared to standard solutions.
-
-
Extreme Multi-GPU SupportFlexible graphics capabilities supported for either 3-Way CrossFire™ or 2-Way SLI™ action, delivering the ultimate in graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.
-
SATA Express ConnectorGIGABYTE motherboards feature an onboard SATA Express connector which provides performance far superior to that of current SATA technologies. SATA Express features data transfer rates of up to 10Gb/s, considerably higher than SATA Revision 3 (6Gb/s), which won’t bottleneck faster NAND flash technologies in cutting edge SSDs. SATA Express combines the benefits of PCI-Express and SATA to provide much higher bandwidth, allowing SATA Express based drives to perform at similar speeds as PCI-Express based drives.
-
M.2 Onboard ConnectorGIGABYTE G1™ Gaming motherboards come equipped with an onboard M.2 slot, providing users PCI-Express connectivity for SSD devices. Delivering up to 10 Gb/s data transfer speeds, M.2 offers users considerably faster storage performance than current mSATA and even SATA Revision 3 (6Gb/s) storage devices.
-
GIGABYTE App Center Including EasyTune™ and Cloud Station™ UtilitiesGIGABYTE APP Center gives you easy access to wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to launch all GIGABYTE apps installed on your system.
GIGABYTE EasyTune ™ App GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment.
With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.GIGABYTE Cloud Station™ APP GIGABYTE Cloud Station™ is composed of several GIGABYTE's unique apps that allow your smart phones/tablet device to communicate, share resources, and control desktop PCs via wireless connection. -
-

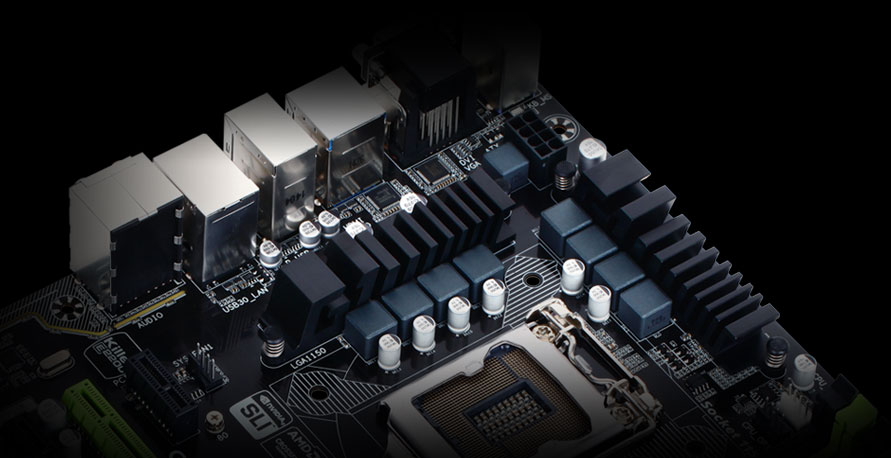

All New Heat Sink Design
-
4K Ultra HD Support4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel® HD Graphics via HDMI.
-
HDMI™-The Next Generation Multimedia InterfaceHDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.
-
GIGABYTE OPT Fan SupportMany of today’s 3rd party water cooling systems require CPU fan power support for both the cooling fan and the water pump. GIGABYTE 9 Series motherboards feature OPT fan support, an additional CPU fan pin header that can be used to connect a water pump and configured for continuous full speed operation. The OPT Fan is also useful for high performance coolers employing two fans.
-
All Solid Caps and Low RDS(on) MOSFETsGIGABYTE uses All Solid Caps (Capacitors) and Low RDS(on) MOSFETs which are rated to work at higher temperatures to provide a longer lifespan.
-
5x (15μ) Gold Plated CPU Socket DesignGIGABYTE 9 Series motherboards come equipped with a gold plated CPU socket, which means that enthusiasts can enjoy absolute reliability and longevity for the CPU socket overtime, without having any concerns about corroded pins and bad contacts.
-
Game Controller
GIGABYTE Game Controller allows you to define your own hotkeys and change the mouse sensitivity, helping you make the most out of your keyboard and mouse in games. Hot Key:
Create macro commands and define your own hotkeys to quickly perform the function your want.*Create the hotkeys by yourself on normal keyboard.
Speed:
Using the Sniper key you can switch the mouse sensitivity when you are in sniper mode for better sniper accuracy.With Speed ControlWithout Speed ControlEnable mouse Sniper Mode to make your shot quick and stable.High DPI Mouse in sniper mode : Hard to focus
![](/FileUpload/global/Other/11/Photo/hdmi_logo.png)
* يراجتلا رهظملاو ،HDMI High-Definition Multimedia Interfaceو ،HDMI تاحلطصم دعُ ت HDMI Licensing ةكرشل ةلجسم ةيراجت تاملاع وأ ةيراجت تاملاع ،HDMI تاراعشو ،HDMI Administrator, Inc.
* كل المعلومات المذكورة للاطلاع فقط. وتحتفظ جيجابايت بالحق في تعديلها أو مراجعتها في أي وقت دون اخطار مسبق.
* مستوى الأداء المعروض اعتماداً على أقصي القيم الافتراضية للواجهات والتي زودنا بها المصنعين المختلفين والذين وضعوا المعايير القياسية لهذه الواجهات. وقد يختلف مستوى الأداء الفعلي باختلاف مواصفات الحاسب.
* كل العلامات التجارية والشعارات هي ملك لحامليها.
* نظرأً لخصائص الحاسب القياسية، فإن قدراً من السعة الكلية للذاكرة يتم استخدامه من قبل الحاسب ولذلك تصبح سعة الذاكرة الحقيقية أقل من السعة المذكورة على وحدات الذاكرة.
