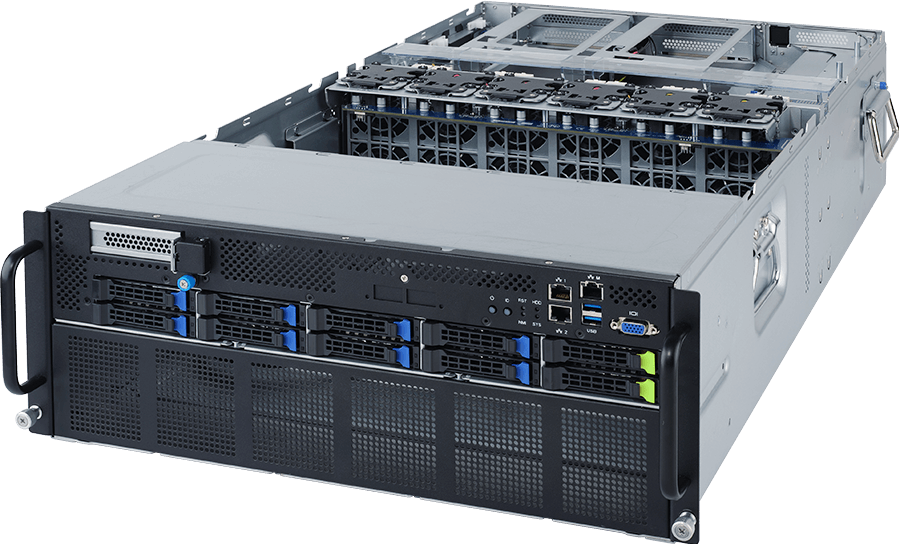

- G482-Z54
- NVIDIA-Certified Systems™ - Data Center Servers
- Supports up to 8 x Dual slot Gen4 GPUs
- Dual AMD EPYC™ 7002 Series Processors
- 8-Channel DDR4 RDIMM/LRDIMM, 32 x DIMMs
- 2 x 1Gb/s LAN ports via Intel® I350-AM2
- 2 x 2.5" Gen4 NVMe hot-swappable bays
- 8 x 2.5" SATA hot-swappable bays
- 8 x FHFL PCIe Gen4 x16 slots for GPUs
- 1 x FHFL PCIe Gen4 x16 slot
- 2+1 2200W 80 PLUS Platinum redundant power supplies
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
SPECIFICATIONS
Dimensions (WxHxD, mm)
4U
448 x 176 x 880
448 x 176 x 880
Motherboard
MZ52-G41
CPU
AMD EPYC™ 7002 Series Processors
Dual processor, 7nm technology
Up to 64 cores, 128 threads per processor
TDP up to 225W, cTDP up to 280W
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Dual processor, 7nm technology
Up to 64 cores, 128 threads per processor
TDP up to 225W, cTDP up to 280W
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket
2 x LGA 4094
Socket SP3
Socket SP3
Chipset
System on Chip
Memory
32 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
Memory speed: Up to 3200*/2933 MT/s
*Follow BIOS setting and memory QVL if running 3200 MT/s with 2DPC.
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
Memory speed: Up to 3200*/2933 MT/s
*Follow BIOS setting and memory QVL if running 3200 MT/s with 2DPC.
LAN
Front side:
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2500
- 1 x VGA port
- 1 x VGA port
Storage
Front side:
2 x 2.5" Gen4 NVMe hot-swappable bays, from CPU_0
8 x 2.5" SATA hot-swappable bays, from CPU_0*
*SATA devices supported only
2 x 2.5" Gen4 NVMe hot-swappable bays, from CPU_0
8 x 2.5" SATA hot-swappable bays, from CPU_0*
*SATA devices supported only
SAS
N/A
RAID
N/A
Expansion Slots
4 x PCIe x16 (Gen4 x16) FHFL slots, from CPU_0, for GPUs
4 x PCIe x16 (Gen4 x16) FHFL slots, from CPU_1, for GPUs
1 x PCIe x16 (Gen4 x16) FHFL slot on the rear side, from CPU_1*
*SAS cards with internal cable not supported due to cable routing limitation.
- System is validated for population with a uniform GPU model.
- Support is not provided for mixed GPU populations.
4 x PCIe x16 (Gen4 x16) FHFL slots, from CPU_1, for GPUs
1 x PCIe x16 (Gen4 x16) FHFL slot on the rear side, from CPU_1*
*SAS cards with internal cable not supported due to cable routing limitation.
- System is validated for population with a uniform GPU model.
- Support is not provided for mixed GPU populations.
Internal I/O
1 x TPM header
Front I/O
2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x Storage activity LED
1 x System status LED
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x Storage activity LED
1 x System status LED
Rear I/O
N/A
Backplane Board
Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s
PCIe Gen4 x4 or SATA 6Gb/s
TPM
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply
2+1 2200W 80 PLUS Platinum redundant power supplies
AC Input:
- 100-127V~/ 14A, 47-63Hz
- 200-240V~/ 12.6A, 47-63Hz
DC Input: (Only for China)
- 240Vdc/ 12.6A
DC Output:
- Max 1200W/ 100-127V~
+12.12V/ 95.6A
+12Vsb/ 3.5A
- Max 2200W/ 200-240V~ or 240Vdc Input
+12.12V/ 178.1A
+12Vsb/ 3.5A
Note: The system power supply requires C19 power cord.
AC Input:
- 100-127V~/ 14A, 47-63Hz
- 200-240V~/ 12.6A, 47-63Hz
DC Input: (Only for China)
- 240Vdc/ 12.6A
DC Output:
- Max 1200W/ 100-127V~
+12.12V/ 95.6A
+12Vsb/ 3.5A
- Max 2200W/ 200-240V~ or 240Vdc Input
+12.12V/ 178.1A
+12Vsb/ 3.5A
Note: The system power supply requires C19 power cord.
System Management
Aspeed® AST2500 Baseboard Management Controller
GIGABYTE Management Console web interface
GIGABYTE Management Console web interface
- Dashboard
- JAVA Based Serial Over LAN
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage/Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Citrix Hypervisor 8.1.0 or later
Red Hat Enterprise Linux 7.6 or later
Red Hat Enterprise Linux 8.0 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP4 or later
SUSE Linux Enterprise Server 15 SP1 or later
Ubuntu 16.04.6 LTS or later
Ubuntu 18.04.3 LTS or later
Ubuntu 20.04 LTS or later
VMware ESXi 6.5 EP15 or later
VMware ESXi 6.7 Update3 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Red Hat Enterprise Linux 7.6 or later
Red Hat Enterprise Linux 8.0 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP4 or later
SUSE Linux Enterprise Server 15 SP1 or later
Ubuntu 16.04.6 LTS or later
Ubuntu 18.04.3 LTS or later
Ubuntu 20.04 LTS or later
VMware ESXi 6.5 EP15 or later
VMware ESXi 6.7 Update3 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later
Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
System Fans
12 x 60x60x38mm (21,700rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Weight
Net Weight: 32 kg
Packaging Dimensions
1109 x 609 x 606 mm
Packaging Content
1 x G482-Z54
2 x CPU fansinks
8 x GPU power cables (CPU 8pin, 100mm)
1 x L-shape Rail kit
2 x CPU fansinks
8 x GPU power cables (CPU 8pin, 100mm)
1 x L-shape Rail kit
Part Numbers
- Barebone package: 6NG482Z54MR-00-1*
- Motherboard: 9MZ52G41NR-00
- L-shape Rail kit: 25HB2-A96100-K0R
- CPU fansink: 12SF2-01A067-00R
- Fan module kit: 6NG481HAASR-00-100
- GPU power cable (CPU 8pin, 100mm): 25CRI-100303-B0R
- Power supply: 25EP0-222008-D0S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- RMA packaging: 6NG482Z54SR-RMA-A100
- Motherboard: 9MZ52G41NR-00
- L-shape Rail kit: 25HB2-A96100-K0R
- CPU fansink: 12SF2-01A067-00R
- Fan module kit: 6NG481HAASR-00-100
- GPU power cable (CPU 8pin, 100mm): 25CRI-100303-B0R
- Power supply: 25EP0-222008-D0S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- RMA packaging: 6NG482Z54SR-RMA-A100
