TRX40 DESIGNARE (rev. 1.1/1.2/1.3)

rev. 1.0

Key Features

AMD TRX40 Chipset

Compare

1/5

AMD TRX40 DESIGNARE matična ploča sa direktne Direct 16+3 faze Infineon digitalne VRM, hladnjakom sa nizom rebara, dva Intel LAN, 4 PCIe 4.0 M.2 sa termalnim štitovima, GC-Titan Ridge dodatnom karticom i AORUS Gen4 AIC adapterom u pakovanju, Intel^® WiFi 6 802.11ax,120dB SNR AMP-UP Audio

Podržava 3. gen. AMD Ryzen™ Threadripper™ procesora
Četvorokanalni ECC/ Ne-ECC DDR4 bez bafera, 8 DIMM-ova
16+3 faza Infineon digitalnog VRM rešenja sa 70A Power Stage
Tri termalne zaštite sa nizom rebara i 8 mm mega vrućom cevi
Dva Intel^® gigabitna LAN-a sa cFosSpeed kako bi se skratilo vreme odziva
4 ultra-brza NVMe PCIe 4.0 x4 M.2 sa povećanim termalnim štitovima
Integrisani Intel^® WiFi 6 802.11ax 2T2R & BT 5 sa antenom
120dB SNR AMP-UP audio sa ALC1220-VB i WIMA audio kondenzatorima
U paketu 40Gb/s GC-Titan Ridge dodatna kartica

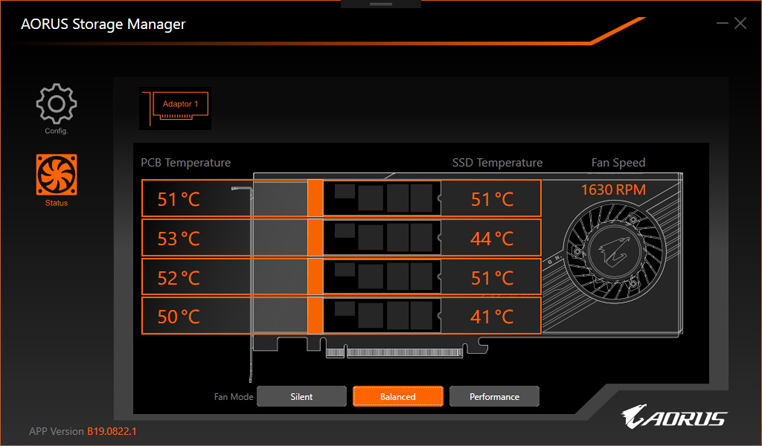

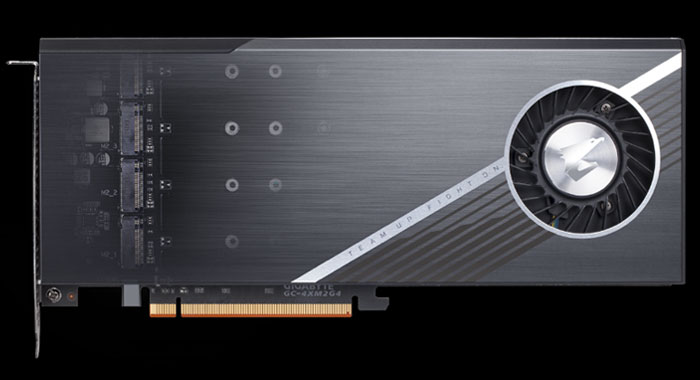

Ekskluzivni AORUS Gen4 AIC adapter za 4 dodatna NVMe PCIe 4.0/3.0 x4 M.2

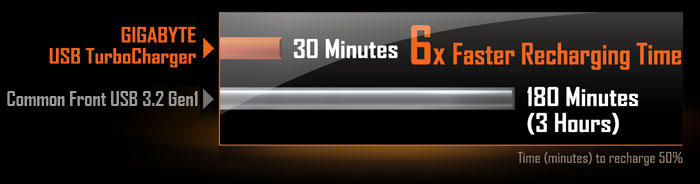

USB TurboCharger za mobilne uređaje za podršku za brzo punjenje
RGB FUSION sa višezonskim adresabilnim LED svetlima, podržava adresabilne LED & RGB LED trakice
Smart Fan 5 poseduje više temperaturnih senzora, hibridne priključke ventilatora sa FAN STOP funkcijom i detekciju buke
Prednji i zadnji USB 3.2 Gen 2 Type-C™ priključak

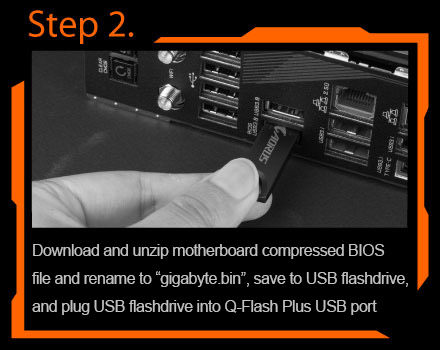

Q-Flash Plus ažuriranje BIOS-a bez instalacije CPU-a, memorije i grafičke karte

SPEC OVERVIEW

PERFORMANCE

CONNECTIVITY

COOLING

AUDIO

ULTRA DURABLE

LIGHTING

EXCELLENCE

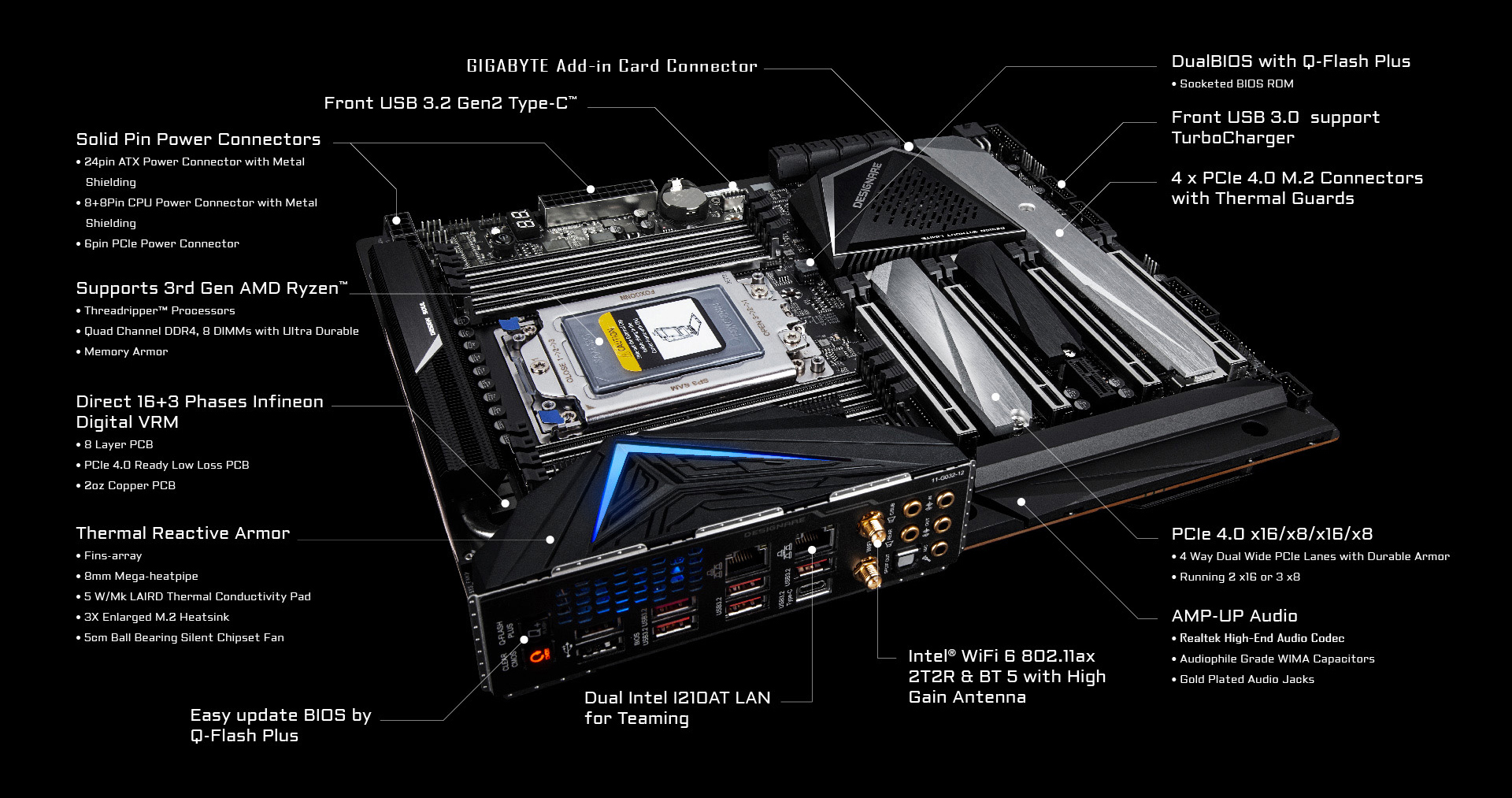

SPEC OVERVIEW

Front USB 3.2 Gen2 Type-C™

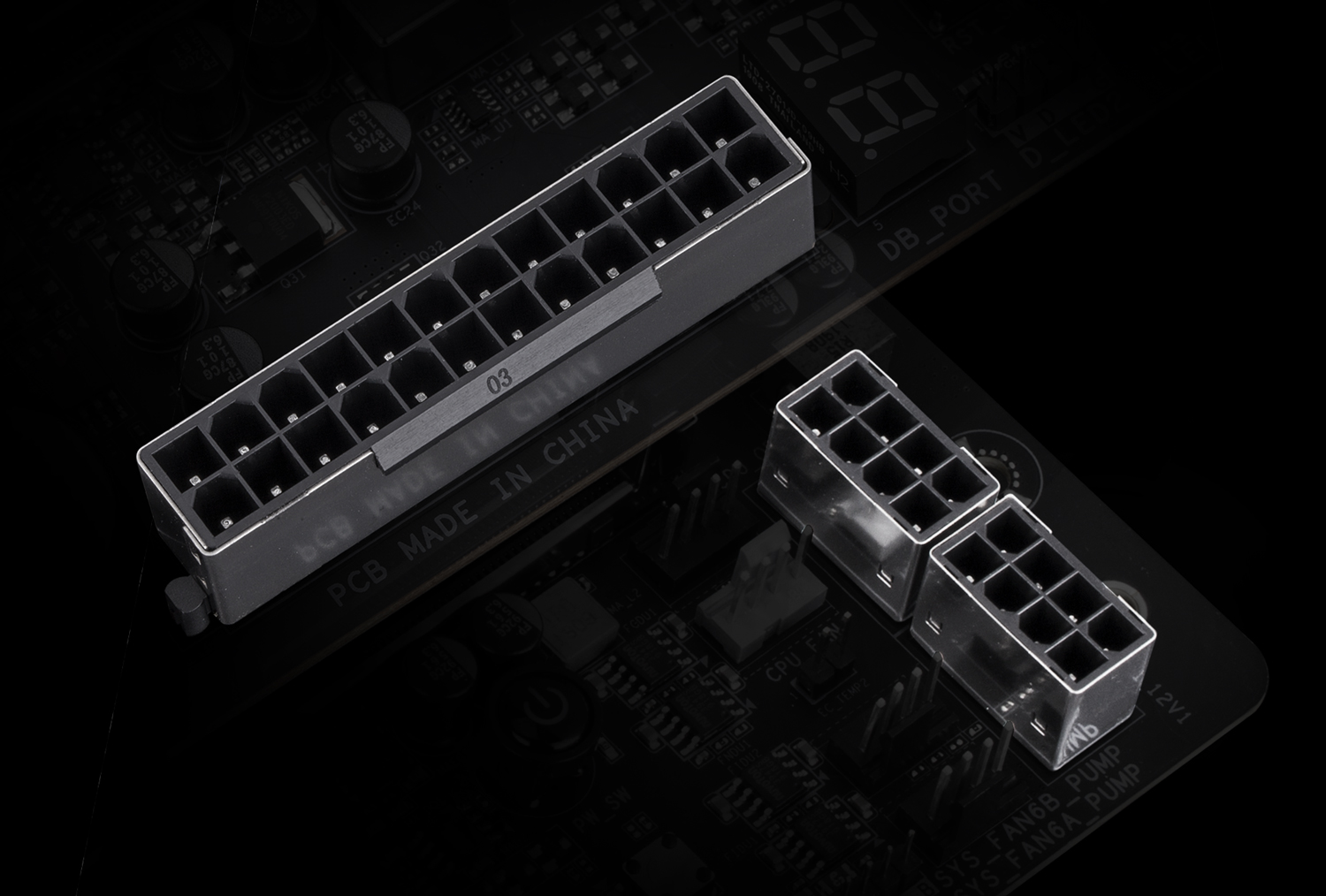

Solid Pin Power Connectors

• 24pin ATX Power Connector
• 8+8Pin CPU Power Connector with Metal Shielding
• 6pin PCIe Power Connector

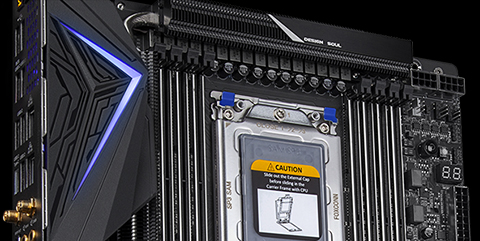

Supports 3rd Gen AMD Ryzen™ Threadripper™ Processors

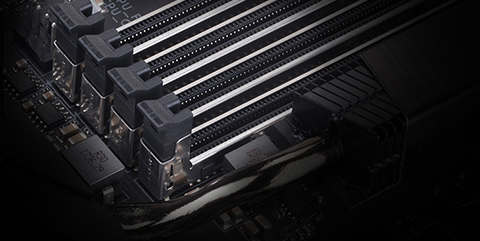

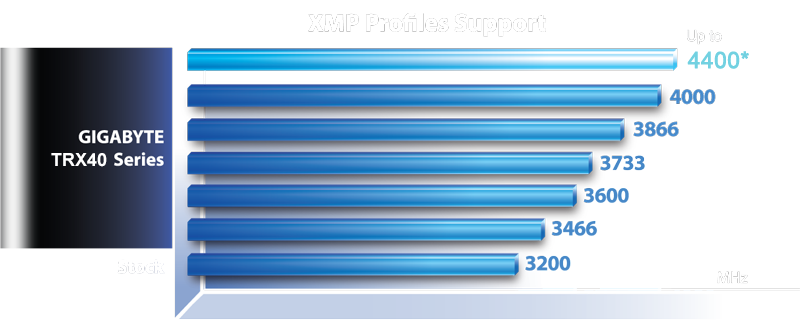

• Quad Channel DDR4, 8 DIMMs with Ultra Durable Memory Armor

Advanced Thermal Design

• Fins-Array
• 8mm Mega-Heatpipe
• 5 W/mK LAIRD thermal conductivity pad
• 3X Enlarged M.2 Heatsink
• 5cm Ball Bearing Silent Chipset Fan

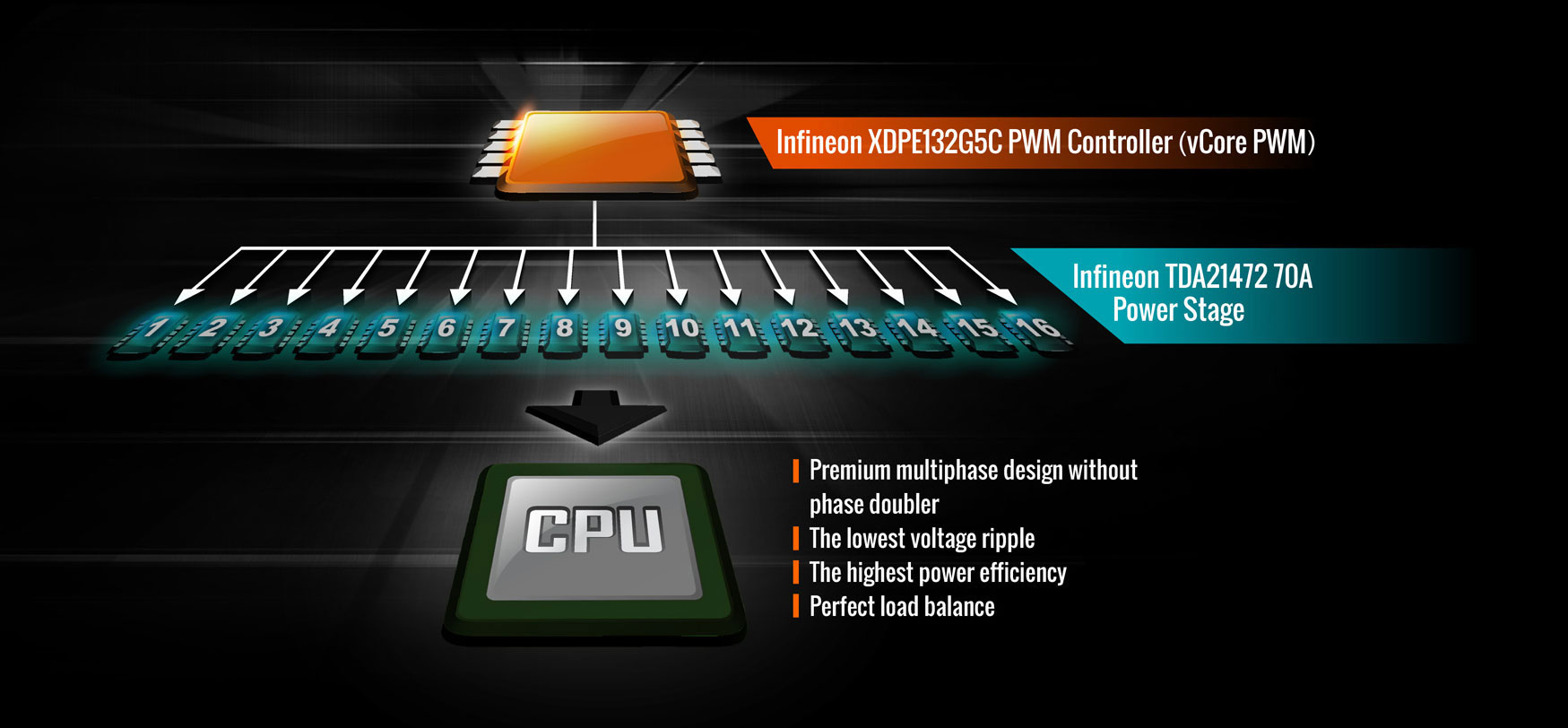

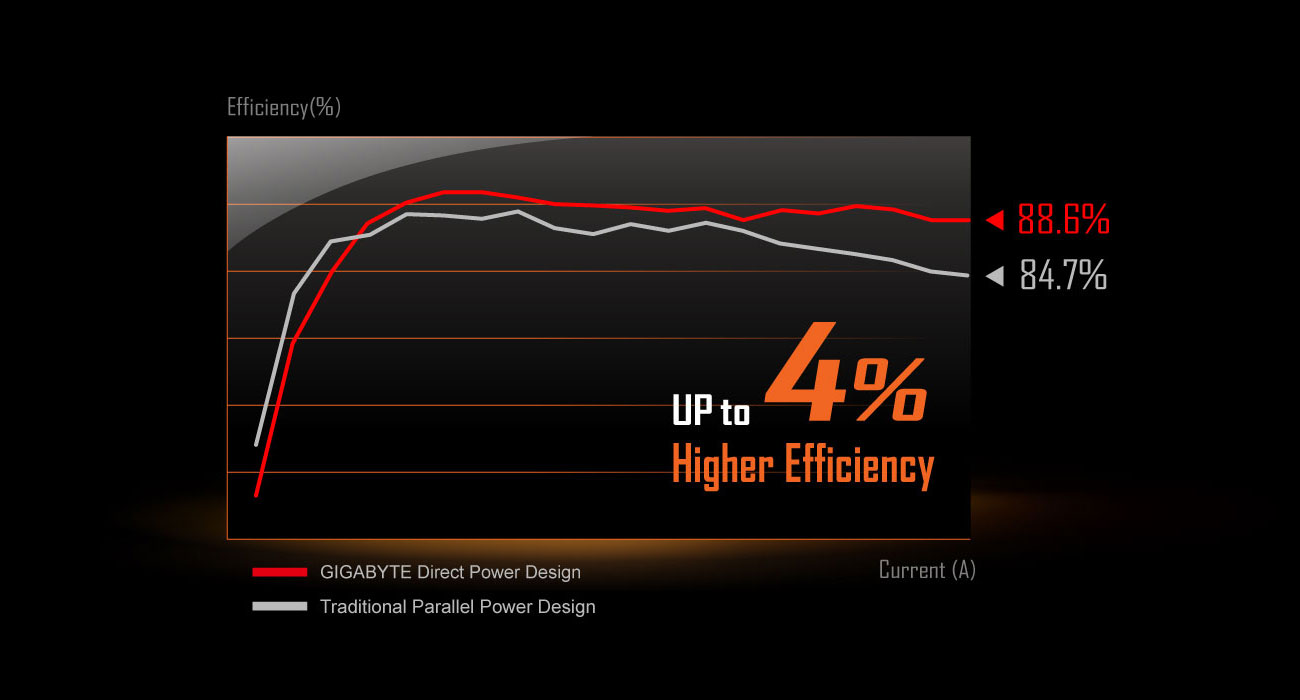

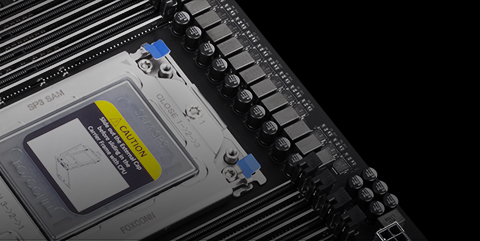

Direct 16+3 Phases Infineon Digital VRM

• 8 Layer PCB
• PCIe 4.0 Ready Low Loss PCB
• 2oz Copper PCB

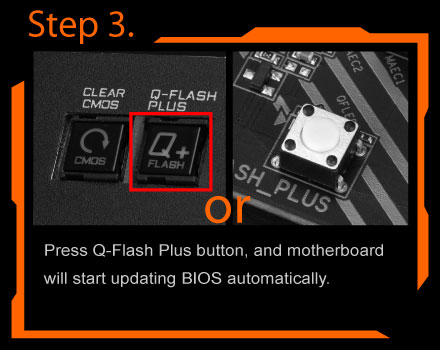

Easy update BIOS by Q-Flash Plus

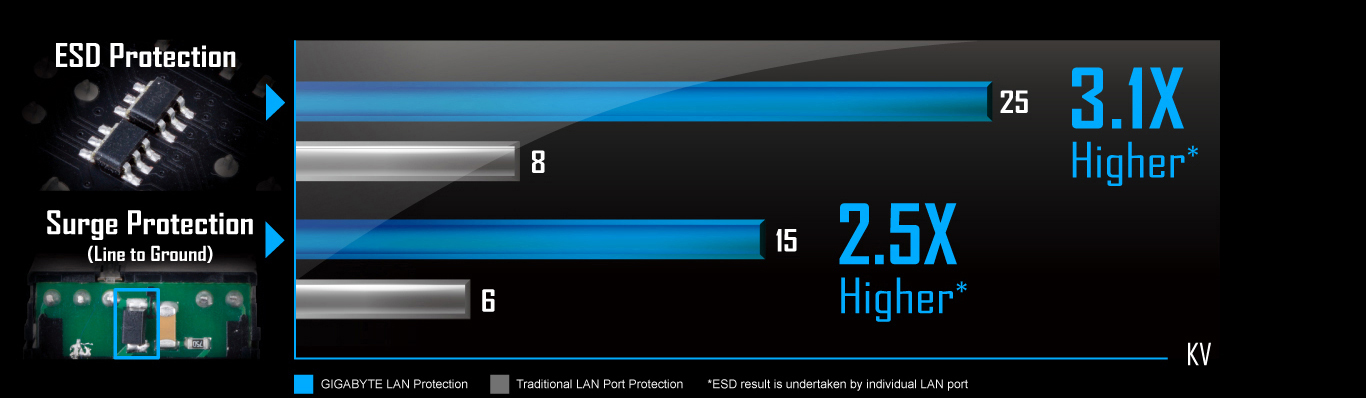

Dual Intel i210AT LAN for Teaming

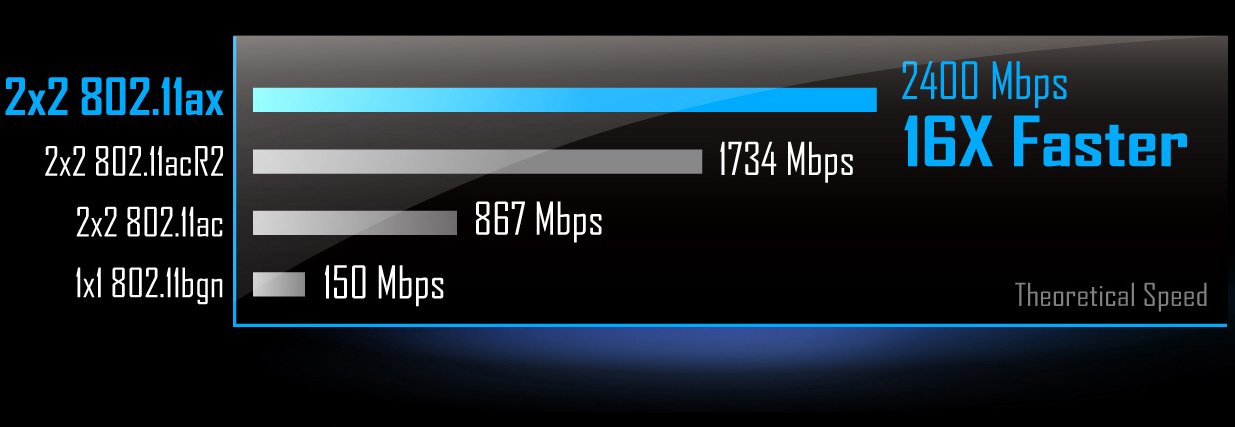

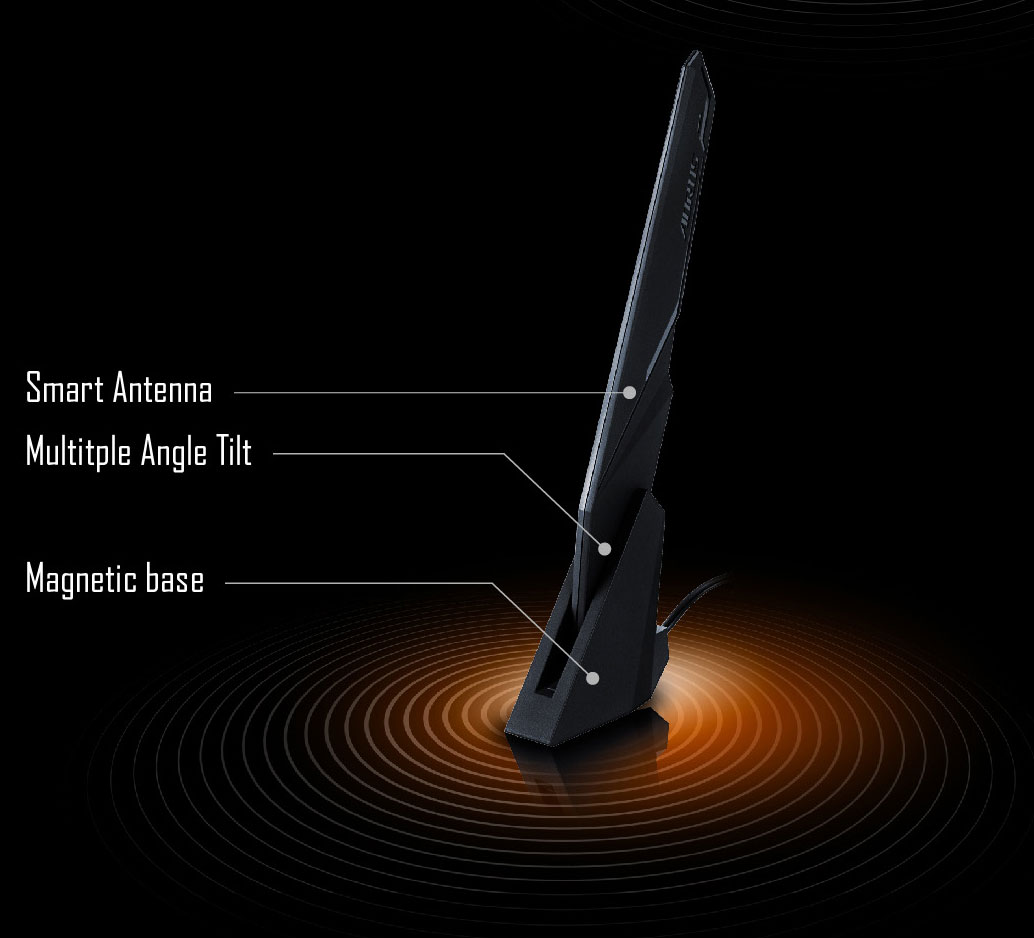

Intel^® WiFi 6 802.11ax 2T2R & BT 5 with High Gain Antenna

AMP-UP Audio

• ALC 1220-VB Audio Codec

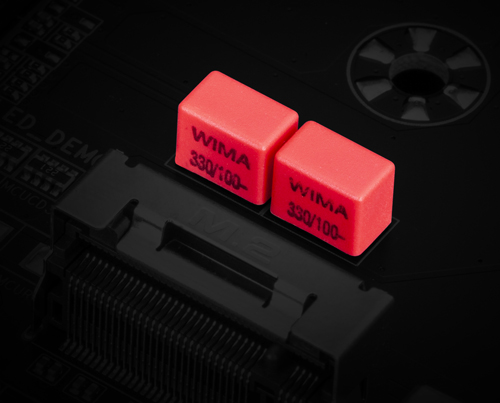

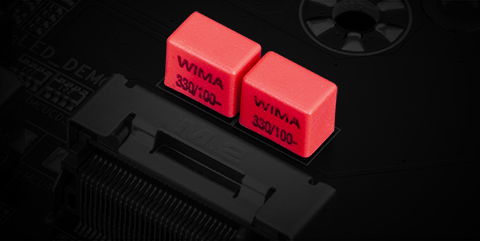

• Audiophile Grade WIMA Capacitors
• Gold Plated Audio Jacks

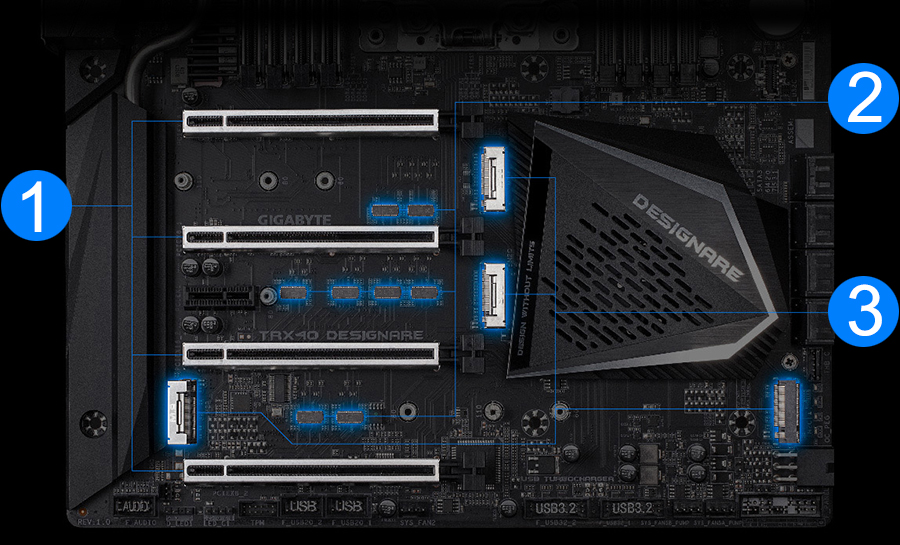

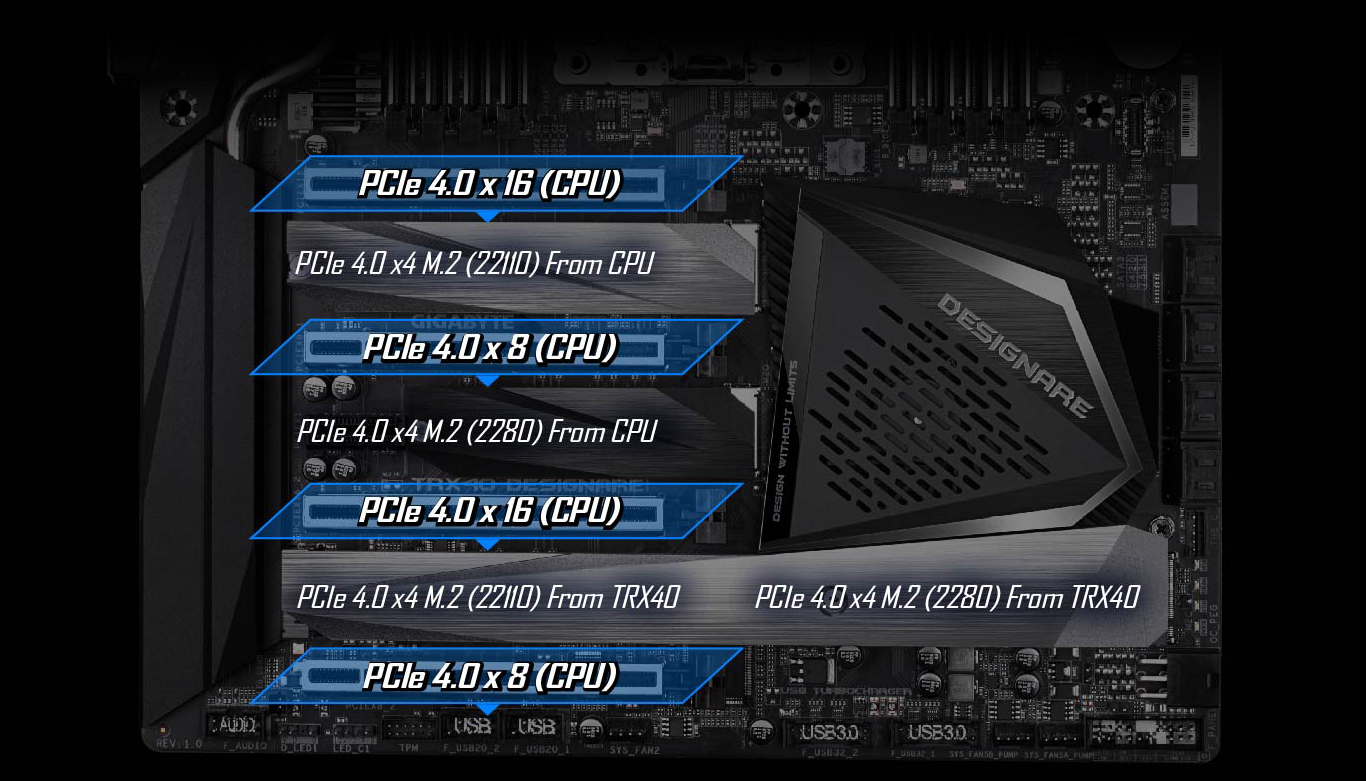

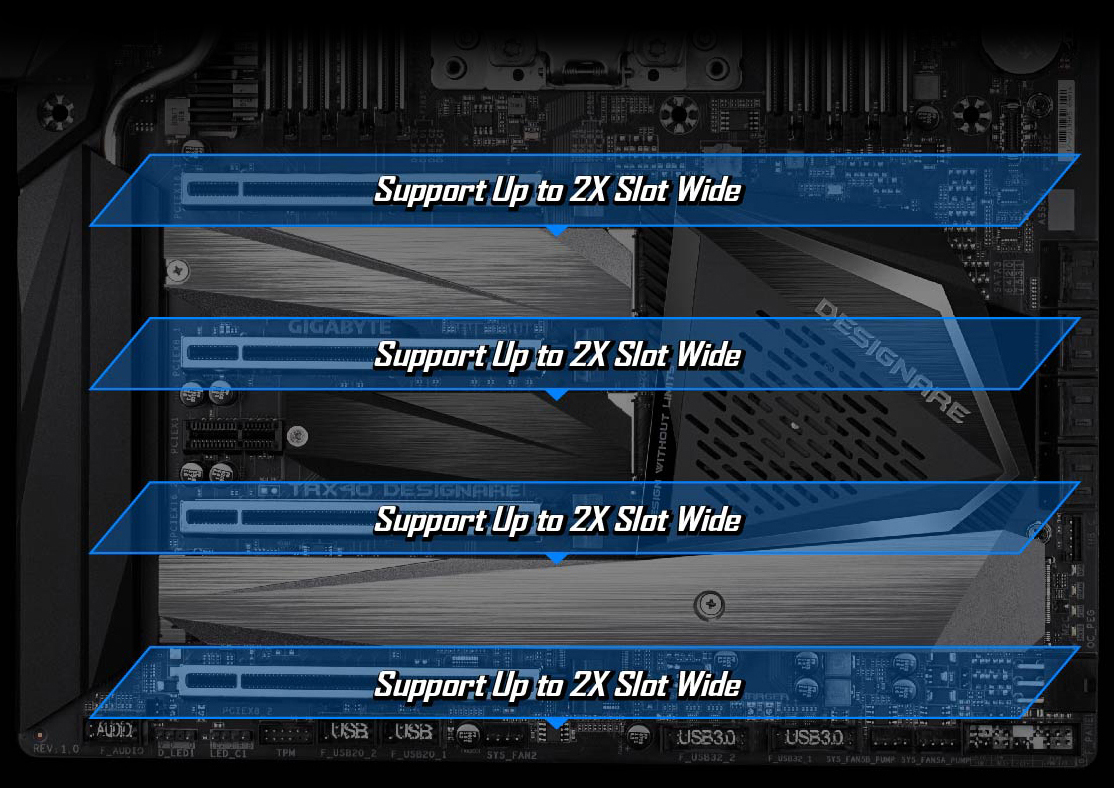

PCIe 4.0 x16/x8/x16/x8

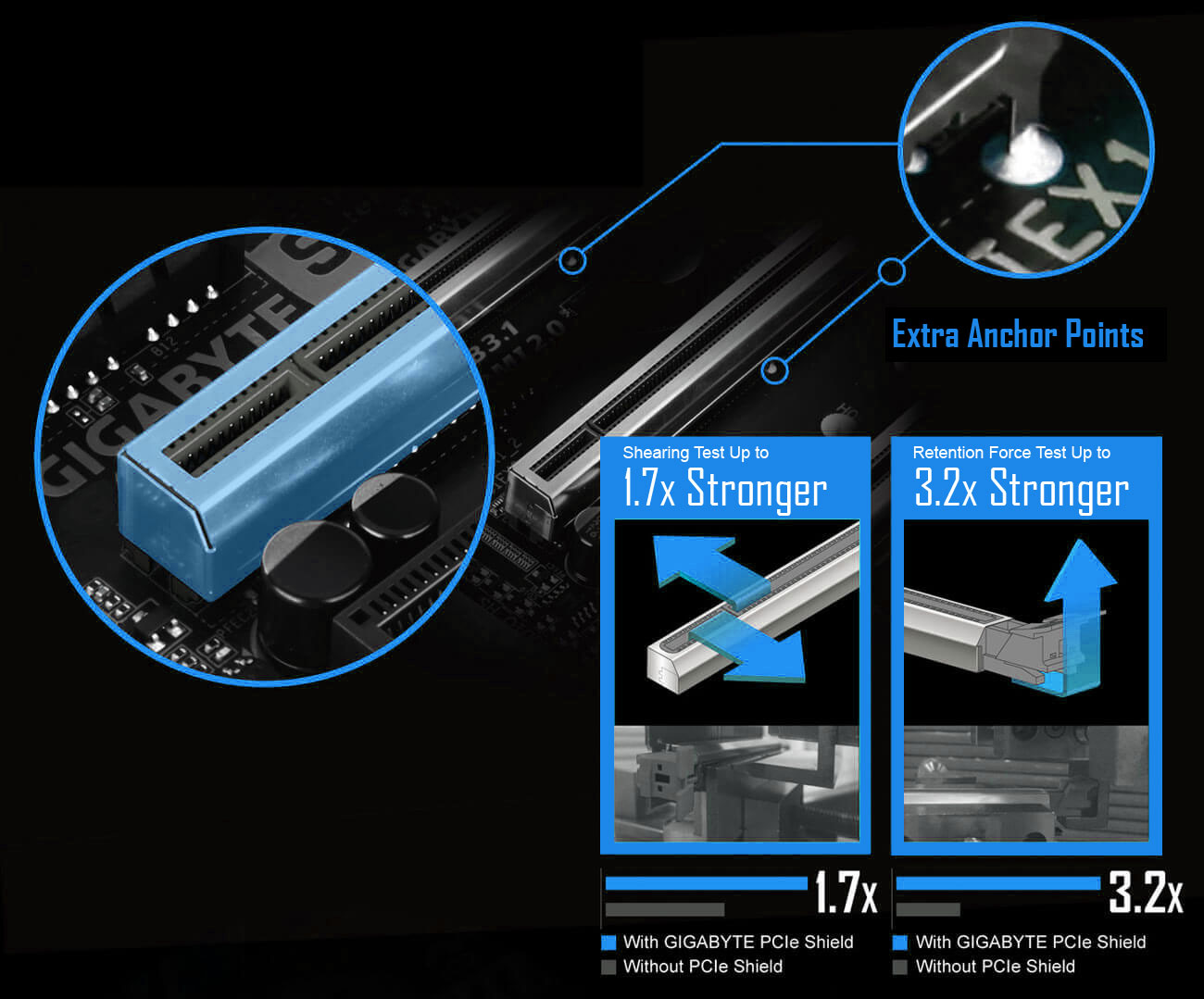

• 4 Way Dual Wide PCIe Lanes with durable armor
• Running 2 x16 or 3 x8

4 x PCIe 4.0 M.2 Connectors with Thermal Guards

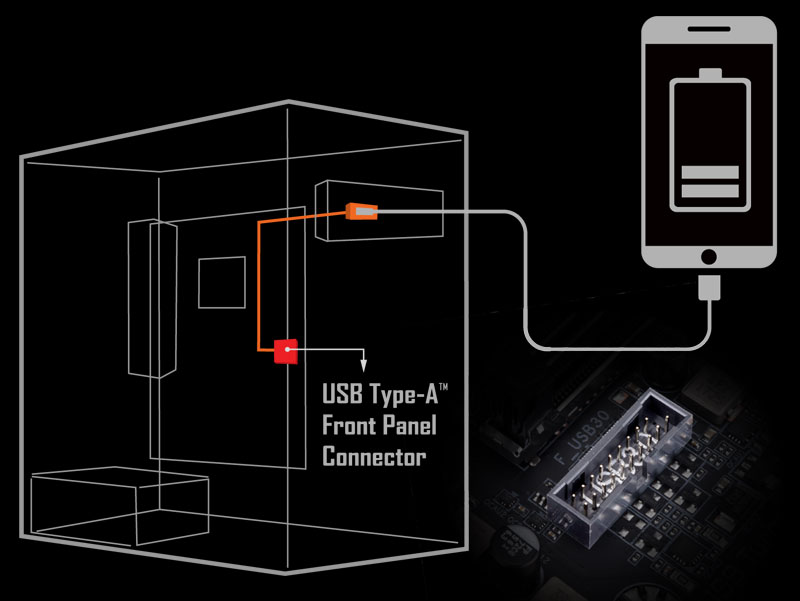

Front USB 3.0 support TurboCharger

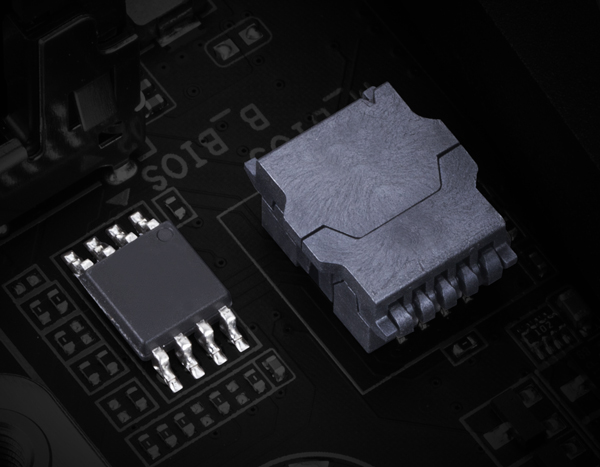

DualBIOS with Q-Flash Plus

• Socketed BIOS ROM

GIGABYTE Add-in Card Connector

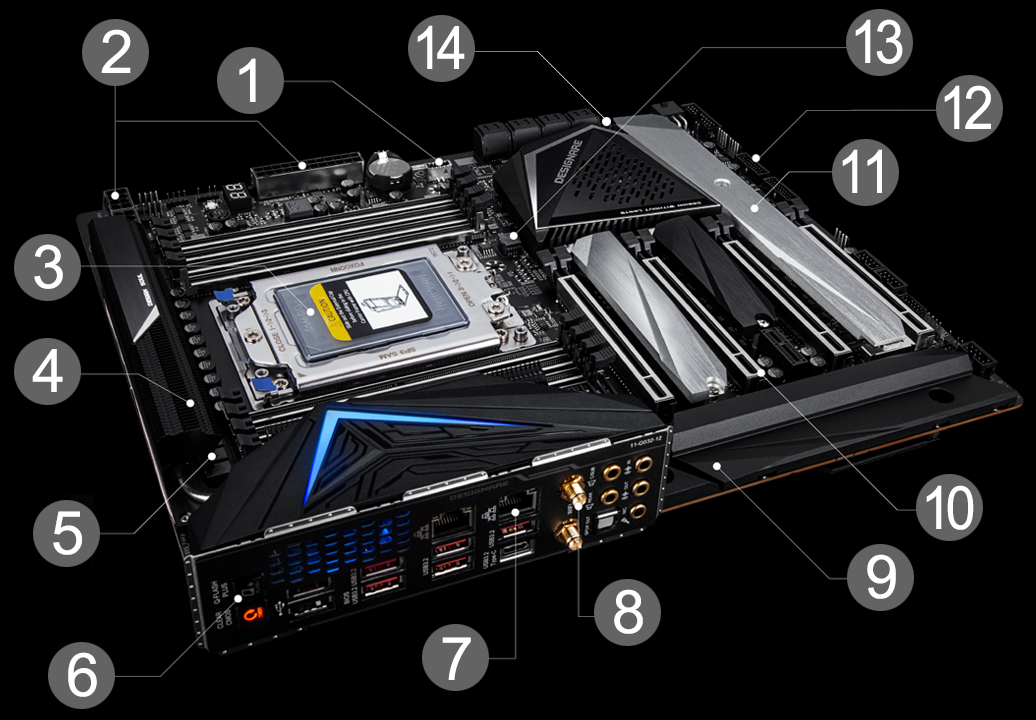

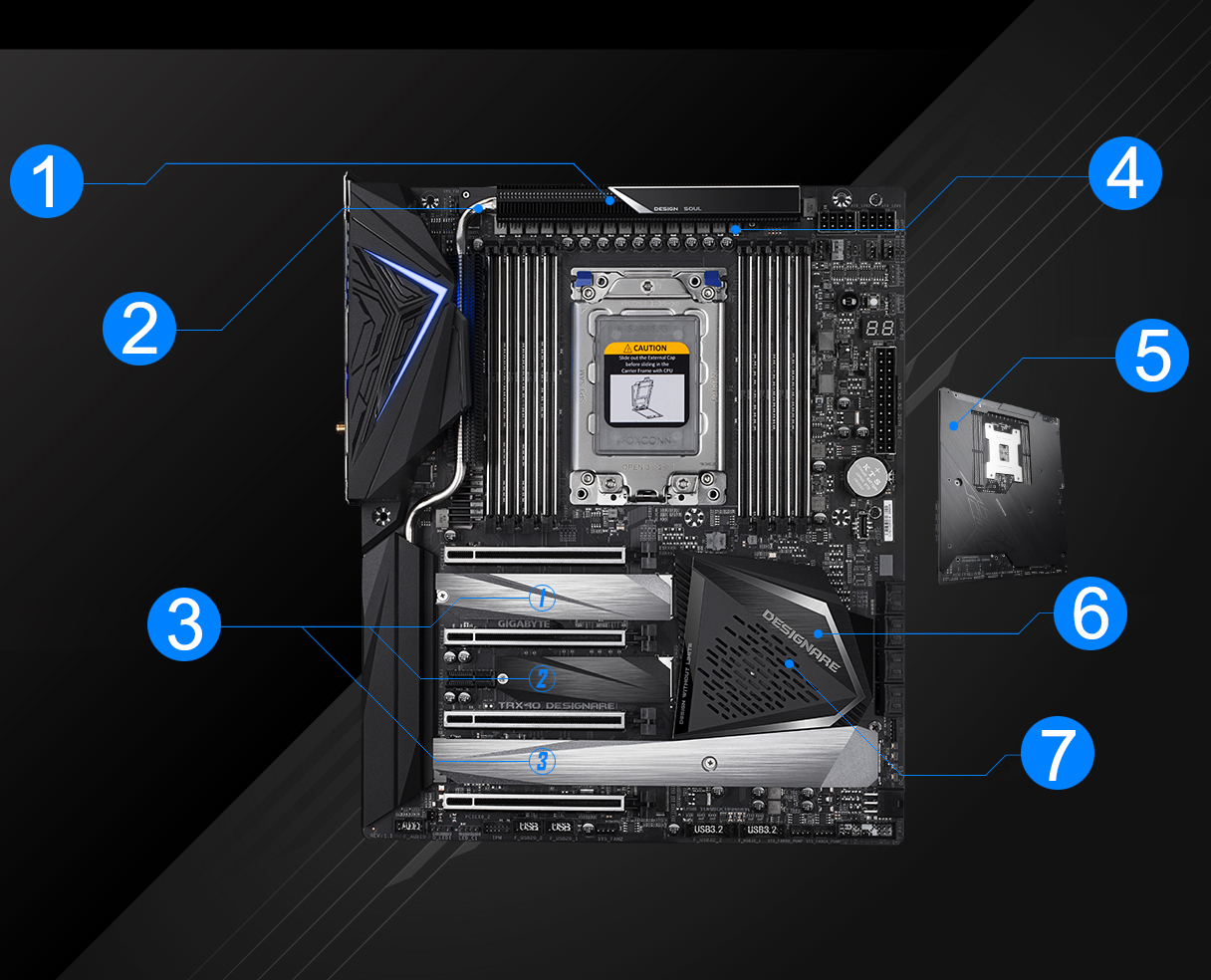

PERFORMANCE

1. Fins-Array

Fins-Array increases the heat dissipation surface by 300% compared to traditional heatsinks of the same size.

2. Extended Heatpipe

Heatpipes transfer heat between heatsinks to get thermal balance more quickly.

3. 3X PCIe 4.0 M.2 Heatsink

Enlarged M.2 heatsink prevents new generation PCIe 4.0 SSD from throttled performance under overheat condition.

4. LAIRD Thermal Pad

By using 1.5mm thicker 5 W/mK thermal conductivity pad, it can transfer 2.7x more heat than usual thermal pad in the same time.

5. Ultra Durable Baseplate

Aluminum baseplate is 3x thermal conductivity than steel one ensuring efficient thermal dissipation.

6. TRX40 Chipset Heatsink

Reactive chipset heatsink with grooves ensures TRX40 chipset run cool and quiet.

7. 5cm Ball Bearing Silent Fan

Built-in 5cm ball bearing fan to cool down TRX40 chipset, it will completely stop under idle condition to extend fan life cycle.

CONNECTIVITY

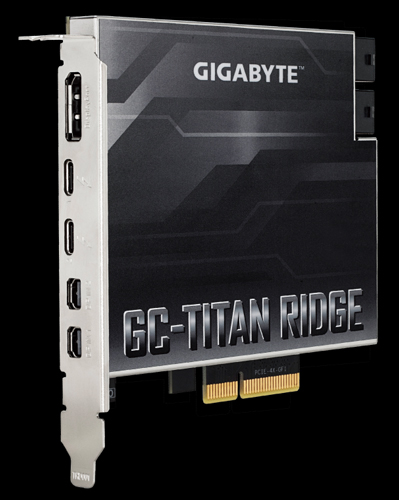

Bundled 40Gb/s GC-Titan Ridge Add-In Card

The fastest 40Gb/s single-wire connection With bundled GC- Titan Ridge AIC, It delivers speeds of up to 40Gb/s transfer speed that's 2 times faster than previous generation. It provides the fastest connection to any dock, display and device. A single port can daisy-chain up to 3 Thunderbolt devices without an additional hub or switch. In addition, it supports quick charging with the latest technology PD3.0.

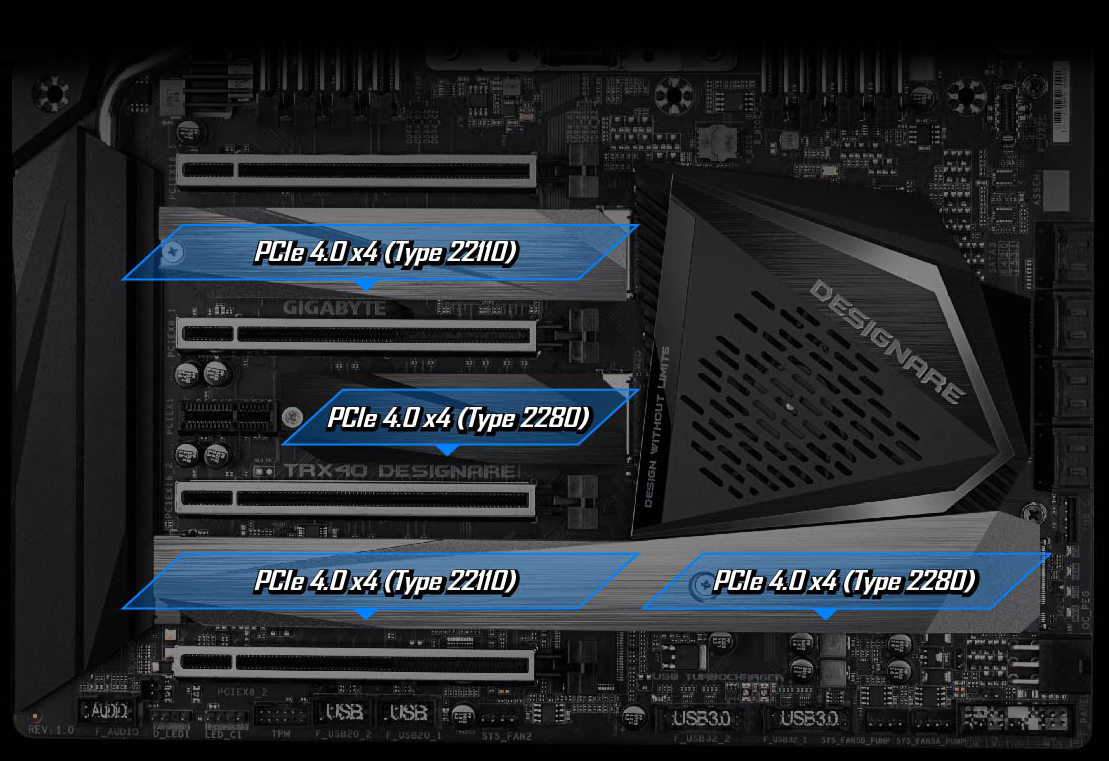

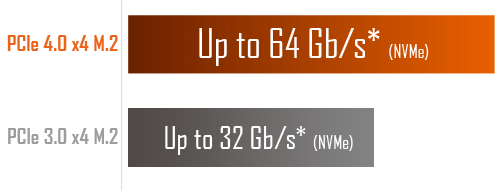

Quad PCIe 4.0 x4 M.2

GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their systems’ potential.

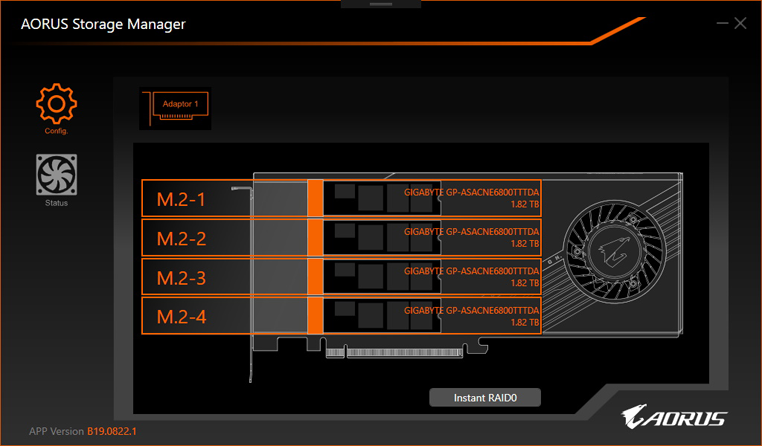

Four PCIe 4.0 SSD in RAID 0

Extreme Performance with PCIe 4.0 x4 NVMe PCIe SSDs

GIGABYTE TRX40 motherboards offer the industry's best compatibility in terms of NVMe storage for users who demand high capacity and seek the best performance. AORUS' unique design can be configured in RAID for record speeds of up to 14991 MB/s (Sequential Read), making AORUS the obvious choice for the ultimate PC.

M.2 + M.2 + M.2 + M.2

Extreme sequential Read 14991 MB/s, Sequential
Write 12721 MB/s speed

COOLING

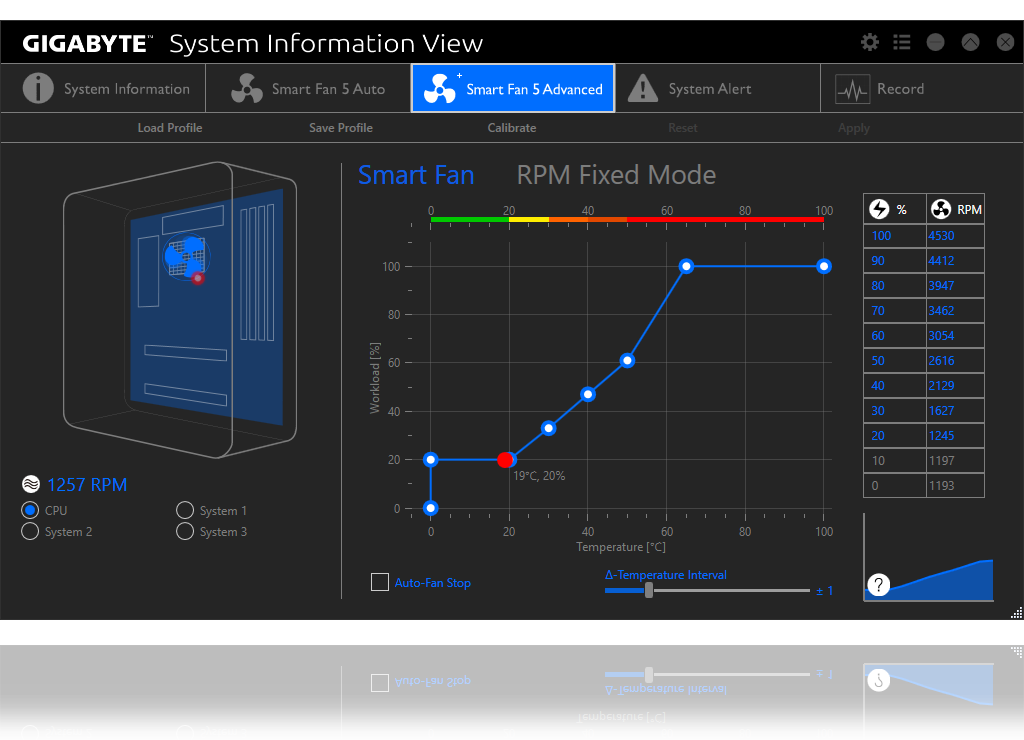

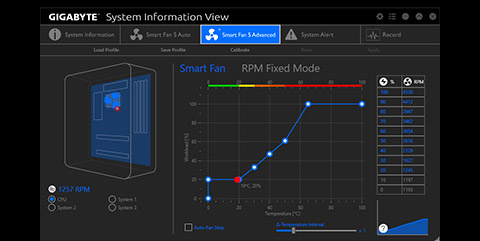

Smart Fan 5

With Smart Fan 5 users can ensure that their PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

Fan Pin Headers

Internal Temperature Sensors

External Temperature Sensors

Different models have different number of fan pin headers and temperature sensors. Smart Fan 5 function may vary by model.

Temperature Sensors

Hybrid Fan Headers

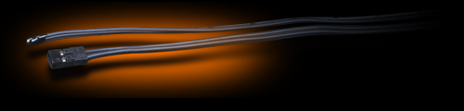

Temperature Sensor Cable x 2

■ 8 Fan / Water Pump Connectors
■ 7 Temperature Sensors
■ 2 External Temperature Sensors
■ All Hybrid Fan Headers
■ Interoperable Fans and Sensors
■ Supports High Current Fans up to 24W(2AX12V) with Over-Current Protection
■ Intuitive UI for Fan Control

AUDIO

Hi-Res Audio

Hi-Res Audio certified, meaning that the product is capable of reproducing frequencies up to 40kHz or above which ensures user with the best audio quality at all times.

Immersive Gaming ViBes

Realtek High-End HD Audio Codec

• Supports audio format up to 32-bit/384KHz and output SNR up to Rear/Front 120dB 110dB.
• Automatically detects impedance of audio device, preventing low volume and distortion.
• Stream voice with up to 110dB(A) SNR via microphone.

DTS :X^® Ultra

Recreates an authentic, spatially accurate 3D audio experience for gaming over any headphones or speakers. Supports channel-based, scene based and object-based audio. Provides out-of-the-box calibration for a range of headphones and speakers. Provides post-processing enhancements and device level tuning for DTS^® codecs.

DTS Sound Unbound* leverage Microsoft Spatial, enabling the the most believable, 3D audio experience for games. Immersion through DTS Headphone:X means in the sonic landscape, stationary and moving sounds can be heard from above, below or around the listener. Sounds pass around the listener with amazing externalization and accurate localization.

Learn more about the immersive gaming sound experience powered by DTS Sound Unbound at https://dts.com/sound-unbound-app

*DTS Sound Unbound needs the latest Windows fixes in the Windows 10, please upgrade your Windows 10 OS to Win10 Build 18898 or later versions.

DTS:X Ultra Technology Video

DTS:X Ultra Experience Video

ULTRA DURABLE

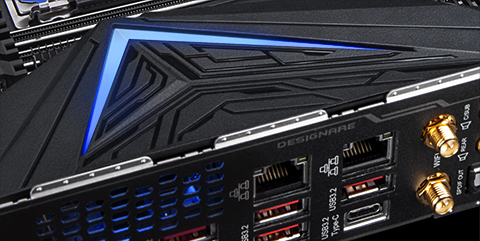

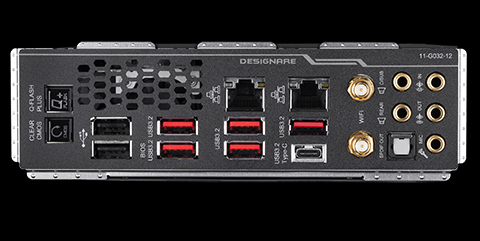

Integrated I/O Shield Armor
Durable Design And Easy Installation

With an integrated I/O shield, building a GIGABYTE Ultra Durable PC is even easier and convenient. Users can expect excellent durability with the durable design of the pre-installed I/O shield.

LIGHTING

RGB Fusion 2.0
Support RGB Lighting Effect in Full Color

Personalize your next PC rig to your liking by selecting the color of your choice to illuminate the external RGB light strip.

Note: Lighting effects depicted are for demonstration purposes only. Actual lighting effects may vary by model.

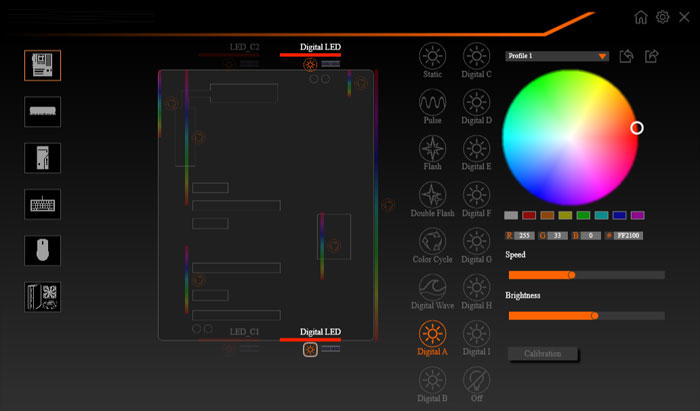

RGB Fusion 2.0 Software

With an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.

Sync with one click

Individual control as you wish

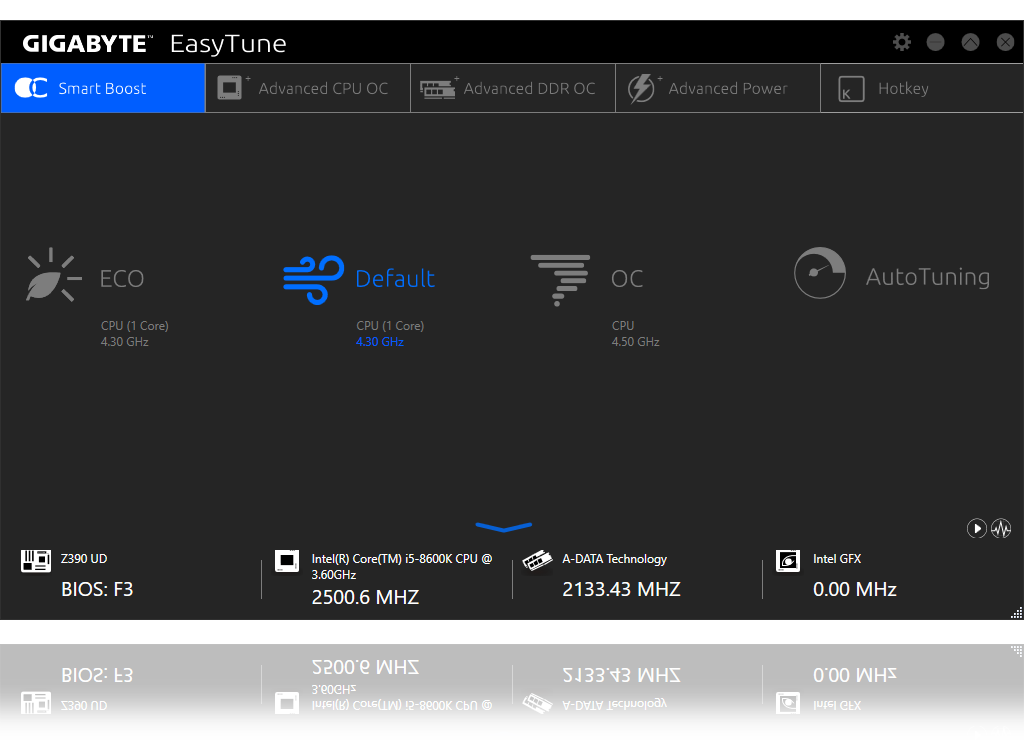

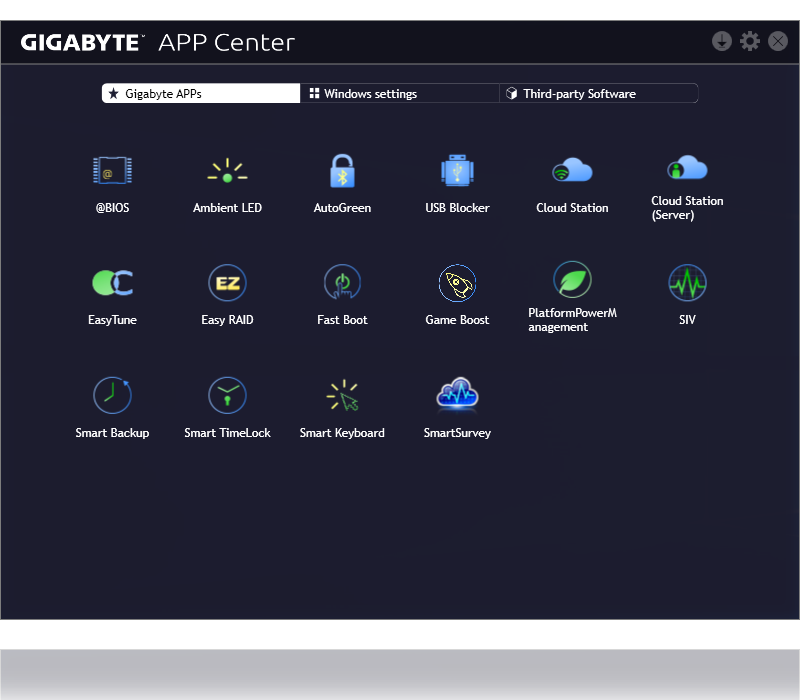

EXCELLENCE

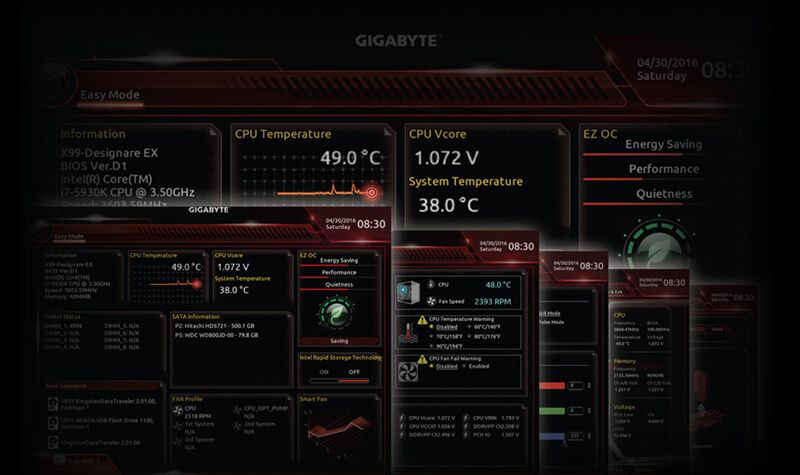

BIOS

* Photo for reference only.

New User Interface

All new EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.

My Favorites

Add constantly used items into the favorite menu for quick access.

Storage Information

Show all kinds of storage information including SATA, PCIE and M.2 interface.

Changelog

List all changes before saving and exiting bios. Quickly review overall settings modification.

Intuitive Load Line Curve

Clearly show each loadline calibration setting in an intuitive curve graph.

XSplit Gamecaster + Broadcaster: Cast Your Game Anytime, Anywhere

Now set up your stage and share the greatest gaming moments with XSplit Gamecaster + Broadcaster! Fully optimized social media integration is ready for real-time chats—keeping you notified yet focused in the game. It takes just one click to stream your gameplay to Twitch. Host your game like a pro!

* Free 1 year XSplit Gamecaster + Broadcaster Premium License.
