• Socket FM2+ supports AMD FM2+/FM2 A-series APU
  • GIGABYTE Ultra Durable™ 4 Plus Technology
  • GIGABYTE UEFI DualBIOS™
  • GIGABYTE On/Off Charge™ for USB devices

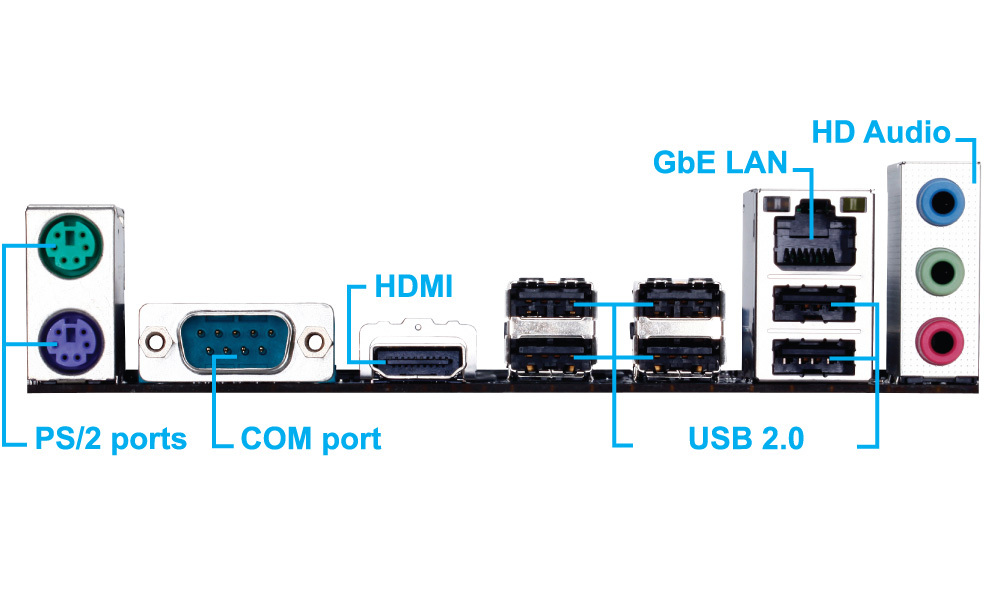

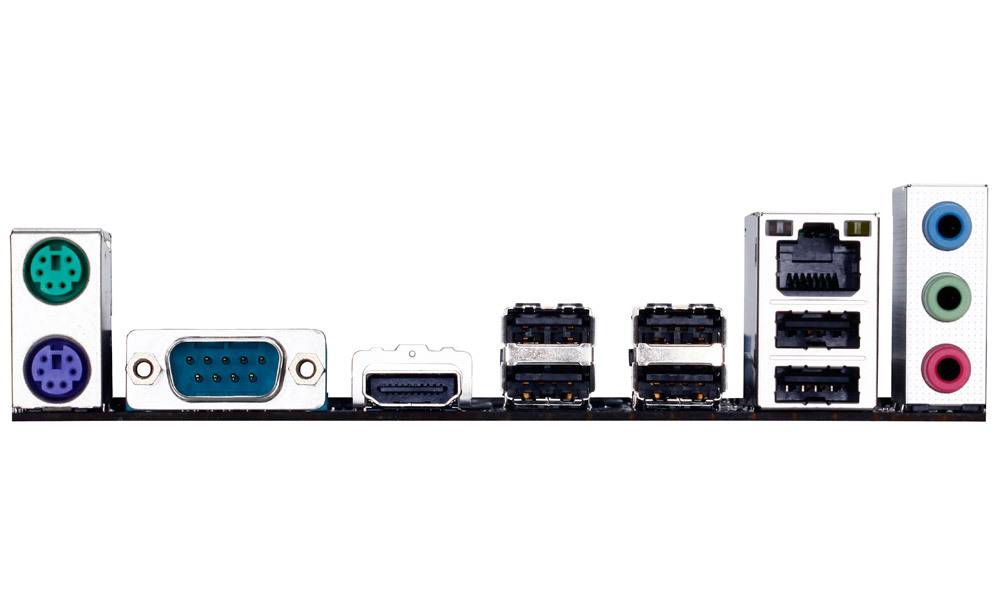

  • Features HDMI port for Full HD 1080 and HDCP support
  • 14 USB2.0 and 6 SATA2 ports with RAID 0,1,10 support
  • High ESD Protection on GbE LAN and USB ports
  • All solid capacitors design

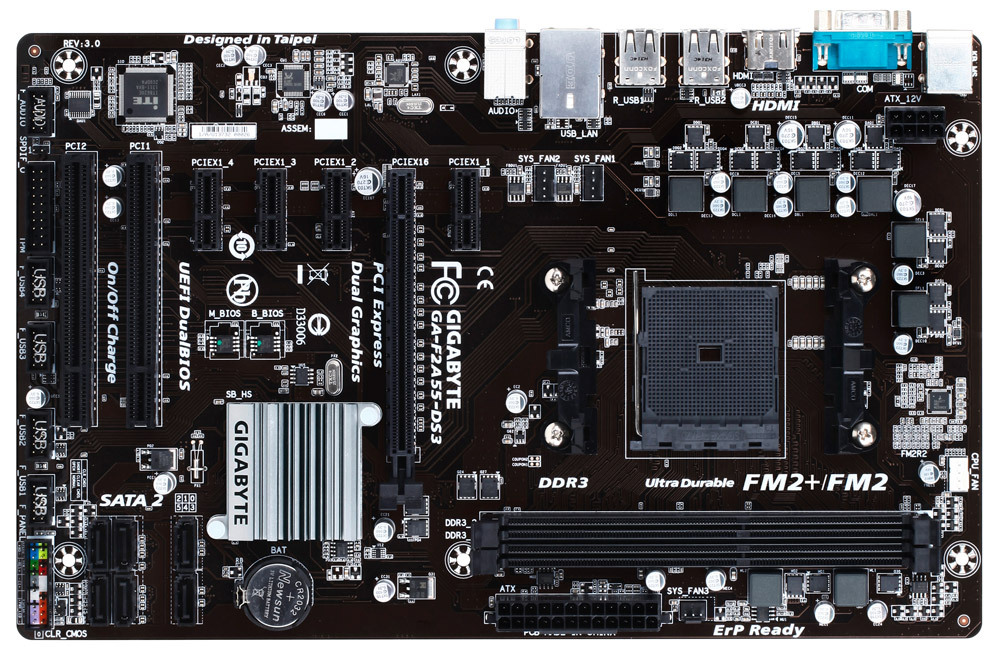

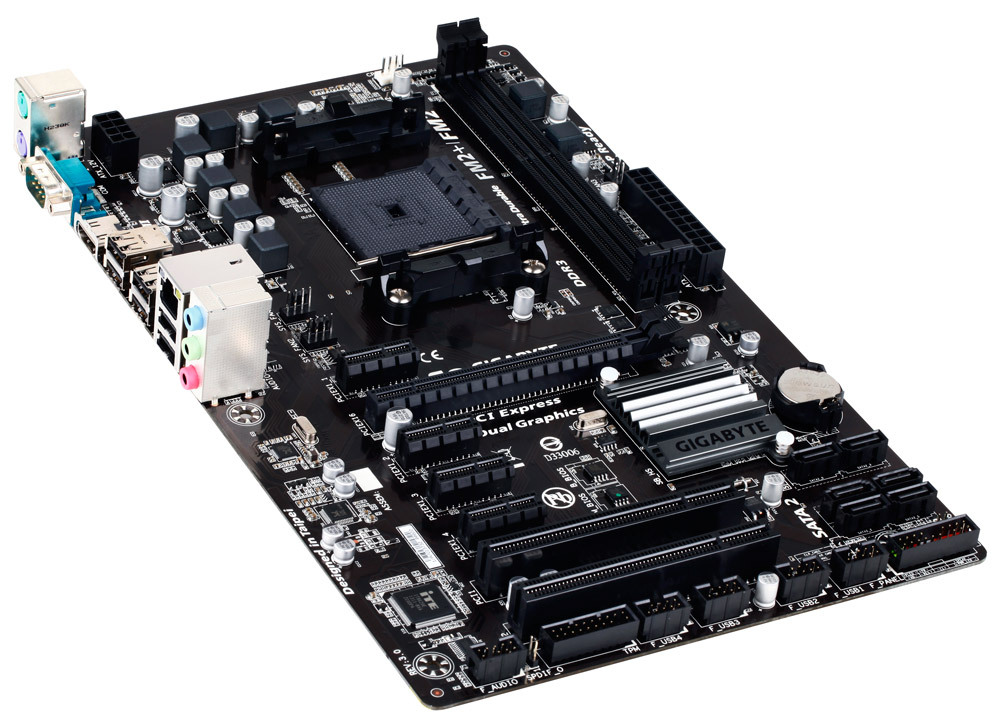

  • GIGABYTE FM2+ Series Motherboards
    GIGABYTE FM2+ series motherboards based on AMD A55 chipset and feature the new FM2+ APU socket, and are designed to get the most from forthcoming Kaveri AMD APUs, while preserving compatibility for current AMD FM2 APUs. FM2+ AMD APUs offer native support for 8 GT/s PCI Express gen 3.0 as well as DX11.1 support integrating the high performance ‘Steamroller’ core. AMD socket FM2+ APUs also offer native support for 4K resolution displays on HDMI port.

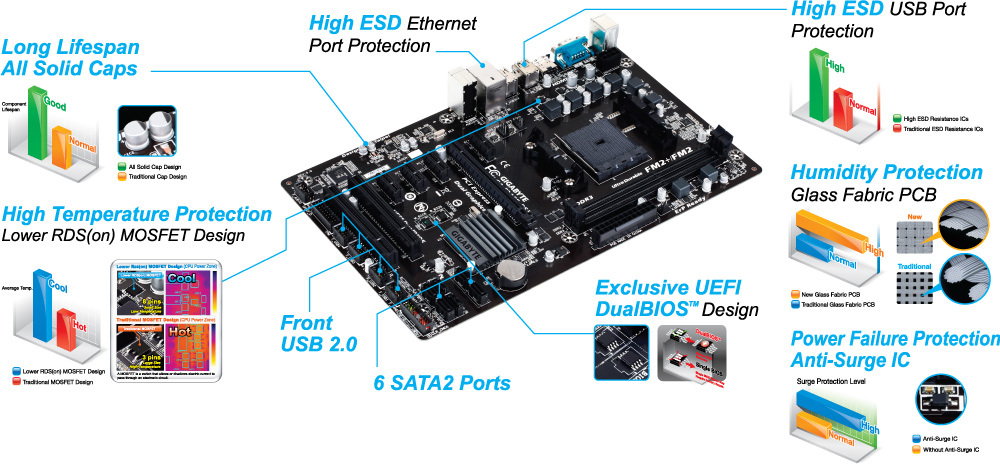

  • GIGABYTE Ultra Durable™ 4 Plus


    GIGABYTE Ultra Durable™ 4 Plus debuts on GIGABYTE motherboards, with a range of features and component choices that provide record-breaking performance, cool and efficient operation and extended motherboard lifespan.
  • Ultra Performance

    		 GIGABYTE uses All Solid Caps (Capacitors) and Low RDS(on) MOSFETs which are rated to work at higher temperatures to provide a longer lifespan.
  • Ultra Safe

    		 GIGABYTE UEFI DualBIOS™
    GIGABYTE motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', making users protected from BIOS failure due to virus attack, hardware malfunction, improper OC settings or power failure during the update process.
  • Humidity Protection
    Humidity can play havoc on a motherboard's circuitry.GIGABYTE's new Glass Fabric PCB design helps protect against electrical shorts due to humidity by reducing the gaps in spacing between PCB filaments.

  • Power Failure Protection
    GIGABYTE also uses Anti-Surge ICs to protect the motherboard against power surges.
  • Electrostatic Protection
    GIGABYTE motherboards feature High Resistance ICs which help protect the motherboard against electrostatic discharge.

  • AMD Dual Graphics Technology
    The AMD FM2+ series platform showcases AMD Dual Graphics technology, allowing users to further boost 3D graphics performance by adding an additional discrete AMD Radeon™ graphics card to the system. This unique Dual Graphics technology means users can enjoy higher frame rates on the latest gaming titles, utilizing the processing power of both discrete and integrated graphics processors.

    Note:
    1. Please use both AMD Dual Graphics technology qualified A-series APU and VGA card, detail information please refer to AMD website:
    http://www.amd.com/us/products/technologies/dual-graphics/Pages/dual-graphics.aspx#3
  • 4K Ultra HD Support
    4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE FM2+ series motherboards provide native 4K support with FM2+ APU integrated graphics via HDMI port.
  • HDMI Interface
    HDMI is latest High-Definition Multimedia Interface, which is able to provide up to 5Gb/s video transmitting bandwidth and also 8-channel high quality audio. Via transmitting uncompressed digital data, HDMI is able to reduce signal interference as transferring between digital and analog signal, seen and heard, direct from the source. In addition, HDMI is compatible with HDCP (High-bandwidth Digital Content Protection), which allowing playback of Blu-ray/ HD DVD and other protected contents.
  • On/Off Charge Technology
    GIGABYTE On/Off Charge technology allows you to charge your iPhone, iPad and iPod Touch regardless of whether your PC is on, in standby mode or even off. A derivative of GIGABYTE's highly acclaimed 3x USB Power feature, On/Off Charge enables devices to draw more current from GIGABYTE motherboard USB ports than standard USB ports allow, so that charging from your PC can be as fast as with a charger...more
    *Due to certain mobile phone limitations, users may need to connect the mobile phone to their PC before the PC enters S4/S5 mode to enable a quick charge from non On/Off Charge USB ports. Charging results may vary by model.
    *Whether to support 3X USB power design, it may vary by models.
    On/Off Charge Driver download
  • ErP Lot 6 support
    The ErP (also known as Energy-Related Products Directive) is part of the European Union's environmental regulations policy. It is based on concern for the environmental as the proliferation of electronic devices continues, and how to improve energy efficiency for a better and greener life. GIGABYTE supports ErP and produces motherboards that help you effectively improve system efficiency.

* Izrazi HDMI, visokoločljivostni večpredstavnostni vmesnik HDMI (High-Definition Multimedia Interface), trgovska podoba HDMI in logotipi HDMI so blagovne znamke ali registrirane blagovne znamke družbe HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
