1. Supports AMD AM3 Phenom II/ Athlon II processors
  2. Solid capacitors design for CPU VRM
  3. Dual Channel DDR3 1333+ for remarkable system performance
  4. Integrated ATI Radeon HD 3000 graphics (DirectX10)
  5. Innovative Turbo 3D technology to unleash extra levels of 2D/3D graphics performance
  6. Ultimate graphics performance with PCI-E 2.0 x16 interface
  7. Integrated 6/8 Channel High Definition audio
  8. Integrated DVI interface with HDCP support
  9. Patented DualBIOS with dual hardware BIOS protection
  10. Compatible with Windows 7 to deliver the best operation experience
  11. Meet European Union ErP(Energy-related-Products) requirement
* DDR3 1333+ is supported with combination of AM3 CPU and qualified memory modules, please refer "Memory Support List" for detail memory support information.
* To use 8-channel HD audio, please use the system case with HD audio front panel featured and see manual for detail configuration.
  • Get Ready to Unleash the Power of AMD 6-Core CPU
    GIGABYTE's AMD motherboards are ready to support the new generation of AMD Phenom™II X 6 processors, delivering the very best platform for multitasking, multimedia and high performance gaming.
  • Suport On/Off Charge
    Tehnologia GIGABYTE On/Off Charge permite încărcarea iPhone, iPad şi iPod Touch fie că PC-ul este pornit, în standby sau chiar oprit. Fiind derivată a tehnologiei apreciate GIGABYTE 3x USB Power, On/Off Charge permite echipamentelor să primeasca mai mult curent din porturile USB ale plăcilor de bază GIGABYTE faţă de cât permit porturile USB standard, astfel încât încărcarea din PC sa fie la fel de rapidă ca cea cu încărcător dedicat...mai mult
    *Din cauza anumitor limitări ale telefoanelor mobile, utilizatorii pot fi nevoiti să conecteze telefonul mobil la PC înainte ca PC-ul să intre în modul S4/S5 pentru a se permite încărcarea rapidă de la un port USB fără ON/OFF Charge. Rezultatele încărcării pot varia în funcţie de model.
    *Suportul pentru 3X USB power design poate varia în funcţie de model.
     On/Off Charge Driver download
  • Introduction

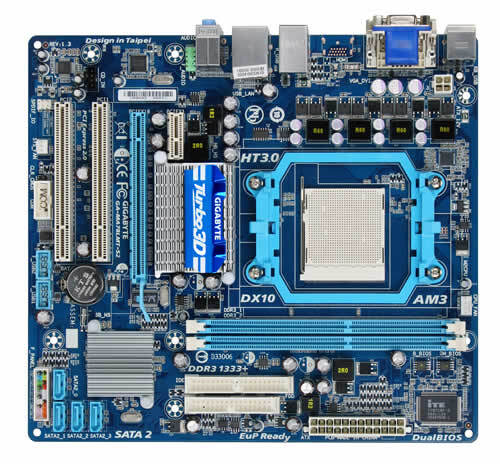

    GA-MA78LM-S2 offers high performance platform based on AMD 760G chipset, it is integrated ATI Radeon HD 3000 (DX10) graphics engine and supports AMD AM3 Phenom II/ Phenom/ Athlon processors, HyperTransport™ 3.0 technology links, DDR2 memory, PCI Express 2.0 graphics interface and so on. With the innovative GIGABYTE Easy Energy Saver technology, GA-MA78LM-S2 is able to provide user friendly computing, reach the maximum system performance easily while still able to save the power and environment in real life at the same time.
  • Supports next generation of 45nm AMD AM3 CPU
    This motherboard designs with Split Power Plane, 3+1 phase VRM to support AMD the latest 45nm AM3 Phenom™II series processors, delivering the great performance enchantment to system and ultimate scalability hardware expending.
  • Turbo Charge Your Graphics Performance
    Unleash extra levels of 2D/3D graphics performance with GIGABYTE Turbo 3D technology. GIGABYTE Turbo 3D provides a smoother viewing experience for HD video playback or web flash animations and delivers a greater gaming experience for 3D games. GIGABYTE Turbo 3D dynamically boosts the GPU (Graphic Processing Unit) clock frequency by automatically detecting the graphics loading when processing 2D/3D graphics, allowing the graphics core clock to operate faster during heavy loading and delivering a more enhanced graphics experience.
  • EC AOD-ACC Support
    EC AOD-ACC is described as Embedded Controller for AMD OverDrive- Advanced Clock Calibration, which is the newest feature comes from AMD SB750/ SB710 SouthBridge chip, destined for the AMD Black Edition CPU to overclock through BIOS setting further than it was previously possible.
    * Please be noticed that GIGABYTE’s product warranty does not cover damages caused by overclocking.
  • Solid Capacitor for CPU VRM
    Stable system operation depends upon the quality of CPU VRM (voltage regulator module). GIGABYTE adopts Conductive Polymer Aluminum Solid Capacitors for CPU VRM to ensure a longer lifespan for systems in daily operation and boost system stability under extreme conditions. CPU VRM with Solid Capacitors featuring better electronic conductivity, excellent heat resistance enhances system durability even operating in high temperature environment.
  • Supports Dual Channel DDR3 1333+
    Experience the advanced technology of DDR3 1333+ memory, featuring faster speeds and higher data bandwidth, which delivers superior performance for the most demanding applications.
    * DDR3 1333+ is supported with combination of AM3 CPU and qualified memory modules, please refer "Memory Support List" for detail memory support information.
  • PCI-E 2.0 Graphics Interface
    PCI-E 2.0 doubles the bus standard's bandwidth from 2.5 Gbit/s to 5 Gbit/s, meaning a x32 connector can transfer data at up to 16 GB/s in each direction. PCIE 2.0 also features improvements to the point-to-point data transfer protocol and its software architecture.
  • High Definition Audio
    Experience home theater-quality sound with your PC using High Definition Audio for enhanced 6/ 8-channel* audio, improved voice and communication input, and multi-streaming capability.
    * To use 8-channel HD audio, please use the system case with HD audio front panel featured and see manual for detail configuration.
  • Gigabit LAN Connectivity
    The Gigabit network interface delivers a high speed LAN connection with data transfer rate up to 1000Mb/s, providing new generation connectivity for the broadband era. Gigabit LAN is ideally for seamless internet connection such as streaming audio and video contents.
  • SATA 3Gb/s storage interface
    SATA 3Gb/s doubles bus bandwidth from 1.5Gb/s to 3Gb/s. SATA 3Gb/s facilitates bandwidth aggregation for multiple devices, enabling max through put as well as, higher cache through put performance in single drive configurations.
  • EasyTune6
    GIGABYTE a reproiectat de la zero utilitarul EasyTune6 pentru a face și mai ușoară administrarea și monitorizarea resurselor hardware cât și pentru ajustarea setărilor sistemului pentru obținerea de performanțe maxime. Fie că sunteți un overclocker entuziast sau un începător în computere, EasyTune6 vă ofera uneltele necesare pentru ajustarea rapidă și fără efort a sistemului.
  • DualBIOS™ - Patented Dual Hardware BIOS Protection
    DualBIOS™ is a GIGABYTE patented technology that automatically recovers BIOS data when main BIOS has crashed or failed. Featuring 2 physical BIOS ROMs integrated onboard, GIGABYTE DualBIOS™ allows quick and seamless recovery from BIOS damage or failure due to viruses or improper BIOS updating.
  • Smart
    The Smart featured motherboards of GIGABYTE S series provide GIGABYTE proprietary innovative software such as Download Center, @BIOS, Q-Flash, Xpress Install, Boot menu, and Smart Fan. BIOS and driver management now becomes much easier and user friendly through GIGABYTE Smart features!...more
  • Safe
    Safe is the key feature of GIGABYTE S series motherboards with the following elements: Excellent hardware design, reinforced BIOS protection through GIGABYTE Virtual Dual BIOS Technology and GIGABYTE BIOS Setting Recovery Technology. Unique system software such as Xpress Recovery 2, PC Health Monitor, HDD S.M.A.R.T., and C.O.M. further strengthen the stability and reliability of your PC!...more
  • Qualified for Windows® 7
    The motherboard qualified for WHQL (Windows Hardware Quality Labs) certification of Windows 7 from Microsoft®, setting the standard for future Windows 7 certified motherboards...more
  • Suport EuP Lot 6
    EuP (cunoscut și ca Energy Using Products Directive) este parte a noilor reglementări pentru mediu ale Uniunii Europene. EuP se bazează pe îngrijorarea față de problemele de mediu cu privire la echipamentele electonice care au câștigat popularitate și despre cum să se îmbunătățească eficiența energetică pentru o viață mai bună și mai verde. GIGABYTE prezintă plăci de bază standard ce ajută efectiv la îmbunătățirea performanțelor sistemului și la economisirea de energie.

* Termenii HDMI, HDMI High-Definition Multimedia Interface, Imaginea comercială HDMI și Siglele HDMI sunt mărci comerciale sau mărci comerciale înregistrate ale HDMI Licensing Administrator, Inc.
* Materialele oferite aici sunt doar pentru referinţă. GIGABYTE îşi rezervă dreptul de a modifica sau revizui continutul oricând fără notificare prealabilă.
* Perfomanţa prezentată este bazată pe valorile teoretice maxime ale interfeţei de la vendorii respectivi de Chipset-uri sau de la organizaţiile ce au definit specificaţiile interfeţei. Perfomanţele reale pot varia în funcţie de sistem.
* Toate mărcile inregistrate şi logo-urile sunt proprietatea deţinătorilor respectivi.
* Datorită arhitecturii standard PC, o anumită cantitate de memorie este rezervată pentru sistem şi de aceea mărimea actuală a memoriei este mai mică decât cea indicată.
