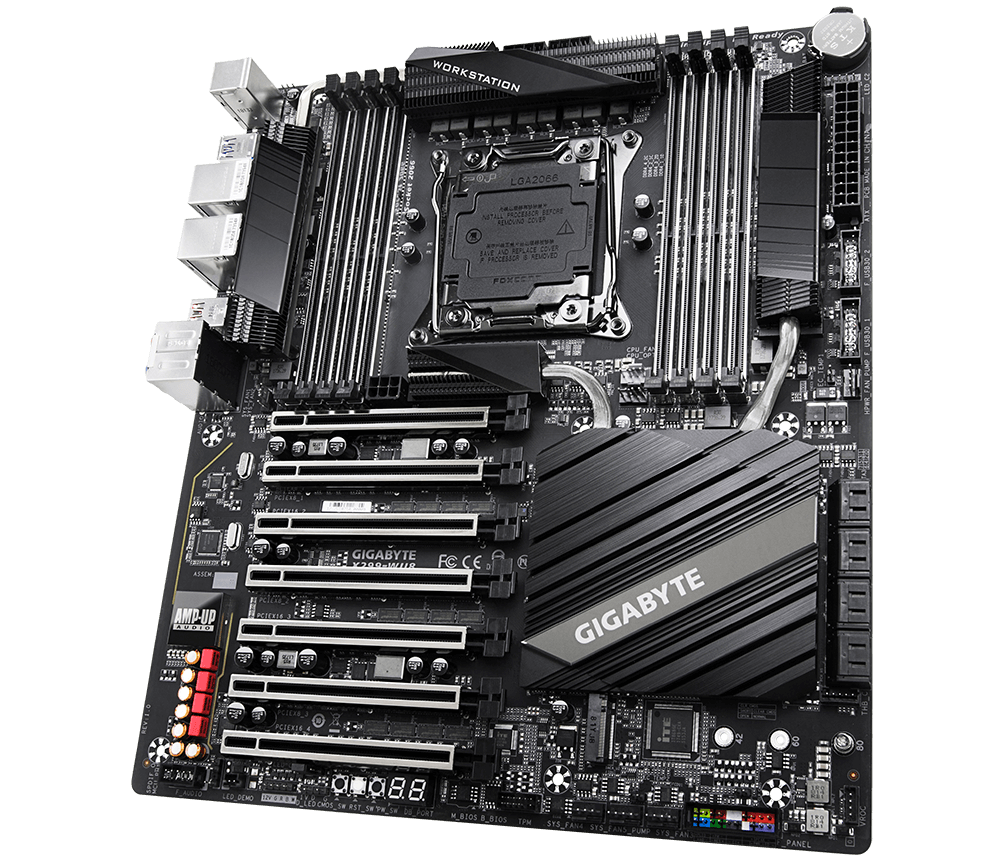

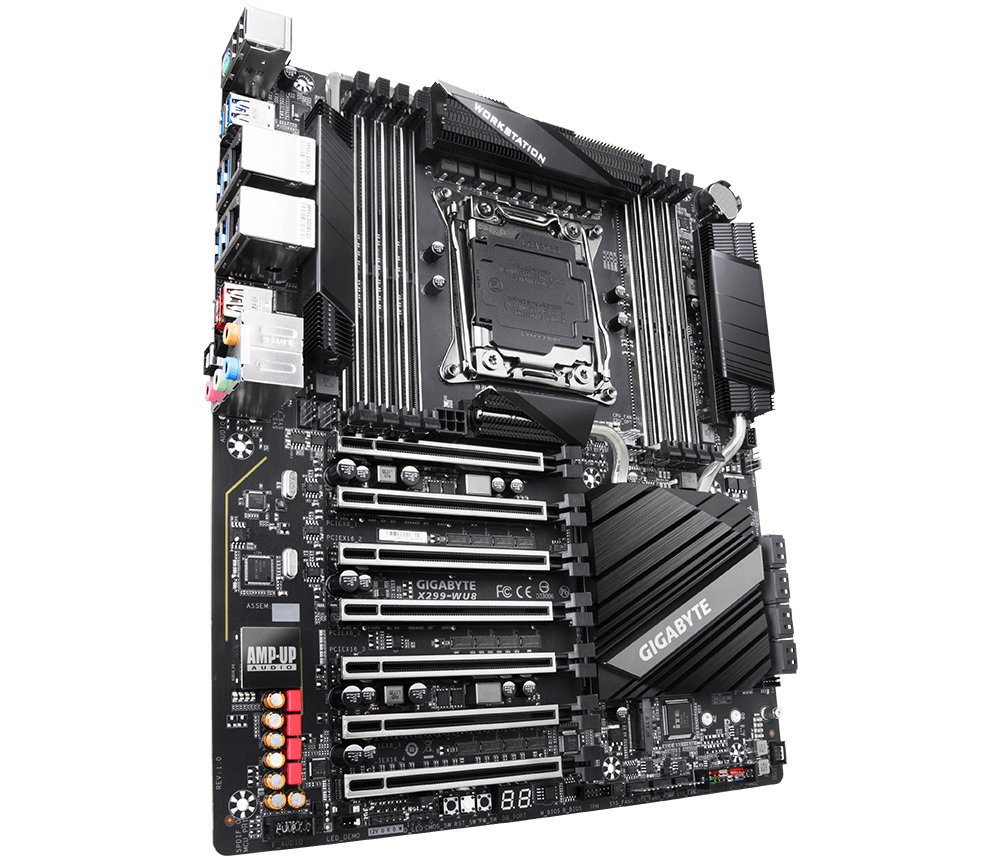

Intel X299 motherboard with 7 PCIe x16 slots, Dual Intel® Server LAN, PCIe x4 M.2, USB 3.1 gen 2 Type-C, 120dB SNR ALC1220, Digital LED strip support

  • Supports Intel® Core™ X-Series Processor Family
  • Quad Channel DDR4, 8 DIMMs
  • 7 PCIe x16 slots design: 2 PLX 8747 design supports total bandwidth of 64 PCIe lanes and four dual-slot graphics cards. It also supports 4-way NVIDIA® SLI™ or AMD CrossFireX™ GPU configurations
  • Dual Intel® Server LAN
  • Intel® Optane™ Memory Ready
  • Next-gen transfer speeds: PCIe x4 M.2, USB 3.1 Type-A and Type-C connections
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • Two RGBW Pin Headers support digital LED & RGB LED strips
  • ALC1220 120dB SNR HD Audio with Smart Headphone AMP and WIMA audio capacitors
  • Powerful heatsink design: an efficient thermal cooling design to provide absolute maximum performance
  • Lightning-Fast Intel® Thunderbolt™ 3 AIC Support
  • Intel® VROC ready


    • * Datasheet Download
