GV-NX76T256D-RH (rev. 3.0)
- Powered by NVIDIA GeForce 7600GT GPU
- Support NVIDIA SLI Technology
- Supports PCI Express and 12 pipelines
- Microsoft DirectX 9.0C and OpenGL 2.0 support
- Integrated with the industry's best 256MB GDDR3 memory and 128-bit memory interface
- Features dual DVI-I / D-sub (by adapter) / TV-OUT
- Supports HDTV function and HDTV cable enclosed
- Unique "Silent Pipe II" Design
-

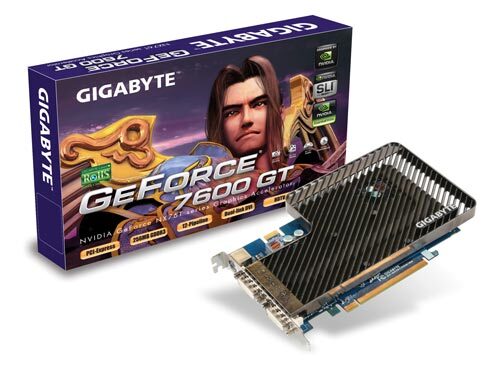

Product IntroductionGIGABYTE introduces GV-NX76T256D-RH graphics card based on the 90nm NVIDIA Geforce 7600GT GPU. The GV-NX76T256D-RH, which features proprietary GIGABYTE Silent-Pipe II technology with new NVIDIA 7600GT, delivers higher performance than other passive thermal solutions. In addition to triple guarantee, including performance, cooling and 0dB, the GV-NX76T256D-RH also also fully supports SLI, Shader Model 3.0, and OpenGL 2.0. With 128 bit memory bus and 256 MB GDDRIII memory, the GV-NX76T256D-RH ensures High-Def PC gaming and flawless digital media playback.
-
90nm Process TechnologyDelivers higher performance through blazing clock rates.
-
CineFX 4.0 EngineThrough CineFX 4.0 engine that allows developers to create unique 3D game features and effects in both game animation and high-definition video. Gamers can get plus benefit from CineFX 4.0 that streamlines the creation of complex visual effects.
-
Intellisample™ 4.0The industry's fastest antialiasing delivers ultra-realistic visuals, with no jagged edges, at lightning-fast speeds. Visual quality is taken to new heights through a new rotated grid sampling pattern, advanced 128 Tap sample coverage, 16x anisotropic filtering, and support for transparency supersampling and multisampling.
-
UltraShadow™ IIEnhances the performance of bleeding-edge games, like id Software's Doom 3, that feature complex scenes with multiple light sources and objects. 2nd-generation technology delivers more than 4x the shadow processing power over the previous generation.
-
nView® Multi-Display TechnologyAdvanced technology provides the ultimate in viewing flexibility and control for multiple monitors. NVIDIA GPUs are enabled to support multi-displays, but graphics cards vary.
-
OpenGL 2.0® Optimizations and SupportEnsure top-notch compatibility and performance for all OpenGL 2.0 application.
-
Microsoft® DirectX® 9.0CEnsures the best performance and application compatibility for all DirectX 9.0C applications.
-
Microsoft® DirectX® 9.0 Shader Model 3.0Provide infinite program command length creating photorealistic scenes and environments in games, without compromising overall PC performance.
-
Dual-link DVIAble to drive the industry's largest and highest resolution flat-panel displays up to 2560x1600.
-
PureVideo™ HDAvailable on HD DVDs and Blu-ray discs, high-definition movies are bringing an exciting new video experience to PC users. NVIDIA® PureVideo™ HD technology lets you enjoy cinematic-quality HD DVD and Blu-ray movies with low CPU utilization and power consumption, allowing higher quality movie playback and picture clarity.PureVideo HD technology provides a combination of powerful hardware acceleration, content security, and integration with movie players, plus all the features found in PureVideo.
-
Windows Vista® ReadyNVIDIA's third-generation GPU architecture built for Windows Vista gives users the best possible experience with the 3D graphical user interface in the upcoming operating system (OS) from Microsoft.
-
PCI ExpressDesigned to run perfectly with the next-generation PCI Express bus architecture. This new bus doubles the bandwidth of AGP 8X delivering over 4 GB/sec. in both upstream and downstream data transfers.
-
RoHS CompliantAs a citizen of the global village, GIGABYTE exert ourselves to be a pioneer in environment care. Give the whole of Earth a promise that our products do not contain any of the restricted substances in concentrations and applications banned by the RoHS Directive, and are capable of being worked on at the higher temperatures required for lead free solder. One Earth and GIGABYTE Cares!
-
Silent-Pipe II TechnologySilent-Pipe II technology that generates natural airflow to provide more efficient cooling without the use of a heat sink or fan. This is achieved through a unique design that draws cool air in through a new proprietary front-flow thermal module to remove heat from the heat sink on the VGA card. GIGABYTE Silent-Pipe II Features and Benefits:
*Feature 1. Proprietary front-flow thermal module: the first Dual-slot heat pipe solution to utilize a convection slot at the back of the chassis to increase thermal dissipation.
*Feature 2. Natural convection design: Silent-Pipe II technology artfully uses the temperature difference between the inside and outside of chassis, creating natural system convection.
*Feature 3. High-precision die-casting process: uses the latest high-precision die forming technology to increase the thermal conductivity of the material that makes up the heat sink.
*Feature 4. SLI ready: designed for compatibility with dual card configurations.
*Feature 5. High performance heat pipe with sintered powder wicks: with the industry's best powder-style pure copper heat pipe for ultra efficient thermal conductivity.
*Feature 6. 3D performance ready: designed stability during demanding 3D applications.
*Feature 7. Integrated architecture design: heat pipe and GPU actually make contact to provide unequalled heat conductivity. -
GIGABYTE V-tuner3GIGABYTE's monitoring and overclocking tool V-tuner 3 enables users to dynamically optimize the memory and GPU frequencies; moreover, demonstrates real-time temperature for models integrated with hardware thermal sensor chip.
What's new with V-tuner3:
*Auto detect most suitable OC Clock
*Resume back to original CLK(BIOS Clock) while abnormal shut down
*Use GPU internal Diode to get temp information, no more H/W monitor chip
*Show 2D/3D CLK at the same time and tuning separately
*Save CLK to enable OC every booting
-
GIGABYTE @VGATo make it easier update the VGA BIOS than before and help users update the latest VGA BIOS from Internet automatically.
-
SLI™ TechnologyDelivers up to 2X the performance of a single GPU configuration for unparalleled gaming experiences by allowing two graphics cards to run in parallel. The must-have feature for performance PCI Express graphics, SLI dramatically scales performance on 60 top PC games.
-
Widescreen resolution support
Resolution Colors (bits) Refresh Rate (Hz) 16:10 1920 x 1200 8/16/32 75 16:9 1920 x 1080 8/16/32 85
*Resolutions are limited by the performance of the attached monitor. 16:9 / 16:10 aspect ratio monitors are only supported on Windows® XP. The complete list of resolutions depends on the driver version and operating system. -
Display Support*Dual integrated 400MHz RAMDACs for analog display resolutions up to and including 2048x1536 at 85Hz.
*Dual-link DVI capability to drive the industry's largest and highest resolution digital flat panel displays up to 2560x1600 at 60 Hz.
*Integrated HDTV encoder provides analog TV-output (Component/Composite/S-Video) up to 1080i resolution....more information
![](/FileUpload/global/Other/11/Photo/hdmi_logo_b.png)
* Os termos HDMI, HDMI High-Definition Multimedia Interface (interface multimédia de alta-definição), a apresentação comercial HDMI e os Logótipos HDMI são marcas comerciais ou marcas registadas da HDMI Licensing Administrator, Inc.
* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
