Z490 AORUS PRO AX (rev. 1.x)

Intel® Z490 Chipset

Intel® Z490 AORUS Motherboard with Direct 12+1 Phases Digital VRM Design, Comprehensive Thermal Solution with Fins-Array II, Intel® WiFi 6 802.11ax, Intel® 2.5GbE LAN, RGB FUSION 2.0

  • Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors*
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Intel® Optane™ Memory Ready
  • Direct 12+1 Phases Digital VRM Solution with 55A DrMOS

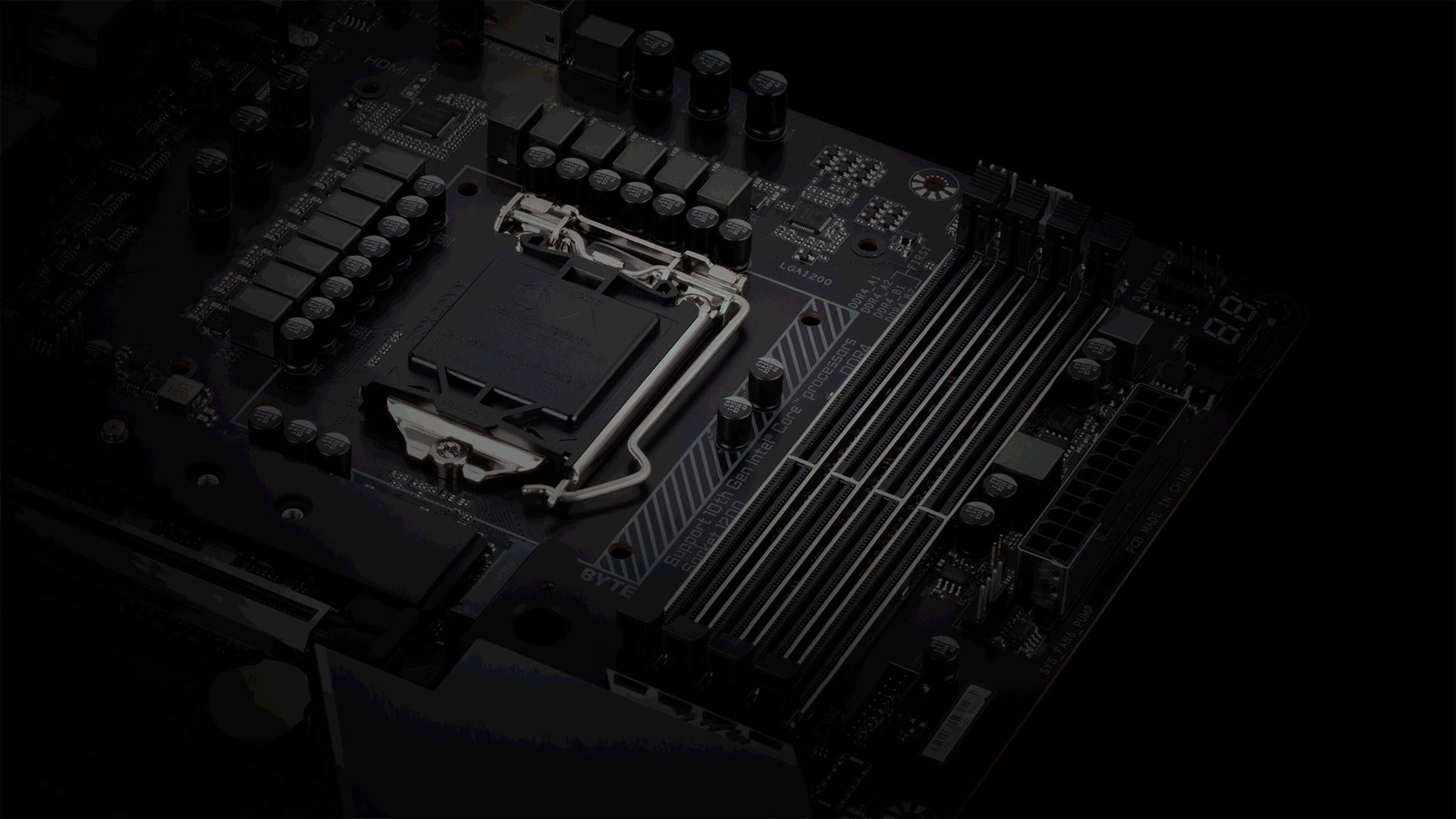

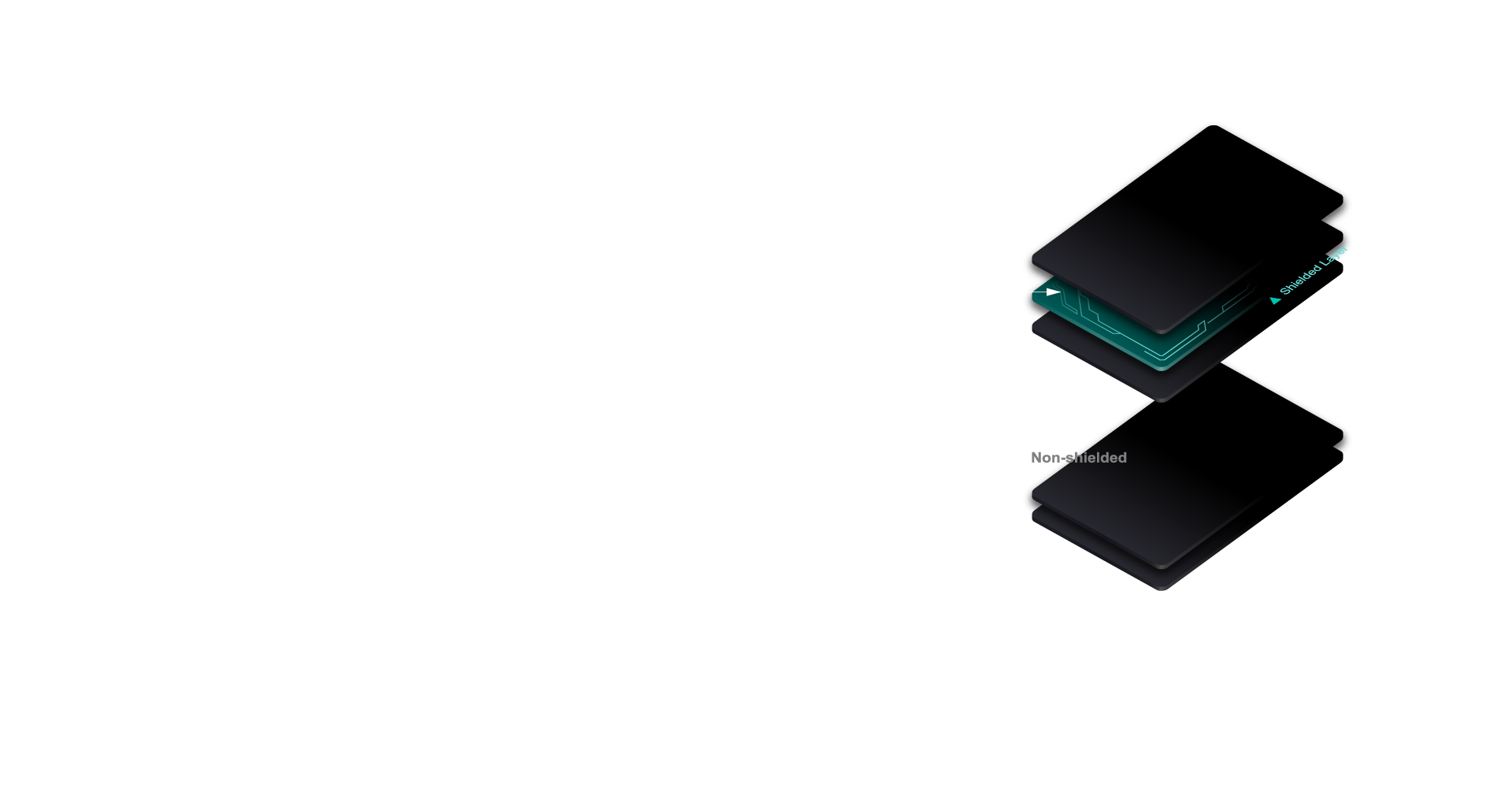

  • Shielded Memory Routing for Better Memory Overclocking
  • Fins-Array II Heatsink and Direct Touch Heatpipe II
  • Onboard Intel® WiFi 6 802.11ax 2T2R & BT5 with AORUS Antenna
  • AMP-UP Audio with ALC1220-VB and WIMA for Rear 120dB SNR
  • Blazing Fast Intel® 2.5GbE LAN with cFosSpeed
  • Dual Ultra-Fast NVMe PCIe 3.0 x4 M.2 with Thermal Guards
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips

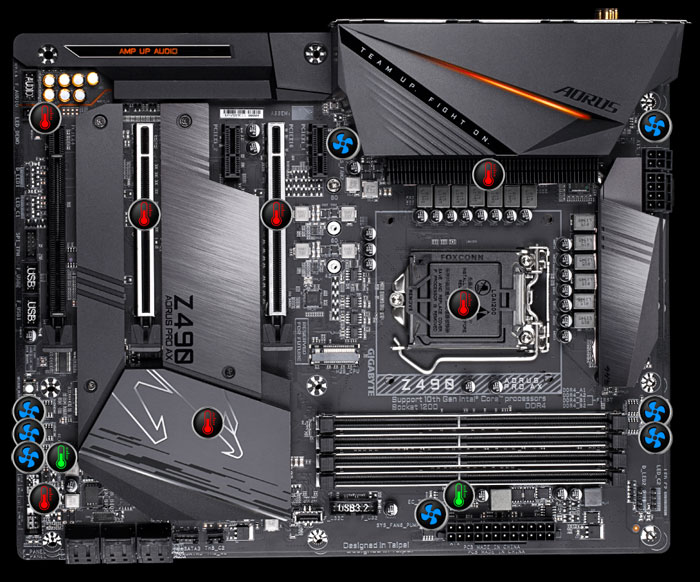

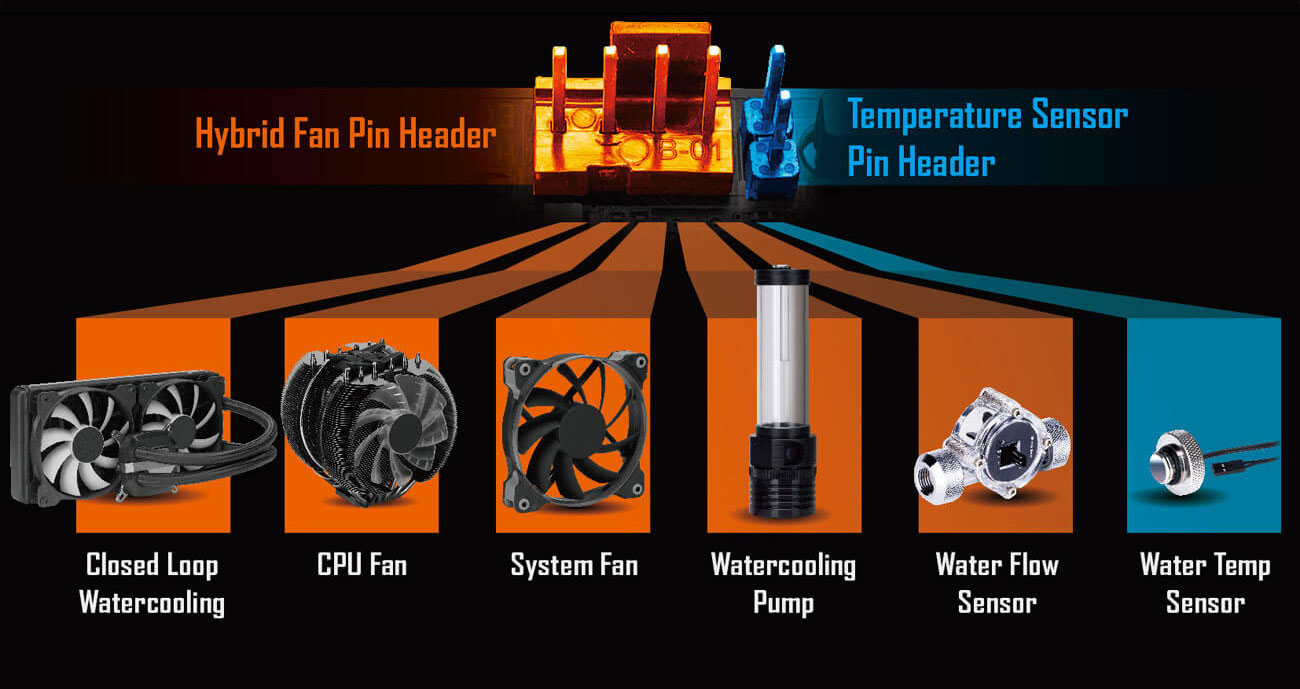

  • Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

    • * Updated BIOS is required for compatibility.
Ultimate Power Design
UNPARALLELED PERFORMANCE
Advanced Thermal Solution
Next Generation Connectivity
Hi-Fi Audio System
Definitive Aesthetics
Ultra Durable
GIGABYTE BIOS & APP CENTER
Ultimate Power Design
UNPARALLELED PERFORMANCE
Advanced Thermal Solution
Next Generation Connectivity
Hi-Fi Audio System
Definitive Aesthetics
Ultra Durable
GIGABYTE BIOS & APP CENTER
Z490 AORUS MASTER Z490 AORUS XTREME WATERFORCE Z490 AORUS XTREME
VOID SPLIT
Shards of the Void; Borders Disappear
Fusing different materials and surface textures with negative space to form a juxtaposition and showcase a stylistic effect where the boundaries between components are not clearly defined. It creates a multi-dimensional design that seemingly cuts through space and time.
1
Intel® WiFi 6 802.11ax 2T2R & BT5
2
Onboard Display HDMI
3
Rear USB 3.2 Gen2 Type-C™
4
Intel® 2.5 GbE LAN
5
Advanced Thermal Design
  1. Fins-Array II
  2. Direct-Touch Heatpipe II
  3. 5 W/mK LAIRD Thermal Conductivity Pad
  4. 2X Enlarged M.2 Thermal Guard
6
2* M.2 Connectors with Thermal Guards
  1. NVMe PCIe 3.0 x4
7
AMP-UP Audio
  1. ALC1220 Audio
  2. Audio Noise Guard
  3. High-End Audio Capacitor
  4. Audiophile Grade WIMA Capacitors
8
RGB FUSION 2.0
  1. Addressable LED Header*2
  2. RGB LED Header*2
9
Direct 12+1 Phases Digital Power Design with DrMOS
  1. PCIe 4.0 Ready Mid-Loss PCB
  2. 55A DrMOS
  3. Premium Choke and Capacitor
  4. 6 Layer PCB
  5. 2X Copper PCB
10
Solid Pin Power Connectors
  1. 24 Pin ATX Power Connector
  2. 8+4 Pin CPU Power Connector
11
Supports 10th Gen. Intel® Core™ Processors
12
Dual Channel DDR4, 4 DIMMs with Ultra Durable Memory Armor
13
Front USB 3.2 Gen1 Type-C™ for Connecting Devices
14
Ultra Durable PCIe Armor
  1. Running 1 x16 or 2 x8
15
Q-FLASH Onboard Button
Ultimate power Design
Z490 AORUS PRO AX motherboard uses an 12+1 phases digital CPU power design which includes both digital PWM Controller and DrMOS. These 100% digital controller and additional 8+4 Solid-pin CPU Power Connectors offer incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from the new Intel 10-core CPU.
12+1 Phases
Digital Power Design
Power
Architecture
2X
Copper PCB
Digital PWM
Driver MOSFET
Tantalum Capacitor
CPU Power Connector

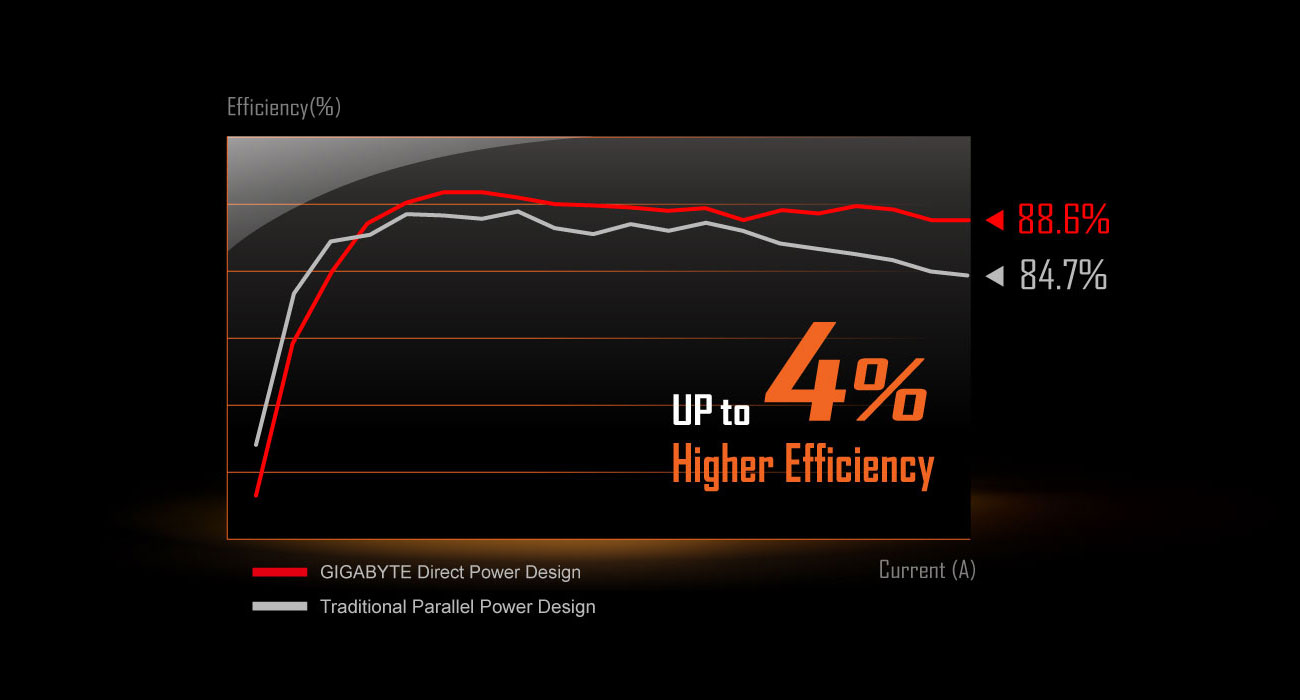

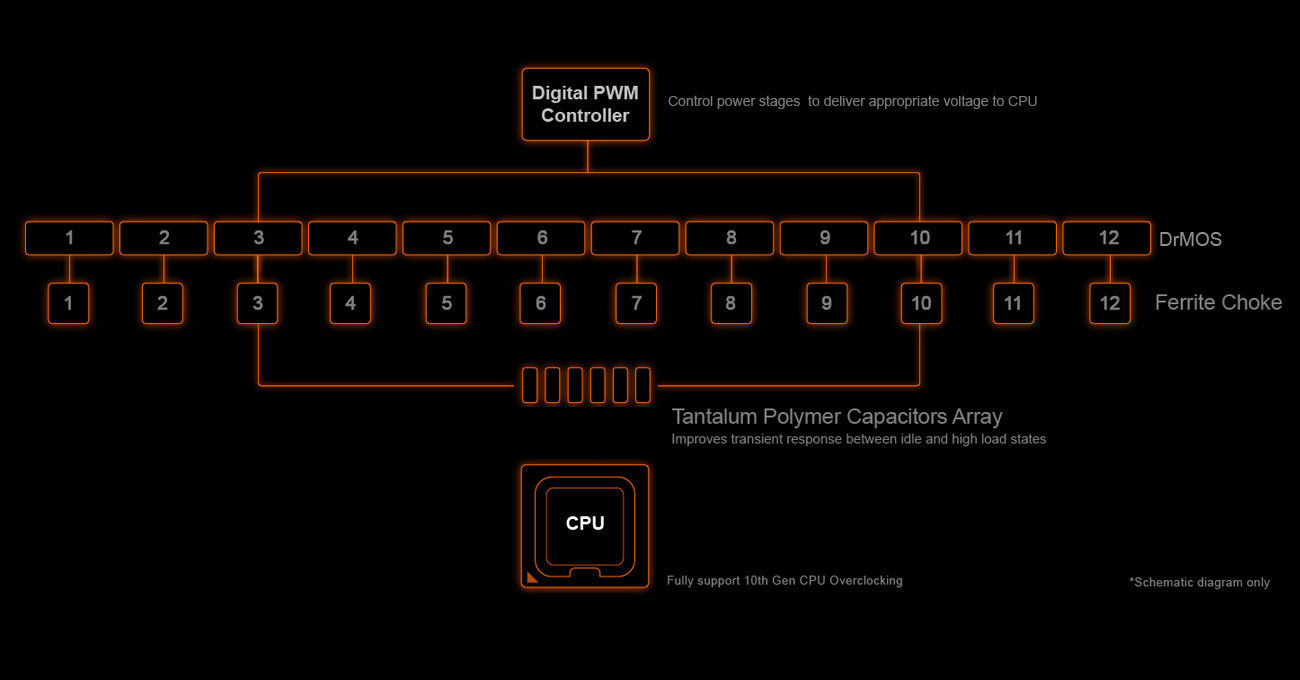

Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.
  • Digital PWM Controller to deliver appropriate voltage to the CPU.
  • Direct 12+1 Phases DrMos without PWM Doublers, each power phase connects directly to the CPU, With capability to handle 660 Amps current in total.

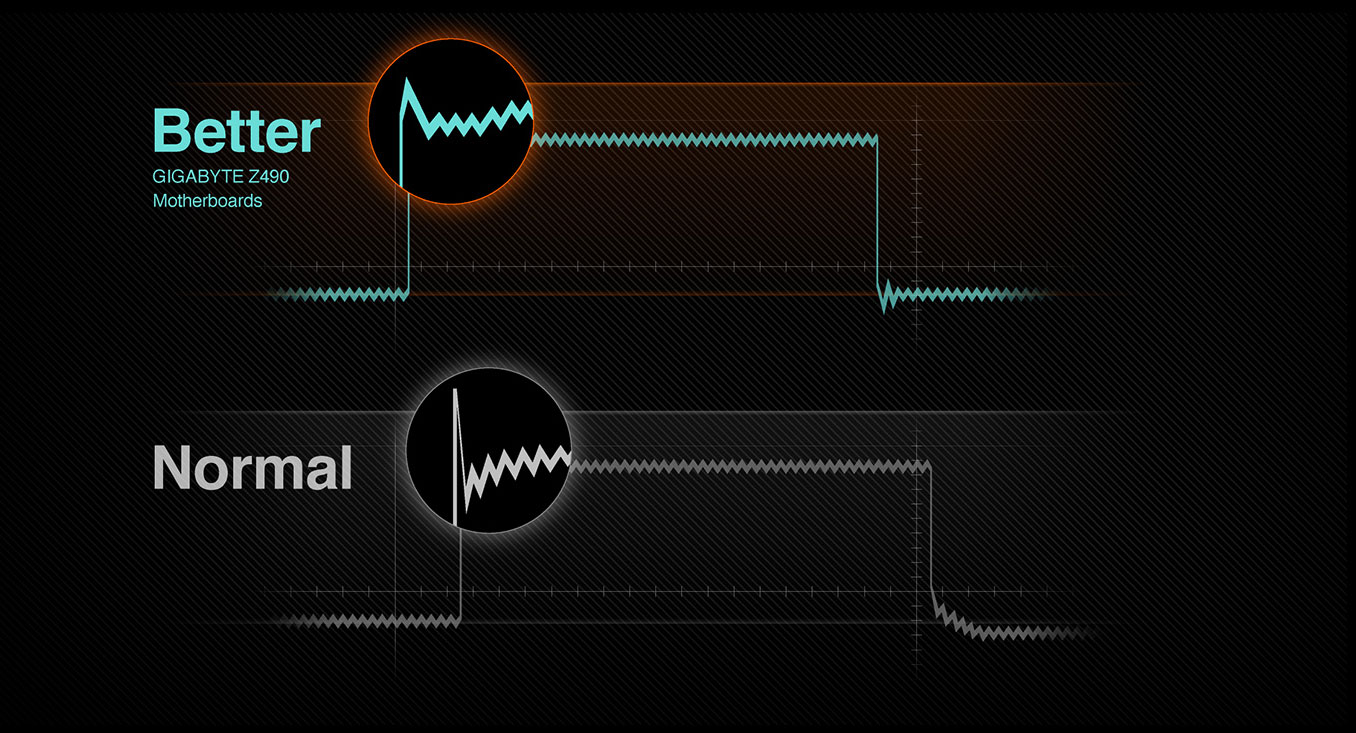

  • Tantalum Capacitors Array to improve Transient response and minimize oscillation.
  • 8+4 Solid Pin CPU Power Connectors
1. Digital PWM
2. Driver MOSFET
3. Tantalum Capacitor
4. CPU Power Connector
GIGABYTE's exclusive 2X Copper PCBs design provides sufficient power trace paths between components to handle greater than normal power loads and to remove heat from the critical CPU power delivery area. This is essential to ensure the motherboard is able to handle the increased power loading that is necessary when overclocking.
Unparalleled Performance
With the best quality components and GIGABYTE R&D design capability, the Z490 AORUS is a true beast among motherboards.

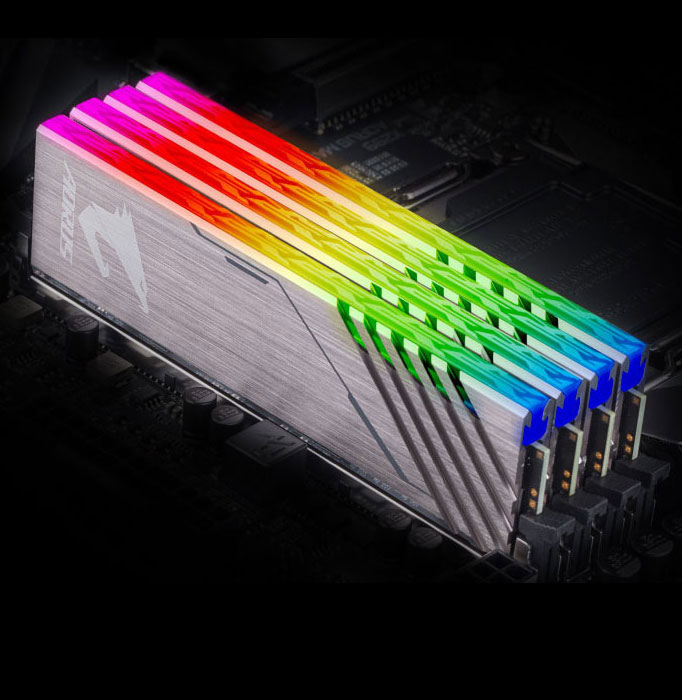

XMP 5000+
PCIe 4.0
Hardware Design
2X
PCIe 3.0 x4 M.2
PCIe 4.0
Like SSD
1. 2X PCIe 4.0 Slot
Reinforced PCIe 4.0 x16 or x8/x8 with lower impedance.
2. M.2 PCIe 4.0 Slot
M.2 PCIe 4.0 x4 slot with lower impedance.
3. PCIe 4.0 Turbo B-Clock
External clock generator for PCIe 4.0 overclocking.
4. PCIe 4.0 Switches
Switch PCIe 4.0 x16 into PCIe 4.0 x8/x8.
5. PCIe 4.0 Re-driver
Boost & strengthen PCIe 4.0 signals to longer lengths.
Dual PCIe Gen3 x4 M.2
AORUS Gaming Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential.
Advanced Thermal Solution
Unthrottled performance is guaranteed by the enhanced thermal solution that incorporates Fins-Array II, Heatpipe II and Thermal Guards II. The comprehensive solution delivers excellent heat dissipation. The Z490 AORUS PRO AX stays cool on VRMs and M.2 SSD even on full loading, making it most suitable for enthusiasts, overclockers and professional gamers.
Thermal Solution
Fins-Array II
Direct Touch II
Thermal Guard

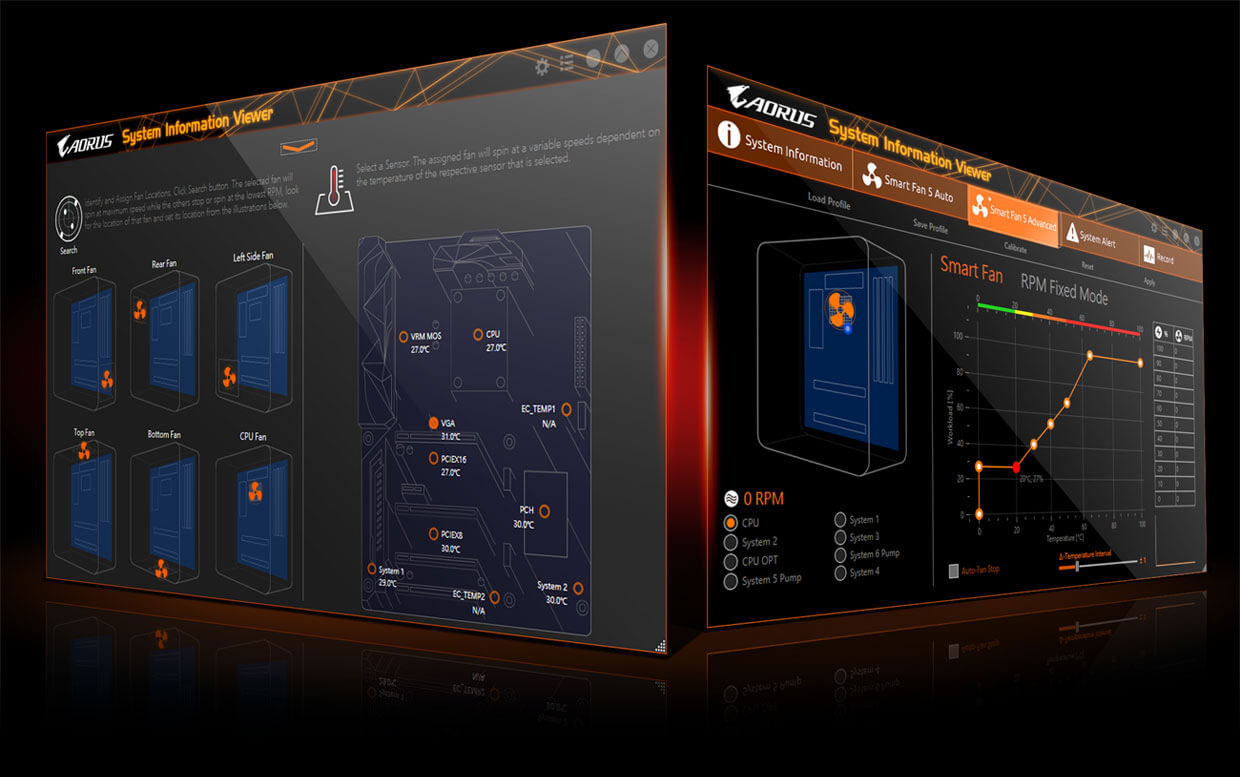

Smart Fan 5
1. Direct-Touch Heatpipe II
With an extra large 8mm heatpipe and made from a new manufacturing process that narrows the gap between the heatpipe and heatsink, the new Direct-Touch Heatpipe greatly help transfers heat on the MOSFET.
2. 2X M.2 Thermal Guard
Enlarged double-sided M.2 heatsink prevents high-speed, large capacity PCIe 3.0 SSDs with double side flash from throttling due to overheating.
3. Fins-Array II
Fins-Array II use a new louvered stacked-fins design which not only increases surface area by 300% compared to traditional heatsinks but also improves thermal efficiency with better airflow and heat exchange.
4. LAIRD 5 W/mK Thermal Pad
By using 1.5mm thicker 5 W/mK thermal conductivity pads, it can transfer 4x more heat compared to traditional thermal pads in the same time.
Direct-Touch Heatpipe II
With an extra large 8mm heat pipe and made from a new manufacturing process to narrow the gap between the heat pipe and heatsink, new Direct-Touch Heatpipe II greatly helps transfer heat on MOSFETs.
AORUS M.2 Thermal Guard
GIGABYTE Ultra-Efficient M.2 Thermal Guard
With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
Thermal Throttling As Temperature Rises
Next Generation Connectivity
A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. Z490 AORUS provides all next generation network, storage, and WIFI connectivity to keep you up to speed.
Intel 2.5G LAN

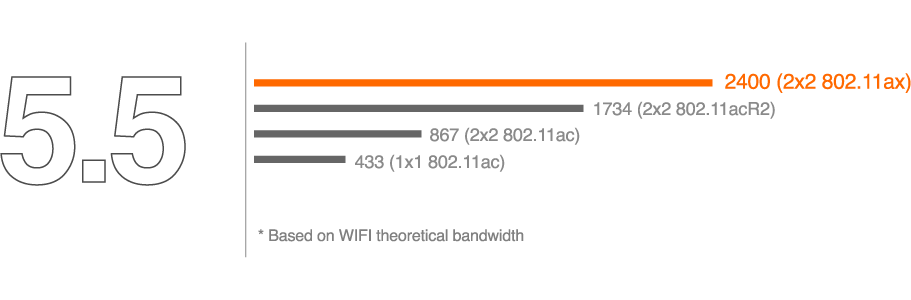

WIFI 6

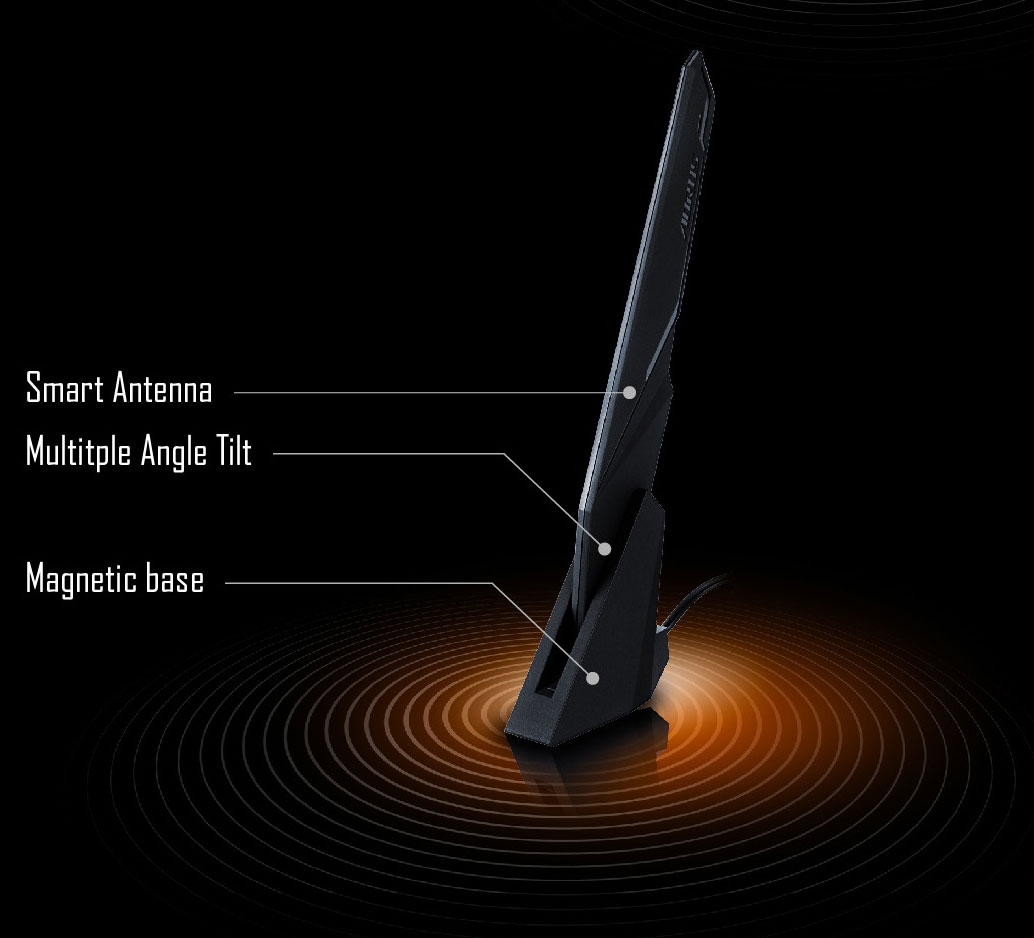

AORUS Antenna
Intel 2.5GbE LAN Onboard

2X Faster than ever
Adoption of 2.5G LAN provide up to 2.5 GbE network connectivity, with at least two times faster transfer speeds compared to general 1GbE networking. It's perfectly suit for gamers and streamer with ultimate and smooth online experience. It also backward compatible with Multi-Gig(10/100/1000/2500Mbps) RJ-45 ethernet.


Audio Solution with DTS Immersive Sound Experience
Hi-Res Audio
Hi-Res Audio certified, meaning that the product is capable of reproducing frequencies up to 40kHz or above which ensures user with the best audio quality at all times.
ALC1220-VB Immersive Gaming ViBes
All New Realtek High-End HD Audio Codec
ALC1220 120dB(A) SNR HD Audio with Smart Headphone Amp automatically detects impedance of your head-worn audio device, preventing issues such as low volume and distortion.
With the new VB series audio controller, stream your voice to the world vibrantly with both front/rear microphone SNR up to 110/114dB(A).
Definitive Aesthetics
RGB FUSION 2.0
RGB FUSION Software
RGB FUSION APP
Multi-Zone Light Show Design
Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.
Note: Lighting effects depicted are for demonstration purposes only. Actual lighting effects may vary by model.
With an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.
Sync with one click
Individual control as you wish

GIGABYTE RGB Fusion APP

Don't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app users can watch as they control the lighting within their gaming PC. This gives users ease of access as they try and adjust colors and speeds for different modes, all this can be achieved away from the keyboard and monitor of their PC.

Ultra Durable
GIGABYTE is reputable for its product durability and high quality manufacturing process. Needless to say, we use the best components we can find for the Z490 AORUS motherboard and reinforce every slot to make each of them solid and durable.
2X PCIe Armor
4X Memory Armor
Solid Pin
Q-Flash Plus
Ultra Durable™ PCIe Armor
Industry Leading Ultra Durable™ PCIe Armor
The innovative one piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.
Ultra Durable™ Memory Armor
AORUS' exclusive one piece stainless steel shielding design prevents against PCB distortion/twisting and plate bending, in addition to preventing any possible ESD interference.
Solid Pin Power Connectors
Z490 AORUS motherboards feature solid plated ATX 24pin & ATX 12V 8pin + 4pin power connectors to offer a stable power supply during CPU overloading.
Solid Pin Power connector advantages
  1. Larger contact area for electricity
  2. More metal quantity to sustain higher power and generated heat
  3. Ultra durable and longer lifespan
Q-Flash Plus
Update the BIOS easily without installing the CPU, memory and graphics card.
GIGABYTE BIOS & APP CENTER
Good software goes hand in hand with perfect hardware. Z490 AORUS PRO AX bundled several useful and intuitive software to help users to control every aspect of motherboard.
BIOS
APP Center
Easy Tune
System Information Viewer
BIOS
New User Interface
All new EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.
My Favorites
Add constantly used items into the favorite menu for quick access.
Storage Information
Show all kinds of storage information including SATA, PCIE and M.2 interface.
Changelog
List all changes before saving and exiting bios. Quickly review overall settings modification.
Intuitive Load Line Curve
Clearly show each loadline calibration setting in an intuitive curve graph.
APP CENTER
GIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep updated with the latest utilities and drivers version.
EasyTune™
GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.
System Information Viewer
GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.
