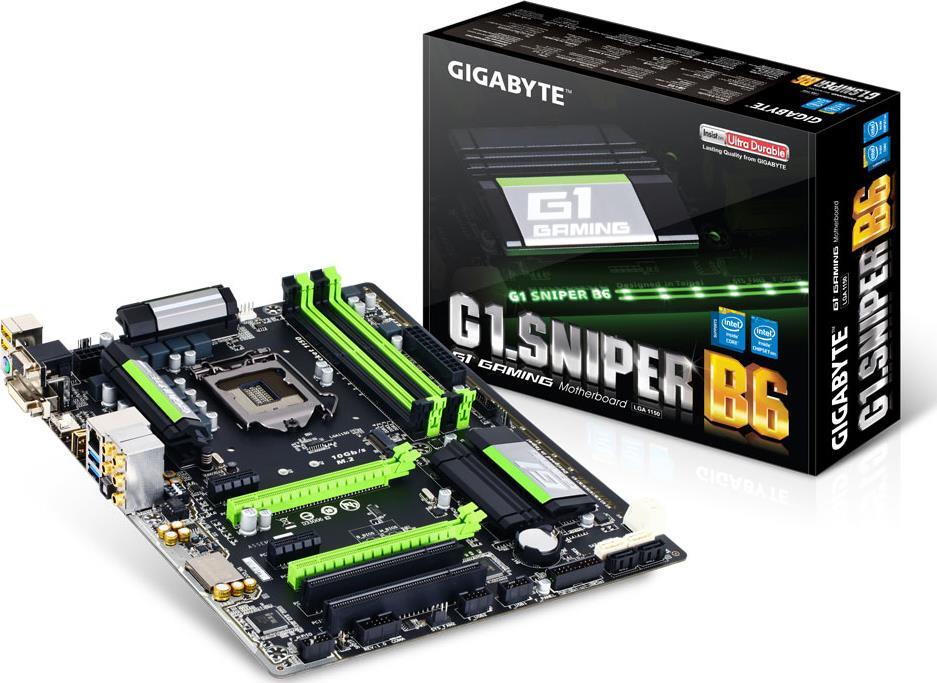

G1.Sniper B6 (rev. 1.0)
Intel® B85 Chipset
![](/FileUpload/Global/Other/2/Photo/3438.jpg)
- Supports 4th Generation Intel® Core™ processors
- GIGABYTE Ultra Durable™ 4 Plus Technology
- GIGABYTE Hybrid digital power engine
- GIGABYTE UEFI DualBIOS™
- GIGABYTE AMP-UP Audio technology
- Nichicon High End Audio Capacitors
- M.2 for SSDs drives with up to 10 Gb/s data transfer
- Intel GbE LAN with CFOS internet accelerator software
- DAC-UP USB port
- Realtek ALC1150 115dB SNR HD Audio with built-in rear audio amplifier
- Audio Noise Guard with LED path lighting
- Multi-GPU Support
- Intel® LAN with high ESD Protection
-
GIGABYTE 8 Series MotherboardsGIGABYTE 8 Series motherboards support the latest 4th Generation Intel® Core™ processors, bringing together a unique blend of features and technologies that offer the absolute ultimate platform for your next PC build. From high current capable digital power delivery, performance-enhancing caching technologies, exclusive high-end audio features, advanced networking and device charging, gold plated hardware connectors and of course, killer good looks, GIGABYTE 8 series motherboards are in a class of their own.
Next Gen Intel® 8 Series Platform
The latest Intel 8 Series platform offers significant improvements in performance and power consumption with the latest 4th generation Intel® Core™ processors and Intel® B85 chipsets. As well as a boost in overall productivity, the latest HD4600 Intel® processor graphics provide native 4K resolution playback over standard HDMI connectivity, with significantly higher frame rates in the latest DX11 3D game titles. -
GIGABYTE Ultra Durable™ 4 Plus
GIGABYTE Ultra Durable™ 4 Plus debuts on GIGABYTE 8 Series motherboards, with a range of features and component choices that provide record-breaking performance, cool and efficient operation and extended motherboard lifespan. -
Ultra Cool
All New Heat Sink Design
GIGABYTE motherboards feature new heatsink designs that offer uncompromisingly efficient cooling on key areas of the motherboard including the PWM area and chipset (PCH). GIGABYTE 8 Series motherboards offer both passive, active and water cooling support of the crucial PWM area so even the most aggressive and extreme configurations will be kept well within optimal thermal parameters. -
Ultra Performance
GIGABYTE uses All Solid Caps (Capacitors) and Low RDS(on) MOSFETs which are rated to work at higher temperatures to provide a longer lifespan.
-
Ultra Safe
GIGABYTE UEFI DualBIOS™
GIGABYTE motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', making users protected from BIOS failure due to virus attack, hardware malfunction, improper OC settings or power failure during the update process.
-
High ESD Protection for USB and LAN
GIGABYTE 8 Series motherboards raise the bar in terms of protecting your system, providing advanced electrostatic discharge (ESD) protection for both your Ethernet LAN and USB ports, both common sources of ESD-related failures. Each LAN and USB port is paired with a dedicated protection filter that can withstand high electrostatic discharges, protecting your system from common electrical surges and even direct lighting strikes. -
Intel® Gigabit LANIntel® Gigabit LAN networking, a popular choice with gamers that features several performance-enhancing features such as advanced interrupt handling to help reduce CPU overhead and Jumbo Frame support for extra large data packets.
-
cFosSpeedGIGABYTE motherboards feature cFos Speed, a network traffic management application which helps to improve network latency, maintaining low ping times to deliver better responsiveness in a crowded LAN environment. cFos Speed works in a similar way to an OS driver, monitoring network traffic packets at the application layer, allowing optimization and improved network performance for specific applications.
-
Realtek ALC1150 115dB SNR HD AudioThe ALC1150 is a high-performance multi-channel High Definition Audio Codec that delivers an exceptional audio listening experience with up to 115dB SNR, ensuring users get the best possible audio quality from their PC.
The ALC1150 provides ten DAC channels that simultaneously support 7.1-channel sound playback, plus 2 channels of independent stereo sound output (multiple streaming) through the front panel stereo outputs. Two stereo ADCs are integrated and can support a microphone array with Acoustic Echo Cancellation (AEC), Beam Forming (BF), and Noise Suppression (NS) technologies. The ALC1150 incorporates Realtek proprietary converter technology to achieve Front differential output 115dB Signal-to-Noise ratio (SNR) playback (DAC) quality and 104dB SNR recording (ADC) quality. -
GIGABYTE AMP-UP AudioTo help protect and insulate the audio codec and onboard amplifiers from electromagnetic interference (EMI), GIGABYTE G1-Killer motherboards are the world's first to feature an onboard OP-AMP socket, allowing enthusiasts to swap out the motherboard's onboard operational amplifier (OP-AMP) and explore personal audio preferences using a range of nuanced OP-AMPs available on the market. Additional amplifiers can be purchased separately to further expand audio capabilities.
-
Nichicon High End Audio CapacitorsGIGABYTE 8 Series G1-Killer motherboards use the highest quality Nichicon high end audio capacitors. These professional audio capacitors deliver the highest quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.
-
Audio Noise GuardAudio Noise Guard with Path Lighting
GIGABYTE G1-Killer motherboards feature an audio noise guard that essentially separates the board's sensitive analog audio components from potential noise pollution at the PCB level. LED trace path lighting Illuminates to show the separation of the PCB layers.
-
Gold Plated Audio HardwareGIGABYTE motherboard pack top quality gold plated audio connectors for improved connectivity and long lasting durability. Gold has superb signal conductivity and will not tarnish over extended periods of use. The ALC1150 audio codec is also shielded by a gold plated cover which eliminates electrostatic interference.
-
USB DAC-UPFeaturing USB 2.0 ports, GIGABYTE USB DAC-UP provides clean, noise-free power delivery to your Digital-to-Analog Converter. DACs can be sensitive to fluctuations in power from the other USB ports, which is why GIGABYTE USB DAC-UP takes advantage of an isolated power source that minimizes potential fluctuations and ensures the best audio experience possible.
-
M.2 Onboard ConnectorG1. Sniper B6 motherboard comes equipped with an onboard M.2 slot, providing users PCI-Express connectivity for SSD devices. Delivering up to 10 Gb/s data transfer speeds, M.2 offers users considerably faster storage performance than current mSATA and even SATA Revision 3 (6Gb/s) storage devices
-
Dedicated Audio Hardware Zone+ Separation on the PCB layer protects the board's sensitive analog audio components.
+ Separate analog and digital ground to protect against Electromagnetic Interference (EMI).
+ LED trace path lighting illuminates to show the separation of the PCB layers. -
HDMI™-The Next Generation Multimedia InterfaceHDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.
-
DVI SupportDVI (Digital Visual Interface) is a video interface standard designed for carrying uncompressed digital video data and to maximize the visual quality of digital display devices, such as LCD monitors, digital projectors, and so on. In addition, the DVI interface is compatible with HDCP (High-bandwidth Digital Content Protection).
-
On/Off Charge TechnologyGIGABYTE On/Off Charge technology allows you to charge your iPhone, iPad and iPod Touch regardless of whether your PC is on, in standby mode or even off. A derivative of GIGABYTE's highly acclaimed 3x USB Power feature, On/Off Charge enables devices to draw more current from GIGABYTE motherboard USB ports than standard USB ports allow, so that charging from your PC can be as fast as with a charger...more
*Due to certain mobile phone limitations, users may need to connect the mobile phone to their PC before the PC enters S4/S5 mode to enable a quick charge from non On/Off Charge USB ports. Charging results may vary by model.
*Whether to support 3X USB power design, it may vary by models.
-
GIGABYTE App CenterGIGABYTE App Center gives you easy access to wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE App Center allows you to launch all GIGABYTE apps installed on your system.
-
GIGABYTE EasyTune
GIGABYTE EasyTune provides a simple and easy-to-use interface that allows users to fine-tune their system settings. GIGABYTE Smart Fan 2 As well as offering more system fans than ever before, GIGABYTE 8 Series motherboards feature updated and improved CPU and system fan speed controls, with individual airflow and speed settings available via a dedicated digital controller. GIGABYTE Smart Fan 2 allows you to configure CPU fans and system fans. -
GIGABYTE @BIOSThe new and updated GIGABYTE @BIOS app allows you to update your system's BIOS from within Windows using a simple and slick graphical user interface by automatically downloading the latest version from the GIGABYTE servers.
-
GIGABYTE EZ SetupGIGABYTE EZ Setup combines several key utilities designed to simplify install and configuration procedures for several exclusive GIGABYTE apps including Disk Mode Switch, Smart Connect, EZ Rapid Start and EZ Smart response.
