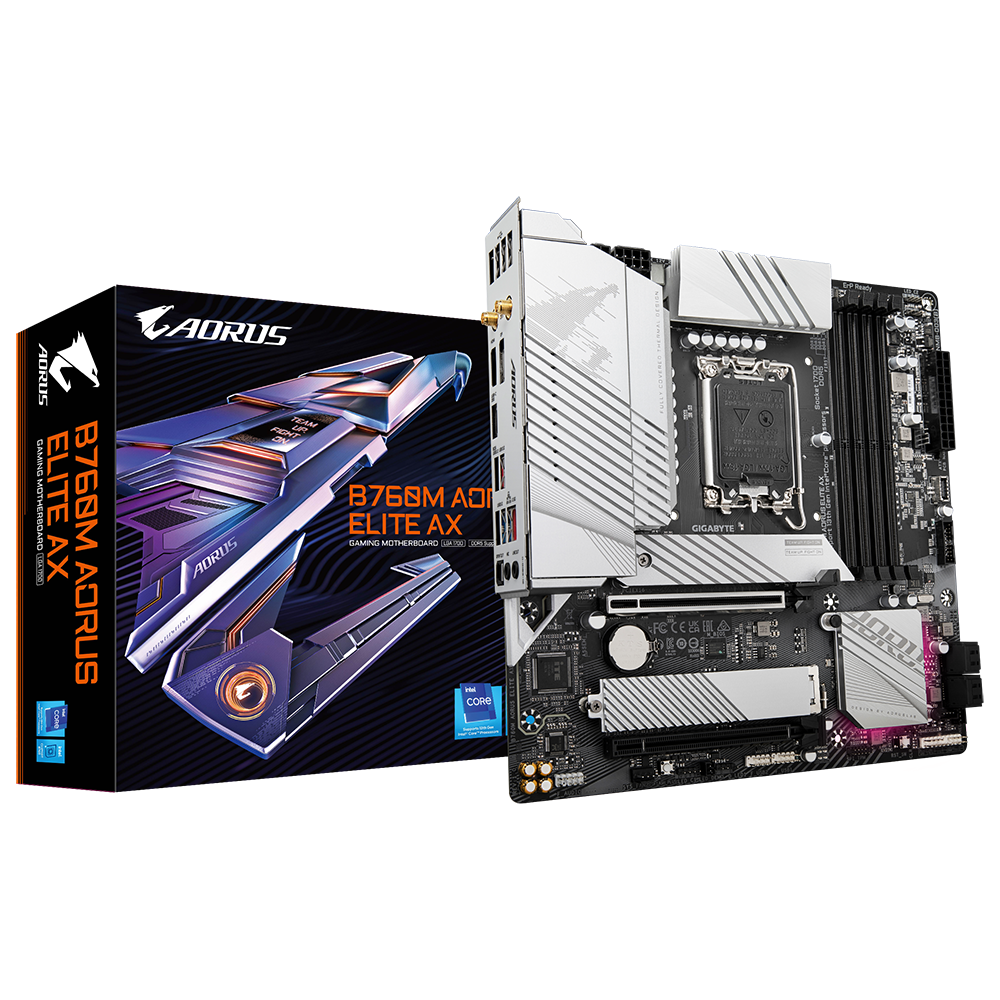

B760M AORUS ELITE AX (rev. 1.2/1.3)

Intel® B760 Chipset

  • Supports Intel® Core™ 14th/ 13th /12th processors
  • Unparalleled Performance：Twin 12*+1+1 Phases Digital VRM Solution
  • Dual Channel DDR5：4*SMD DIMMs with XMP 3.0 Memory Module Support
  • Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
  • Advanced Thermal Design & M.2 Thermal Guard ：To Ensure VRM Power Stability & M.2 SSD Performance
  • EZ-Latch Plus：M.2 Connectors with Quick Release & Screwless Design
  • Fast Networks： 2.5GbE LAN & Wi-Fi 6E 802.11ax
  • Extended Connectivity：Front USB-C® 10Gb/s, Rear USB-C® 20Gb/s, DP, HDMI
  • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

* 6+6 phases parallel power design
OVERVIEW
PERFORMANCE
THERMAL
CONNECTIVITY
PERSONALIZATION
ULTRA DURABLE
Key Feature
Performance
Connectivity
1
8+4 Solid Pin CPU Power Connector
2

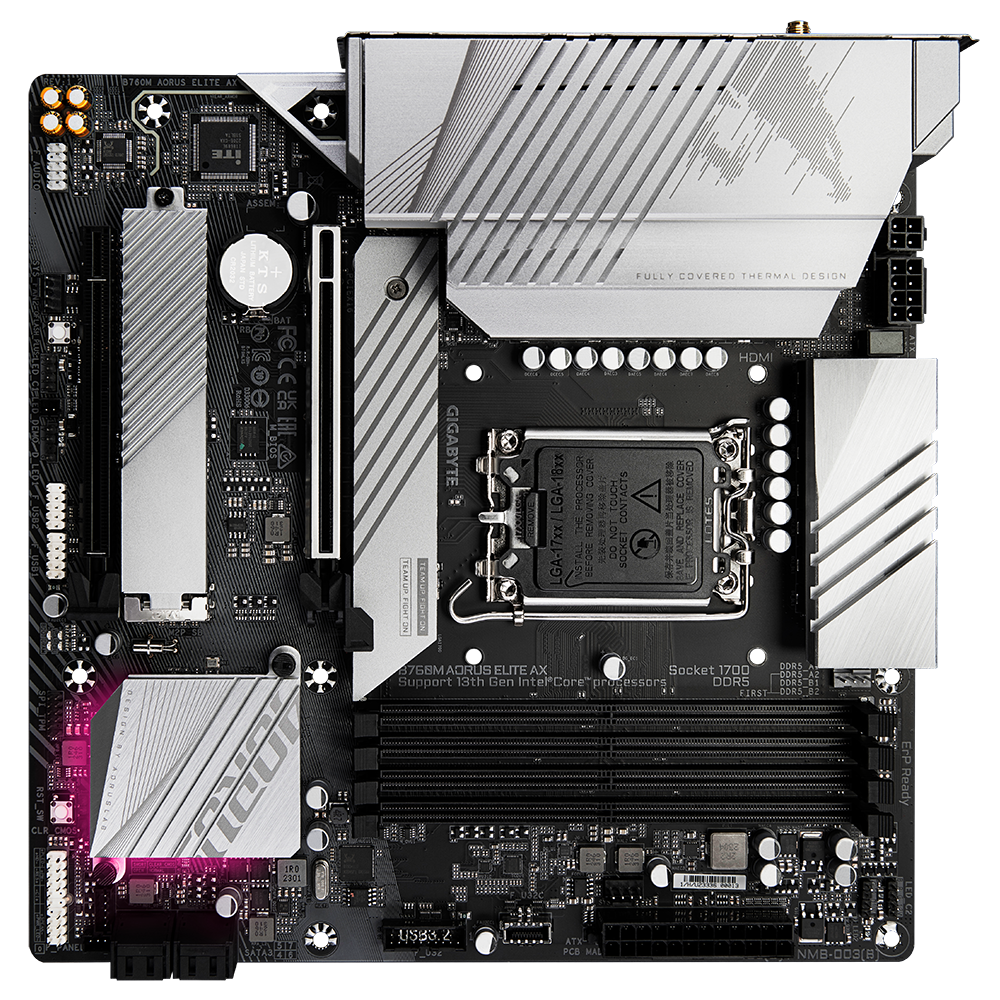

Advanced Thermal Design
  1. Fully Covered MOSFET Heatsinks
  2. 5 W/mk Thermal Conductivity Pad
  3. Aluminum I/O Cover
3
2 x M.2 Ultra Storage Performance Connectors
  1. 2*PCIe 4.0 x4 M.2 with 2*Thermal Guard
  2. M.2 EZ-Latch Plus
4
12+1+1 Twin Hybrid Phases Digital Power Design*
  1. 60A DrMOS
  2. PCIe 4.0 Ready PCB
  3. 6-Layer & 2X Copper PCB
    4. * 6+6 phases parallel power design.Digital VRM design for VCORE & VCCGT.
5
Support 13th and 12th Gen. Intel® Core™ Processors
6
Dual Channel SMD DDR5 Memory
7
Ultra Durable™ PCIe Armor
  1. 1* PCIe 4.0 x16 Slot
  2. PCIe EZ-Latch
1
Wi-Fi 6E 802.11ax 2T2R & BT 5 with AORUS Antenna
2
HDMI
3
DisplayPort
4
Rear USB 3.2 Gen 2x2 Type-C®
5
2.5GbE LAN
6
Hi-Fi Audio
  1. 8-Ch HD Audio
  2. Audio Noise Guard
  3. High-End Audio Capacitor
7
  1. 2*Addressable LED Header
  2. 2*RGB LED Header
8
Front USB 3.2 Gen 2 Type-C® for Connecting Devices
9
4*SATA 6Gb/s
10
Smart Fan 6
  1. 4*PWM/DC Fan Headers
  2. Dual Fan Curve Mode
Unparalleled Performance
Twin Digital VRM Design
PCIe 4.0 Design
Unlock DDR5
Dual PCIe 4.0 M.2
PerfDrive
With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimized performance for gaming.

To ensure maximum Turbo Boost and overclocking performance of Intel's new generation CPU, GIGABYTE AORUS series motherboard equip the best VRM design ever built with the highest quality components.

To unleash full potential of multi-cores CPU performance

For CPU integrated GPU performance

Provide stable power for CPU integrated PCIe & Memory controller

* 6+6 phases parallel power design
1. 2 x PCIe 4.0 Slots
Reinforced PCIe 4.0 x16/x4 with lower impedance.
2. 2 x PCIe 4.0 x4 M.2 Connectors
M.2 PCIe 4.0 x4 slot with lower impedance.
* Product uses PCIe 4.0 grade materials, actual support varies by CPU.
Dual PCIe 4.0 x4 M.2
AORUS Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system's potential.
GIGABYTE PerfDrive
PerfDrive technology integrates multiple GIGABYTE exclusive BIOS settings to allow users to balance between different levels of performance, power consumption, and temperature according to their needs easily when using 13th gen Intel® Core™ processors.
Max Turbo
Optimization
Spec Enhance
E-Core™ Disable
Max Turbo allows Intel® 13th Gen. Core™ CPU to run at Maximum Turbo Boost speed.
The Optimization mode enables Intel® 13th Gen. Core™ CPU to balance between high performance and low temperature.
The Spec Enhance mode enables Intel® 13th Gen. Core™ CPU to run at high performance under a lower temperature setting.
The E-Core™ Disable mode allocates CPU resources to P-core exclusively to boost its gaming performance, while diminishing the overall power consumption of processors.
* Features and function vary depending on Motherboard and CPU specifications, image is for reference only.
Outstanding Thermal Design
Thermal Design
Fully Covered MOSFET Heatsink
M.2 Thermal Guard
2X Copper PCB
Smart Fan 6
GIGABYTE Motherboards' unparalleled performance is guaranteed by innovative and optimized thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance.
1. Fully Covered Thermal Design
High coverage MOSFET and integrated molding Heatsinks to improve thermal efficiency with better airflow and heat exchange.
2. 6-Layer & 2X Copper PCB
2X Copper PCBs design effectively lower the component temperature by its high thermal conductivity and low impedance.
3. 5 W/mK Thermal Pad
4. M.2 Thermal Guard
The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
1. 2X Large Surface
Increased surface area up to 2X larger compared to traditional heatsinks. It improves heat dissipation from the MOSFETs.
2. Real One-piece Build
TMOS is a TRUE single piece heatsink. Its one-piece design and larger surface drastically improve the cooling performance against competitors' multi-piece design.
3. Multi-Cut Design
TMOS features several channels and inlets on the heatsink. This design allows for the air flow to go through which leads to a great improvement of the heat transfer performance.
M.2 Thermal Guard
With durability in mind, GIGABYTE provides a thermal solution for M.2 SSD devices. The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
Thermal Throttling As Temperature Rises
3% Cooler by implementing
2X copper PCB Design
By adopting 2X copper on PCB inner layer, it lowers the components' temperature at least 3% by turning the PCB into a super thin PCB size copper heatsink to dissipate the heat from the components effectively, due to it’s high thermal conductivity and lower impedance.
CONNECTIVITY
802.11ax Wi-Fi 6E
2.5GbE LAN
Rear USB-C® 20Gb/s
Front USB-C® 10Gb/s
Hi-Fi Audio
GIGABYTE Motherboards enable the ultimate connection experience with blazing data-transfer speeds through the next generation network, storage, and Wi-Fi connectivity.
First adopter on 2.5GbE LAN onboard
2X Faster than ever
  1. Adoption of 2.5G LAN provide up to 2.5GbE network connectivity, with at least 2 times faster transfer speeds compared to general 1GbE networking, perfectly designed for gamers with ultimate online gaming experience.
  2. Support Multi-Gig(10/100/1000/2500Mbps) RJ-45 Ethernet
Connecting the Future - USB 3.2 Gen 2x2 Type-C®
Featuring the USB 3.2 Gen 2x2 design which is doubled the performance than previous generation of USB 3.2 Gen 2. It works up to 20Gbps ultra-fast data transfer while connecting to USB 3.2 compliant peripherals. Through the USB Type-C® connector, users can enjoy the flexibility of reversible connection to access and store massive amounts of data rapidly.
Connecting the Future - Front USB3.2 Gen 2 Type-C®
USB 3.2 Gen 2 provides USB 3.2 Gen 2 ports with speeds up to 10Gbps. With twice the bandwidth compared to its previous generation as well as backwards compatibility with USB 2.0 and USB 3.2 Gen1, the much improved USB 3.2 Gen 2 protocol is available over the new reversible USB Type-C™ and the traditional USB Type-A connector for better compatibility over a wider range of devices.
* Photo for reference only.
High-End Audio Capacitors
AORUS motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
AORUS motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
Personalization
UEFI BIOS
GIGABYTE Control Center
Multi-Key
GIGABYTE motherboards bundle several useful and intuitive software to help users to control every aspect of motherboard and provide customizable lighting effect with outstanding aesthetics to fit your unique personality.
Friendly User Interface
The EASY MODE shows important hardware information in one page including CPU clock, Memory, Storage, Fan.
My Favorites
Add constantly used items into the favorite menu for quick access.
Storage Information
Show all kinds of storage information including SATA, PCIE and M.2 interface.
Changelog
List all changes before saving and exiting bios. Quickly review overall settings modification.
Intuitive Load Line Curve
Clearly show each loadline calibration setting in an intuitive curve graph.
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.
  1. Unified software platform for all Gigabyte supported products
  2. Intuitive user interface for an eased experience
  3. Modularized control components only for installed hardware
  4. Auto update function to keep system up to date and support future products
LEARN MORE
Multi-key
A multi-function reset button that can be reconfigured to other function in BIOS for different user scenarios.
  • RGB Switch
    Turn off all lighting effect on motherboard.
  • Direct-To-BIOS
    Boot into BIOS menu directly without pressing any keyboard button.
  • Safe Mode
    Boot into BIOS safe mode to change specific option without losing other BIOS settings.
* Photo for reference only.
ULTRA DURABLE
DIY Friendly
Q-Flash Plus
GIGABYTE Ultra Durable™ design provides product durability and high-quality manufacturing process. GIGABYTE motherboards use the best components and reinforce every slots to make each of them solid and durable.
EZ-Latch
With GIGABYTE EZ-Latch, you can DIY your PC in no time, quick and easy.
PCIe EZ-Latch
Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.
M.2 EZ-Latch Plus
Attach and remove your M.2 module with ease. Learn more >
Photo for reference only.
STEP 1.
Plug 24pin & 8pin power supply cable on motherboard
STEP 2.
Download motherboard BIOS file and rename to "gigabyte.bin", save to USB flashdrive, and plug USB flashdrive into Q-Flash USB port
STEP 3.
Press Q-Flash Plus button, and motherboard will start updating BIOS automatically.
Key Feature
  • Intel® Socket LGA 1700：Support 13th and 12th Gen Series Processors
  • Unparalleled Performance：Twin 12*+1+1 Phases Digital VRM Solution
  • Dual Channel DDR5：4*SMD DIMMs with XMP 3.0 Memory Module Support
  • Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
  • Advanced Thermal Design & M.2 Thermal Guard ：To Ensure VRM Power Stability & M.2 SSD Performance
  • EZ-Latch Plus：M.2 Connectors with Quick Release & Screwless Design
  • Fast Networks： 2.5GbE LAN & Wi-Fi 6E 802.11ax
  • Extended Connectivity：Front USB-C® 10Gb/s, Rear USB-C® 20Gb/s, DP, HDMI
  • Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

    * 6+6 phases parallel power design
