B850M GAMING X WIFI6E
-
10*+2+2 Twin Digital VRM Design
- 6-Layer PCB
- Mid-Loss PCB
- 2X Copper PCB
- Premium Choke and Capacitor
*5+5 Phases parallel power design -
Socket AM5 Supports AMD Ryzen™ Series Processors
-
UD Power Connector
- 24 pin ATX Power Connector
- 8 pin CPU with UD Solid Pin
-
4 x DIMMs, Dual Channel DDR5
-
2 x M.2 Slots
- 1 x PCIe 5.0 M.2 Slot
- 1 x PCIe 4.0 M.2 Slot
-
Full-length PCIe slots
- 1 x PCIe 5.0 x16 with PCIe UD Slot
- 1 x PCIe 3.0 x4 slots
-
VRM Thermal Armor Advanced
- 5 W/mk Thermal Pad
- Integrated IO Shield
-
M.2 Thermal Guard
-
Smart Fan 6
- Total 4* PWM / DC Fan Headers
- Dual Fan Curve Mode
-
1 x HDMI
-
2 x DisplayPort
-
4 x USB 2.0
-
Q-FLASH PLUS Button
-
1 x USB 3.2 Gen2 Type-C®
-
1 x USB 3.2 Gen 2
-
2.5 GbE LAN
-
2 x USB 3.2 Gen 1
-
WIFI EZ-Plug
-
Wi-Fi 6E with Directional
Ultra-high gain Antenna -
Front USB-C 10Gb/s
-
4 x SATA 6Gb/s
-
Hi-Fi Audio
- 8-CH HD Audio
- High-End Audio Capacitor
-
RGB FUSION
- 1 x RGB LED Header
- 3 x ARGB LED Headers
-
WIFI EZ-Plug
-
M.2 EZ-Latch Plus
M.2 EZ-Latch Click -
EZ-Latch Un-Install Angle
-
PCIe EZ-Latch Plus
-
EZ-Debug Zone
- Debug LEDs
Unleash New Era Gaming Performance with One-Click Activation.

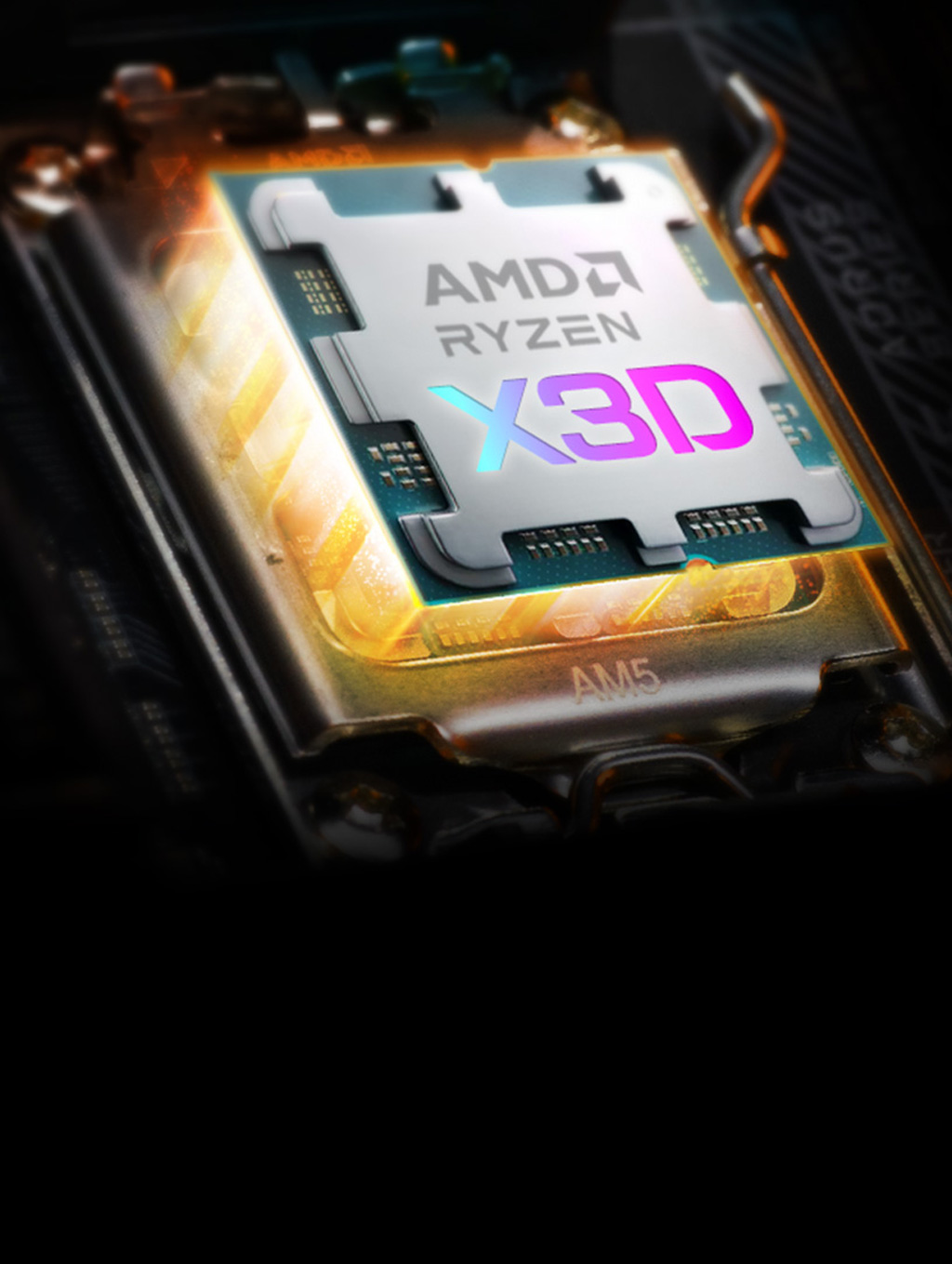

X3D Turbo Mode's unique optimization parameters allow even Ryzen™ 9000 X3D gaming Performance enhance & Ryzen™ 9000 non-X3D processors to achieve similar gaming performance levels as their Ryzen™ X3D counterparts. Experience smoother gameplay, higher frame rates, and reduced latency with GIGABYTE's BIOS innovation- X3D Turbo Mode.
One-Click Acceleration :
Enhance Gaming FPS Performance with a single click.
Gaming motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.

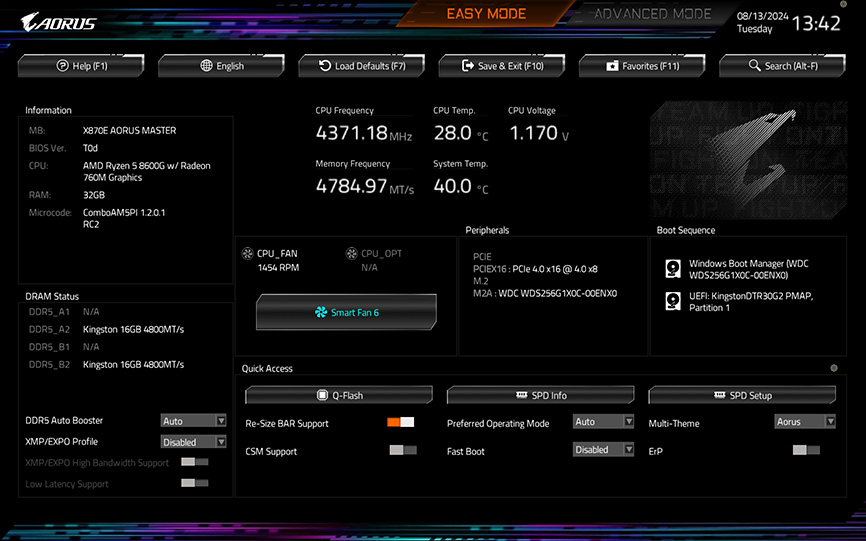

Advanced BIOS functionality provides seamless optimization of industry-leading DDR5 memory performance.
Optimize memory with AMD's user-friendly profiles.
Boost Performance: Get the most out of your system's memory.
Harness the power of AMD profiles to fine-tune your memory for outstanding system performance.
Create and manage two unique SPD profiles, ready to transfer between machines.
Automatically adjusts clock and timing parameters, quickly simulating optimal memory performance.
Save and load your preferred memory settings, and share them with ease.
Push the limits of your non-overclockable DDR5 memory with boosted frequencies.
One-click to clear and restore memory settings for quick adjustments.
Elevate your gaming with our state-of-the-art technology for a superior experience.
Advanced shielding inside the PCB keeps your memory signals clean and interference-free.
Innovative design removes signal bottlenecks, allowing for blazing-fast memory speeds and a superior gaming setup.
* Memory overclocking and XMP/EXPO support may vary. Please refer to the qualified vendor list (QVL) for details and note that product features may vary by model.
DDR5 Overclocking Up to
For peak performance
Unleash Ultimate Performance with One-Click Activation.
Unleash Ultimate Performance with One-Click Activation.
With just a single click, unleash the full potential of CPU & DDR5 memory, instantly boosting your gaming and work efficiency.
Enhance CPU & DDR5 speeds with a single click.
- Real time Analyze
- OC accuracy UP
- EZ to Pro
Enhanced Computing Power
Fast AI Performance
EZ to Peak
Safe OC
Less Power Usage
Accelerate AI processing for greater performance
Up to
AI Performance*
- Accelerated AI decision-making
- Boosted reinforcement learning
- Streamlined language processing
*GeekBench AI PRO test conducted with High Bandwidth option manually enabled.
Raise system speed and performance.
Up to
CPU & Memory Performance Boost
- Tailored-overclocking for your CPU and memory
- Faster data transfer and application loading
- Improved multitasking performance
- Optimized overall system performance
*Tested by AIDA64 Memory
**Tested by R23 Multi Core
Enable users to easily become overclocking experts through a simple interface.
Protect your motherboard through multiple over-temperature and over-current safeguards.
OTP
Over Temperature Protection
OCP
Over Current Protection
OVP
Over Voltage Protection
OPP
Over Power Protection
UVP
Under Voltage Protection
SCP
Short Circuit Protection
Optimal power-efficiency
Enhance Up to
CP/Per Watt*
With faster computations, it also means reduced power consumption, making it more environmentally friendly and energy-efficient, continuously contributing to the well-being of our planet.
Enhance performance and exceed limits
* Images for reference only, the actual screen of AORUS AI SNATCH and BIOS will vary by system configuration.
For MB signal enhancement
Redefining PCB Design with AI
-Redefining PCB Design with Artificial Intelligence
AI-Driven PCB Technology employs AI algorithms to optimize vias, routing and stackups. It ensures peak performance and signal integrity across single and cross-layer throughout the design process.
-
AI-ViaFusion Technology
Optimized vias & pads for signal integrity
-
AI-Trace Technology
Smart routing for peak performance
-
AI-Layer Technology
Tailored stackups for enhanced functionality
Key Features:
AI-Generated Design Recipes
AI-Driven Simulation
AI-Powered Signal Verification
Single and cross-layer signal optimization
Reduction in Signal Reflection Up to 28.2%
AI-ViaFusion, an AI-assisted via optimization technology, determines optimal via and pad sizes across PCB areas. This technology enhances cross-layer signal integrity and transmission efficiency, outperforming traditional design methods.
Best-in-class Signal Quality
- Superior signal transmission efficiency
- Dramatically reduced signal reflection
- Elevated signal quality and reliability
- Enhanced cross-layer PCB signal performance
AI-ViaFusion is a proprietary AI-generated hybrid via structure design. This PCB technology, validated through AI simulations and testing, aims to enhance high-speed signal transmission.
-
Optimized Via Design
Varied via sizes for optimized signal and power paths
-
Driven Pad Optimization
Custom pad sizes for performance and production balance
-
Precision Impedance Matching
Via & pad sizes selected for optimal signal impedance
-
Minimized Insertion Loss
Optimized vias reduce signal loss
-
Enhanced Return Loss
Precision impedance matching reduces reflections
-
Optimized Eye Diagram
Wider eye opening improves signal integrity
Vias (Vertical Interconnect Access) are critical for multi-layer PCB connectivity. Via size significantly impacts signal integrity, affecting capacitance, reflections, and crosstalk.
AI-ViaFusion Technology optimizes PCB performance through:
-
Strategic Via Sizing
Optimized for varied signals across PCB
-
Enhanced Impedance Matching
Precise control via machine learning
-
Space Optimization
Maximized layout efficiency with signal integrity
-Revolutionizing PCB Routing with AI
AI-Trace Technology transforms PCB design by leveraging AI to optimize trace routing, resulting in enhanced performance and signal integrity.
-
Fiber Weave Effect Mitigation
Optimized signal synchronization
-
Shielded Memory Routing
Optimized signal shielding and precision
-
Impedance-Optimized Topology
Refined traces with minimal resistance
-
Isolated Memory Routing
Optimized trace layout and layer separation
-
Daisy-Chained Routing
Innovative design eliminates signal bottlenecks
Experience next-gen PCB routing with GIGABYTE's AI-Trace Technology.
Fiber Weave Effect in high-speed PCBs stems from varying dielectric constants of epoxy resin and glass fibers, this causes varying signal propagation speeds, leading to signal integrity issues such as crosstalk and jitter. AI-Trace Technology implements innovative routing angles to mitigate this effect.
Benefits of Mitigation:
- Reduces signal distortion
- Improves transmission reliability
- Supports higher data rates
- Enhances overall system stability
AI-Layer Technology creates innovative layer materials for multi-layer PCBs, delivering unparalleled performance.
Core Innovation:
AI-Optimized Layer Customized Design
- AI-optimized layer design
- Unique material for each layer
- AI-verified signal integrity
- Tailored PCB for peak performance
Key Features:
AI-optimized PCB layer and design material
Server-Grade Low Loss PCB*
Enhanced 2X Copper Technology
AI-Driven Advanced BIOS Optimization Technology
BIOS Efficiency Boost Up to 95%+
HyperTune BIOS uses AI to optimize signals. The 800 series implements this for peak efficiency, enabling significant memory clock speed boosts and enhanced overall performance.
- Adaptive signal strength tuning
- AI tuning accuracy exceeds 95%
- Continuous learning advances performance limits
Experience GIGABYTE's AI-Enhanced HyperTune - Unleashing next-gen BIOS performance

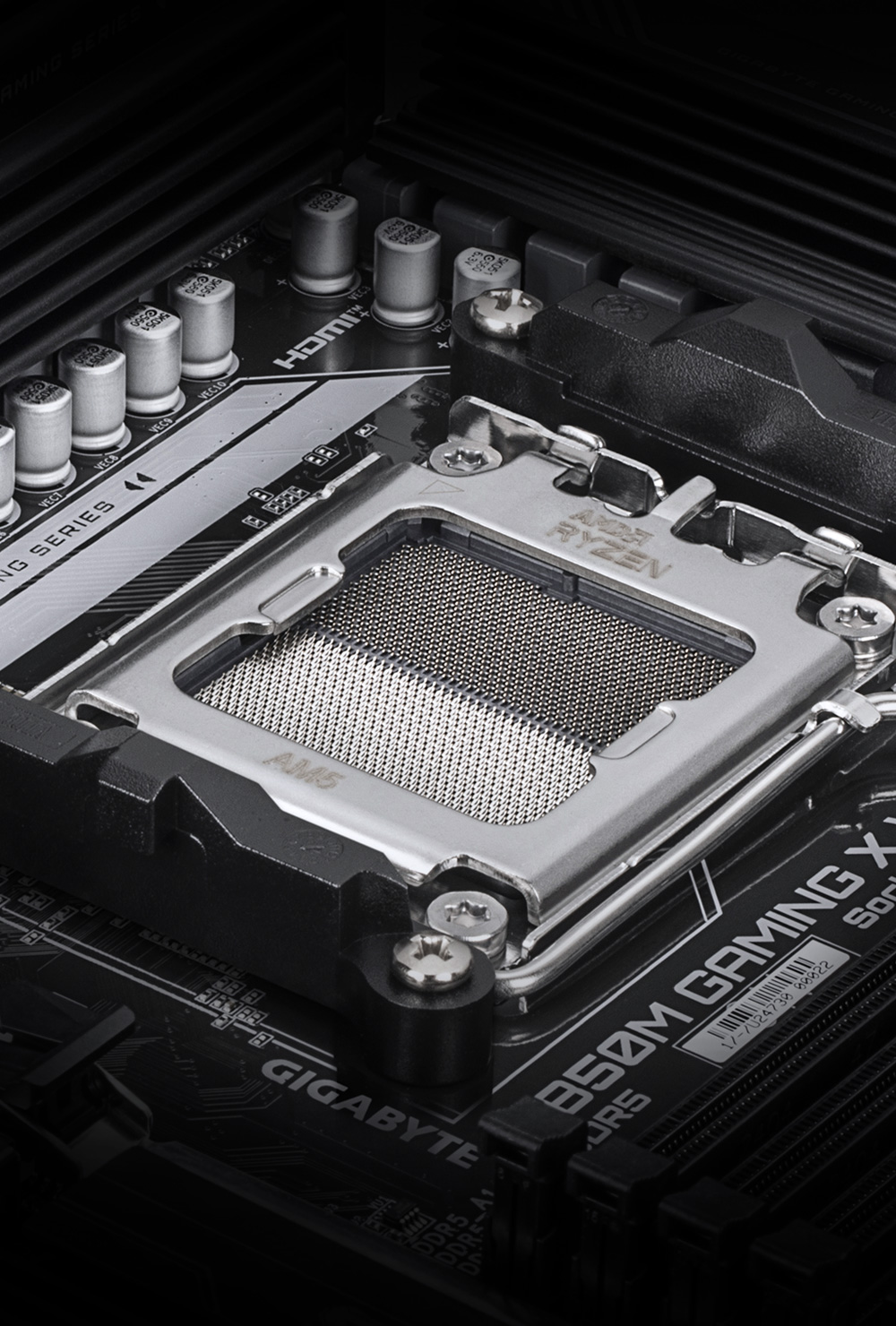

Better Play GAMING Series, steady power keeps your gaming smooth.
Delivers consistent, high-powered performance to elevate your overclocking to the next level.
Unlock the full power of your multi-core CPU for unmatched performance.
*5+5 phases parallel power design
Optimized for integrated GPU performance and memory management within the CPU.
Deliver reliable power to your CPU-connected PCIe lanes for uninterrupted performance.
Advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.
Exceptional heat dissipation
High-coverage MOSFETs with integrated molded heatsinks
- With up to 4 times the surface area of traditional coolers, this advanced design significantly boosts MOSFET cooling performance.
- High-performance thermal pad
- Keeps your system cool and running at peak efficiency
- More grooves, more airflow.
- Better airflow, cooler system.
- Outperforms competitors' multi-piece solutions
- Integrated design and expanded surface area deliver exceptional cooling performance
The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
Big Cooling Power
Cool. Quiet. Customized.
Superior cooling performance and whisper-quiet operation for your gaming rig.
- Supports both PWM and DC fans, plus water cooling pumps
- Up to 24W (12V x 2A) capacity per fan header
- Built-in over-current protection
- Multiple temperature and fan speed points
- Customizable fan curves for optimal performance
- Choose between slope and stair modes
- Tailor cooling to your specific needs and preferences
- Fans can be completely turned off at low temperatures
- Ensures silent operation during light loads
Note: Images are for illustrative purposes and may differ based on your model.
- 7 adjustable control points
- Expanded speed graph for precise adjustments
- Slope mode: Smooth fan speed curve
- Stair mode: Steady speeds within temperature ranges
- Easy switching between modes
- Fine-tune fan speeds for optimal performance
- Precise control for enthusiasts
- Quick setup with 4 temperature and fan speed points
- Automatic optimization of fan curve
- Save personalized settings to BIOS ROM
- Maintain custom settings through BIOS updates
Our cutting-edge motherboard is designed for the ultimate DIY experience. Creating your own PC becomes a delightful and smooth process.

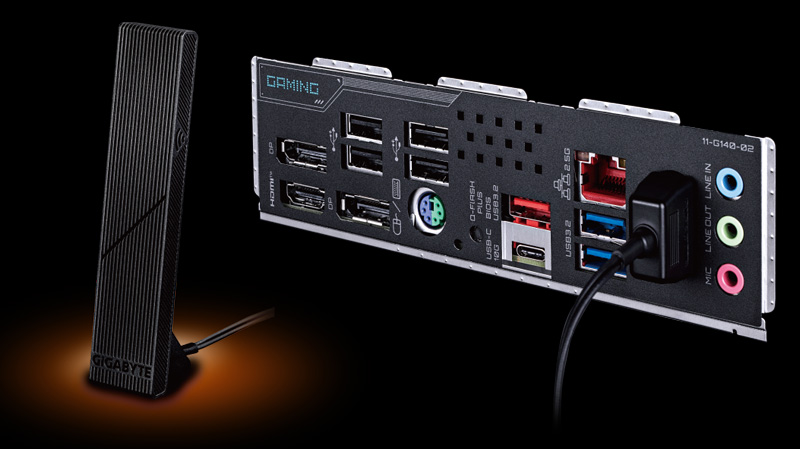

The WIFI EZ-Plug design integrates Wi-Fi antenna plugs into one adapter, EZ to install.
Handy, Revert, Refresh
EZ Debug Zone Q-FLASH Auto Scan

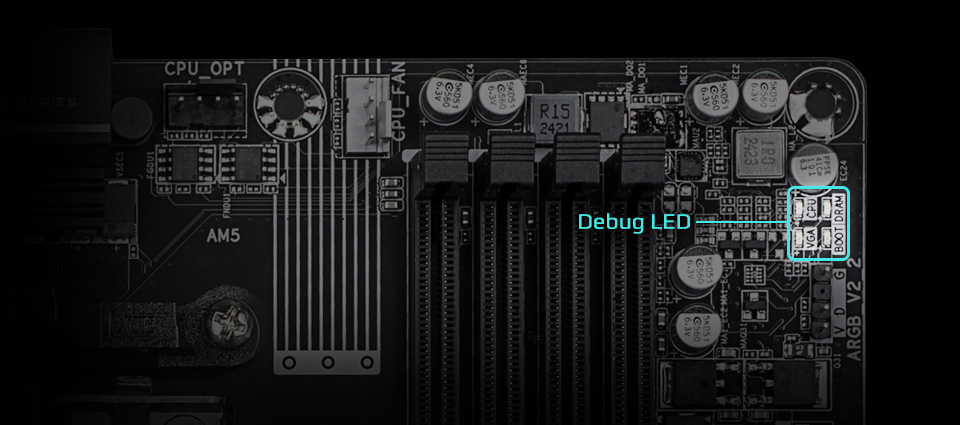

Centralized debug LEDs and control buttons provide a handy and organized troubleshooting process when building a new computer.
A flexible control key for reset with BIOS-level reconfiguration options for diverse usage scenarios.
Disable all light displays on the motherboard.
Access the BIOS settings directly without keyboard inputs.
Access BIOS safe mode to modify select settings while preserving other configurations.

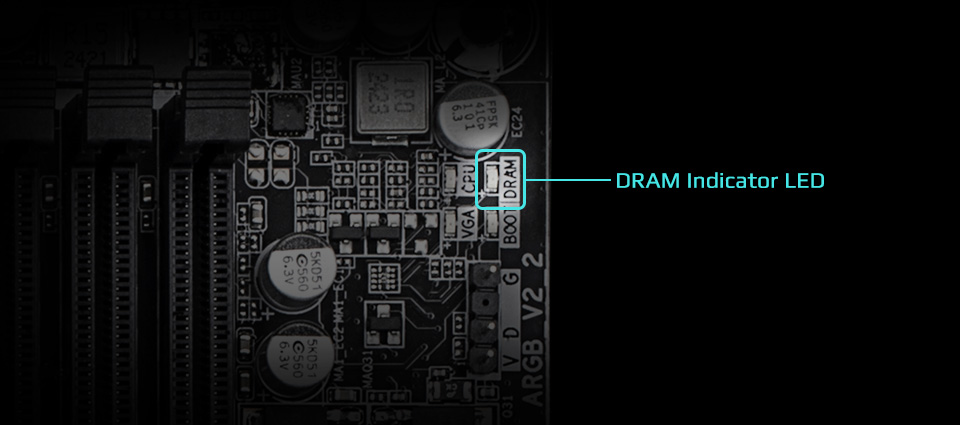

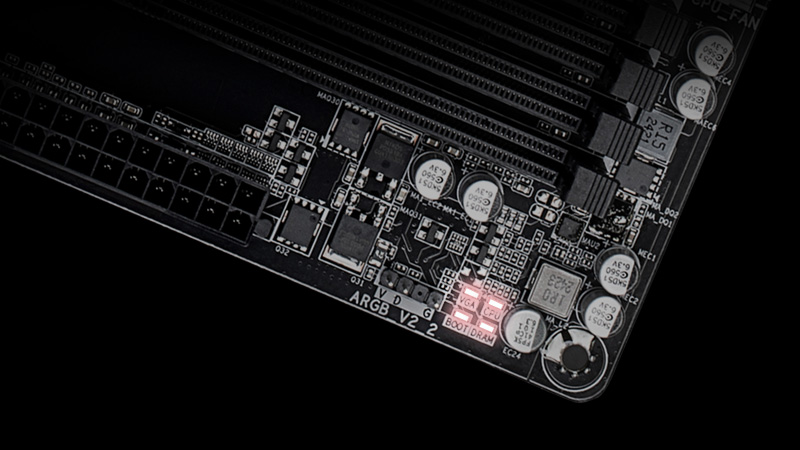

The DRAM Indicator LED will turn on when a module is installed into a non-recommended slot.

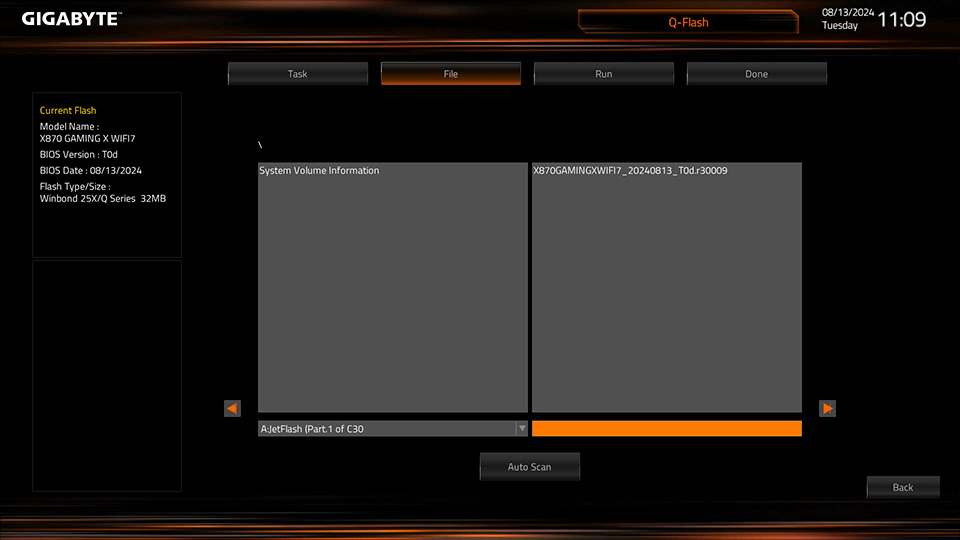

The new Auto Scan function featues when using USB flashdrive during Q-Flash, the BIOS file will be auto scanned instead of searching manually.
Effortlessly upgrade your BIOS without the need to install CPU, RAM, or GPU.

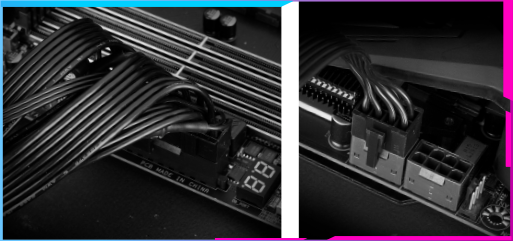

Connect the 24-pin and 8-pin power cables directly to the motherboard.
Download the motherboard's BIOS file, rename it to 'gigabyte.bin', and store it on a FAT32-formatted USB drive. Insert the drive into the Q-FLASH PLUS USB port.

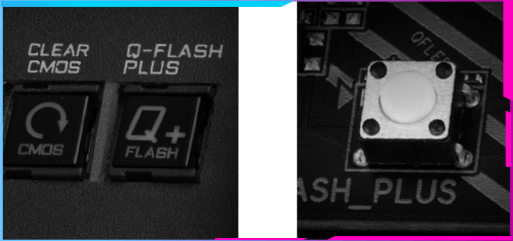

Press the Q-FLASH PLUS button to trigger automatic BIOS updating.
Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.
2.5GbE LAN
Wi-Fi 6E
Directional Ultra-high Gain Antenna
design deliver blisteringly fast transfer speeds to ensure the most stable transmission environment when the system is performing cloud computing or providing external computing services.
The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.
- Dedicated spectrum in 6GHz band for less interference
- 4X better network capacity, no traffic jams especially in those dense area with lots of devices
- Network efficiency increase for better user experience
Wi-Fi 6E brings faster Wi-Fi speeds, lower latency, and better battery life for VR devices, which means streaming VR games wirelessly from your PC to your VR device offers a lot smoother and has higher quality video.
- 40% faster speed for smoother gaming/streaming experience
- 50% higher resolution for video game related content
- Better battery life for VR devices
Spectrum congestion is huge problem in current Wi-Fi environment nowadays because too many devices all use existing 2.4GHz and 5GHz spectrum, and it cause unreliable connection and slower speed. Wi-Fi 6E is extended standard to Wi-Fi 6, and it use dedicated 6GHz band that it provides not only brand new frequency to transfer data, but also spacious spectrum for future more devices. With Wi-Fi 6E, users can enjoy faster connection and stronger signal than before.
Boost your signal strength with GIGABYTE's Ultra-high gain Antenna, featuring smart antenna technology for optimized Wi-Fi signal transmission.
Direction signal
up to 5dBi
Omnidirectional signal
up to 4dBi
Magnetic Base
High-End Audio Capacitors
Audio Noise Guard
These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects.
Essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
Technology embodies our commitment to excellence, providing gamers with a platform that's not only powerful but also built for longevity and reliability. GAMING series motherboards are engineered to endure and excel.
PCIe UD Slot
GIGABYTE's one-piece stainless-steel shielding design reinforces the PCIe Slots, providing the extra strength required to support heavy graphics cards.
UD Power Connector
Our innovative UD Power Connector design enhances power conductivity and thermal dissipation.
GIGABYTE motherboards showcases our devotion to BIOS improvement. Through synergy with our user community, we democratize next-level computing power.
UC BIOS
Restructured with user-centered and intuitive performance adjustment mechanisms.
Now users can choose different BIOS themes with one simple click It not only delivers an immersive user experience but also offers a brand new user-friendly theme: Grayscale.
Enable non-windows users to adjust AIO fan speed in the BIOS before entering the OS.
GIGABYTE User-Centred (UC) BIOS elevates the interface, delivering an optimized experience through an easy-to-navigate layout and attractive design for optimal usability.
GIGABYTE UC BIOS' Quick Access function selects brings 9 key options from Advanced Mode directly into Easy Mode, enabling swift adjustments without extensive navigation.
GIGABYTE Control Center
A unified software platform encompassing multiple GIGABYTE product.
Liberate your imagination using GCC's versatile illumination options for your motherboard. Tailor your setup with eye-catching displays that mirror your unique personality and preferences.
Programmable RGB LED connectors enable precise control over individual LEDs (for ARGB GEN2 devices), seamlessly managed through the GCC.
HWiNFO
Exclusive Partnership
AORUS and HWiNFO co-branded OSD(On-Screen Display) can display values as text or graphs in an overlay or independent window, also in full-screen applications and games, with no need for additional software installation.
When using HWiNFO on a GIGABYTE motherboard, a custom AORUS-themed interface automatically activates, offering light and dark options. This AORUS Skin can be manually applied to non-GIGABYTE boards as well.
*AORUS skin auto-applies when detecting a GIGABYTE motherboard.
Thanks to the collaborative efforts of GIGABYTE and HWiNFO experts, this sophisticated monitoring tool now provides unprecedented detail in memory timing readouts. This empowers users to closely track memory performance and gather crucial insights.
GIGABYTE motherboard users can now access comprehensive BIOS details in real-time through HWiNFO. This includes toggle and tweaker statuses, as well as BIOS versions. No need for system reboots to check BIOS info. anymore.
- DDR5 OC up to 8200MT/s
- AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
- Digital twin 10+2+2 phases VRM solution
- Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 heatsinks with screwless design
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
- Fast Networking : 2.5GbE LAN & Wi-Fi 6E with directional Ultra-high gain antenna
- Extended Connectivity : HDMI, Displayport
BUILD FOR THE MOST ADVANCED PC FOR GAMING AND CREATING
When only the fastest will do, an AMD X800-series motherboard delivers. With USB 4.0 onboard along with robust overclocking 1 capabilities, featuring faster dual-channel DDR5 memory support, AMD EXPO™ technology and PCIe® 5.0 support for both graphics and NVMe, you can play the most demanding games and deliver your biggest projects with the revolutionary performance of an AMD X800-series motherboard and AMD Ryzen™ 9000, 8000, and 7000 Series processors.
1. Overclocking and/or undervolting AMD processors and memory, including without limitation, altering clock frequencies / multipliers or memory timing / voltage, to operate outside of AMD’s published specifications will void any applicable AMD product warranty, even when enabled via AMD hardware and/or software. This may also void warranties offered by the system manufacturer or retailer. Users assume all risks and liabilities that may arise out of overclocking and/or undervolting AMD processors, including, without limitation, failure of or damage to hardware, reduced system performance and/or data loss, corruption or vulnerability. GD-106.
© 2024 Advanced Micro Devices, Inc. All rights reserved. AMD, the AMD Arrow logo, Radeon, Ryzen and combinations thereof are trademarks of Advanced Micro Devices, Inc. Other product names used in this publication are for identification purposes only and may be trademarks of their respective owners.
* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* Product specifications and product appearance may differ from country to country. We recommend that you check with your local dealers for the specifications and appearance of the products available in your country. Colors of products may not be perfectly accurate due to variations caused by photographic variables and monitor settings so it may vary from images shown on this site. Although we endeavor to present the most accurate and comprehensive information at the time of publication, we reserve the right to make changes without prior notice.
