• Socket LGA1151 for Intel Core i9/i7/i5/i3/Pentium/Celeron (Coffee lake-S)
  • Intel® Gen10 Intel Graphics DX 11/12, OGL4.3/4.4
  • Supports Single Channel DDR4 2133/2400MHz, 1 x SO-DIMM, up to 16GB system memory
  • 1 x HDMI, 1 x VGA, 1 x Dual Channel 24-bit LVDS
  • 4 x USB 3.0, 4 x USB 2.0, 2 x SATA3
  • 1 x M.2 wifi, 1 x M.2 SSD
  • Gigabit LAN : 1 x Realtek Lan
  • 1 x TPM 2.0 IC onboard
  • 19 V DC-in

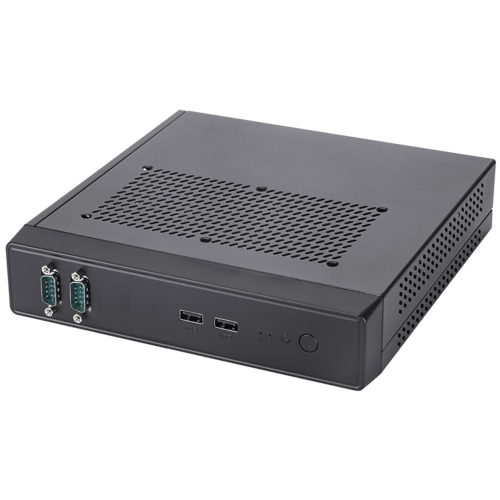

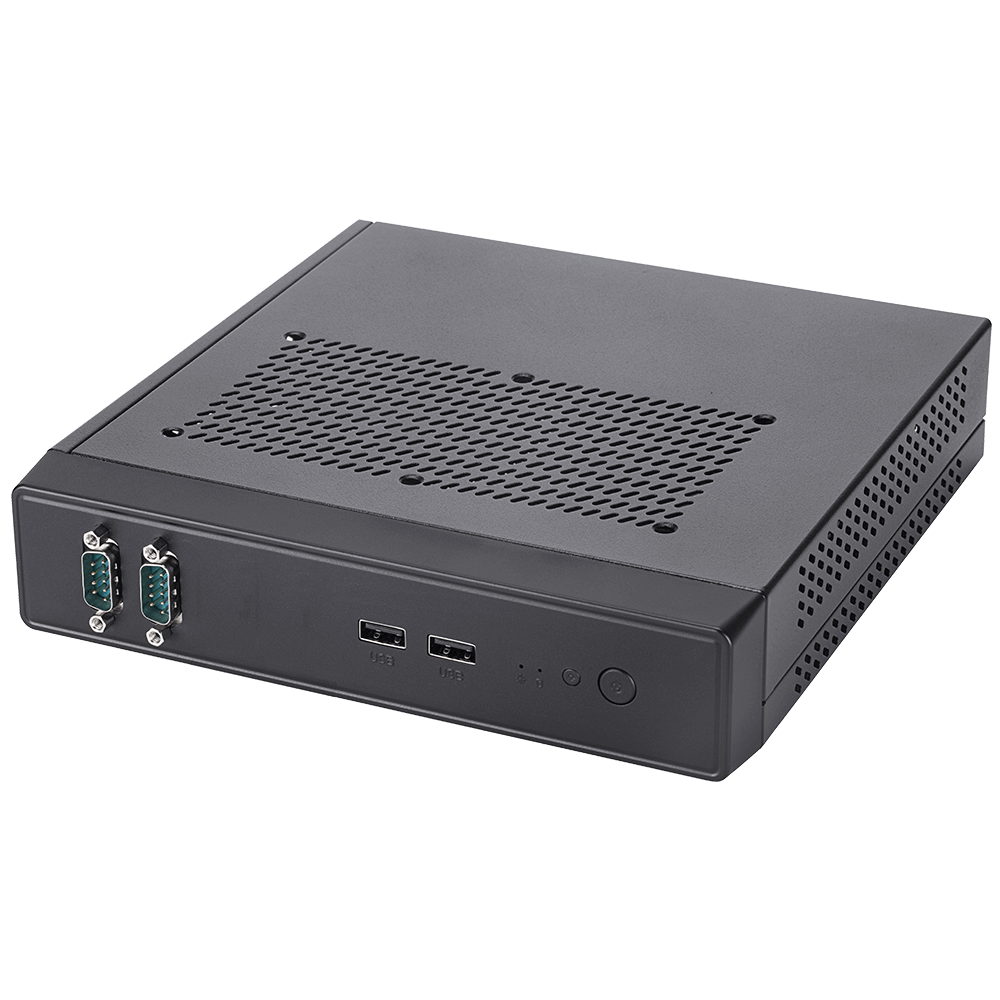

  • Small chassis 205 mm(L) x 205 mm(W) x 45 mm(H)

* Self Assembly Required
  • Compatible with GIGABYTE Thin mini ITX Chassis
    (Part Number: 24EC5-1TM10A-01R)
    (Size :204.6 x 205 x 45 mm)








  • GIGABYTE Ultra Durable of Thin Mini ITX Motherboard
    GIGABYTE H310 Mini-ITX motherboards support the latest 7th/ 6th Generation Intel® Core™ processors, a 14nm desktop CPU which features improved performance, power efficiency and support for DDR4 memory, bringing cutting edge features and ultimate performance to your next PC build. Offering an All-in-One, small form factor and slim profile PC experience, GIGABYTE H110 Mini-ITX motherboards are 43% thinner than traditional Mini-ITX designs. Complying with the latest Mini-ITX guidelines, GIGABYTE motherboards offer additional flexibility making them suited to broad range of innovative PC designs.
  • Single Realtek® GbE LAN with WOL and PXE Support
    The Single Realtek® Gigabit LAN with WOL and PXE support, deliver better network responsiveness and conveniently user experience in crowded LAN environments, to offer hassle free and high speed network connectivity.
    Realtek® GbE LAN with WOL and PXE Support

  • High Definition Digital Outputs
    Enjoy true HD display capability using the most commonly integrated digital output technologies on today’s HD displays and TVs.
     * Support for up to 2 displays at the same time.
    High Definition Digital Outputs
  • 4K Ultra HD Support
    4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel® HD Graphics via HDMI.
  • Intel CNVi WIFI Upgrade kit

    The Intel CNVi WIFI Upgrade kit offers an easy way to upgrade Intel CNVi WIFI Upgradeable motherboards with new and faster Gigabit WIFI connectivity without having to upgrade to a whole new system.

    Intel ® CNVi WIFI kit must be purchased separately.
    Photo for demonstration only.
