1. Supports Intel® Core™ 2 multi-core and 45nm processors.
  2. 1600 MHz FSB (Front Side Bus) support.
  3. DDR2 1200 memory with Intel® ECC technology featuring faster speeds and higher data bandwidth
  4. Revolution energy saving design with DES technology.
  5. High quality CPU power module with Ferrite Core Chokes, Lower RDS (on) MOSFETs and Lower ESR Solid Capacitors.
  6. Quad-Triple Phase Power Design for ultimate system stability.
  7. Supports ATI CrossFireX™ with Dual PCI-E 2.0 x16 graphics for extreme gaming performance.
  8. Integrated Dual LAN with Teaming function
  9. Features SATA 3Gb/s with eSATA 2 interface.
  10. ALC889A with DTS Connect enables high quality Full Rate Lossless Audio and support for Blu-ray.
* Please refer "Memory Support List" for memory support information.
  • Introduction

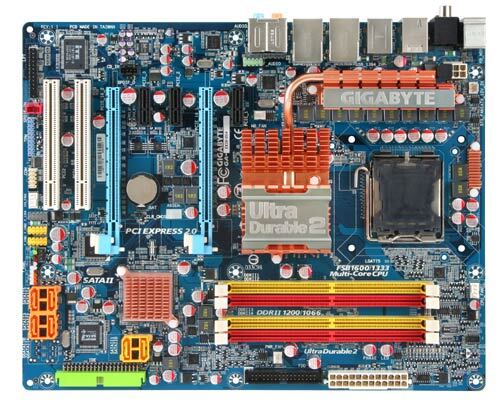

    GIGABYTE’s GA-EX38-DS4 motherboard provides the ultimate dream machine for serious overclockers and enthusiasts. Making sure gamers have plenty of future CPU headroom, the GIGABYTE GA-EX38-DS4 supports Intel® Core 2™ multi-core processors as well as the all-new Intel 45nm CPUs. In addition to providing record setting support for 1600MHz Front Side Bus and up to 1200 MHz of DDR2 memory, the GA-EX38-DS4 is further equipped to support ATI CrossFireX™ with dual PCI Express x16 interfaces. The GA-EX38-DS4 also delivers several Unique GIGABYTE innovations including the latest edition to GIGABYTE’s technology arsenal, the Dynamic Energy Saver, providing extensive power savings with one simple click. Featuring the award-winning Durable 2 design, the GA-EX38-DS4 provides additional power savings, ultra cooling and extended system durability for even the most hardcore PC gamers
  • GIGABYTE Dynamic Energy Saver


    GIGABYTE Dynamic Energy Saver is a revolutionary technology that delivers unparalleled power savings with the simple click of a button. Featuring an advanced proprietary hardware and software design, GIGABYTE Dynamic Energy Saver is able to provide exceptional power savings of up to 70% and up to 20% improved power efficiency without sacrificing computing performance...more
  • پردازنده های 45 نانومتری Core 2 چند هسته ای اینتل
    مادربرد GA-EP41T-UD3L از آخرین پردازنده های اینتل با بیشترین میزان راندمان پشتیبانی می کند که ارائه دهنده بهینه ترین مصرف انرژی در بین پردازنده های حال حاضر هستند. با طراحی بر پایه ریز معماری اینتل، پردازنده های چند هسته ای اینتل با چهار هسته و دو کش L2 مشترک ارائه دهنده بیشترین میزان کارایی نسبت به میزان انرژی که مصرف می کنند هستند و یک گزینه مناسب برای کاربرانی به شمار می روند که به برنامه های چند رسانه ای و محیط های چند منظوره علاقه دارند. این پردازنده های جدید در مجموع راندمان بالا و مصرف انرژی بسیار کمی نسبت به دیگر مدل ها دارند.
  • Intel® X38 Express Chipset
    The Intel® X38 Express Chipsets support the latest multi-core processors with FSB 1600MHz, including the upcoming 45nm processors, with its record breaking performance and greater energy efficiency. Intel® X38 chipset, with optimized system memory capabilities, chipset over-speed protection removed for maximum overclocking, providing faster boot and application load times and additional power savings. Intel® X38 chipset also offer options for both DDR2 and DDR3 memory support, providing scalable options for users wanting to take advantage of higher memory performance with less power consumption to run next generation applications such as high-definition video and 3D visualization.
  • Qualified for Windows® 7
    The motherboard qualified for WHQL (Windows Hardware Quality Labs) certification of Windows 7 from Microsoft®, setting the standard for future Windows 7 certified motherboards...more
  • کوچک تر، سریع تر و کم مصرف تر
    مادربرد GA-G41M-Combo با پردازنده های 45 نانومتری اینتل ترکیب شده است و ارائه دهنده بهترین پیکره بندی برای انجام کارهای چند منظوره، چند رسانه ای و بازی های ویدئویی سنگین است. مادربردهای جدید گیگابایت که بر پایه چیپ ست Eaglelake تولید می شوند از جدیدترین نسل پردازنده های 45 نانومتری چند هسته ای اینتل پشتیبانی می کنند.
  • Dual Channel DDR2 1200
    Experience the advanced technology of DDR2 1200 memory, featuring faster speeds and higher data bandwidth, which delivers superior performance for the most demanding applications.
    * Please refer "Memory Support List" for memory support information
  • تاييد شده براي ويندوز ويستا
    Windows Vista Premium promises to deliver a streamlined computing experience designed to fundamentally change how users view, find and organize their digital information. With GIGABYTE AM2+/ AM2 solutions enabling support for Vista Premium, GIGABYTE offers a fresh and unique desktop experience that will be more informative, intuitive and completely new....more
  • PCI-E 2.0 Interface
    PCI-E 2.0 doubles the bus standard's bandwidth from 2.5 Gbit/s to 5 Gbit/s, meaning a x32 connector can transfer data at up to 16 GB/s in each direction. PCIE 2.0 also features improvements to the point-to-point data transfer protocol and its software architecture.
  • درگاه ذخيره‌سازي SATA 3 Gb/s
    در این نوع رابط SATA پهنای باند درگاه دو برابر شده و از 1.5Gb/s به 3Gb/s افزایش یافته است. در رابط SATA 3Gb/s پهنای باند افزایش پیدا کرده است و می توان چند ابزار را همزمان به آن متصل کرد در حالی که بیشترین کارایی را داشته باشند. همچنین میزان کش در پیکره بندی یک ابزار بیشتر خواهد بود.
  • IEEE1394 پشتيباني از
    This motherboard with IEEE1394 FireWire interface from Texas Instruments (TI). With the transfer speed up to 400Mb/s, the new generation IEEE1394 interface further enhances PC connectivity with consumer electronics audio/video.
  • ALC889A with DTS Connect Enables a Superior Audio Experience



    Excellent Audio Performance
    High-performance DAC (Digital-Analog Converter) with 106 dB Signal-to-Noise ratio playback quality, designed especially for Windows Vista Premium PCs.




    Blu-ray Full Rate Audio Support
    The ALC889A enables high quality Full Rate Lossless Audio for content protected media and support Blu-ray formats for an exhilarating home theater entertainment experience.

    7.1+2 Channel High Definition Output
    The ALC889A provides support for 7.1 sound playback, plus 2 channels of independent stereo output (multiple streaming) through the front panel stereo outputs.
  • تكنولوژي Intel Matrix Storage
    Intel® Matrix Storage Technology, can deliver up to 80% faster storage performance with PCs equipped with two hard drives using RAID 0 data striping. Using RAID 1 data mirroring can protect against a hard drive failure by mirroring all data among two hard drives. In addition RAID 5 offers the fault-tolerant capability to automatically back up your most important files, while also providing faster disk access and adding storage capacity.
  • Doubles the bandwidth
    The GA-X48-DS4 with Teaming functionality enabled allows the 2 single connections to act as a single connection for twice the bandwidth, improving overall throughput with lower CPU utilization.

    Network fault tolerance
    Prevents network downtime by transferring the workload from a failed port to a working port.
  • ATI CrossFireX
    مادربرد H55M-D2H از فن آوری ATI CrossFireX پشتیبانی می کند و ارائه دهنده توان گرافیکی بالایی برای علاقه مندان به بازی های کامپیوتری است. این مادربرد این توانایی را دارد که نرخ فریم بالایی را ارئه کند در حالی که کیفیت تصاویر کاهش پیدا نکند. (H55M-D2H فقط از ATI CrossFireX نرم افزاری پشتیبانی می کند)
    (H55M-D2H support software ATI CrossFireX only)
  • Speed
    The Speed compliant motherboards of GIGABYTE S-series provide intelligent over-clocking and over-voltage software settings through both hardware and software design...more
  • Smart
    The Smart featured motherboards of GIGABYTE S-series provide GIGABYTE proprietary innovative software such as Download Center, @BIOS, Q-Flash, Xpress Install, Boot menu, and Smart Fan. BIOS and driver management now becomes much easier and user friendly through GIGABYTE Smart features!...more
  • Safe
    Safe is the key feature of GIGABYTE S-series motherboards with the following elements: Excellent hardware design reinforced BIOS protection through GIGABYTE Virtual Dual BIOS Technology and GIGABYTE BIOS Setting Recovery Technology. Unique system software such as Xpress Recovery 2, PC Health Monitor, HDD S.M.A.R.T., and C.O.M. further strengthen the stability and reliability of your PC!...more
  • نسخه دوم طراحي با طول عمر بالا- طراحي شده با باكيفيت‌ترين و بهره‌ورترين قطعات

    Ultra Cooling - Low RDS(on) MOSFET Design
    Low RDS(on) MOSFETs specially designed to produce lower switching resistance for faster electric current charging and discharging...more


    Low Power Loss - Ferrite Core Choke Design
    Ferrite core chokes comprised of a compound of iron oxide and other metal elements whose properties hold energy much longer than common iron core at high frequency...more

    Longer Life - All-Solid Capacitor Design
    Solid capacitors contain a solid organic polymer, while electrolytic capacitors use a common liquid electrolyte, hence, the terms solid capacitor versus electrolytic capacitors...more

* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* کلیه موارد ارایه شده در این صفحه تنها مربوط به نوع مرجع می باشد. گیگابایت حق تغییر یا تجدید نظر محتویات را در هر لحظه و بدون اطلاع قبلی دارد.
* کارایی ارایه شده بر اساس مقادیر حداکثر نظری رابط است که توسط فروشنده چیپ ست یا سازمان هایی که مشخصات رابط را تعیین کردند، ارائه شده است. کارایی واقعی ممکن است بنا بر پیکربندی سیستم متفاوت باشد.
* کلیه لوگو ها و آرم های ثبت شده تحت مالکیت مالکین مربوطه آن ها قرار دارد.
* با توجه به معماری استاندارد رایانه های شخصی، مقدار مشخصی از حافظه جهت استفاده درونی سیستم درنظر گرفته می شود و طبیعتا مقدار واقعی حافظه سیستم کم تر از مقدار اظهار شده خواهد بود.
