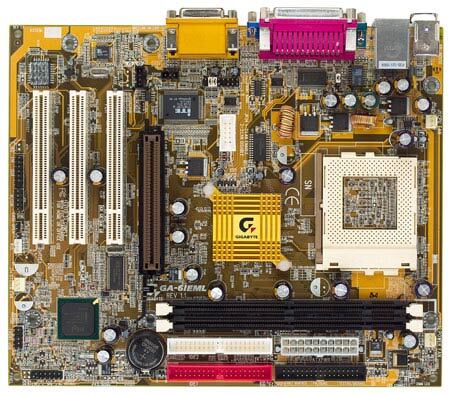

GA-6IEML (Rev. 1.x)

مشخصاتپشتیبانیخبرها / جوایزWhere to Buy

مشخصات

  • پردازنده
    1. Universal socket 370 supports Intel® FC-PGA/FC-PGA2 Pentium® III (CopperMine / Tualatin) or other compatible processors
    2. 66/100/133 MHz FSB
    3. AUTO detect CPU voltage
  • چیپ ست
    1. Intel® 815E AGPset
    2. iTE IT8712F-A I/O and health chip
    3. Realtek ALC201A AC97 codec
    4. Intel® 82562ET LAN chip
  • حافظه
    1. Up to 512MB memory size
    2. 2 x DIMM sockets
    3. Supports 32/64/128/256/512 MB SDRAM module
  • سوکت های اضافه
    1. 1 x AGP slot supports 2X/4X mode AGP card w/ RM
    2. 3 x PCI slots support 33MHz and PCI 2.2 compliant
  • کنترلر ورودی/خروجی
    1. 2 x UDMA ATA 33/66/100 IDE ports on board
    2. 1 x FDD, 2 x COM(1 by cable), 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 1 x VGA(DB15), 1 x Joystick, 1 x Line-in, 1 x Line-out, 1 x MIC on board
    4. 4 x USB ports (2 front by optional cable and 2 rear by on-board connector)
    5. IrDA header, front audio header, SPDIF header and SCR header
    6. RJ45 LAN port
  • نظارت بر روی سخت افزار
    1. Auto speed down and alarm when CPU overheat or fan failure (OS independent and driverless)
    2. 3 fan power and speed detection connectors; Case open detection
    3. System health status detect and report by BIOS, LDCM®
    4. H/W detect ±5V, ±12V, CPU voltage and CMOS battery status
  • بایوس
    1. 2Mbit flash RAM
    2. BIOS with enhanced ACPI feature for PC99/Win98/Win2000/Me/XP compliance, Green, PnP, DMI, INT13 (>8.4GB) and Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP and CD-ROM bootable
    4. Supports @BIOS™ Live Update
    5. Auto-detect and report system health status
  • فاکتور فرم
    1. Micro ATX, 4 layer PCB (24.4 x 20.4cm)
  • درایور
    1. Gigabyte Windows Utility Manager
    2. Intel® LAN driver
    3. Realtek AC97 driver
  • ویژگی های دیگر
    1. Includes Wake-On-LAN header (WOL)
    2. Poly fuse for keyboard, USB and game overcurrent protection
    3. With Kinnereth LAN layout (Kinnereth LAN chip is optional)
    4. Supports Gigabyte EasyTune III™
  • منبع تغذیه
    1. ATX power connector
    2. Power-on by K/B, PS/2 Mouse, LAN, RTC, Modem and switch
    3. Power-off by Windows 95/98/2000/Me/XP shut down and switch
    4. Supports USB device wake-up
    5. Suspend / Wake-on by ACPI and APM device
    6. AC recovery ON/OFF control; 3 level ACPI LED support
    7. Stop CPU fan during entering suspend mode
  • پردازنده
    1. Universal socket 370 supports Intel® FC-PGA/FC-PGA2 Pentium® III (CopperMine / Tualatin) or other compatible processors
    2. 66/100/133 MHz FSB
    3. AUTO detect CPU voltage
  • چیپ ست
    1. Intel® 815E AGPset
    2. iTE IT8712F-A I/O and health chip
    3. Realtek ALC201A AC97 codec
    4. Intel® 82562ET LAN chip
  • حافظه
    1. Up to 512MB memory size
    2. 2 x DIMM sockets
    3. Supports 32/64/128/256/512 MB SDRAM module
  • سوکت های اضافه
    1. 1 x AGP slot supports 2X/4X mode AGP card w/ RM
    2. 3 x PCI slots support 33MHz and PCI 2.2 compliant
  • کنترلر ورودی/خروجی
    1. 2 x UDMA ATA 33/66/100 IDE ports on board
    2. 1 x FDD, 2 x COM(1 by cable), 1 x LPT, PS/2 Keyboard, PS/2 Mouse on board
    3. 1 x VGA(DB15), 1 x Joystick, 1 x Line-in, 1 x Line-out, 1 x MIC on board
    4. 4 x USB ports (2 front by optional cable and 2 rear by on-board connector)
    5. IrDA header, front audio header, SPDIF header and SCR header
    6. RJ45 LAN port
  • نظارت بر روی سخت افزار
    1. Auto speed down and alarm when CPU overheat or fan failure (OS independent and driverless)
    2. 3 fan power and speed detection connectors; Case open detection
    3. System health status detect and report by BIOS, LDCM®
    4. H/W detect ±5V, ±12V, CPU voltage and CMOS battery status
  • بایوس
    1. 2Mbit flash RAM
    2. BIOS with enhanced ACPI feature for PC99/Win98/Win2000/Me/XP compliance, Green, PnP, DMI, INT13 (>8.4GB) and Anti-Virus functions
    3. IDE#1~#4, SCSI, LS120, ZIP and CD-ROM bootable
    4. Supports @BIOS™ Live Update
    5. Auto-detect and report system health status
  • فاکتور فرم
    1. Micro ATX, 4 layer PCB (24.4 x 20.4cm)
  • درایور
    1. Gigabyte Windows Utility Manager
    2. Intel® LAN driver
    3. Realtek AC97 driver
  • ویژگی های دیگر
    1. Includes Wake-On-LAN header (WOL)
    2. Poly fuse for keyboard, USB and game overcurrent protection
    3. With Kinnereth LAN layout (Kinnereth LAN chip is optional)
    4. Supports Gigabyte EasyTune III™
  • منبع تغذیه
    1. ATX power connector
    2. Power-on by K/B, PS/2 Mouse, LAN, RTC, Modem and switch
    3. Power-off by Windows 95/98/2000/Me/XP shut down and switch
    4. Supports USB device wake-up
    5. Suspend / Wake-on by ACPI and APM device
    6. AC recovery ON/OFF control; 3 level ACPI LED support
    7. Stop CPU fan during entering suspend mode

* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
* کلیه موارد ارایه شده در این صفحه تنها مربوط به نوع مرجع می باشد. گیگابایت حق تغییر یا تجدید نظر محتویات را در هر لحظه و بدون اطلاع قبلی دارد.
* کارایی ارایه شده بر اساس مقادیر حداکثر نظری رابط است که توسط فروشنده چیپ ست یا سازمان هایی که مشخصات رابط را تعیین کردند، ارائه شده است. کارایی واقعی ممکن است بنا بر پیکربندی سیستم متفاوت باشد.
* کلیه لوگو ها و آرم های ثبت شده تحت مالکیت مالکین مربوطه آن ها قرار دارد.
* با توجه به معماری استاندارد رایانه های شخصی، مقدار مشخصی از حافظه جهت استفاده درونی سیستم درنظر گرفته می شود و طبیعتا مقدار واقعی حافظه سیستم کم تر از مقدار اظهار شده خواهد بود.
