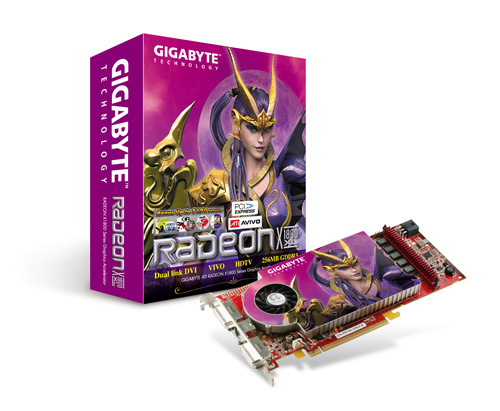

• Powered by ATI Radeon X1800 XL VPU
  • Supports PCI Express and 16 pipelines
  • Microsoft DirectX 9.0C and OpenGL 2.0 support
  • Integrated with the industry's best 256MB GDDR3 memory and 256-bit memory interface
  • Features dual DVI-I / D-sub (by adapter) / TV-OUT
  • Supports HDTV function and HDTV cable enclosed
  • Supports VIVO function for video editing
  • Introduction
    GIGABYTE introduced the GV-RX165T256D-RH that features the latest 90 nanometer Radeon™ X1650XT visual processors. In addition to the dual guarantee of performance and cooling, GIGABYTE GV-RX165T256D-RH fully supports Microsoft® Direct®X 9.0 Shader Model 3.0 and integrates with Radeon™ X1650XT GPU and the high-performance 256 MB GDDR3 video memory to ensure high performance PC gaming and digital media playback.
  • 9‎0nm Technology
    Faster clocks, double the transistor density of erlier 130 nm technology. 90nm technology helped make X1000 products the most advanced GPUs ever highest clocks speeds, incredible feature integration, full performance and precision all the time, and ability to take advantage of future, higher-speed memories.
  • Ultra-Threaded Shader Engine
    *Support for Microsoft® DirectX® 9.0 Shader Model 3.0 programmable vertex and pixel shaders in hardware
    *Full speed 128-bit floating point processing for all shader operations
    *Up to maximum 512 simultaneous pixel threads
    *Dedicated brach execution units for high performance dynamic branching and flow control
    *Dedicated texture address units for improved efficiency
  • Ring Bus Memory Technology
    *Maximum 512-bit internal ring bus for memory reads
    *Programmable intelligent arbitration logic
    *New cache design
    *Improved HyperZ™
  • Widescreen resolution support
    ResolutionColors (bits) Refresh Rate (Hz)
    16:10
    1920 x 12008/16/3275
    16:9
    1920 x 10808/16/3285

    *Resolutions are limited by the performance of the attached monitor. 16:9 / 16:10 aspect ratio monitors are only supported on Windows® XP. The complete list of resolutions depends on the driver version and operating system.
  • Windows Vista® Ready
    Prepare your PC with a graphics card that beats Microsoft's stated GPU requirements for a premium Windows Vista experience.
  • Display Support
    *Dual integrated 400MHz RAMDACs for analog display resolutions up to and including 2048x1536 at 85Hz .
    *Dual-link DVI capability to drive the industry's largest and highest resolution digital flat panel displays up to 2560x1600 at 60 Hz.
    *Integrated HDTV encoder provides analog TV-output (Component/Composite/S-Video) up to 1080i resolution....more information
