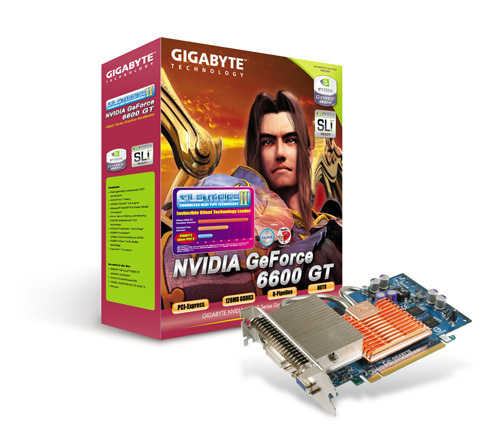

• Powered by NVIDIA GeForce 6600 GT VPU
  • Supports PCI Express and 8 pipelines
  • Microsoft DirectX 9.0C and OpenGL 1.5 support
  • Integrated with the industry's best 128MB GDDR3 memory and 128-bit memory interface
  • Features DVI-I / D-sub / TV-OUT
  • Supports HDTV function and HDTV cable enclosed
  • Unique Silent-Pipe II design
*Please note that GV-NX66T128D-SP will occupy two slots from your PC.
  • Introduction
    GIGABYTE Technology Co. Ltd would like to introduce GV-N66T128VP-E— the Turbo Force Ultra version of NVIDIA 6600GT. It adopts GIGIABYTE unique silent pipe and high-speed GDDR3 memory, let users to get both performance and silence. If the user would like to upgrade the performance, GIGABYTE unique software: V-Tuner2 can help to achieve better performance. Also, the excellent performance in 3D Mark 2003 is over 4,000 scores and 2005 is approaching 10,000 scores.
  • UltraShadow™ II
    Enhances the performance of bleeding-edge games, like id Software's Doom 3, that feature complex scenes with multiple light sources and objects. 2nd-generation technology delivers more than 4x the shadow processing power over the previous generation.
  • CineFX 3.0 Engine
    Powers the next generation of cinematic realism. Full support for Microsoft® DirectX® 9.0 Shader Model 3.0 enables stunning and complex special effects. Next-generation shader architecture delivers faster and smoother gameplay.
  • Intellisample™ 3.0
    The industry's fastest antialiasing delivers ultra-realistic visuals, with no jagged edges, at lightning-fast speeds. Visual quality is taken to new heights through a new rotated grid sampling pattern.
  • nView® Multi-Display Technology
    Advanced technology provides the ultimate in viewing flexibility and control for multiple monitors. NVIDIA GPUs are enabled to support multi-displays, but graphics cards vary.
  • PureVideo™
    PureVideo™ technology ensures support for new video formats, while its motion estimation engine (MEE) allows the card to record and play video files simultaneously without interrupting system performance. An added value PureVideo™ provides is its high-definition MPEG-2 and WMV HD hardware accelerator that take on much of the heavy lifting during playback of Hi-Def video. Other video playback enhancements include a unique color correction mechanism that will help to create a home theater from a PC.
  • OpenGL 1.5® Optimizations and Support
    Ensure top-notch compatibility and performance for all OpenGL 1.5 application.
  • Microsoft® DirectX® 9.0C
    Ensures the best performance and application compatibility for all DirectX 9.0C applications.
  • Microsoft® DirectX® 9.0 Shader Model 3.0
    Provide infinite program command length creating photorealistic scenes and environments in games, without compromising overall PC performance.
  • PCI Express
    Designed to run perfectly with the next-generation PCI Express bus architecture. This new bus doubles the bandwidth of AGP 8X delivering over 4 GB/sec. in both upstream and downstream data transfers.
  • Silent-Pipe II Technology
    Silent-Pipe II technology that generates natural airflow to provide more efficient cooling without the use of a heat sink or fan. This is achieved through a unique design that draws cool air in through a new proprietary front-flow thermal module to remove heat from the heat sink on the VGA card. GIGABYTE Silent-Pipe II Features and Benefits:
    *Feature 1. Proprietary front-flow thermal module: the first Dual-slot heat pipe solution to utilize a convection slot at the back of the chassis to increase thermal dissipation.
    *Feature 2. Natural convection design: Silent-Pipe II technology artfully uses the temperature difference between the inside and outside of chassis, creating natural system convection.
    *Feature 3. High-precision die-casting process: uses the latest high-precision die forming technology to increase the thermal conductivity of the material that makes up the heat sink.
    *Feature 4. SLI ready: designed for compatibility with dual card configurations.
    *Feature 5. High performance heat pipe with sintered powder wicks: with the industry's best powder-style pure copper heat pipe for ultra efficient thermal conductivity.
    *Feature 6. 3D performance ready: designed stability during demanding 3D applications.
    *Feature 7. Integrated architecture design: heat pipe and GPU actually make contact to provide unequalled heat conductivity.
  • GIGABYTE @VGA
    To make it easier update the VGA BIOS than before and help users update the latest VGA BIOS from Internet automatically.
  • GIGABYTE V-tuner2
    Real time monitoring the temperature, coolling fan speed and coltage of the graphics card, and dynamically control the working frequency and fan speed to let your graphics card always run at the best condition. GIGABYTE V-tuner2 provides a user-friendly and simple interface for overclocking, and allows users to dynamically adjust core and memory clocks.
  • Windows Vista® Ready
    NVIDIA's third-generation GPU architecture built for Windows Vista gives users the best possible experience with the 3D graphical user interface in the upcoming operating system (OS) from Microsoft.
  • Display Support
    *Dual integrated 400MHz RAMDACs for analog display resolutions up to and including 2048x1536 at 75Hz.
    *Dual-link DVI capability to drive the industry's largest and highest resolution digital flat panel displays up to 2560x1600 at 60 Hz.
    *Integrated HDTV encoder provides analog TV-output (Component/Composite/S-Video) up to 1080i resolution....more information
