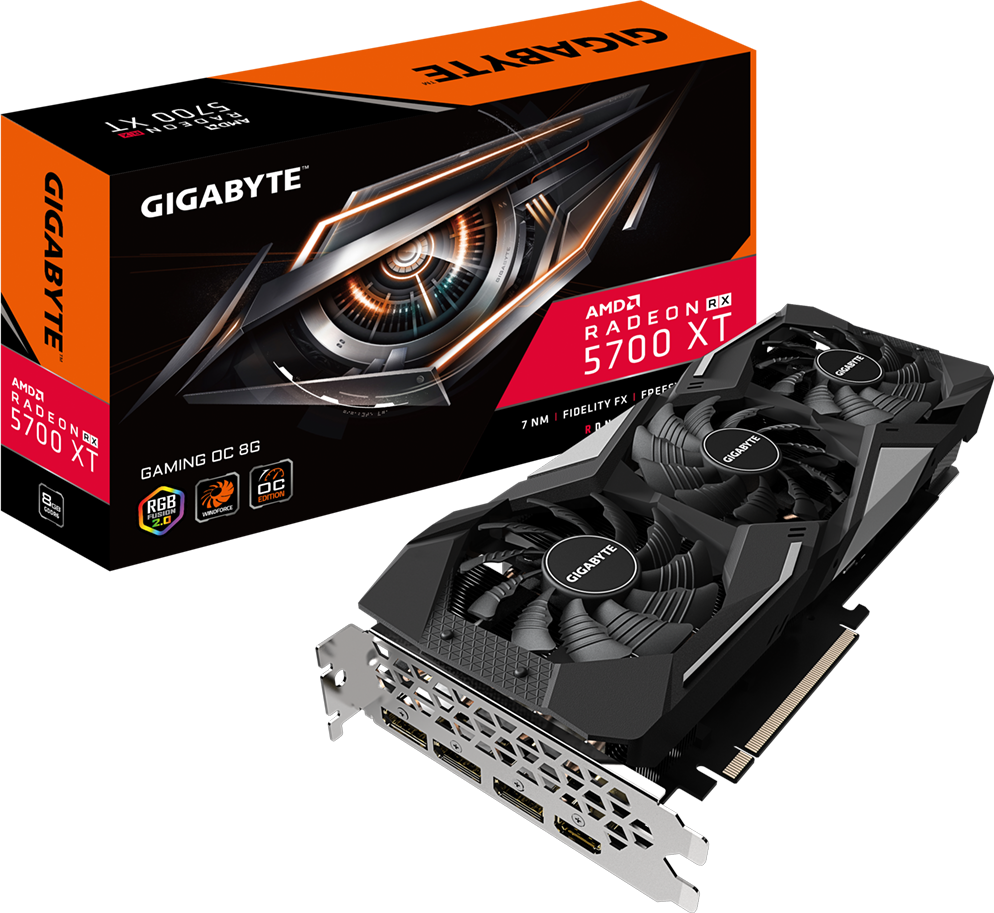

GV-R57XTGAMING OC-8GD

  • Graphics Processing
    Graphics Processing
    Radeon™ RX 5700 XT
  • Core Clock
    Core Clock
    Boost Clock* : up to 1905 MHz
    Game Clock* : up to 1795 MHz (Reference card: 1755 MHz)
    Base Clock : 1650 MHz (Reference card: 1605 MHz)
  • Process Technology
    Process Technology
    7 nm
  • Memory Clock
    Memory Clock
    14000 MHz
  • Memory Size
    Memory Size
    8 GB
  • Memory Type
    Memory Type
    GDDR6
  • Memory Bus
    Memory Bus
    256 bit
  • Memory Bandwidth (GB/sec)
    Memory Bandwidth (GB/sec)
    448 GB/s
  • Card Bus
    Card Bus
    PCI-E 4.0 x 16
  • Digital max resolution
    Digital max resolution
    7680x4320
  • Multi-view
    Multi-view
    4
  • Card size
    Card size
    L=279.85 W=114.35 H=49.55 mm
  • PCB Form
    PCB Form
    ATX
  • DirectX
    DirectX
    12
  • OpenGL
    OpenGL
    4.6
  • Recommended PSU
    Recommended PSU
    600W
  • Power Connectors
    Power Connectors
    8 Pin*1, 6Pin*1
  • Output
    Output
    DisplayPort 1.4 *3
    HDMI 2.0b *1
  • Accessories
    Accessories
    Quick Guide
  • Note
    Note
    * “Boost Clock” is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
    * “Game Clock” is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.

* Los términos HDMI, HDMI High-Definition Multimedia Interface (Interfaz multimedia de alta definición), HDMI Trade Dress (diseño e imagen comercial HDMI) y los logotipos HDMI son marcas comerciales o marcas registradas de HDMI Licensing Administrator, Inc.
* Todos los materiales aquí provistos son solo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
