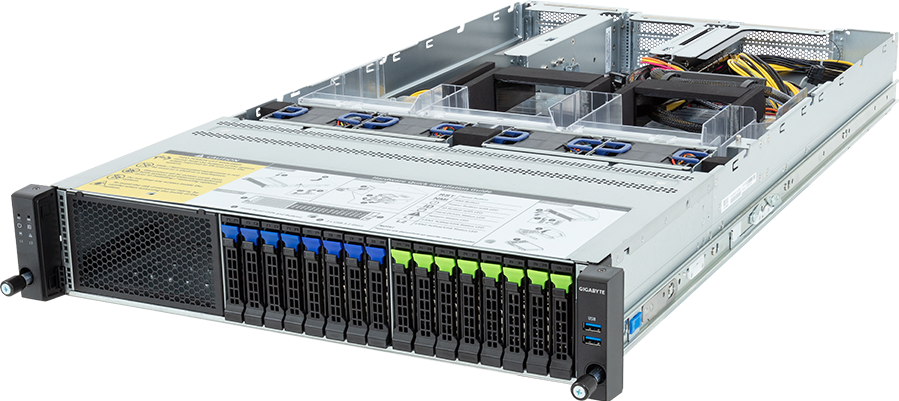

- R283-ZF1-AAL1
- Supports up to 4 x Dual slot Gen5 GPUs
- Dual AMD EPYC™ 9005/9004 Series Processors
- 12-Channel DDR5 RDIMM, 24 x DIMMs
- Dual ROM Architecture
- 4 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
- 4 x 2.5" Gen5 NVMe hot-swap bays
- 8 x 2.5" SATA/SAS-4 hot-swap bays
- 4 x FHFL PCIe Gen5 x16 slots for GPUs
- 1 x FHHL PCIe Gen5 x16 slot
- 1 x OCP NIC 3.0 PCIe Gen5 x16 slot
- Dual 2700W 80 PLUS Titanium redundant power supply
Quick Shipping
See More Models
More ready-to-ship models in the R283 series.
* Todos los materiales aquí provistos son sólo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
SPECIFICATIONS
Dimensions (WxHxD, mm)
2U
438 x 87.5 x 815
438 x 87.5 x 815
Motherboard
MZF3-GP0
CPU
AMD EPYC™ 9005 Series Processors
AMD EPYC™ 9004 Series Processors
Dual processor, cTDP up to 500W
[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
AMD EPYC™ 9004 Series Processors
Dual processor, cTDP up to 500W
[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket
2 x LGA 6096
Socket SP5
Socket SP5
Chipset
System on Chip
Memory
24 x DIMM slots
DDR5 memory supported
12-Channel memory architecture
AMD EPYC™ 9005:
RDIMM: Up to 6000 MT/s
AMD EPYC™ 9004:
RDIMM: Up to 4800 MT/s
DDR5 memory supported
12-Channel memory architecture
AMD EPYC™ 9005:
RDIMM: Up to 6000 MT/s
AMD EPYC™ 9004:
RDIMM: Up to 4800 MT/s
LAN
Rear:
1 x 10/100/1000 Mbps Management LAN
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2600
- 1 x Mini-DP
- 1 x Mini-DP
Storage
Front hot-swap:
4 x 2.5" Gen5 NVMe/SATA/SAS-4 [1]
4 x 2.5" Gen5 NVMe
8 x 2.5" SATA/SAS-4 [1]
- (4 x NVMe from CPU_0, 4 x NVMe from CPU_1)
- (6 x SATA via CRS2810 from CPU_0)
- (6 x SATA via CRS2810 from CPU_1)
Internal M.2:
1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_0, occupied for SATA
1 x M.2 (2280), PCIe Gen3 x4, from CPU_1, occupied for SATA
[1] SAS card is required to support SAS drives.
[Note] SATA hotplug utility can be downloaded on support page.
4 x 2.5" Gen5 NVMe/SATA/SAS-4 [1]
4 x 2.5" Gen5 NVMe
8 x 2.5" SATA/SAS-4 [1]
- (4 x NVMe from CPU_0, 4 x NVMe from CPU_1)
- (6 x SATA via CRS2810 from CPU_0)
- (6 x SATA via CRS2810 from CPU_1)
Internal M.2:
1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_0, occupied for SATA
1 x M.2 (2280), PCIe Gen3 x4, from CPU_1, occupied for SATA
[1] SAS card is required to support SAS drives.
[Note] SATA hotplug utility can be downloaded on support page.
SAS
Require SAS add-in cards
RAID
Require RAID add-in cards
PCIe Expansion Slots
PCIe Cable x 5:
- 2 x FHFL x16 (Gen5 x16), from CPU_0, for GPUs
- 2 x FHFL x16 (Gen5 x16), from CPU_1, for GPUs
- 1 x FHHL x16 (Gen5 x16), from CPU_1
1 x OCP NIC 3.0 (Gen5 x16), from CPU_0
- Supports NCSI function
- 2 x FHFL x16 (Gen5 x16), from CPU_0, for GPUs
- 2 x FHFL x16 (Gen5 x16), from CPU_1, for GPUs
- 1 x FHHL x16 (Gen5 x16), from CPU_1
1 x OCP NIC 3.0 (Gen5 x16), from CPU_0
- Supports NCSI function
Front I/O
2 x USB 3.2 Gen1 ports (Type-A)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs (disabled)
1 x Storage status LED
1 x System status LED
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs (disabled)
1 x Storage status LED
1 x System status LED
Rear I/O
I/O board - CBG70:
2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
1 x MLAN port
1 x ID LED
2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
1 x MLAN port
1 x ID LED
Backplane Board
Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
Security Modules
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply
Dual 2700W 80 PLUS Titanium redundant power supply [1]
AC Input:
- 100-127V~/ 12A, 50-60Hz
- 200-240V~/ 16A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 16A
DC Output:
- Max 1008W/ 100-127V~
+12V/ 84A
+12Vsb/ 3A
- Max 2700W/ 200-240V~ or 240Vdc Input
+12V/ 225A
+12Vsb/ 3A
[1] The system power supply requires C19 power cord.
[Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution.
AC Input:
- 100-127V~/ 12A, 50-60Hz
- 200-240V~/ 16A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 16A
DC Output:
- Max 1008W/ 100-127V~
+12V/ 84A
+12Vsb/ 3A
- Max 2700W/ 200-240V~ or 240Vdc Input
+12V/ 225A
+12Vsb/ 3A
[1] The system power supply requires C19 power cord.
[Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution.
System Management
Aspeed® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
GIGABYTE Management Console web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Please refer to OS compatibility table in support page
System Fans
1 x 40x40x28mm (34,000rpm)
4 x 80x80x56mm (15,500rpm)
4 x 80x80x56mm (15,500rpm)
Operating Properties
Operating temperature: 10°C to 30°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
1077 x 679 x 300 mm
Packaging Content
1 x R283-ZF1-AAL1
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
1 x GPU power cable (12VHPWR, 150mm)
1 x GPU power cable (12VHPWR, 250mm)
1 x GPU power cable (12VHPWR, 450mm)
1 x GPU power cable (12VHPWR, 550mm)
1 x 2-Section Rail kit
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
1 x GPU power cable (12VHPWR, 150mm)
1 x GPU power cable (12VHPWR, 250mm)
1 x GPU power cable (12VHPWR, 450mm)
1 x GPU power cable (12VHPWR, 550mm)
1 x 2-Section Rail kit
Part Numbers
- Barebone package: 6NR283ZF1DR000ACL1*
- Motherboard: 9MZF3GP0UR-000-3*
- 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R
- CPU heatsink: 25ST1-1Z3200-T1R
- Front panel board - CFP2001: 9CFP2001NR-00*
- Backplane board - CBP20G0: 9CBP20G0NR-00*
- Fan module 40x40x28mm: 25ST2-44282I-N2R
- Fan module 80x80x56mm: 25ST2-885621-A0R
- M.2 type SATA card - CRS2810: 9CRS2810NR-00*
- I/O board - CBG70: 9CBG70NR-00*
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- GPU power cable (12VHPWR, 150mm): 25CRI-1500B3-Y4R
- GPU power cable (12VHPWR, 250mm): 25CRI-250107-Y4R
- GPU power cable (12VHPWR, 450mm): 25CRI-450101-Y4R
- GPU power cable (12VHPWR, 550mm): 25CRI-55030B-Y4R
- Power supply: 25EP0-227000-D0S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- RMA packaging: 6NR283ZF1SR-RMA-A100
- Motherboard: 9MZF3GP0UR-000-3*
- 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R
- CPU heatsink: 25ST1-1Z3200-T1R
- Front panel board - CFP2001: 9CFP2001NR-00*
- Backplane board - CBP20G0: 9CBP20G0NR-00*
- Fan module 40x40x28mm: 25ST2-44282I-N2R
- Fan module 80x80x56mm: 25ST2-885621-A0R
- M.2 type SATA card - CRS2810: 9CRS2810NR-00*
- I/O board - CBG70: 9CBG70NR-00*
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- GPU power cable (12VHPWR, 150mm): 25CRI-1500B3-Y4R
- GPU power cable (12VHPWR, 250mm): 25CRI-250107-Y4R
- GPU power cable (12VHPWR, 450mm): 25CRI-450101-Y4R
- GPU power cable (12VHPWR, 550mm): 25CRI-55030B-Y4R
- Power supply: 25EP0-227000-D0S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- RMA packaging: 6NR283ZF1SR-RMA-A100
* Todos los materiales aquí provistos son solo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
