• Supports new generation of AMD Phenom™II X6 processors
  • Supports AMD AM3 Phenom II/ Phenom/ Athlon series processors
  • Solid capacitors design for CPU VRM
  • Dual Channel DDR2 1066 for outstanding system performance
  • Integrated ATI Radeon 2100 graphics
  • Ultimate graphics performance with PCI-Ex16 interface
  • Integrated 6/8 Channel High Definition audio
  • Integrated HDMI/DVI interface with HDCP support
  • Patented DualBIOS with dual hardware BIOS protection
  • Compatible with Windows 7 to deliver the best operation experience
  • Meet European Union ErP(Energy-related Products) requirement
Note:
* If you install AMD AM3/ AM2+ CPU on AM2 motherboard, the system bus speed will downgrade from HT3.0 (5200MT/s) to HT1.0 (2000 MT/s) spec; however, the frequency of AM3/ AM2+ CPU will not be impacted. Please refer "CPU Support List" for more information.
* DDR2 1066 is supported with combination of AM3/ AM2+ processors and qualified memory modules, please refer "Memory Support List" for detail memory support information.
* To use 8-channel HD audio, please use the system case with HD audio front panel featured and see manual for detail configuration.
  • Get Ready to Unleash the Power of AMD 6-Core CPU
    GIGABYTE's AMD motherboards are ready to support the new generation of AMD Phenom™II X 6 processors, delivering the very best platform for multitasking, multimedia and high performance gaming.
  • On/Off Charge Technology
    GIGABYTE On/Off Charge technology allows you to charge your iPhone, iPad and iPod Touch regardless of whether your PC is on, in standby mode or even off. A derivative of GIGABYTE's highly acclaimed 3x USB Power feature, On/Off Charge enables devices to draw more current from GIGABYTE motherboard USB ports than standard USB ports allow, so that charging from your PC can be as fast as with a charger...more
    *Due to certain mobile phone limitations, users may need to connect the mobile phone to their PC before the PC enters S4/S5 mode to enable a quick charge from non On/Off Charge USB ports. Charging results may vary by model.
    *Whether to support 3X USB power design, it may vary by models.
    On/Off Charge Driver download
  • Introduction

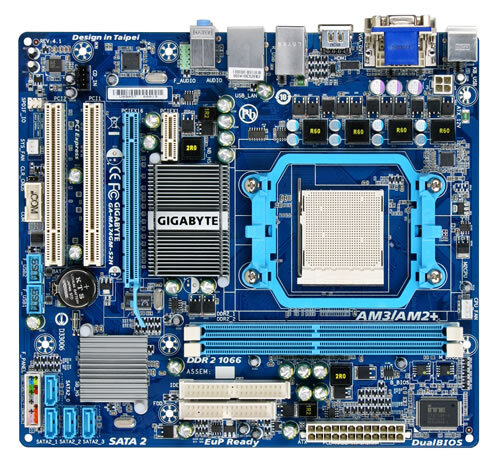

    The GA-MA74GM-S2H offers high performance platform based on AMD 740G Chipset and supports the latest 45nm AMD AM3 processors, dual channel DDR2 memories, providing reliable and user friendly computing and reaching the maximum system performance easily via personalized software settings. In addition, GA-MA74GM-S2H features with two innovative S features- Safe, Smart technologies, further providing reliable and user friendly computing and reaching the maximum system performance easily via personalized software settings. GIGABYTE S series motherboards, the champion’s choice for AMD AM2 platform!
  • Supports next generation of 45nm AMD AM3 CPU
    This motherboard designs with Split Power Plane, 3+1 phase VRM to support AMD the latest 45nm AM3 Phenom™II series processors, delivering the great performance enchantment to system and ultimate scalability hardware expending.
  • AMD AM2+ CPU Support
    The AMD AM2+ Phenom™ processors are an ideal choice for multi-media enthusiasts and intensive multi-tasking environments to offer significant performance boosts and provides an overall more energy efficient platform.
    (Note) If you install AMD AM3/ AM2+ CPU on AM2 motherboard, the system bus speed will downgrade from HT3.0 (5200MT/s) to HT1.0 (2000 MT/s) spec; however, the frequency of AM3/ AM2+ CPU will not be impacted. Please refer "CPU Support List" for more information.
  • EC AOD-ACC Support
    EC AOD-ACC is described as Embedded Controller for AMD OverDrive- Advanced Clock Calibration, which is the newest feature comes from AMD SB750/ SB710 SouthBridge chip, destined for the AMD Black Edition CPU to be overclocked through BIOS setting or AMD OverDrive™ utility further than it was previously possible.
    * Please apply sufficient cooling to CPU VRM zone when ACC function is enabled.
    * Please be noticed that GIGABYTE’s product warranty does not cover damages caused by overclocking.
  • Solid Capacitor for CPU VRM
    Stable system operation depends upon the quality of CPU VRM (voltage regulator module). GIGABYTE adopts Conductive Polymer Aluminum Solid Capacitors for CPU VRM to ensure a longer lifespan for systems in daily operation and boost system stability under extreme conditions. CPU VRM with Solid Capacitors featuring better electronic conductivity, excellent heat resistance enhances system durability even operating in high temperature environment.
  • AMD 740G Chipset
    The AMD 740G chipset features ATI Radeon™ HD 2100-based graphics architecture. This unique combination of Integrated Graphics Processor (IGP) creates a single motherboard featuring a world-class DX9, Pixel Shader 2.0, ATI Avivo Technology, ATI SurroundView™ Technology for faster and smoother game-play, a high quality video processing engine for advance quality of video and DVD playback.
  • Dual Channel DDR2 1066 MHz
    Experience the advanced technology of DDR2 1066 memory, featuring faster speeds and higher data bandwidth, which delivers superior performance for the most demanding applications.
    * DDR2 1066 is supported with combination of AM3/ AM2+ processors and qualified memory modules, please refer "Memory Support List" for detail memory support information.
  • PCI Express Interface
    Revolutionary PCI Express interface provides scalable bandwidth for multi-purpose usage. PCI-E x16 interface doubles the bandwidth of graphics interface of previous generation thus delivering the utmost gaming experience. PCI-E x1interface provides twice the bandwidth of PCI interface up to 250MB/s for new generation I/O peripheral devices.
  • High Definition Audio
    Experience home theater-quality sound with your PC using High Definition Audio for enhanced 6/ 8-channel* audio, improved voice and communication input, and multi-streaming capability.
    * To use 8-channel HD audio, please use the system case with HD audio front panel featured and see manual for detail configuration.
  • SATA 3Gb/s storage interface
    SATA 3Gb/s doubles bus bandwidth from 1.5Gb/s to 3Gb/s. SATA 3Gb/s facilitates bandwidth aggregation for multiple devices, enabling max through put as well as, higher cache through put performance in single drive configurations.
  • Gigabit LAN Connectivity
    The Gigabit network interface delivers a high speed LAN connection with data transfer rate up to 1000Mb/s, providing new generation connectivity for the broadband era. Gigabit LAN is ideally for seamless internet connection such as streaming audio and video contents
  • Smart
    The Smart featured motherboards of GIGABYTE S series provide GIGABYTE proprietary innovative software such as Download Center, @BIOS, Q-Flash, Xpress Install, Boot menu, and Smart Fan. BIOS and driver management now becomes much easier and user friendly through GIGABYTE Smart features!...more
  • Safe
    Safe is the key feature of GIGABYTE S series motherboards with the following elements: Excellent hardware design, reinforced BIOS protection through GIGABYTE Virtual Dual BIOS Technology and GIGABYTE BIOS Setting Recovery Technology. Unique system software such as Xpress Recovery 2, PC Health Monitor, HDD S.M.A.R.T., and C.O.M. further strengthen the stability and reliability of your PC!...more
  • Windows® 7 WHQL Certified
    The motherboard has obtained WHQL (Windows Hardware Quality Labs) certification for Windows 7 from Microsoft®, setting the standard for future Windows 7 certified motherboards...more
  • ErP Lot 6 support
    The ErP (also known as Energy-Related Products Directive) is part of the European Union's environmental regulations policy. It is based on concern for the environmental as the proliferation of electronic devices continues, and how to improve energy efficiency for a better and greener life. GIGABYTE supports ErP and produces motherboards that help you effectively improve system efficiency.
