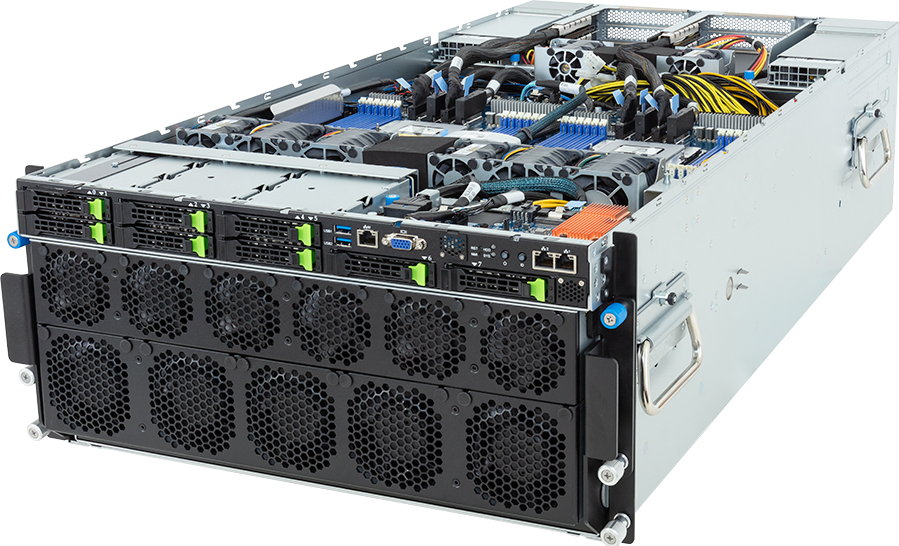

HPC/AI Server - AMD EPYC™ 9004 - 5U DP NVIDIA HGX™ H100 8-GPU 4-Root Port
- NVIDIA-Certified Systems™ - Data Center Servers
- NVIDIA HGX™ H100 8-GPU
- 900GB/s GPU-to-GPU bandwidth with NVIDIA® NVLink® and NVSwitch™
- Dual AMD EPYC™ 9004 Series Processors
- 12-Channel DDR5 RDIMM, 24 x DIMMs
- Dual ROM Architecture
- 2 x 10Gb/s LAN ports via Intel® X710-AT2
- 2 x M.2 slots with PCIe Gen3 x4 and x1 interface
- 8 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
- 4 x FHHL PCIe Gen5 x16 slots
- 8 x LP PCIe Gen5 x16 slots
- 4+2 3000W 80 PLUS Titanium redundant power supplies
* Todos los materiales aquí provistos son sólo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
SPECIFICATIONS
Dimensions (WxHxD, mm)
5U
447 x 219.7 x 945
447 x 219.7 x 945
Motherboard
MZB3-G43
CPU
AMD EPYC™ 9005 Series Processors
AMD EPYC™ 9004 Series Processors
Dual processor, cTDP up to 400W [1]
[1] Please refer to the QVL on the support page or contact our sales representatives for verified CPU SKUs.
[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
AMD EPYC™ 9004 Series Processors
Dual processor, cTDP up to 400W [1]
[1] Please refer to the QVL on the support page or contact our sales representatives for verified CPU SKUs.
[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket
2 x LGA 6096
Socket SP5
Socket SP5
Chipset
System on Chip
Memory
24 x DIMM slots
DDR5 memory supported
12-Channel memory architecture
RDIMM: Up to 4800 MT/s
DDR5 memory supported
12-Channel memory architecture
RDIMM: Up to 4800 MT/s
LAN
Front:
2 x 10Gb/s LAN (1 x Intel® X710-AT2)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Rear (MLAN board - CDB66):
1 x 10/100/1000 Mbps Management LAN
[Note] When both MLAN ports are connected with cables, the front MLAN port will be set as the default.
2 x 10Gb/s LAN (1 x Intel® X710-AT2)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Rear (MLAN board - CDB66):
1 x 10/100/1000 Mbps Management LAN
[Note] When both MLAN ports are connected with cables, the front MLAN port will be set as the default.
Video
Integrated in Aspeed® AST2600
- 1 x VGA port
- 1 x VGA port
Storage
Front hot-swap:
8 x 2.5" Gen5 NVMe/SATA/SAS-4 [1]
- (NVMe from PEX89104)
Internal M.2:
1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_1
1 x M.2 (2280/22110), PCIe Gen3 x1, from CPU_0
[1] Storage card is required to support SATA and SAS drives.
8 x 2.5" Gen5 NVMe/SATA/SAS-4 [1]
- (NVMe from PEX89104)
Internal M.2:
1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_1
1 x M.2 (2280/22110), PCIe Gen3 x1, from CPU_0
[1] Storage card is required to support SATA and SAS drives.
SAS
Require SAS add-in cards
RAID
Require RAID add-in cards
Modular GPU
NVIDIA HGX™ H100 with 8 x SXM5 GPUs
PCIe Expansion Slots
Extension Board CPBG044 x 2:
- 8 x LP x16 (Gen5 x16), from PEX89104
PCIe Cable x 4:
- 2 x FHHL x16 (Gen5 x16), from CPU_0
- 2 x FHHL x16 (Gen5 x16), from CPU_1
- 8 x LP x16 (Gen5 x16), from PEX89104
PCIe Cable x 4:
- 2 x FHHL x16 (Gen5 x16), from CPU_0
- 2 x FHHL x16 (Gen5 x16), from CPU_1
Front I/O
2 x USB 3.2 Gen1 ports (Type-A)
1 x VGA port
2 x RJ45 ports
1 x MLAN port (default)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x Storage activity LED
1 x System status LED
1 x VGA port
2 x RJ45 ports
1 x MLAN port (default)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x Storage activity LED
1 x System status LED
Rear I/O
MLAN board - CDB66:
1 x MLAN port
1 x MLAN port
Backplane Board
Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
Security Modules
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply
4+2 3000W 80 PLUS Titanium redundant power supplies [1]
AC Input:
- 115-127V~/ 14.2A, 50-60Hz
- 200-220V~/ 15.8A, 50-60Hz
- 220-240V~/ 14.9A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 14A
DC Output:
- Max 1450W/ 115-127V~
+54V/ 26.6A
+12Vsb/ 3A
- Max 2900W/ 200-220V~
+54V/ 53.4A
+12Vsb/ 3A
- Max 3002.4W/ 220-240V~ or 240Vdc Input
+54V/ 55.6A
+12Vsb/ 3A
[1] The system power supply requires C19 power cord.
AC Input:
- 115-127V~/ 14.2A, 50-60Hz
- 200-220V~/ 15.8A, 50-60Hz
- 220-240V~/ 14.9A, 50-60Hz
DC Input: (Only for China)
- 240Vdc/ 14A
DC Output:
- Max 1450W/ 115-127V~
+54V/ 26.6A
+12Vsb/ 3A
- Max 2900W/ 200-220V~
+54V/ 53.4A
+12Vsb/ 3A
- Max 3002.4W/ 220-240V~ or 240Vdc Input
+54V/ 55.6A
+12Vsb/ 3A
[1] The system power supply requires C19 power cord.
System Management
Aspeed® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
GIGABYTE Management Console web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Please refer to OS compatibility table in support page
Additional certifications:
Windows Server 2022 (x64)
Additional certifications:
Windows Server 2022 (x64)
System Fans
Motherboard:
2 x 40x40x56mm (32,000rpm)
4 x 60x60x56mm (24,000rpm)
PCIe slots:
4 x 40x40x28mm (25,000rpm)
2 x 40x40x56mm (32,000rpm)
GPU tray:
6 x 60x60x76mm (21,700rpm)
11 x 80x80x80mm (17,000rpm)
2 x 40x40x56mm (32,000rpm)
4 x 60x60x56mm (24,000rpm)
PCIe slots:
4 x 40x40x28mm (25,000rpm)
2 x 40x40x56mm (32,000rpm)
GPU tray:
6 x 60x60x76mm (21,700rpm)
11 x 80x80x80mm (17,000rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Weight
Net Weight: 91 kg
Gross Weight: 100 kg
Gross Weight: 100 kg
Packaging Dimensions
1200 x 890 x 700 mm
Packaging Content
1 x G593-ZD2-AAX1
2 x CPU heatsinks
1 x L-shape Rail kit
2 x CPU heatsinks
1 x L-shape Rail kit
Part Numbers
- Barebone w/ NVIDIA module (9005/9004): 6NG593ZD2DR000ABX1*
- Barebone w/ NVIDIA module (9004): 6NG593ZD2DR000AAX1*
- Motherboard: 9MZB3G43UR-000*
- L-shape Rail kit: 25HB2-A96102-K0R
- CPU heatsink: 25ST1-44320Z-C1R
- Front panel board - CFPG540: 9CFPG540NR-00*
- Backplane board - CBPG680: 9CBPG680NR-00*
- Fan module 40x40x28mm: 25ST2-44282D-D0R
- Fan module 40x40x56mm: 25ST2-40562M-A0R
- Fan module 40x40x56mm: 25ST2-40562N-A0R
- Fan module 60x60x56mm: 25ST2-665620-S1R
- Fan module 60x60x76mm: 25ST2-667630-S1R
- Fan module 80x80x80mm: 25ST2-888032-S1R
- Fan module 80x80x80mm: 25ST2-808037-S1R
- PCIe extension board - CPBG044: 9CPBG044NR-00*
- PCIe switch board - CPBG902: 9CPBG902NR-00*
- Rear MLAN board - CDB66: 9CDB66NR-00*
- Power supply: 25EP0-23000J-D0S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- Barebone w/ NVIDIA module (9004): 6NG593ZD2DR000AAX1*
- Motherboard: 9MZB3G43UR-000*
- L-shape Rail kit: 25HB2-A96102-K0R
- CPU heatsink: 25ST1-44320Z-C1R
- Front panel board - CFPG540: 9CFPG540NR-00*
- Backplane board - CBPG680: 9CBPG680NR-00*
- Fan module 40x40x28mm: 25ST2-44282D-D0R
- Fan module 40x40x56mm: 25ST2-40562M-A0R
- Fan module 40x40x56mm: 25ST2-40562N-A0R
- Fan module 60x60x56mm: 25ST2-665620-S1R
- Fan module 60x60x76mm: 25ST2-667630-S1R
- Fan module 80x80x80mm: 25ST2-888032-S1R
- Fan module 80x80x80mm: 25ST2-808037-S1R
- PCIe extension board - CPBG044: 9CPBG044NR-00*
- PCIe switch board - CPBG902: 9CPBG902NR-00*
- Rear MLAN board - CDB66: 9CDB66NR-00*
- Power supply: 25EP0-23000J-D0S
Optional parts:
- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
* Todos los materiales aquí provistos son solo para referencia. GIGABYTE se reserva el derecho de modificar o revisar el contenido a cualquier hora sin aviso alguno.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
* Todas las marcas y logos son propiedad de sus propios dueños.
* Debido a la arquitectura estándar de la PC, cierta cantidad de memoria es reservada para uso del sistema y actualmente la memoria disponible es menor a la mencionada.
