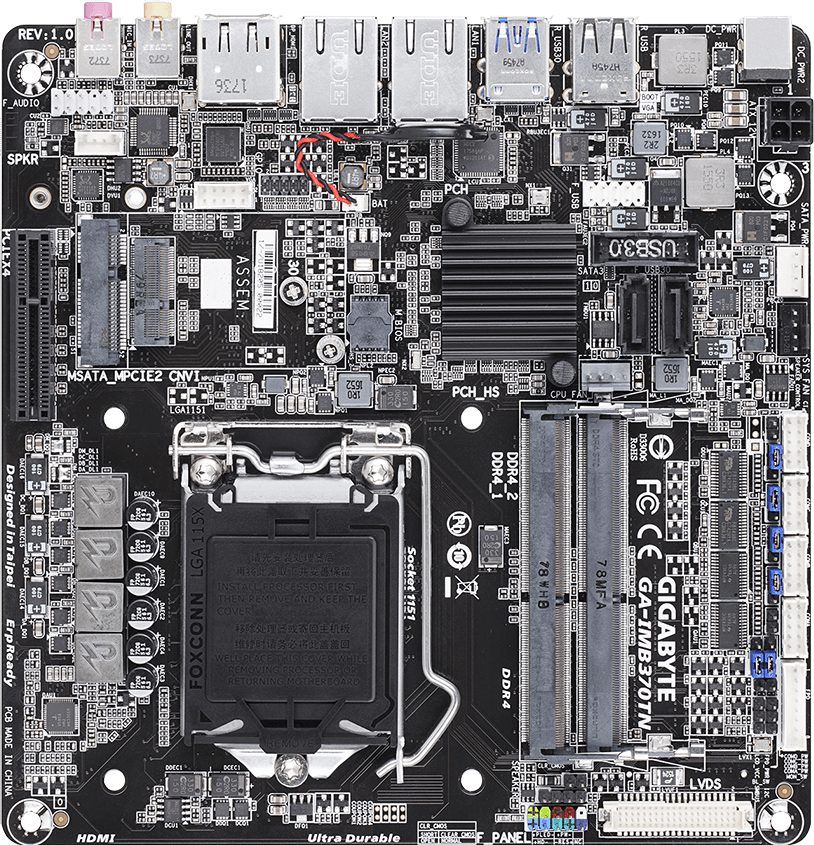

GA-IMB370TN (rev. 1.0)

Intel®Q370 Chipset

  • Supports 9th and 8th Generation Intel® Core™ Processors up to 65W
  • Dual Channel DDR4 SO-DIMM, 2 DIMMs
  • 2 x RS232/422/485, 2 x RS232, Digital I/O 4-in/4-out
  • M.2 Socket 1 for PCIe WIFI co-lay with CNVI Hybird E key WIFI
  • M.2 Socket 2260/80 Storage support PCIe/SATA Mode
  • Mini-PCIe Slot Full size Support mSATA/PCIe mode
  • VGA Header for legacy Monitor
  • LVDS Header for System Integrated Flat Panel Display Support
  • Rear Panel DisplayPort, HDMI 2.0 Ports & D-sub Header for Multi-Display Connection
  • Amplified Speaker Header Able to Drive Up to 3W System Integrated Speaker
  • Dual Intel® GbE LAN for WOL and PXE Support
  • 4 USB 3.0 and 4 USB 2.0 Ports, USB 3.0 support OTG function
  • OP: 0~60 degree
  • Thin Mini-ITX 170x170mm Form Factor with 12/19~24V DC-In Power Design
  • Compatible with GIGABYTE Thin mini ITX Chassis


    • * Datasheet Download
  • GIGABYTE Ultra Durable of Thin Mini ITX Motherboard
    GIGABYTE Q370 Thin Mini-ITX motherboards support the latest 8th Generation Intel® Core™ processors, a 14nm desktop CPU which features improved performance, power efficiency and support for DDR4 memory, bringing cutting edge features and ultimate performance to your next PC build. GIGABYTE Q370 Thin Mini-ITX motherboards are 43% thinner than traditional Thin Mini-ITX designs. Complying with the latest Thin Mini-ITX guidelines, GIGABYTE motherboards offer additional flexibility making them suited to broad range of innovative PC designs.
  • Dual Intel® GbE LAN with cFosSpeed
    The Dual Intel® Gigabit LAN with cFosSpeed features advanced technology to help deliver better network responsiveness in crowded LAN environments and allows optimization and improved network performance for specific applications, making it a popular choice amongst gamers.
    Dual Intel® GbE LAN with WOL and PXE Support

  • High Definition Digital Outputs
    Enjoy true HD display capability using the most commonly integrated digital output technologies on today’s HD displays and TVs.
     * Support for up to 2 displays at the same time.
    High Definition Digital Outputs
  • 4K Ultra HD Support
    4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel® HD Graphics via HDMI.



  • Intel CNVi WIFI Upgrade kit

    The Intel CNVi WIFI Upgrade kit offers an easy way to upgrade Intel CNVi WIFI Upgradeable motherboards with new and faster Gigabit WIFI connectivity without having to upgrade to a whole new system.

    Intel ® CNVi WIFI kit must be purchased separately.
    Photo for demonstration only.


  • HDMI™ 2.0-The Next Generation Multimedia Interface
    HDMI™ 2.0 is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ 2.0 ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ 2.0 is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.
  • Display Port Support
    Selected GIGABYTE motherboards feature DisplayPort, a next generation graphics display interface that delivers up to 10.8 Gbps of bandwidth over standard cables, providing billions of colors with the fastest refresh rates and the greatest color depths.
  • USB 3.0 Ports Onboard
    With superfast transfer rates of up to 5 Gbps, users are able to experience an almost a 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users legacy USB 2.0 devices will still work.


    * USB 3.0 10x performance is a maximum theoretical value.
    Actual performance may vary by system configuration.
    USB 3.0 Ports Onboard
  • Ferrite core chokes comprised of a compound of iron oxide and other metal elements whose properties hold energy much longer than common iron core at high frequency.

    Low Power Loss

    Low Power Loss - Ferrite Core Choke Design
  • GIGABYTE Patented DualBIOS™ (UEFI) Design (Optional)
    GIGABYTE Ultra Durable™ motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', making users protected from BIOS failure due to virus attack, hardware malfunction, improper OC settings or power failure during the update process.
    DualBIOS™ (UEFI) Design
  • 2x Copper PCB Design (2 oz Copper PCB)
    GIGABYTE’s exclusive 2X Copper PCB design provides sufficient power trace paths between components to handle greater than normal power loads and to remove heat from the critical CPU power delivery area. This is essential to ensure the motherboard is able to handle the increased power loading that is necessary when overclocking.


    2x Copper PCB Design (2 oz Copper PCB)
  • The Industry's Leading LAN Static-Electricity & Surge Protection
    GIGABYTE motherboards use ICs with up to 3 times the ESD resistance levels compared to traditional ICs. This helps to better protect the motherboard and its components against potential damage caused by static electricity. GIGABYTE motherboards also feature special anti-surge ICs that protect your motherboard, and your PC from any surge in power delivery that may occur, helping to ensure that your PC is equipped to deal with any potentially irregular and inconsistent power delivery.
  • Long Lifespan Durable Black™ Solid Caps
    GIGABYTE motherboards integrate the absolute best quality solid state capacitors that are rated to perform at maximum efficiency for extended periods, even in extreme performance configurations. With ultra-low ESR no matter how high the CPU load, this provides peace of mind for end users who want to push their system hard, yet demand absolute reliability and stability. These exclusive capacitors also come in customized jet black, exclusively on GIGABYTE motherboards.


    Long Lifespan Durable Black™ Solid Caps
  • Digital I/O
    Digital I/O is a flexible parallel interface that allows a variety of custom connections. Each digital I/O port can be individually configured through software as either an input or output. It allows users to monitor the level of signal input or set the output status to switch on/off a device.
    Digital I/O
  • Product Longevity
    Our embedded motherboards have a long product life cycle of 3~5 years.
    Long lifecycle meets industry needs.
    Product Longevity
  • Wide Voltage Support
    Support for wide voltage ranges provides increased stability and reliability — perfect for industrial use. GIGABYTE embedded motherboards have Over Voltage and Over Current protection.
    Wide Voltage Support
  • Compatible with GIGABYTE Thin mini ITX Chassis
    (Part Number: 24EC5-1TM10A-01R)
    (Size :204.6 x 205 x 45 mm)
    Compatible with GIGABYTE Thin mini ITX Chassis
