• World's First Intel® Thunderbolt™ 3 Certified Motherboard
  • Supports 7th / 6th Generation Intel® Core™ Processor
  • Dual Channel, Non-ECC Unbuffered DDR4, 4 DIMMs
  • Intel® USB 3.1 with USB Type-C™ & PD 2.0 100W Support
  • 2-Way CrossFire™ Multi-Graphics Support
  • NVMe PCIe Gen3 x4 22110 M.2 Interface & U.2 Interface for Intel® SSD 750
  • Best Support for 2 Intel® SSD 750 Devices in RAID 0
  • SATA Express Connector for up to 16Gb/s Data Transfer
  • Intel® GbE LAN with cFosSpeed Internet Accelerator Software
  • High Quality Audio Capacitors and Audio Noise Guard with Ambient LED Trace Path Lighting
  • Ultra Durable Metal Shielding over PCIe and DDR Slots
  • Ultra Durable Anti-Sulfur Resistors for Longer Lifespan
  • Ultra Durable Anti-Rust Rear I/O Connectors
  • GIGABYTE UEFI DualBIOS™ Technology
  • APP Center Including EasyTune™ and Cloud Station™ Utilities
  • Rear Panel Mini DisplayPort-In for Future Feature Upgrade
  • Next Generation 40 Gb/s Thunderbolt™ 3
    Dual Thunderbolt™ 3 – The fastest 40Gb/s single-wire connection


    Powered by Intel's own Thunderbolt controller the new Thunderbolt™ 3 protocol, which is available over two USB Type-C™ connectors on the back I/O of the GIGABYTE H170-Designare, brings an unprecedented single-wire bandwidth of up to 40 Gb/s -- twice more than the previous generation of Thunderbolt! This incredible increase in bandwidth is also accompanied with support for different protocols such as DisplayPort 1.2 and USB 3.1, which is backwards compatible with USB 3.0 and USB 2.0, opening up a world of new possibilities.


    Daisy-chain Multiple Devices
    Support for DisplayPort 1.2 makes Thunderbolt™ 3 a must have for any enthusiast. The H170-Designare is able to support two displays in 4K resolution at 60 FPS or one display in 5K resolution. In addition, Thunderbolt™ 3 over USB Type-C™ has revolutionary industry-first features such as Power Delivery 2.0, and the ability to daisy-chain up to 12 devices thanks to the H170-Designare's dual USB Type-C™ ports.
    Compatibility may vary according to system configuration and device specifications.
  • 2-Way CrossFire™ Multi-Graphics

    Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.

    GIGABYTE Design By spacing the graphics cards in multi-graphics configurations, users are now able to obtain maximum airflow between cards.
    2-Way CrossFire™ Multi-Graphics
  • PURE SPEED, MORE POWER
    Exclusively on GIGABYTE Powered Motherboards
    Intel® USB 3.1 + Power Delivery 2.0
    The Intel® USB 3.1 controller utilizes four PCIe Gen3 Lanes, offering up to 32 Gb/s total bandwidth, for uncompromised transfer speeds of up to 10 Gb/s per USB 3.1. With twice the bandwidth compared to its previous generation, and backwards compatibility with USB 2.0 and 3.0, the much improved USB 3.1 protocol is available over the new reversible USB Type-C™ and the traditional USB Type-A connector for better compatibility over a wider range of devices.
    Bandwidth design for the controller
    *Max. bandwidth allocated for the controller may vary by model.

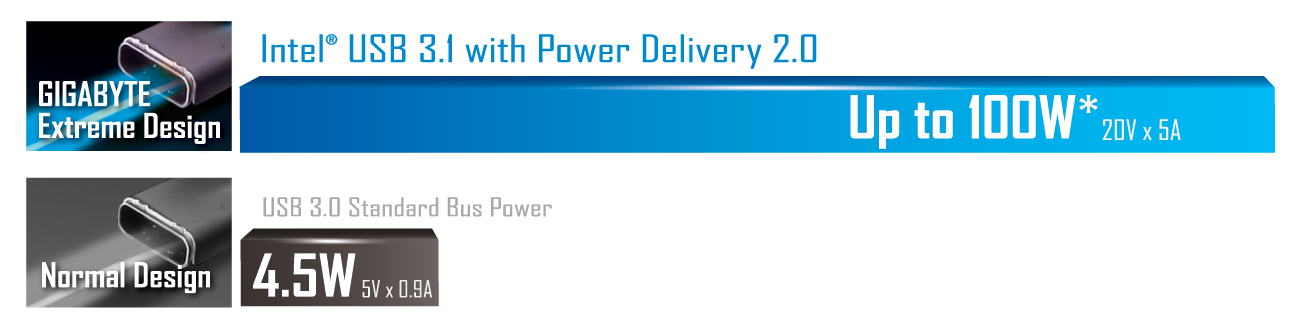

  • 100W USB Type-C™
    Power and Charge From USB Type-C With Power Delivery 2.0 Support
    Redesigned to take full advantage of all the features that USB Type-C can support, GIGABYTE’s new motherboards with Intel’s USB 3.1 controller not only supports USB 2.0, 3.0, and 3.1, but also completely supports Power Delivery 2.0. This means users are able to get up to 100 watts through their Intel powered USB Type-C port. This opens the door for users looking to clean up their cable cutter and power or recharge their devices through this universal connector, the Type-C Port.
    100W USB Type-C™

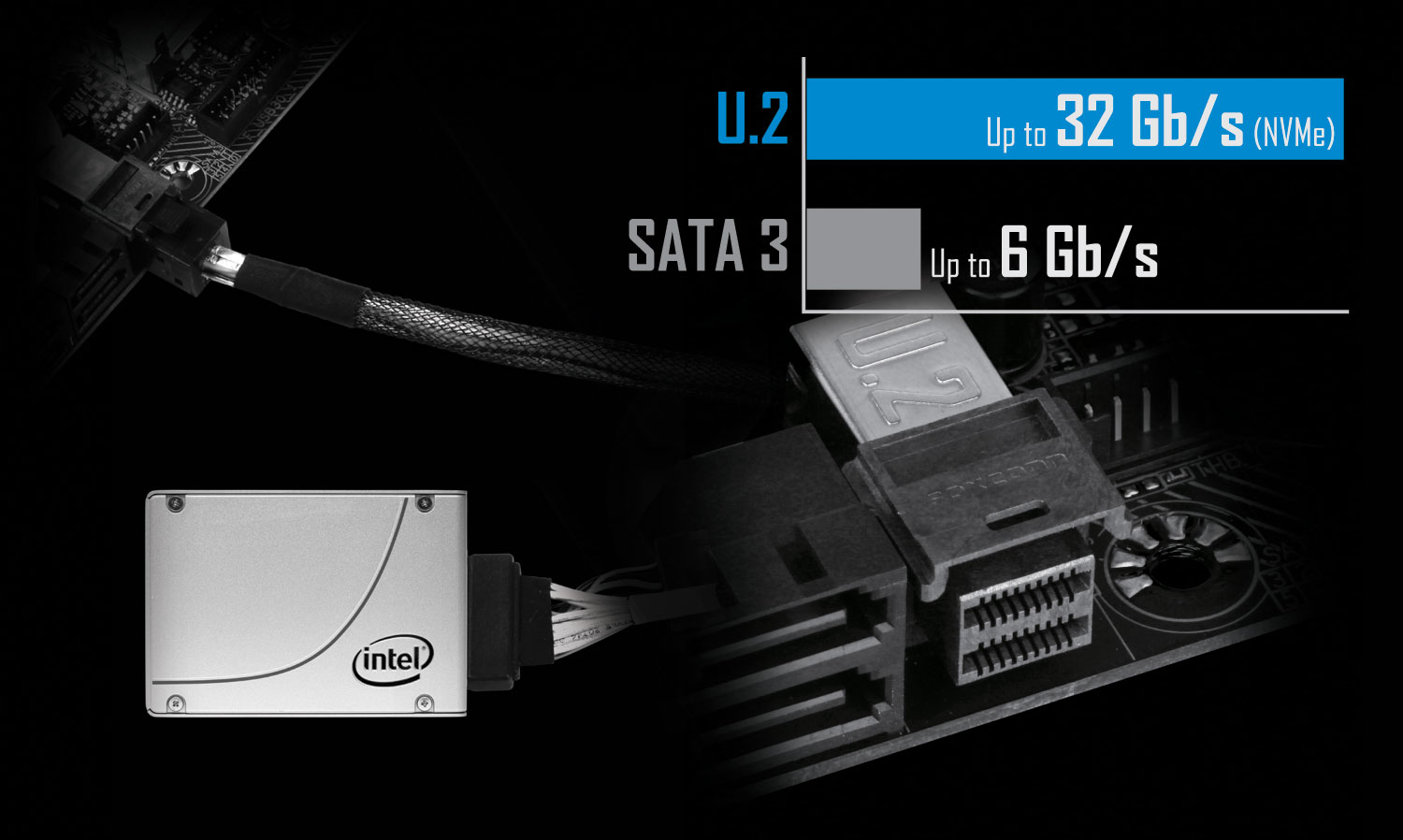

  • U.2 Onboard (NVMe PCIe Gen3 x4)
    NVMe Performance for PCIe SSDs
    The new Intel 750 series SSDs offer an incredible increase in performance over SATA drives. Using the NVMe protocol which takes advantage of the fast bandwidth of PCIe Gen3 x4 lanes (32 Gb/s), the drives are a clear advantage for users looking to boot their OS faster, load their games in a flash and access large files without waiting. By implementing the U.2 port onboard to support the 2.5” Intel 750 Series drive, GIGABYTE ensures that the users can benefit from the best performance.
    Photo for reference only. SSDs and cables are not included.
  • Fast Onboard Storage with NVMe PCIe Gen3 x4 110mm M.2 (Up to 32 Gb/s)
    GIGABYTE’s M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interfaces for M.2 SSD devices.
    Photo for reference only. M.2 SSDs and cables not included.
  • GIGABYTE Patented Double Locking Bracket
  • Ultra Durable™ PCIe Armor

    Enhanced Strength PCIe Design, Support for Heavy Graphics Cards For Extreme / VR Gaming Station
    Dual Armor DIMM and PCIe Metal Shielding
    Never worry about your heavy graphics card damaging your motherboard again. GIGABYTE’s proprietary Ultra Durable PCIe Metal Shielding reinforces the PCIe connector to prevent slot damage due to heavy graphics card. The DIMM and PCIe metal shield also provides extra strength for when you forget to release the lock while replacing your component, adding a fool proof option which can save your PC’s life.
  • Ultra Durable™ Memory Armor
    GIGABYTE’s exclusive one piece stainless steel shielding design prevents against PCB distortion and twist (Plate bending) in addition to preventing any possible ESD interference.
    Product features may vary by model.Photo for reference only.
  • Anti-Sulfur
    Resistor Design
    Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.
    Product features may vary by model.
    Anti-sulfur product: An alloy layer has been
    added to protect the silver layer and prevents
    the sulfurization reaction from taking place.


    Without the anti-sulfur layer: The electrode terminals
    lack a protective layer, which means that oxygen or other environmental elements can penetrate the Ni (Nickel) layer causing a sulfurization reaction and degrade the ability for the electrode to conduct electricity properly.
  • Intel® GbE LAN with cFosSpeed
    Intel® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in a crowded LAN environments.
    Intel GbE LAN with cFosSpeed
  • GIGABYTE Patented DualBIOS™ (UEFI) Design
    GIGABYTE Ultra Durable™ motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', Protecting users from BIOS failure due to virus, hardware malfunction, improper OC settings or power failure during the update process.
  • Long Lifespan Durable Black™ Solid Caps
    GIGABYTE motherboards integrate the absolute best quality solid state capacitors that are rated to perform at maximum efficiency for extended periods, even in extreme performance configurations. With ultra-low ESR no matter how high the CPU load, this provides peace of mind for end users who want to push their system hard, yet demand absolute reliability and stability. These exclusive capacitors also come in customized jet black, exclusively on GIGABYTE motherboards.


  • 15μ Gold Plated CPU Socket Design
    GIGABYTE motherboards come equipped with a 15 micron thick gold plated CPU socket, which means that enthusiasts can enjoy absolute reliability and longevity for the CPU socket overtime, without having any concerns about corroded pins or bad contacts.


  • ESD Protection for USB and LAN
    GIGABYTE motherboards raise the bar in terms of protecting your system, providing advanced electrostatic discharge (ESD) protection for both your Ethernet LAN and USB ports, both common sources of ESD-related failures. Each LAN and USB port is paired with a dedicated protection filter that can withstand high electrostatic discharges, protecting your system from common electrical surges and even direct lighting strikes.
  • Immersive VR
    Gaming Experience
    > VR requires 30% more performance than Full HD graphics for a steady 60FPS or greater.
    > Only Gaming PCs can provide the best VR experience.
    To create a seamless VR experience GIGABYTE Motherboards offer the best features to make your virtual reality feel like your actual reality.

    With technologies such as Thunderbolt™ 3 to transfer data and video, NVMe support via M.2 or U.2, and a one piece metal shielding to brace for heavier discrete graphics cards its obvious that GIGABYTE has the tools you need to start your journey in VR. To set the mood GIGABYTE Motherboards include Ambient Surround LED to put you in the center of action.
    Recommended configuration for VR Gaming PC
    - Graphics Card: NVIDIA GTX 970 / AMD R9 290 or greater, Compatible HDMI 1.3 video output
    - CPU: Intel i5-6600K equivalent or greater
    - Motherboard: GIGABYTE X99/Z170/H170/B150 motherboards
    - Memory: 8GB RAM or greater
    - USB Ports:3x USB 3.0 ports plus 1x USB 2.0 port or greater
    - OS: Windows 7 SPI 64-bit or newer
