GA-H110MSTX-HD3 (rev. 1.0)
Intel® H110 Chipset
![](/FileUpload/Global/Other/2/Photo/3826.png)
- Supports 7th / 6th Generation Intel® Core™ Processor
- Dual Channel DDR4 SO-DIMM, 2 DIMMs
- Features USB 3.0 with USB Type-C™ Support
- 1 x RS232 COM Port Support
- M.2 Socket 1 Interface for WIFI+BT Module Support
- M.2 Socket 3 Interface for SATA Mode SSD Support
- Rear Panel DisplayPort, HDMI 1.4, D-Sub Ports for Multi-Display Connection
- Amplified Speaker Header Able to Drive Up to 3W System Integrated Speaker
- Intel® GbE LAN for WOL and PXE Support
- GIGABYTE UEFI DualBIOS™ Technology
- Mini-STX 147x140mm Form Factor with 12~19V DC-In Power Design
- Support Intel® Small Business Basics
-
GIGABYTE Ultra Durable ™ Motherboards
GIGABYTE 100 series motherboards support the latest 6th Generation Intel® Core™ processors, a 14nm desktop CPU which features improved performance, power efficiency and support for DDR4 memory, bringing cutting edge features and ultimate performance to your next PC build. -
Connecting the Future - USB Type-C™:The World's Next Universal Connector
-

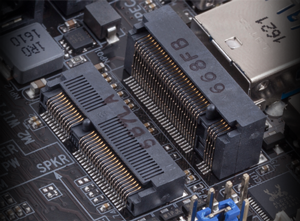

Dual M.2 Technology for SSD Drive and WIFI CardFast Data Transfer and Advanced WIFI Networking
GIGABYTE H110MSTX-HD3 motherboard features Dual M.2 technology which for SATA mode SSD devices connectivity and also for 11ac WIFI & Bluetooth 4.0 card usage. GIGABYTE’s stacked design optimizes the PCB real-estate usage, allowing more components to be efficiently added without compromising any space. -
High Definition Digital Outputs
* Support for up to 2 displays at the same time.
-
4K Ultra HD Support4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel® HD Graphics via HDMI.
-
HDMI™-The Next Generation Multimedia InterfaceHDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.
-
Suport Display PortPlăcile de bază GIGABYTE sunt dotate cu interfața DisplayPort pentru viitoarele generații de siplay-uri grafice. Acesta permite o lățime de bandă de până la 10.8 Gbps prin cabluri normale, oferind miliarde de culori, cele mai rapide rate de refresh și cele mai bune adâncimi de culoare.
-
Intel® GbE LAN with WOL and PXE SupportIntel® Gigabit LAN with WOL and PXE support, deliver better network responsiveness and conveniently user experience in crowded LAN environments, to offer hassle free and high speed network connectivity.
-
USB 3.0 Ports OnboardWith superfast transfer rates of up to 5 Gbps, users are able to experience an almost a 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users legacy USB 2.0 devices will still work.
* USB 3.0 10x performance is a maximum theoretical value.
Actual performance may vary by system configuration. -
INTEL® SMALL BUSINESS BASICSWith 6th Generation Intel® Core™ Processor
Security and Productivity Solution with built in IT
New compelling usages in one intuitive Customizable UI
-
Compatible with GIGABYTE Mini STX Chassis(Part number : 20EC5-01MS01-01R)
(Size : 193 x 153 x 67 mm)
![](/FileUpload/global/Other/11/Photo/hdmi_logo.png)
* Termenii HDMI, HDMI High-Definition Multimedia Interface, Imaginea comercială HDMI și Siglele HDMI sunt mărci comerciale sau mărci comerciale înregistrate ale HDMI Licensing Administrator, Inc.
* Materialele oferite aici sunt doar pentru referinţă. GIGABYTE îşi rezervă dreptul de a modifica sau revizui continutul oricând fără notificare prealabilă.
* Perfomanţa prezentată este bazată pe valorile teoretice maxime ale interfeţei de la vendorii respectivi de Chipset-uri sau de la organizaţiile ce au definit specificaţiile interfeţei. Perfomanţele reale pot varia în funcţie de sistem.
* Toate mărcile inregistrate şi logo-urile sunt proprietatea deţinătorilor respectivi.
* Datorită arhitecturii standard PC, o anumită cantitate de memorie este rezervată pentru sistem şi de aceea mărimea actuală a memoriei este mai mică decât cea indicată.
