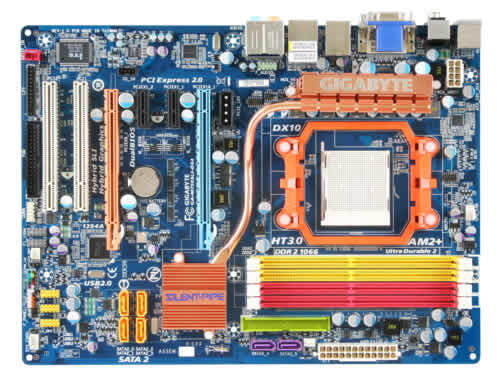

GA-M750SLI-DS4 (rev. 1.0)
NVIDIA nForce 750a SLI Chipset
1/2
- Supports AMD Phenom™ / Athlon™ series processors
- Dual Channel DDR2 1066* for remarkable system performance
- Ultimate graphics performance with dual PCI-E 2.0 x16 interface with NVIDIA SLI support
- NVIDIA Hybrid SLI and Hybrid Power support.
- Integrated SATA 3Gb/s with RAID function
- Features high speed Gigabit Ethernet and IEEE1394
- High quality 106dB SNR ALC889A HD audio
- Unique Silent-Pipe with outstanding cooling performance
- DualBIOS support for multiple protection
- Ultra Durable 2 motherboard features High Quality CPU Power design with Ferrite core chokes, Low RDS (on) MOSFET and Solid Capacitors
-
Introduction
GA-MA78LM-S2 offers high performance platform based on AMD 760G chipset, it is integrated ATI Radeon HD 3000 (DX10) graphics engine and supports AMD AM3 Phenom II/ Phenom/ Athlon processors, HyperTransport™ 3.0 technology links, DDR2 memory, PCI Express 2.0 graphics interface and so on. With the innovative GIGABYTE Easy Energy Saver technology, GA-MA78LM-S2 is able to provide user friendly computing, reach the maximum system performance easily while still able to save the power and environment in real life at the same time. -
Supports next generation of 45nm AMD AM3 CPU
This motherboard designs with Split Power Plane, 4+1 phase VRM to support AMD the latest 45nm AM3 Phenom™II/ Athlon™II processors, delivering the great performance enchantment to system and ultimate scalability hardware expending. -
AMD Live Ready
AMD Live Ready Requirement compliant. -
Windows Vista Premium Logo Certified
Windows Vista Premium promises to deliver a streamlined computing experience designed to fundamentally change how users view, find and organize their digital information. With GIGABYTE AM2+/ AM2 solutions enabling support for Vista Premium, GIGABYTE offers a fresh and unique desktop experience that will be more informative, intuitive and completely new....more -
AMD Phenom™ processors
The leading-edge performance and unparallel technology of AMD AM2+ Phenom™ processors have built its strength on the well-known AMD64 framework which consisted next generation of HyperTransport 3.0 Technology, and integrated DDR2 1066 memory controller, and 128-bit Floating Point Units. The AMD Phenom™ processors are an ideal choice for multi-media enthusiasts and intensive multi-tasking environments to offer significant performance boosts and provides an overall more energy efficient platform. -
NVIDIA nForce 750a SLI Chipset
The NVIDIA nForce 750a SLI Chipset is the system logic of the latest AM2+ (HyperTransport 3.0) platform from AMD that enables its next generation Phenom™ processors with the leading NVIDIA SLI and Hybrid SLI (including GeForce Boost and Hybrid Power) solution. The NVIDIA nForce 750a SLI Chipset, with optimized next generation of PCI-E 2.0 graphics capabilities, providing outstanding quality and performance for every PC users. Confidently manage and back-up precious digital files, surf the Internet faster, and play the latest games with technology designed today and ready for tomorrow. -
Dual Channel DDR2 1066* MHz
Experience the advanced technology of DDR2 1066* memory, featuring faster speeds and higher data bandwidth, which delivers superior performance for the most demanding applications.
* DDR2 1066 is supported with combination of AM2+ processors and DDR2 1066 memory modules, please refer "Memory Support List" for detail memory support information. -
PCI-E 2.0 Graphics Interface
PCI-E 2.0 doubles the bus standard's bandwidth from 2.5 Gbit/s to 5 Gbit/s, meaning a x32 connector can transfer data at up to 16 GB/s in each direction. PCI-E 2.0 also features improvements to the point-to-point data transfer protocol and its software architecture. -
NVIDIA Hybrid SLI Support
- GeForce Boost™: Turbocharge the performance of your integrated GeForce GPU. Plug in an NVIDIA graphics card and enjoy the additive performance of GeForce Boost Technology, the easiest and most cost effective way to give your graphics performance an instant boost.
- Hybrid Power™ : 2 Modes to deliver performance when you need it.
．Power Savings Mode: Delivers enhanced power savings with the ability to switch off the discrete graphics core when it’s not needed.
．Max Performance Mode: Turn on the juice for games or other graphics intensive applications.
** NVIDIA Hybrid SLI current only supports Windows Vista. -
SATA 3Gb/s storage interface
SATA 3Gb/s doubles bus bandwidth from 1.5Gb/s to 3Gb/s. SATA 3Gb/s facilitates bandwidth aggregation for multiple devices, enabling max through put as well as, higher cache through put performance in single drive configurations. -
IEEE1394 motherboard
This motherboard with IEEE1394 FireWire interface from Texas Instruments (TI). With the transfer speed up to 400Mb/s, the new generation IEEE1394 interface further enhances PC connectivity with consumer electronics audio/video. -
ALC889A HD audio with Enables a Superior Audio Experience
Excellent Audio Performance
High-performance DAC (Digital-Analog Converter) with 106 dB Signal-to-Noise ratio playback quality, designed especially for Windows Vista Premium PCs.
Blu-ray/HD DVD Full Rate Audio Support
The ALC889A enables high quality Full Rate Lossless Audio for content protected media and support for both Blu-ray and HD DVD formats for an exhilarating home theater entertainment experience.
7.1+2 Channel High Definition Output
The ALC889A provides support for 7.1 sound playback, plus 2 channels of independent stereo output (multiple streaming) through the front panel stereo outputs. -
Gigabit LAN Connectivity
The Gigabit network interface delivers a high speed LAN connection with data transfer rate up to 1000Mb/s, providing new generation connectivity for the broadband era. Gigabit LAN is ideally for seamless internet connection such as streaming audio and video contents -
SLI
The SLI compliant motherboards of GIGABYTE S-series support NVidia SLI™ multi-GPU function, not only to provide extreme graphics performance, but also provide efficient expandability and multi-display function. A must-have feature for enthusiasts in gaming platform!...more -
Speed
The Speed compliant motherboards of GIGABYTE S-series provide intelligent over-clocking and over-voltage software settings through both hardware and software design...more -
Smart
The Smart featured motherboards of GIGABYTE S-series provide GIGABYTE proprietary innovative software such as Download Center, @BIOS, Q-Flash, Xpress Install, Boot menu, and Smart Fan. BIOS and driver management now becomes much easier and user friendly through GIGABYTE Smart features!...more -
Safe
Safe is the key feature of GIGABYTE S-series motherboards with the following elements: Excellent hardware design reinforced BIOS protection through GIGABYTE Virtual Dual BIOS Technology and GIGABYTE BIOS Setting Recovery Technology. Unique system software such as Xpress Recovery 2, PC Health Monitor, HDD S.M.A.R.T., and C.O.M. further strengthen the stability and reliability of your PC!...more -
Ultra Durable 2 -Designed with Top Quality Highly Efficient Components
Ultra Cooling - Low RDS(on) MOSFET Design
Low RDS(on) MOSFETs specially designed to produce lower switching resistance for faster electric current charging and discharging.
Low Power Loss - Ferrite Core Choke Design
Ferrite core chokes comprised of a compound of iron oxide and other metal elements whose properties hold energy much longer than common iron core at high frequency.
Longer Life - All-Solid Capacitor Design
Solid capacitors contain a solid organic polymer, while electrolytic capacitors use a common liquid electrolyte, hence, the terms solid capacitor versus electrolytic capacitors.
