• Supports 4th and 5th Generation Intel® Core™ processors
  • Creative SoundBlaster X-Fi MB3 gaming audio suite
  • AMP-UP Audio technology with exclusive Upgradable OP-AMP
  • Audio Noise Guard with LED path lighting
  • Dual DAC-UP USB ports
  • Gold plated display and audio ports
  • High end Nichicon audio capacitors
  • Realtek ALC1150 115dB SNR HD Audio with Built-in rear audio amplifier
  • Killer™ E2200 gaming networking platform
  • Extreme gaming 4-way graphics support
  • SATA Express support for 10 Gb/s data transfer
  • Long lifespan Durable Black Solid caps
  • APP Center including EasyTune™ and Cloud Station™ utilities
  • GIGABYTE UEFI DualBIOS™
  • G1™ Gaming Motherboards
  • GIGABYTE AMP-UP Audio™ Technology
    GIGABYTE G1™ Gaming motherboards are equipped with the GIGABYTE exclusive AMP-UP Audio Technology, which provides the industry’s highest level of onboard audio features and technologies. With GIGABYTE AMP-UP Audio, gamers and audiophiles are able to experience crisp, ultra realistic sound effects while gaming, and the richest possible sound experience when listening to their favorite music and movies.
  • GIGABYTE Exclusive : Upgradable OP-AMP

      Customizable
    + Users can choose audio quality based on individual listening preferences.
    + Wide availability of additional OP-AMPs.

    Low Cost way to dramatically improve audio quality
    + Improve audio dynamics and overall sound-quality with little cost.
    + No need for expensive speakers or high-end audio equipment.


    Well Known Hi-Fi class OP-AMP : TI Burr Brown OPA2134
      Exclusive onboard 'Gain Boost' selector switches
    + Select either standard 2.5x or high-amplification 6x mode.
    + 6x mode is ideal for high impedance speakers and headphones


  • Realtek ALC1150 115dB SNR HD Audio
    The ALC1150 is a high-performance multi-channel High Definition Audio Codec that delivers an exceptional audio listening experience with up to 115dB SNR, ensuring users get the best possible audio quality from their PC.

    The ALC1150 provides ten DAC channels that simultaneously support 7.1-channel sound playback, plus 2 channels of independent stereo sound output (multiple streaming) through the front panel stereo outputs. Two stereo ADCs are integrated and can support a microphone array with Acoustic Echo Cancellation (AEC), Beam Forming (BF), and Noise Suppression (NS) technologies. The ALC1150 incorporates Realtek proprietary converter technology to achieve Front differential output 115dB Signal-to-Noise ratio (SNR) playback (DAC) quality and 104dB SNR recording (ADC) quality.
  • Additional Sound Blaster X-Fi MB3
    GIGABYTE G1™ Gaming motherboards also include Sound Blaster X-Fi MB3 software suite. Sound Blaster X-Fi MB3 software suite is a powerful audio platform offering premium audio quality, effects and features for gamers. It features SBX Pro Studio™ suite of technologies, which is designed to give you the fullest audio experience.

  • High End Audio Capacitors


    GIGABYTE G1™ Gaming motherboards use high end, Japanese branded Nichicon audio capacitors. These professional audio capacitors deliver the highest quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.

  • Gold Plated Audio Hardware

    GIGABYTE motherboards pack top quality gold plated audio and HDMI connectors for improved connectivity and long lasting durability. Gold has superb signal conductivity and will not tarnish over extended periods of use. The Audio controller is also shielded by a gold plated cover which eliminates electrostatic interference.
  • Dual DAC-UP USB Ports




    Featuring dual USB 2.0 ports, GIGABYTE USB DAC-UP provides clean, noise-free power delivery to your Digital-to-Analog Converter. DACs can be sensitive to fluctuations in power from the other USB ports, which is why GIGABYTE USB DAC-UP takes advantage of an isolated power source that minimizes potential fluctuations and ensures the best audio experience possible.

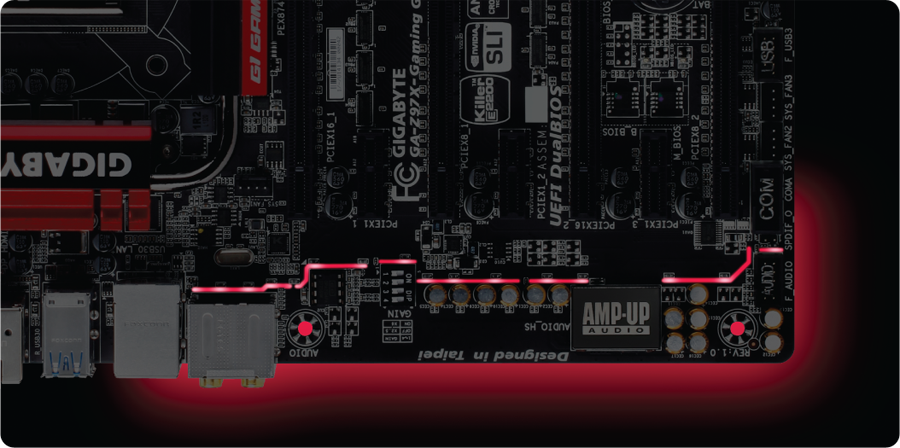

  • Dedicated Audio Hardware Zone
    + Separation on the PCB layer protects the board's sensitive analog audio components.
    + Separate analog and digital ground to protect against Electromagnetic Interference (EMI).
    + LED trace path lighting illuminates to show the separation of the PCB layers.

  •
    Locating the right and left audio channels on separate PCB layers, GIGABYTE 9 Series G1™ gaming motherboards are able to eliminate channel crosstalk and maintain the best audio quality.
    Left Audio Channel
    PCB layer
    		  Right Audio Channel
    PCB layer


  • Killer™ E2200 Gaming Network
    NO LAG, JUST FRAG!
    GIGABYTE G1™ Gaming motherboards feature the Killer™ E2200 from Qualcomm Atheros, a high-performance, adaptive gigabit Ethernet controller that offers better online gaming and online media performance compared to standard solutions.

  • Extreme Multi-GPU Support
    Flexible graphics capabilities supported for either 4-Way CrossFire™ or 4-Way SLI™ action, delivering the ultimate in graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.
  • SATA Express Connector
    GIGABYTE motherboards feature an onboard SATA Express connector which provides performance far superior to that of current SATA technologies. SATA Express features data transfer rates of up to 10Gb/s, considerably higher than SATA Revision 3 (6Gb/s), which won’t bottleneck faster NAND flash technologies in cutting edge SSDs. SATA Express combines the benefits of PCI-Express and SATA to provide much higher bandwidth, allowing SATA Express based drives to perform at similar speeds as PCI-Express based drives.

  • GIGABYTE App Center Including EasyTune™ and Cloud Station™ Utilities
    GIGABYTE APP Center gives you easy access to wealth of GIGABYTE apps that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to launch all GIGABYTE apps installed on your system.

      GIGABYTE EasyTune ™ App
    GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment.
    With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.



      GIGABYTE  Cloud Station™  APP
    GIGABYTE Cloud Station™ is composed of several GIGABYTE's unique apps that allow your smart phones/tablet device to communicate, share resources, and control desktop PCs via wireless connection.

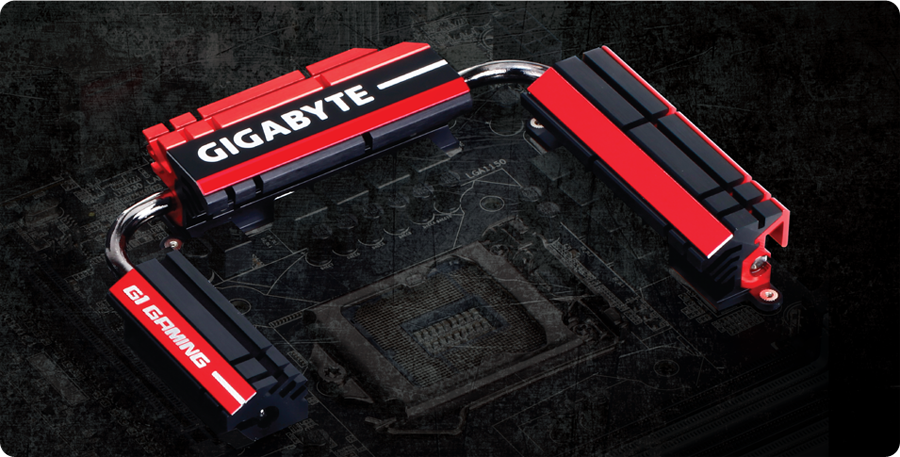

  • All New Heat Sink Design
  • 4K Ultra HD Support
    4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel® HD Graphics via HDMI.
  • HDMI™-The Next Generation Multimedia Interface
    HDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.
  • GIGABYTE OPT Fan Support
    Many of today’s 3rd party water cooling systems require CPU fan power support for both the cooling fan and the water pump. GIGABYTE 9 Series motherboards feature OPT fan support, an additional CPU fan pin header that can be used to connect a water pump and configured for continuous full speed operation. The OPT Fan is also useful for high performance coolers employing two fans.

  • 5x (15μ) Gold Plated CPU Socket Design
    GIGABYTE 9 Series motherboards come equipped with a gold plated CPU socket, which means that enthusiasts can enjoy absolute reliability and longevity for the CPU socket overtime, without having any concerns about corroded pins and bad contacts.

  • Game Controller

    GIGABYTE Game Controller allows you to define your own hotkeys and change the mouse sensitivity, helping you make the most out of your keyboard and mouse in games.

      Hot Key:
    Create macro commands and define your own hotkeys to quickly perform the function your want.
    *Create the hotkeys by yourself on normal keyboard.

      Speed:
    Using the Sniper key you can switch the mouse sensitivity when you are in sniper mode for better sniper accuracy.

    With Speed Control
    Without Speed Control
    Enable mouse Sniper Mode to make your shot quick and stable.
    High DPI Mouse in sniper mode : Hard to focus
