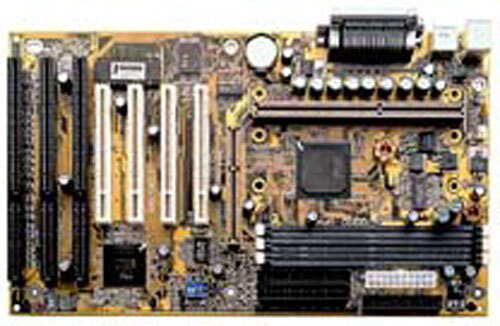

GA-6EX

상세 정보지원뉴스/수상 내역Where to Buy

상세 정보

  • CPU
    1. Intel Pentium® II Processor 233MHz-333MHz.
    2. Slot 1 Socket for Future Expansion
  • 칩셋
    1. Intel 82440 EX AGPset
    2. iTE 8671 I/O (1Mb/S)
    CPU Built-in 256KB/512KB L2 cache for Pentium II 　Processor No L2 cache for Intel Celeron Processor
  • 메모리
    1. 3 x 168-pin 3.3v DIMM sockets support
    2. Supports 8/16/32/64/128 MB DIMM Module
    3. Supports EDO RAM, SDRAM (Support ECC, 72 bit)
    4. Supports 8MB to 256MB DRAM Size
    5. CPU Built-in 256KB/512KB L2 cache for Pentium II Processor
    6. No L2 cache for Intel Celeron Processor
  • 확장 슬롯
    1. 4 x PCI 32-bit slots, PCI 2.1 compliant
    2. 3 x ISA 16-bit slots
    3. 1x AGP (1x & 2x Mode,66/133MHz) slot
  • I / O 컨트롤러
    1. 1x floppy port (360KB-2.88MB)
    2. 2x serial ports (16550 high-speed)
    3. 1x parallel port (EPP/ECP)
    4. PS/2 Keyboard
    5. PS/2 Mouse
    6. 2x USB
  • BIOS
    1. 2 Mbit (256KB) FLASH RAM
    2. Award PCI BIOS with Green, PnP, DMI, INT13 (HD>8.4)and Anti-Virus Functions
    3. LS120, ZIP, ATAPI CD-ROM, IDE #1, #2, #3, #4 Bootable
  • Form Factor
    1. ATX Form Factor, 4 layer PCB
    2. ATX Connector on Board
    3. Double Deck ATX Back Panel
  • Driver
    1. Triones Ultra DMA/33 Bus Master IDE Driver ( & Intel)
    2. Intel Ultra DMA/33 Bus Master IDE Driver
    3. Suspend to Disk Utility (IDE ONLY)
  • Power
    1. Power On by PS/2 Keyboard, PS/2 Mouse, LAN, RTC Alarm, Modem Ring & Soft-Power Switch
    2. Power Off by Windows 95 Shut down & Soft-Power Switch
    3. AC Recovery On/Off Control
    4. Supports Fan Stop During Suspend Mode
    5. Supports 3 Level ACPI LED
  • CPU
    1. Intel Pentium® II Processor 233MHz-333MHz.
    2. Slot 1 Socket for Future Expansion
  • 칩셋
    1. Intel 82440 EX AGPset
    2. iTE 8671 I/O (1Mb/S)
    CPU Built-in 256KB/512KB L2 cache for Pentium II 　Processor No L2 cache for Intel Celeron Processor
  • 메모리
    1. 3 x 168-pin 3.3v DIMM sockets support
    2. Supports 8/16/32/64/128 MB DIMM Module
    3. Supports EDO RAM, SDRAM (Support ECC, 72 bit)
    4. Supports 8MB to 256MB DRAM Size
    5. CPU Built-in 256KB/512KB L2 cache for Pentium II Processor
    6. No L2 cache for Intel Celeron Processor
  • 확장 슬롯
    1. 4 x PCI 32-bit slots, PCI 2.1 compliant
    2. 3 x ISA 16-bit slots
    3. 1x AGP (1x & 2x Mode,66/133MHz) slot
  • I / O 컨트롤러
    1. 1x floppy port (360KB-2.88MB)
    2. 2x serial ports (16550 high-speed)
    3. 1x parallel port (EPP/ECP)
    4. PS/2 Keyboard
    5. PS/2 Mouse
    6. 2x USB
  • BIOS
    1. 2 Mbit (256KB) FLASH RAM
    2. Award PCI BIOS with Green, PnP, DMI, INT13 (HD>8.4)and Anti-Virus Functions
    3. LS120, ZIP, ATAPI CD-ROM, IDE #1, #2, #3, #4 Bootable
  • Form Factor
    1. ATX Form Factor, 4 layer PCB
    2. ATX Connector on Board
    3. Double Deck ATX Back Panel
  • Driver
    1. Triones Ultra DMA/33 Bus Master IDE Driver ( & Intel)
    2. Intel Ultra DMA/33 Bus Master IDE Driver
    3. Suspend to Disk Utility (IDE ONLY)
  • Power
    1. Power On by PS/2 Keyboard, PS/2 Mouse, LAN, RTC Alarm, Modem Ring & Soft-Power Switch
    2. Power Off by Windows 95 Shut down & Soft-Power Switch
    3. AC Recovery On/Off Control
    4. Supports Fan Stop During Suspend Mode
    5. Supports 3 Level ACPI LED

* HDMI, HDMI High-Definition Multimedia Interface(고화질멀티미디어인터페이스), HDMI 트레이드드레스및 HDMI 로고라는용어는 HDMI Licensing Administrator, Inc.의상표또는등록상표입니다.
* 사이트에서 제공되는 모든 자료는 참조용일 뿐입니다. 기가바이트는 사이트의 자료를 사전 통지없이 언제든지 수정할 권리를 지닙니다.
* 모든 상표와 로고는 해당 소유자의 자산입니다.
* PC의 표준 아키텍쳐에 의해, 메모리의 특정 부분이 시스템에 사용되어 실제 메모리 크기는 표준보다 적게 표시될 수 있습니다.
