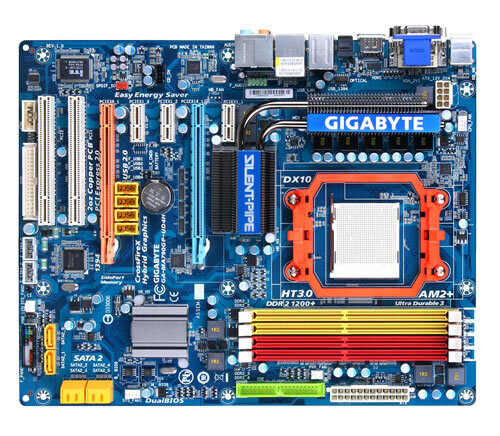

GA-MA790GP-UD4H (rev. 1.0)

GIGABYTE's AMD motherboards are ready to support the new generation of AMD Phenom™II X 6 processors, delivering the very best platform for multitasking, multimedia and high performance gaming.

GA-MA78LM-S2 offers high performance platform based on AMD 760G chipset, it is integrated ATI Radeon HD 3000 (DX10) graphics engine and supports AMD AM3 Phenom II/ Phenom/ Athlon processors, HyperTransport™ 3.0 technology links, DDR2 memory, PCI Express 2.0 graphics interface and so on. With the innovative GIGABYTE Easy Energy Saver technology, GA-MA78LM-S2 is able to provide user friendly computing, reach the maximum system performance easily while still able to save the power and environment in real life at the same time.

This motherboard designs with Split Power Plane, 4+1 phase VRM to support AMD the latest 45nm AM3 Phenom™II/ Athlon™II processors, delivering the great performance enchantment to system and ultimate scalability hardware expending.

EC AOD-ACC is described as Embedded Controller for AMD OverDrive- Advanced Clock Calibration, which is the newest feature comes from AMD SB750/ SB710 SouthBridge chip, destined for the AMD Black Edition CPU to be overclocked through BIOS setting or AMD OverDrive™ utility further than it was previously possible.
* Please apply sufficient cooling to CPU VRM zone when ACC function is enabled.
* Please be noticed that GIGABYTE’s product warranty does not cover damages caused by overclocking.

The AMD OverDrive™ utility is provided by AMD, offering high-end users the ability to maximize the capability, flexibility, and adjustability of the platforms utilizing AMD processors, sockets, and chipsets.
* For download site of AMD OverDrive™, please visit AMD official website for details: http://game.amd.com/us-en/drivers_overdrive.aspx
** The support condition of this utility may vary by models(chipsets).

Through the built-in 128MB DDR3 SidePort memory accelerated, the 3D performance is able to enhance up to an additional 10~15%.

The 3DMark 2006 is a benchmark software which is from Futuremark Corporation and generally used on analyzing a PC performance of DirectX^® 3D visualization, especially a valuable guideline for gaming users as reference.

• Hardware equipment required: [CPU] AMD Phenom 9850(2.5GHz), [Memory] DDR3 1066(1GBx2), [OS] Windows Vista 32-bit.
• Software equipment required: [Benchmark] 3DMark 2006, [Resolution] 1280x1024x32 (no AA, no AF, 32bpp).

* 2800+ marks in 3DMark06 was achieved by overclocking.
* Please be aware that GIGABYTE's product warranty does not cover damages caused by overclocking.

ATI Hybrid Graphics is a technology umbrella brand encompassing several technologies, such as ATI Hybrid CrossFireX™, ATI SurroundView™, ATI PowerPlay™, etc. that allow both an AMD integrated graphics processor and a discrete graphics processor to work co-operatively on an AMD based system to provide enhanced gaming performance, productivity and platform efficiency to the mainstream PC.
* Please use ATI Hybrid CrossFireX certified DX11/DX10.1 VGA card (i.e., ATI Radeon HD 5450/3400-series, etc.), detail information please refer to AMD website.

With support for latest ATI CrossFireX™ technology, GIGABYTE pushes the envelope once again by delivering highly optimized performance and flexibility demanded for power users and extreme gaming enthusiasts. Designed to provide unmatched multi-GPU support with dual PCI-E connectivity, the GA-890GPA-UD3H allows users to take advantage of the ultra smooth 3D rendering, blazing-fast frame rates and enhanced visual quality possible.

Experience the advanced technology of DDR2 1200+ memory, featuring faster speeds and higher data bandwidth, which delivers superior performance for the most demanding applications.
* DDR2 1200+ is supported with combination of AM3 processors and qualified memory modules, please refer "Memory Support List" for detail memory support information.

CPUとメモリーを簡単にオーバークロックできるユーティリティソフト。ソフトウエア上でのオーバークロックのため、BIOSより安全にオーバークロックが行えます。また、装備したビデオカードのコアクロックとメモリークロックを変更することも可能です。

GIGABYTE 9シリーズ Ultra Durable™ マザーボードはGIGABYTEの独自機能である DualBIOS™を搭載します。 DualBIOS™は貴方のPCでもっとも重要なBIOSを保護いたします。
GIGABYTE DualBIOS™ とは、マザーボード上に Main BIOS とBackup BIOSという二つのBIOSチップがあることを意味します。これにより、 ウィルス攻撃やハードウェア故障、オーバックロック不良、アップデート時の電源喪失などによるBIOS故障から保護いたします。

HDMIは最新のハイデフィニション(HD)マルチメディアインターフェイスで、シングルケーブルで最大5Gb/sのビデオデータを転送することができ、8チャンネルの高品質なオーディオを再生します。HDMIはアナログインターフェースに関連したロスを生じさせることなく、最大1080pまでデジタルコンテンツのレンダリングを支援し、デジタルからアナログへの変換を行います。さらにHD DVD, Blu-ray再生機能などスムーズな映像表現を提供します。
* HDMI 1.3は、映像のみ対応

GIGABYTE innovative technology- Easy Energy Saver Featuring an advanced proprietary software design, GIGABYTE Easy Energy Saver is able to dynamically adjust CPU power depending on workload, delivering just the right amount of power needed for the task. Coupled with AMD’s highly efficient processors, the Easy Energy Saver is able to provide exceptional levels of power savings and enhanced power efficiency without sacrificing computing performance.

Dolby Home Theater は、鮮明で臨場感あふれるサウンドを提供いたします。PCで映画や音楽を再生に最適です。

• 2～8つのスピーカーまたはヘッドホンが、サラウンドサウンドが音楽,映画,ゲームの世界を広げます。
• 最良なサウンドをPCから楽しむことが可能です。

Windows Vista Premium promises to deliver a streamlined computing experience designed to fundamentally change how users view, find and organize their digital information. With GIGABYTE AM2+/ AM2 solutions enabling support for Vista Premium, GIGABYTE offers a fresh and unique desktop experience that will be more informative, intuitive and completely new....more

GIGABYTE Ultra Durable motherboards are equipped with solid capacitors developed by leading Japanese manufacturers. With an average lifespan of 50,000 hours, these solid capacitors provide the stability, reliability and longevity essential to meet the power needs of high-end processors and other components running today's most demanding applications and games...more


* 50000 hours of work time is calculated at 85℃ ambient temperature.
