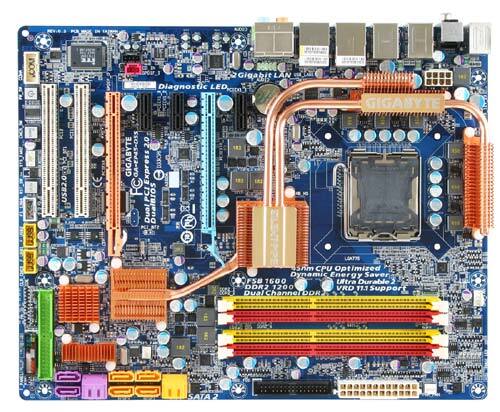

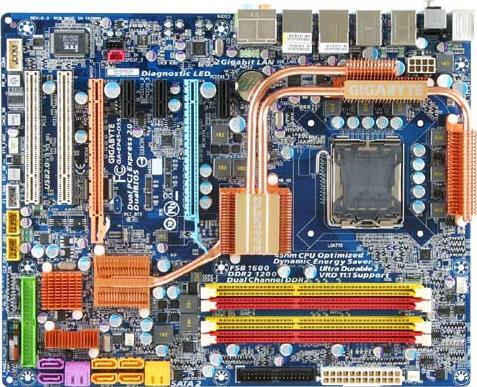

GA-EP45-DS5 (rev. 1.0)

GA-G41MT-ES2H motherboards paired with Intel 45nm CPUs deliver the very best platform for multitasking, multimedia and high performance gaming. Not only do GIGABYTE's latest motherboards based on Intel Eaglelake chipsets all support Intel's new generation, 45nm multi-core processors.

Delivering native support for DDR2 memory up to 1333MHz, GIGABYTE Ultra Durable 3 series motherboards allow users to easily reach higher memory frequencies at lower voltages; achieving higher memory performance with lower power consumption to run even the most memory intensive applications such as high-definition video and 3D games with ease.
* DDR2 1333+ is supported with combination of AM3 processors and qualified memory modules, please refer "Memory Support List" for detail memory support information.

PCI-E 2.0 doubles the bus standard's bandwidth from 2.5 Gbit/s to 5 Gbit/s, meaning a x32 connector can transfer data at up to 16 GB/s in each direction. PCI-E 2.0 also features improvements to the point-to-point data transfer protocol and its software architecture.

P55-US3L supporting ATI CrossFireX delivers the ultimate in graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.

Dolby Home Theater places listeners in the middle of the action, giving their PCs a powerful set of tools to deliver a cinema-style experience in vivid surround sound.

• Delivers vivid surround sound for music, movies, and games, using two to eight speakers or any set of headphones
• Designed to automatically deliver the best possible listening experience

GIGABYTE Dynamic Energy Saver Advanced provides better energy saving capabilities and enhanced system performance. GIGABYTE Dynamic Energy Saver Advanced is the world's only motherboard energy saving technology with hardware-based Dynamic 6-Gear* Switching. With support for VRD 11.1, GIGABYTE's DES Advanced allows the motherboard to switch to 1 Gear phase switching during idle, allowing for a dramatic increase in power savings.

GIGABYTE has also retooled Dynamic Energy Saver to allow overclockers to experience the benefits of multi-gear power phase switching while overclocking, providing ultra stable, ultra smooth overclocking performance.
* The 6-Gear feature may vary by model. Gear 1 phase switching requires 45nm processors with PSI signal enabled.

TPM function is optional due to different regional policy

• Maximum level of data protection with 2048 bit encryption
• Security, manageability and flexibility that surpasses software-based encryption
• Portable User Key to protect data when away from your system
• Additional backup of user key in BIOS in case of misplaced key

......TPM Configuration Procedure

• After creating the password(s) and key(s) associated the TPM, be sure to store them in a secure location and back them up. Loss of the password(s) or the key(s) will render the files encrypted via the TPM unable to be cracked or read.
• Though the TPM delivers the latest data security technology, it does not guarantee data integrity or give hardware protection. GIGABYTE is not liable for loss of encrypted data as a result of hardware damage.

(Note)If you want to uninstall the Ultra TPM utility, be sure to insert the USB flash drive containing the TPM key into your computer before the uninstallation.

High Velocity 2X Bandwidth Boost

Hardware Overvoltage Control ICs which provide more voltage control options than before for the CPU North Bridge and memory. The overvoltage controllers also provide hardware linear real-time voltage control. In addition, Hardware Overvoltage Controller ICs also allow for much finer voltage control, allowing power users to adjust voltage in as little increments as 20mV for better overclocking performance.

CPUとメモリーを簡単にオーバークロックできるユーティリティソフト。ソフトウエア上でのオーバークロックのため、BIOSより安全にオーバークロックが行えます。また、装備したビデオカードのコアクロックとメモリークロックを変更することも可能です。

GIGABYTE's Smart Backup allows users to connect up to 4 Serial ATA devices for effortless RAID data protection. Dual onboard RAID controller chips automatically configure RAID setup without user intervention, making it easier than ever for users to enjoy enhanced data transfer performance, low CPU utilization, real-time backup on-the-fly and protection against HDD failure.

GIGABYTE 9シリーズ Ultra Durable™ マザーボードはGIGABYTEの独自機能である DualBIOS™を搭載します。 DualBIOS™は貴方のPCでもっとも重要なBIOSを保護いたします。
GIGABYTE DualBIOS™ とは、マザーボード上に Main BIOS とBackup BIOSという二つのBIOSチップがあることを意味します。これにより、 ウィルス攻撃やハードウェア故障、オーバックロック不良、アップデート時の電源喪失などによるBIOS故障から保護いたします。

7 Onboard LEDs controlled by the system BIOS indicate if a malfunction is occurring, allowing users to directly see where the problem is occurring, so they can quickly take question.

The Advanced Configuration and Power Interface (ACPI) gives the operating system direct control over the power management. There are 4 embedded LEDs onboard to indicate system power status to prevent potential H/W damage due to improper plug/unplug actions.

Onboard Power, Clear CMOS and Reset buttons allow for quick and easy tweaking for power users working in an in chassis environment.

Ultra Cooling - Low RDS(on) MOSFET Design
Low RDS(on) MOSFETs specially designed to produce lower switching resistance for faster electric current charging and discharging.



Low Power Loss - Ferrite Core Choke Design
Ferrite core chokes comprised of a compound of iron oxide and other metal elements whose properties hold energy much longer than common iron core at high frequency.






Longer Life - All-Solid Capacitor Design
Solid capacitors contain a solid organic polymer, while electrolytic capacitors use a common liquid electrolyte, hence, the terms solid capacitor versus electrolytic capacitors.

GIGABYTE Ultra Durable motherboards are equipped with solid capacitors developed by leading Japanese manufacturers. With an average lifespan of 50,000 hours, these solid capacitors provide the stability, reliability and longevity essential to meet the power needs of high-end processors and other components running today's most demanding applications and games...more


* 50000 hours of work time is calculated at 85℃ ambient temperature.
