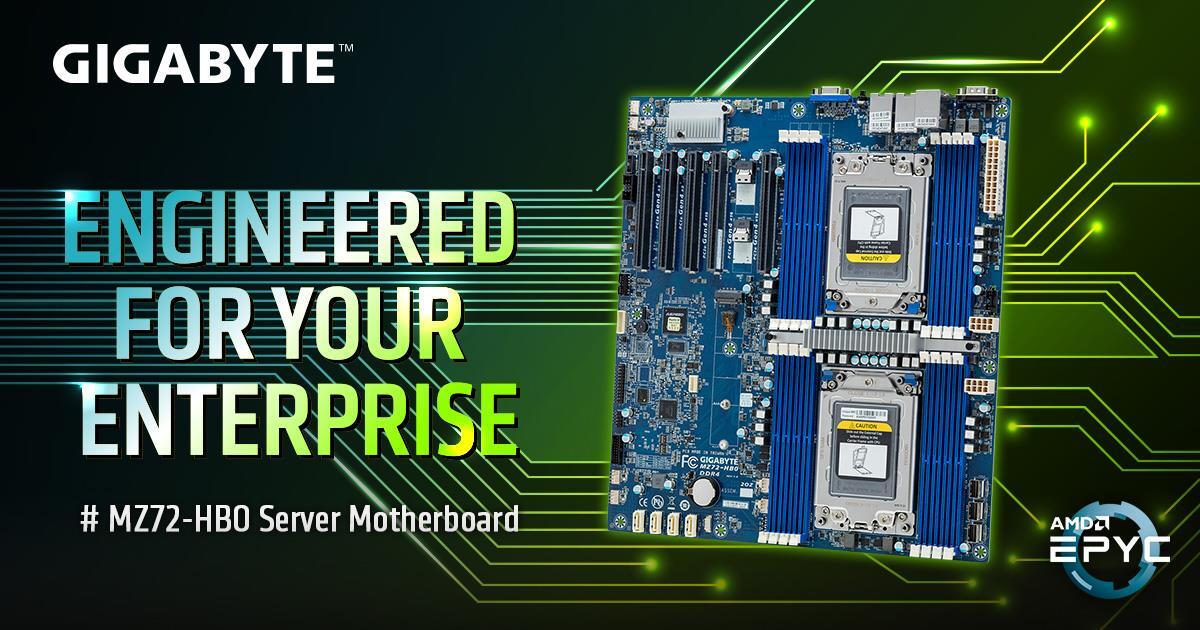

MZ72-HB0

Discontinued

Rev. 1.x Rev. 3.x/4.x

AMD EPYC™ 7002 Dual Socket Server Motherboard

AMD EPYC™ 7002 series processor family
Dual processor, 7nm technology
8-Channel RDIMM/LRDIMM DDR4 per processor, 16 x DIMMs
2 x 10Gb/s BASE-T LAN ports (Broadcom^® BCM57416)
1 x Dedicated management port
4 x 7-pin SATA 6Gb/s ports
3 x SlimSAS with 12 x SATA 6Gb/s or 3 x U.2 PCIe Gen4 x4 ports
2 x SlimSAS with 2 x U.2 PCIe Gen4 x4 ports
1 x M.2 slot with PCIe Gen4 x4 bandwidth
Up to 5 x PCIe Gen4 expansion slots

* ここに記載されている全ての資料は参考用です。 GIGABYTEは、予告なしに変更する場合があります。
* パフォーマンスについては、インターフェイス仕様の理論上の最大値に基づいています。実際のパフォーマンスは、システム構成によって異なる場合があります。
* 記載されている会社名、商品名、およびロゴは各社の商標または登録商標です。
* メモリー容量は、システムリソースに予約され実際の搭載メモリーより少なくなる場合があります。

SPECIFICATIONS

Form Factor

E-ATX
305W x 330D (mm)

CPU

AMD EPYC™ 7002 series processor family
Dual processor, 7nm technology
Up to 64-core, 128 threads per processor
CPU TDP up to 280W

Socket

2 x LGA 4094
Socket SP3

Chipset

System on Chip

Memory

16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
Memory speed: Up to 3200 MHz

LAN

2 x 10GbE BASE-T LAN ports (1 x Broadcom^® BCM57416)
1 x 10/100/1000 management LAN

Video

Integrated in Aspeed^® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

Audio

N/A

SAS

N/A

SATA

4 x 7-pin SATA 6Gb/s ports
*3 x SlimSAS with 12 x SATA 6Gb/s or 3 x U.2 PCIe Gen4 x4 ports

* NOTE:
Default setting is SATA, please go to BIOS Setup section, Advances>PCI Subsystem setting for advanced configuration manually.

RAID

N/A

Expansion Slots

Slot_6: 1 x PCIe x16 (Gen4 x16 bus) slot, from CPU_0
Slot_4: 1 x PCIe x16 (Gen4 x16 bus) slot, from CPU_0
Slot_3: 1 x PCIe x16 (Gen4 x16 bus) slot, from CPU_1
Slot_2: 1 x PCIe x16 (Gen4 x8 bus) slot, from CPU_0
Slot_1: 1 x PCIe x16 (Gen4 x8 bus) slot, from CPU_1

2 x U.2 ports:
- SlimSAS 4i type
- PCIe Gen4 x4, from CPU_0

1 x M.2 slot:
- M-key
- PCIe Gen4 x4, from CPU_0
- Supports 2280/22110 cards

Internal I/O

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
5 x SlimSAS connectors
4 x SATA 7-pin connectors
1 x M.2 slot
2 x CPU fan headers
4 x System fan headers
1 x USB 3.0 header
1 x USB 2.0 header
1 x COM_2 header
1 x TPM header
1 x Front panel header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper

Rear I/O

2 x USB 3.0
1 x VGA
1 x COM_1
2 x RJ45
1 x MLAN
1 x ID button with LED

TPM

1 x TPM header with SPI interface
Optional TPM2.0 kit: CTM010

OS Supported

Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019

Red Hat Enterprise Linux 7.6 (x64) or later
Red Hat Enterprise Linux 8.0 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later

SUSE Linux Enterprise Server 12 SP4 (x64) or later
SUSE Linux Enterprise Server 15 SP1 (x64) or later

Ubuntu 16.04.6 LTS (x64) or later
Ubuntu 18.04.3 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later

VMware ESXi 6.5 EP15 or later
VMware ESXi 6.7 Update3 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later

Citrix Hypervisor 8.1.0 or later

Board Management

Aspeed^® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

PSU Connectors

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors

Operating Properties

Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Retail Packaging Content

1 x MZ72-HB0
1 x I/O shield
1 x Quick start guide
2 x SATA 6Gb/s cables
Single Box dimensions: 409 x 355 x 78 mm
Carton dimensions: 729 x 415 x 432 mm
Quantity: 10 x single boxes in one carton

Bulk Packaging Content

10 x MZ72-HB0
10 x I/O shields
Carton dimensions: 600 x 473 x 495 mm

Reference Numbers

Retail: 9MZ72HB0MR-00
Bulk: 9MZ72HB0NR-00

Part Numbers:
- I/O shield: 12AIO-MZ72H0-00R
- SATA 6Gb/s cable: 25CF4-500541-K1R
