Rack Server - 5th/4th Gen Intel® Xeon® Scalable - 2U DP 12+2-Bay Gen5 NVMe/SATA/SAS-4 with expander
- Dual 5th/4th Gen Intel® Xeon® Scalable Processors
- Dual Intel® Xeon® CPU Max Series

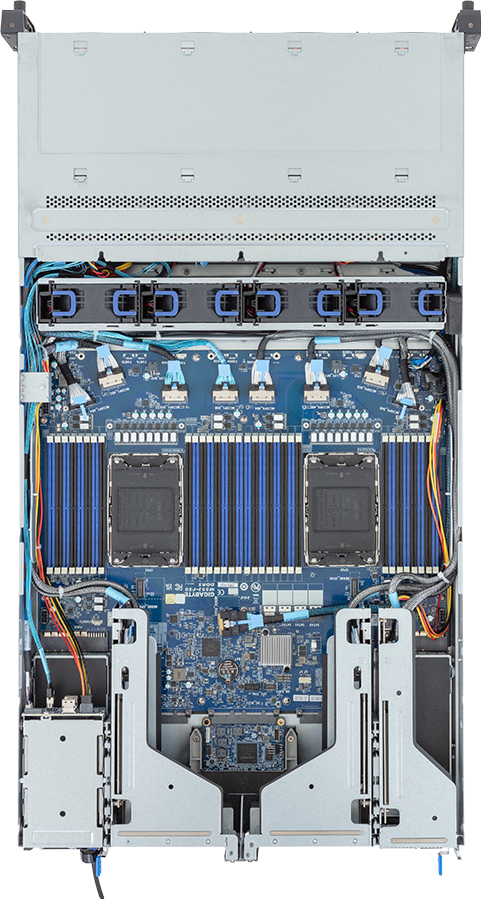

- 8-Channel DDR5 RDIMM, 32 x DIMMs
- Dual ROM Architecture
- 2 x 1Gb/s LAN ports via Intel® I350-AM2

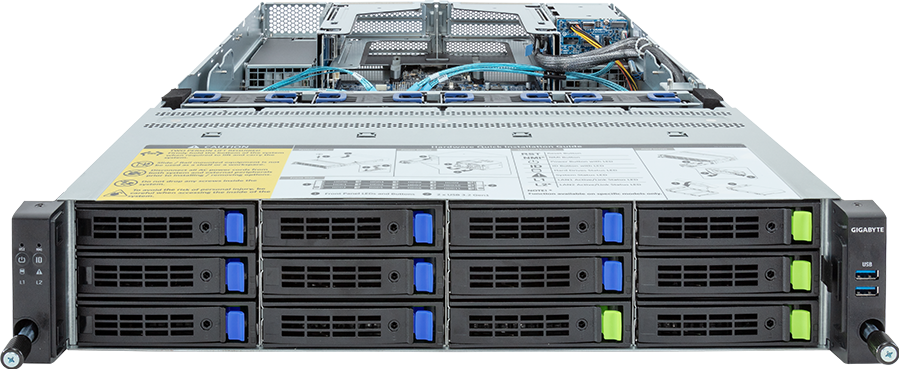

- 4 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
- 8 x 3.5"/2.5" SATA/SAS-4 hot-swap bays

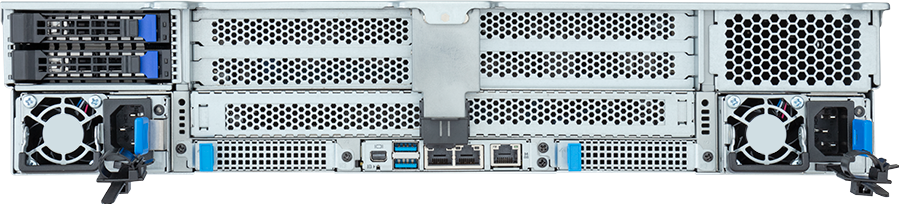

- 2 x 2.5" SATA/SAS-4 hot-swap bays on the rear side
- Onboard 24Gb/s SAS-4 expander
- 4 x FHHL PCIe Gen5 x16 slots
- 2 x OCP NIC 3.0 PCIe Gen5 x16 slots
- Dual 1600W 80 PLUS Platinum redundant power supply
Quick Shipping
See More Models
More ready-to-ship models in the R283 series.
* Semua bahan yang tersedia disini adalah hanya untuk referensi. GIGABYTE berhak merubah atau merevisi isi sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
* Semua logo dan merek dagang adalah hak cipta dari masing-masing pemegangnya.
* Sehubungan dengan rancangan standar PC, sebagian jumlah memori dicadangkan untuk penggunaan sistem sehingga ukuran memori yang sesungguhnya lebih kecil dari yang disebutkan.
* Semua logo dan merek dagang adalah hak cipta dari masing-masing pemegangnya.
* Sehubungan dengan rancangan standar PC, sebagian jumlah memori dicadangkan untuk penggunaan sistem sehingga ukuran memori yang sesungguhnya lebih kecil dari yang disebutkan.
SPECIFICATIONS
Dimensions (WxHxD, mm)
2U
438 x 87.5 x 815
438 x 87.5 x 815
Motherboard
MS93-FS0
CPU
5th Generation Intel® Xeon® Scalable Processors
4th Generation Intel® Xeon® Scalable Processors
Intel® Xeon® CPU Max Series
Dual processor, TDP up to 350W
[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
4th Generation Intel® Xeon® Scalable Processors
Intel® Xeon® CPU Max Series
Dual processor, TDP up to 350W
[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket
2 x LGA 4677
Socket E
Socket E
Chipset
Intel® C741
Memory
32 x DIMM slots
DDR5 memory supported
8-Channel memory architecture
5th Gen Intel® Xeon®:
RDIMM: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC) [1]
4th Gen Intel® Xeon®:
RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
Intel® Xeon® Max Series:
RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
[1] 5600 MT/s support under 2DPC configuration requires verified memory and BIOS setup. Please refer to the QVL for more information.
DDR5 memory supported
8-Channel memory architecture
5th Gen Intel® Xeon®:
RDIMM: Up to 5600 MT/s (1DPC), 4400 MT/s (2DPC) [1]
4th Gen Intel® Xeon®:
RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
Intel® Xeon® Max Series:
RDIMM: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
[1] 5600 MT/s support under 2DPC configuration requires verified memory and BIOS setup. Please refer to the QVL for more information.
LAN
Rear (G-SCM board - CDCR112):
2 x 1Gb/s LAN (1 x Intel® I350-AM2)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
2 x 1Gb/s LAN (1 x Intel® I350-AM2)
- Support NCSI function
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2600
- 1 x Mini-DP
- 1 x Mini-DP
Storage
Front hot-swap:
4 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 [1]
8 x 3.5"/2.5" SATA/SAS-4 [1]
- (NVMe from CPU_0)
Rear hot-swap:
2 x 2.5" SATA/SAS-4 [1]
[1] Storage card is required to enable SATA and SAS drives.
- Broadcom SAS4x32 expander
- Bandwidth: SATA 6Gb/s or SAS-4 24Gb/s per port
[Note] Please select verified enterprise SATA drives.
4 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 [1]
8 x 3.5"/2.5" SATA/SAS-4 [1]
- (NVMe from CPU_0)
Rear hot-swap:
2 x 2.5" SATA/SAS-4 [1]
[1] Storage card is required to enable SATA and SAS drives.
- Broadcom SAS4x32 expander
- Bandwidth: SATA 6Gb/s or SAS-4 24Gb/s per port
[Note] Please select verified enterprise SATA drives.
SAS
Supported via storage cards
RAID
Require RAID add-in cards
Onboard VROC key header
Onboard VROC key header
PCIe Expansion Slots
Riser Card CRS101J:
- 1 x FHHL x16 (Gen5 x16), from CPU_0
Riser Card CRS101K:
- 1 x FHHL x16 (Gen5 x16), from CPU_1
Riser Card CRS202G:
- 1 x FHHL x16 (Gen5 x16), from CPU_0
Riser Card CRS202H:
- 1 x FHHL x16 (Gen5 x16), from CPU_1
1 x OCP NIC 3.0 (Gen5 x16), from CPU_0
- Supports NCSI function
1 x OCP NIC 3.0 (Gen5 x16), from CPU_1
- Supports NCSI function
- 1 x FHHL x16 (Gen5 x16), from CPU_0
Riser Card CRS101K:
- 1 x FHHL x16 (Gen5 x16), from CPU_1
Riser Card CRS202G:
- 1 x FHHL x16 (Gen5 x16), from CPU_0
Riser Card CRS202H:
- 1 x FHHL x16 (Gen5 x16), from CPU_1
1 x OCP NIC 3.0 (Gen5 x16), from CPU_0
- Supports NCSI function
1 x OCP NIC 3.0 (Gen5 x16), from CPU_1
- Supports NCSI function
Front I/O
2 x USB 3.2 Gen1 ports (Type-A)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
Rear I/O
G-SCM board - CDCR112:
2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
2 x RJ45 ports
1 x MLAN port
1 x ID LED
2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
2 x RJ45 ports
1 x MLAN port
1 x ID LED
Backplane Board
Speed and bandwidth:
Front side - CBP21C4: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
Rear side - CBP2025: SATA 6Gb/s or SAS-4 24Gb/s
Front side - CBP21C4: PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s
Rear side - CBP2025: SATA 6Gb/s or SAS-4 24Gb/s
Security Modules
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
- Optional TPM2.0 kit: CTM010
Power Supply
Dual 1600W 80 PLUS Platinum redundant power supply
AC Input:
- 100-120V~/ 12A, 50/60Hz
- 200-240V~/ 10A, 50/60Hz
DC Input: (Only for China)
- 240Vdc/ 10A
DC Output:
- Max 1000W/ 100-120V~
+12V/ 81.5A
+12Vsb/ 2.5A
- Max 1600W/ 200-240V~ or 240Vdc Input
+12V/ 133A
+12Vsb/ 2.5A
[Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution.
AC Input:
- 100-120V~/ 12A, 50/60Hz
- 200-240V~/ 10A, 50/60Hz
DC Input: (Only for China)
- 240Vdc/ 10A
DC Output:
- Max 1000W/ 100-120V~
+12V/ 81.5A
+12Vsb/ 2.5A
- Max 1600W/ 200-240V~ or 240Vdc Input
+12V/ 133A
+12Vsb/ 2.5A
[Note] GIGABYTE offers PSUs with various efficiency ratings and power outputs. Full redundancy may depend on your server configuration, and alternative PSU options may be needed. Please contact our sales representatives for the best power solution.
System Management
Aspeed® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface
GIGABYTE Management Console web interface
- Dashboard
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- Advanced power capping
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
Please refer to OS compatibility table in support page
Additional certifications:
Windows Server 2022
Additional certifications:
Windows Server 2022
System Fans
4 x 80x80x38mm (18,300rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
1077 x 679 x 300 mm
Packaging Content
1 x R283-S97-AAD1
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
6 x Carriers
1 x 2-Section Rail kit
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
6 x Carriers
1 x 2-Section Rail kit
Part Numbers
- Barebone package (5th/4th Gen): 6NR283S97DR000ABD1*
- Barebone package (4th Gen): 6NR283S97DR000AAD1*
- Motherboard: 9AS93FS0UR-000*
- 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R
- CPU heatsink: 25ST1-323208-A0R
- Front panel board - CFP2001: 9CFP2001NR-00*
- Backplane board - CBP2025: 9CBP2025NR-00*
- Backplane board with expander - CBP21C4: 9CBP21C4NR-00*
- Fan module: 25ST2-88382T-S1R
- Riser card - CRS101J: 9CRS101JNR-00*
- Riser card - CRS101K: 9CRS101KNR-00*
- Riser card - CRS202G: 9CRS202GNR-00*
- Riser card - CRS202H: 9CRS202HNR-00*
- G-SCM board - CDCR112: 9CDCR112NR-00*
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Power supply: 25EP0-216008-L0S
Optional parts:
- 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- RMA packaging: 6NR283S97SR-RMA-A100
- Barebone package (4th Gen): 6NR283S97DR000AAD1*
- Motherboard: 9AS93FS0UR-000*
- 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R
- CPU heatsink: 25ST1-323208-A0R
- Front panel board - CFP2001: 9CFP2001NR-00*
- Backplane board - CBP2025: 9CBP2025NR-00*
- Backplane board with expander - CBP21C4: 9CBP21C4NR-00*
- Fan module: 25ST2-88382T-S1R
- Riser card - CRS101J: 9CRS101JNR-00*
- Riser card - CRS101K: 9CRS101KNR-00*
- Riser card - CRS202G: 9CRS202GNR-00*
- Riser card - CRS202H: 9CRS202HNR-00*
- G-SCM board - CDCR112: 9CDCR112NR-00*
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Power supply: 25EP0-216008-L0S
Optional parts:
- 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- RMA packaging: 6NR283S97SR-RMA-A100
