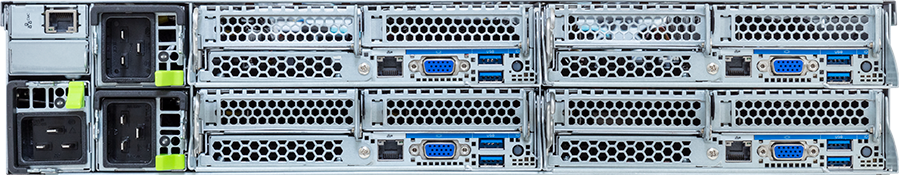

H263-V60- AAW1

High Density Arm Server - NVIDIA Grace™ CPU Superchip - 2U 4-Node 16-Bay Gen5 NVMe

# HPC # HCI # Hybrid/Private Cloud Server

High-performance CPU for HPC and cloud computing
2U 4-node rear access server system
NVIDIA Grace™ CPU Superchip
900GB/s NVIDIA^® NVLink^®-C2C Interconnect
Up to 960GB LPDDR5X ECC memory per module
Compatible with NVIDIA BlueField^®-3 DPUs
16 x 2.5" Gen5 NVMe hot-swappable bays
8 x M.2 slots with PCIe Gen5 x4 interface
8 x LP PCIe Gen5 x16 slots
4 x OCP 3.0 Gen5 x16 slots
2+1 3000W 80 PLUS Titanium redundant power supplies

Get a Quote

Perbandingan

Get a Quote

* Semua bahan yang tersedia disini adalah hanya untuk referensi. GIGABYTE berhak merubah atau merevisi isi sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
* Semua logo dan merek dagang adalah hak cipta dari masing-masing pemegangnya.
* Sehubungan dengan rancangan standar PC, sebagian jumlah memori dicadangkan untuk penggunaan sistem sehingga ukuran memori yang sesungguhnya lebih kecil dari yang disebutkan.

SPECIFICATIONS

Dimensions (WxHxD, mm)

2U 4-Node - Rear access
440 x 87.5 x 850

Motherboard

MV63-HD0

Superchip

NVIDIA Grace™ CPU Superchip:
- 2 x NVIDIA Grace™ CPUs
- Connected with NVIDIA^® NVLink^®-C2C
- TDP up to 500W (CPU + memory)

Memory

Per node:
Up to 960GB of LPDDR5X memory with ECC
Memory bandwidth up to 1TB/s

LAN

Per node:
1 x 10/100/1000 Mbps Management LAN

Total:
4 x 10/100/1000 Mbps Management LAN
1 x CMC port

Video

Integrated in Aspeed^® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

Management chip on CMC board:
Integrated in Aspeed^® AST2520A2-GP

Storage

Per node:
4 x 2.5" Gen5 NVMe hot-swappable bays
- (2 x from CPU_0, 2 x from CPU_1)

Total:
16 x 2.5" Gen5 NVMe hot-swappable bays
- (8 x from CPU_0, 8 x from CPU_1)

SAS

N/A

RAID

N/A

Expansion Slots

Per node:
PCIe Cable x 2:
- 1 x PCIe x16 (Gen5 x16) low-profile slot, from CPU_0
- 1 x PCIe x16 (Gen5 x16) low-profile slot, from CPU_1

1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_0
Supports NCSI function

2 x M.2 slots:
- M-key
- PCIe Gen5 x4, from CPU_1
- Support 2280/22110 cards

Total:
PCIe Cable x 8:
- 4 x PCIe x16 (Gen5 x16) low-profile slots, from CPU_0
- 4 x PCIe x16 (Gen5 x16) low-profile slots, from CPU_1

4 x OCP 3.0 slots with PCIe Gen5 x16 bandwidth, from CPU_0
Support NCSI function

8 x M.2 slots:
- M-key
- PCIe Gen5 x4, from CPU_1
- Support 2280/22110 cards

Internal I/O

Per node:
1 x TPM header

Front I/O

Per node:
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x System status LED

Total:
4 x Power buttons with LED
4 x ID buttons with LED
4 x Reset buttons
4 x System status LEDs
*1 x CMC status LED
*1 x CMC reset button

*Only one CMC status LED and reset button per system.

Rear I/O

Per node:
2 x USB 3.2 Gen1
1 x VGA
1 x MLAN
1 x ID button with LED

Total:
8 x USB 3.2 Gen1
4 x VGA
4 x MLAN
4 x ID buttons with LED
*1 x CMC port

*Only one CMC port per system.

Backplane Board

Speed and bandwidth:
PCIe Gen5 x4

TPM

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM012

Power Supply

2+1 3000W 80 PLUS Titanium redundant power supplies

AC Input:
- 100-127V~/ 16A, 50/60Hz
- 200-207V~/ 16A, 50/60Hz
- 208-240V~/ 16A, 50/60Hz

DC Input: (Only for China)
- 240Vdc/ 16A

DC Output:
- Max 1200W/ 100-127V~
+12.2V/ 98.36A
+12.2Vsb/ 3A
- Max 2600W/ 200-207V~
+12.2V/ 213A
+12.2Vsb/ 3A
- Max 3000W/ 208-240V~ or 240Vdc Input
+12.2V/ 245.9A
+12.2Vsb/ 3A

Note: The system power supply requires C19 power cord.

System Management

Aspeed^® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

OS Compatibility

Please refer to OS compatibility table in support page

System Fans

4 x 80x80x80mm (16,500rpm)

Operating Properties

Operating temperature: 10°C to 30°C
Operating humidity: 10-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-90% (non-condensing)

Packaging Dimensions

1180 x 706 x 306 mm

Packaging Content

1 x H263-V60-AAW1
8 x Superchip heatsinks
1 x Mini-DP to D-Sub cable
1 x 3-Section Rail kit

Part Numbers

- Barebone w/ Nvidia module: 6NH263V60MR000AAW1*
- Motherboard: 9MV63HD0UR-000
- 3-Section Rail kit: 25HB2-A66125-K0R
- Superchip heatsink: 25ST1-2532Z1-A0R
- Superchip heatsink: 25ST1-2532Z4-A0R
- Front panel board - CFPH004: 9CFPH004NR-00
- Backplane board - CBPH7O1: 9CBPH7O1NR-00
- Fan module: 25ST2-888020-S1R
- M.2 riser card - CMTP0A2: 9CMTP0A2NR-00
- LAN board - CLBH010: 9CLBH010NR-00
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Power supply: 25EP0-23000L-L0S

Optional parts:

- RMA packaging: 6NH263V60SR-RMA-A100
