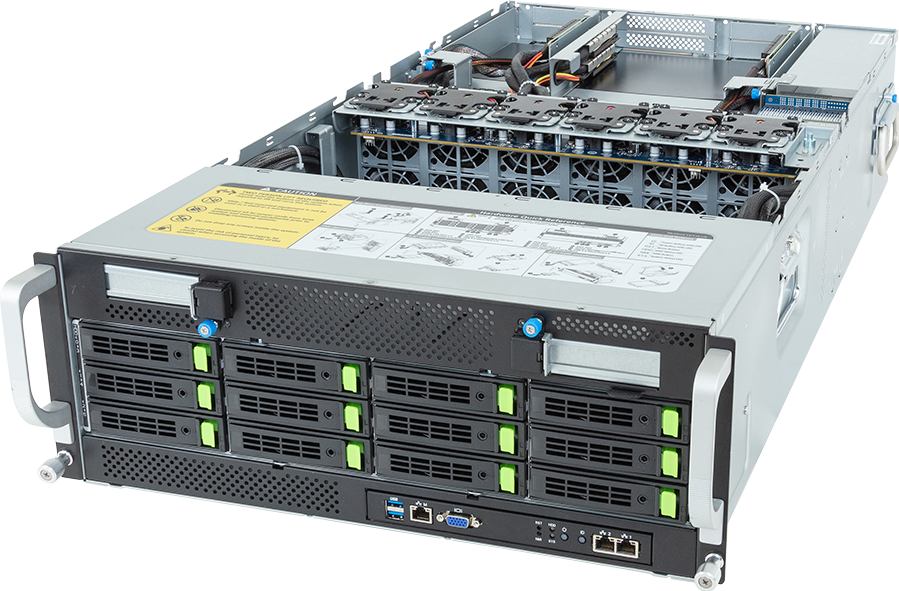

G493-SB4-AAP1

HPC/AI Server - 5th/4th Gen Intel^® Xeon^® Scalable - 4U DP NVIDIA OVX™ 8 x PCIe Gen5 GPUs

# AI # AI Training # AI Inference # Visual Computing # HPC

NVIDIA-Certified Systems™ - OVX Servers
Optimized for NVIDIA OVX™ L40S Server with 8 GPUs configuration
Dual 5th/4th Gen Intel^® Xeon^® Scalable Processors
Dual Intel^® Xeon^® CPU Max Series
8-Channel DDR5 RDIMM, 32 x DIMMs
Dual ROM Architecture
2 x 10Gb/s LAN ports via Intel^® X710-AT2
12 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 hot-swappable bays
1 x M.2 slot with PCIe Gen3 x1 interface
8 x FHFL PCIe Gen5 x16 slots for GPUs
2 x FHHL PCIe Gen5 x16 slots
4 x LP PCIe Gen5 x16 slots
1 x LP PCIe Gen4 x16 slot on the front side
3+1 3000W 80 PLUS Titanium redundant power supplies

Get a Quote

Perbandingan

Get a Quote

* Semua bahan yang tersedia disini adalah hanya untuk referensi. GIGABYTE berhak merubah atau merevisi isi sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
* Semua logo dan merek dagang adalah hak cipta dari masing-masing pemegangnya.
* Sehubungan dengan rancangan standar PC, sebagian jumlah memori dicadangkan untuk penggunaan sistem sehingga ukuran memori yang sesungguhnya lebih kecil dari yang disebutkan.

SPECIFICATIONS

Dimensions (WxHxD, mm)

4U
448 x 176 x 880

Motherboard

MSB3-G40

CPU

5th Generation Intel^® Xeon^® Scalable Processors
4th Generation Intel^® Xeon^® Scalable Processors
Intel^® Xeon^® CPU Max Series
Dual processor, TDP up to 350W

- NVIDIA OVX Specifications: 2 x Intel^® Xeon^® Gold 8480+

Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

Socket

2 x LGA 4677
Socket E

Chipset

Intel^® C741

Memory

32 x DIMM slots
DDR5 memory supported only
8-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported

5th Gen Intel^® Xeon^®: Up to *5600 MT/s (1DPC), 4400 MT/s (2DPC)
4th Gen Intel^® Xeon^®: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)
Intel^® Xeon^® Max Series: Up to 4800 MT/s (1DPC), 4400 MT/s (2DPC)

- NVIDIA OVX Specifications: Minimum 768GB DDR5 ECC (1 DIMM per slot)

*5600 MT/s support under 2DPC configuration requires verified memory and BIOS setup. Please refer to the QVL for more information.

LAN

Front side:
2 x 10Gb/s LAN ports (1 x Intel^® X710-AT2)
Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Video

Integrated in Aspeed^® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

Storage

Front side:
12 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4* hot-swappable bays
- (2 x NVMe from CPU_0, 2 x NVMe from CPU_1, 4 x NVMe from PEX89144_0, 4 x NVMe from PEX89144_1)

- NVIDIA OVX Specifications: 1 x 1TB NVMe Host Boot Drive
- NVIDIA OVX Specifications: 2 x 4TB NVMe Host Storage

*SAS card is required to support SAS drives.

SAS

Require SAS add-in cards

RAID

Intel^® SATA RAID 0/1/10/5

Support optional RAID add-in cards

Expansion Slots

4 x PCIe x16 (Gen5 x16) FHFL slots, from PEX89144_0, for GPUs
4 x PCIe x16 (Gen5 x16) FHFL slots, from PEX89144_1, for GPUs

- NVIDIA OVX Specifications: 8 x NVIDIA L40S

1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_0
1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_1

- NVIDIA OVX Specifications: 1 x BlueField-3, B3220 (2x200Gb)

2 x PCIe x16 (Gen5 x16) low-profile slots, from PEX89144_0
2 x PCIe x16 (Gen5 x16) low-profile slots, from PEX89144_1

- NVIDIA OVX Specifications: 4 x ConnectX-7 (2x200Gb)

1 x PCIe x16 (Gen4 x16) low-profile slot on the front side, from CPU_1

Note: The system is only validated with a uniform GPU model.

1 x M.2 slot:
- M-key
- PCIe Gen3 x1, from PCH
- Supports 2280/22110 cards

Internal I/O

1 x TPM header
1 x VROC connector

Front I/O

2 x USB 3.2 Gen1
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x Storage activity LED
1 x System status LED

Rear I/O

N/A

Backplane Board

Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s

TPM

1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010

Power Supply

3+1 3000W 80 PLUS Titanium redundant power supplies

AC Input:
- 100-127V~/ 14.5A, 50/60Hz
- 200-220V~/ 16A, 50/60Hz
- 220-240V~/ 16A, 50/60Hz

DC Input: (Only for China)
- 240Vdc/ 16A

DC Output:
- Max 1097.4W/ 100-127V~
+12.2V/ 87A
+12Vsb/ 3A
- Max 2598W/ 200-220V~
+12.2V/ 210A
+12Vsb/ 3A
- Max 3037.2W/ 220-240V~ or 240Vdc Input
+12.2V/ 246A
+12Vsb/ 3A

Note: The system power supply requires C19 power cord.

System Management

Aspeed^® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

Dashboard
HTML5 KVM
Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
Sensor Reading History Data
FRU Information
SEL Log in Linear Storage / Circular Storage Policy
Hardware Inventory
Fan Profile
System Firewall
Power Consumption
Power Control
Advanced power capping
LDAP / AD / RADIUS Support
Backup & Restore Configuration
Remote BIOS/BMC/CPLD Update
Event Log Filter
User Management
Media Redirection Settings
PAM Order Settings
SSL Settings
SMTP Settings

OS Compatibility

Please refer to OS compatibility table in support page

System Fans

12 x 60x60x38mm (23,000rpm)*

*Two fans share a single power connector.

Operating Properties

Operating temperature: 10°C to 30°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Packaging Dimensions

1200 x 800 x 444 mm w/ pallet

Packaging Content

1 x G493-SB4-AAP1
2 x CPU fansinks
8 x GPU power cables (12VHPWR, 150mm)
6 x Carriers
1 x L-shape Rail kit

Part Numbers

- Barebone package: 6NG493SB4DR000ABP1*
- Motherboard: 9MSB3G40NR-000
- L-shape Rail kit: 25HB2-A96100-K0R
- CPU fansink: 25ST1-363204-C1R
- Backplane board - CBP20C7: 9CBP20C7NR-00
- Fan module: 25ST2-663823-F1R
- PCIe switch board - CPBGA80: 9CPBGA80NR-00
- G-SCM board - CDCG120: 9CDCG120UR-00
- GPU power cable (12VHPWR, 150mm): 25CRI-150004-Y4R
- Power supply: 25EP0-23000C-D0S

Optional parts:

- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
