G363-ZR0- AAX1

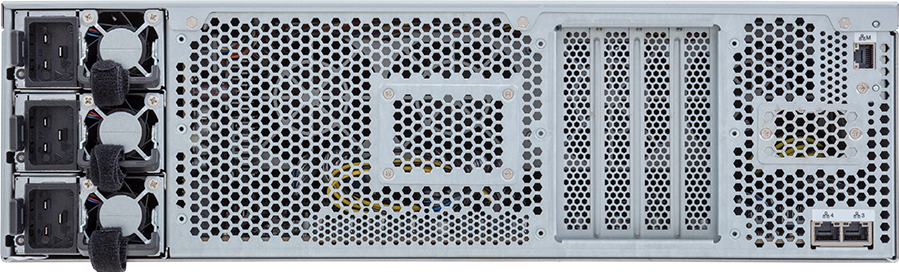

HPC/AI Server - AMD EPYC™ 9004 - 3U DP HGX™ H100 4-GPU
  • NVIDIA-Certified Systems™ - Data Center Servers
  • NVIDIA HGX™ H100 4-GPU
  • 4th-generation NVIDIA® NVLink® 900GB/s
  • Dual AMD EPYC™ 9004 Series Processors
  • 12-Channel DDR5 RDIMM, 24 x DIMMs
  • Dual ROM Architecture
  • 2 x 10Gb/s LAN ports via Broadcom® BCM57416
  • 2 x 1Gb/s LAN ports via Intel® I350-AM2
  • 4 x 2.5" Gen5 NVMe/SATA/SAS hot-swap bays
  • 4 x 2.5" Gen5 NVMe hot-swap bays
  • 1 x M.2 slot with PCIe Gen4 x4 interface
  • 6 x LP PCIe Gen5 x16 slots
  • 2+1 3000W 80 PLUS Titanium redundant power supplies
Get a Quote
* Semua bahan yang tersedia disini adalah hanya untuk referensi. GIGABYTE berhak merubah atau merevisi isi sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
* Semua logo dan merek dagang adalah hak cipta dari masing-masing pemegangnya.
* Sehubungan dengan rancangan standar PC, sebagian jumlah memori dicadangkan untuk penggunaan sistem sehingga ukuran memori yang sesungguhnya lebih kecil dari yang disebutkan.

SPECIFICATIONS

Dimensions (WxHxD, mm)
3U
448 x 130 x 800
Motherboard
MZ83-HD1
CPU
AMD EPYC™ 9005 Series Processors
AMD EPYC™ 9004 Series Processors

Dual processor, cTDP up to 400W [1]

[1] Please refer to the QVL on the support page or contact our sales representatives for verified CPU SKUs.

[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket
2 x LGA 6096
Socket SP5
Chipset
System on Chip
Memory
24 x DIMM slots
DDR5 memory supported
12-Channel memory architecture
RDIMM: Up to 4800 MT/s
LAN
Front (I/O board - CLBH160):
2 x 1Gb/s LAN (1 x Intel® I350-AM2)
- Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Rear:
2 x 10Gb/s LAN (1 x Broadcom® BCM57416)
- Support NCSI function

Rear (MLAN board - CDB66):
1 x 10/100/1000 Mbps Management LAN

[Note] When both MLAN ports are connected with cables, the front MLAN port will be set as the default.
Video
Integrated in Aspeed® AST2600
- 1 x Mini-DP
Storage
Front hot-swap:
4 x 2.5" Gen5 NVMe/SATA/SAS [1]
4 x 2.5" Gen5 NVMe
- (4 x NVMe from CPU_0, 4 x NVMe from CPU_1)
- (SATA from CPU_0)

Internal M.2 (CMTP192):
1 x M.2 (2280/22110), PCIe Gen4 x4, from CPU_0

[1] SAS card is required to support SAS drives.
SAS
Require SAS add-in cards
RAID
Require RAID add-in cards
Modular GPU
NVIDIA HGX™ H100 with 4 x SXM5 GPUs
PCIe Expansion Slots
Front:
1 x LP x16 (Gen5 x16), from CPU_0
1 x LP x16 (Gen5 x16), from CPU_1

1 x OCP NIC 3.0, from CPU_0, disabled

Rear:
4 x LP x16 (Gen5 x16), from PEX89144, support RDMA
- (Equipped with full-height brackets)
Front I/O
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x Storage activity LED
1 x System status LED

I/O board - CLBH160:
2 x USB 3.2 Gen1 ports (Type-A)
1 x Mini-DP
2 x RJ45 ports (Intel I350)
1 x MLAN port (default)
Rear I/O
2 x RJ45 ports (Broadcom BCM57416)

MLAN board - CDB66:
1 x MLAN port
Backplane Board
Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s or SAS 12Gb/s
Security Modules
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
Power Supply
2+1 3000W 80 PLUS Titanium redundant power supplies [1]

AC Input:
- 115-127V~/ 14.2A, 50-60Hz
- 200-220V~/ 15.8A, 50-60Hz
- 220-240V~/ 14.9A, 50-60Hz

DC Input: (Only for China)
- 240Vdc/ 14A

DC Output:
- Max 1450W/ 115-127V~
+54V/ 26.6A
+12Vsb/ 3A
- Max 2900W/ 200-220V~
+54V/ 53.4A
+12Vsb/ 3A
- Max 3002.4W/ 220-240V~ or 240Vdc Input
+54V/ 55.6A
+12Vsb/ 3A

[1] The system power supply requires C19 power cord.
System Management
Aspeed® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

  • Dashboard
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • Advanced power capping
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings
OS Compatibility
Please refer to OS compatibility table in support page
System Fans
7 x 80x80x80mm (17,000rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Packaging Dimensions
1176 x 782 x 295 mm
Packaging Content
1 x G363-ZR0-AAX1
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
1 x L-type Rail kit
Part Numbers
- Barebone w/ NVIDIA module (9005/9004): 6NG363ZR0DR000ABX1*
- Barebone w/ NVIDIA module (9004): 6NG363ZR0DR000AAX1*
- Motherboard: 9MZ83HD1UR-000*
- L-type Rail kit: 25HB2-A86102-K0R
- CPU heatsink: 25ST1-15320H-A3R
- GPU heatsink: 25ST1-3332G0-F2R
- Front panel board - CFP1000: 9CFP1000NR-00*
- Backplane board - CBP2081: 9CBP2081NR-00*
- Fan module: 25ST2-808035-S1R
- Fan module: 25ST2-888030-S1R
- Fan module: 25ST2-888031-S1R
- M.2 expansion card - CMTP192: 9CMTP192NR-00*
- Riser card - CRSH01R: 9CRSH01RNR-00*
- OCP card - CNVC171: 9CNVC171NR-00*
- Front I/O board (incl. I350-AM2) - CLBH160: 9CLBH160NR-00*
- PCIe switch board - CPBG901: 9CPBG901NR-00*
- Rear MLAN board - CDB66: 9CDB66NR-00*
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Power supply: 25EP0-23000A-D0S

Optional parts:

- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- RMA packaging: 6NG363ZR0SR-RMA-A100
* Semua bahan yang tersedia disini adalah hanya untuk referensi. GIGABYTE berhak merubah atau merevisi isi sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
* Semua logo dan merek dagang adalah hak cipta dari masing-masing pemegangnya.
* Sehubungan dengan rancangan standar PC, sebagian jumlah memori dicadangkan untuk penggunaan sistem sehingga ukuran memori yang sesungguhnya lebih kecil dari yang disebutkan.

SUPPORT

BIOS
Deskripsi
Versi
Ukuran
Tanggal
1) Update to Genoa AGESA 1.0.0.C.
2) Security updates: CVE-2023-31315, CVE-2023-31355, CVE-2024-21978, CVE-2024-21980.
3) Multiple feature updates.
Version : F13
20.89 MB
Jul 11, 2024
Warning:
Karena flash BIOS sangat beresiko, jika Anda tidak mengahadapi masalah dengan versi BIOS yang sekarang, kami merekomendasikan Anda tidak melakukan flash BIOS. Untuk melakukannya, lakukan dengan cermat. flash BIOS yang tidak sempurna akan mengakibatkan kegagalan sistem.

What is a BETA?
BETA menggambarkan bahwa versi terbaru belum stabil sepenuhnya dan mungkin tidak memliki semua fitur yang ada pada produk final. Selama masa ini kami akan merilis fitur baru dan mendapatkan masukan dari pelanggan agar dapat memastikan memberikan pengalaman yang terbaik.

  • All
  • All
  • Windows Server 2022
  • Windows Server 2019
  • Windows Server 2016 R2 64bit
  • Windows Server 2016 64bit
  • Windows Server 2012 R2 64bit
  • Windows Server 2012 64bit
  • Windows 10 64bit
  • VMware
  • Ubuntu
  • Linux CentOS
  • Linux
Utilitas
Deskripsi
Versi
Ukuran
Tanggal
GSM CLI
Version : 2.1.77
147.89 MB
Sep 27, 2024
Sistem Operasi: Windows Server 2012 64bit,Windows Server 2012 R2 64bit,Linux CentOS,Windows 10 64bit,Ubuntu,Windows Server 2016 R2 64bit,Windows Server 2019,Windows Server 2022
