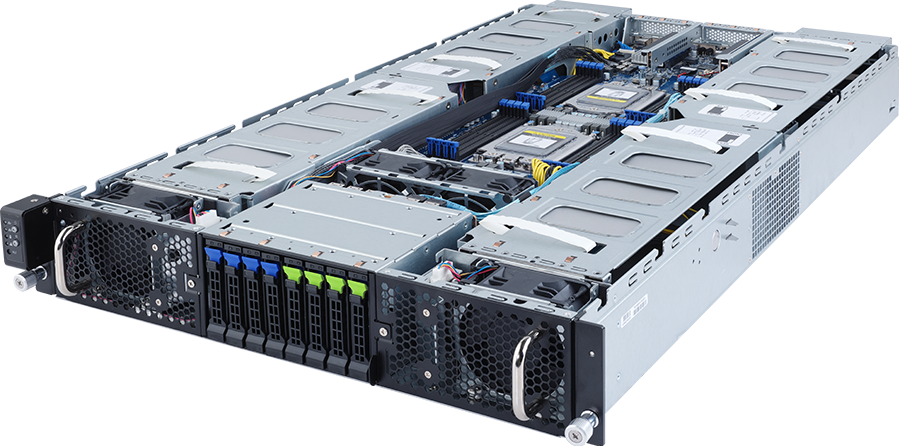

HPC/AI Server - AMD EPYC™ 7003/7002 - 2U DP 16 x PCIe Gen4 GPUs (Broadcom solution)
  • Supports up to 16 x Single slot GPUs
  • Dual AMD EPYC™ 7003/7002 Series Processors
  • 8-Channel DDR4 RDIMM/LRDIMM, 16 x DIMMs
  • 2 x 10Gb/s LAN ports via Intel® X550-AT2
  • 4 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
  • 4 x 2.5" SATA/SAS hot-swappable bays
  • 16 x FHFL PCIe Gen4 x16 slots for GPUs
  • 2 x LP PCIe Gen4 x16 slots for add-in cards
  • Dual 2200W 80 PLUS Platinum redundant power supply
Get a Quote
* Semua bahan yang tersedia disini adalah hanya untuk referensi. GIGABYTE berhak merubah atau merevisi isi sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
* Semua logo dan merek dagang adalah hak cipta dari masing-masing pemegangnya.
* Sehubungan dengan rancangan standar PC, sebagian jumlah memori dicadangkan untuk penggunaan sistem sehingga ukuran memori yang sesungguhnya lebih kecil dari yang disebutkan.

SPECIFICATIONS

Dimensions (WxHxD, mm)
2U
448 x 87.5 x 800
Motherboard
MZ42-G20 Rev. 3.0
CPU
AMD EPYC™ 7003 Series Processors
AMD EPYC™ 7002 Series Processors
Dual processor, 7nm technology
Up to 64 cores, 128 threads per processor
cTDP up to 240W

Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket
2 x LGA 4094
Socket SP3
Chipset
System on Chip
Memory
16 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM up to 128GB supported
LRDIMM up to 128GB supported
3DS RDIMM/LRDIMM up to 256GB supported
Memory speed: Up to 3200 MT/s
LAN
Rear side:
2 x 10Gb/s LAN ports (1 x Intel® X550-AT2)
Support NCSI function

1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Storage
Front side:
4 x 2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
4 x 2.5" SATA/SAS hot-swappable bays
- (2 x NVMe from CPU_0, 2 x NVMe from CPU_1)
- (SATA from CPU_0)

SAS card is required for SAS devices support

Recommended 12Gb/s SAS cards:
CRA4448
CRA4548
SAS
Depends on SAS add-in cards
RAID
Depends on SAS add-in cards
Expansion Slots
16 x PCIe x16 (Gen4 x16) FHFL slots, from PEX88096, for single slot GPUs (Broadcom solution)
1 x PCIe x16 (Gen4 x16) low-profile slot, from CPU_0
1 x PCIe x16 (Gen4 x16) low-profile slot, from CPU_1

- Maximum limitation of GPU cards: 285mm (L) x 111.5mm (W) x 39.5mm (H).
- System is validated for population with a uniform GPU model.
- Support is not provided for mixed GPU populations.
- For the latest GPU cards QVL, please contact your GIGABYTE representative.
Internal I/O
1 x TPM header
Front I/O
1 x Power button with LED
1 x ID button with LED
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
Rear I/O
2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x System status LED
Backplane Board
Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
TPM
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
Power Supply
Dual 2200W 80 PLUS Platinum redundant power supply

AC Input:
- 100-127V~/ 14A, 47-63Hz
- 200-240V~/ 12.6A, 47-63Hz

DC Input: (Only for China)
- 240Vdc/ 12.6A

DC Output:
- Max 1200W/ 100-127V~
+12.12V/ 95.6A
+12Vsb/ 3.5A
- Max 2200W/ 200-240V~ or 240Vdc Input
+12.12V/ 178.1A
+12Vsb/ 3.5A

Note: The system power supply requires C19 power cord.
System Management
Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

  • Dashboard
  • JAVA Based Serial Over LAN
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage/Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings
OS Compatibility
Citrix Hypervisor 8.2.0 or later

Red Hat Enterprise Linux 8.3 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later

SUSE Linux Enterprise Server 12 SP5 (x64) or later
SUSE Linux Enterprise Server 15 SP2 (x64) or later

Ubuntu 18.04.5 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later

Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022
System Fans
8 x 80x80x38mm (16,300rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Note: Please contact Technical Support for more information about optimized GPU operating temperature.
Weight
Net Weight: 22.4 kg
Gross Weight: 41.6 kg
Packaging Dimensions
1133 x 724 x 261 mm
Packaging Content
1 x G292-Z43
2 x CPU heatsinks
1 x L-shape Rail kit
Part Numbers
- Barebone package: 6NG292Z43MR-00-A*
- Motherboard: 9MZ42G20NR-00
- L-shape Rail kit: 25HB2-A86102-K0R
- CPU heatsink: 25ST1-44320N-A3R/25ST1-44320P-A3R
- Backplane board - CBPG084: 9CBPG084NR-00
- Fan module: 25ST2-883827-D0R
- Riser card for GPU - CRSG740: 9CRSG740NR-00
- Riser card for GPU - CRSG741: 9CRSG741NR-00
- Power supply: 25EP0-222003-D0S

Optional parts:

- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- RMA packaging: 6NG292Z43SR-RMA-A100
