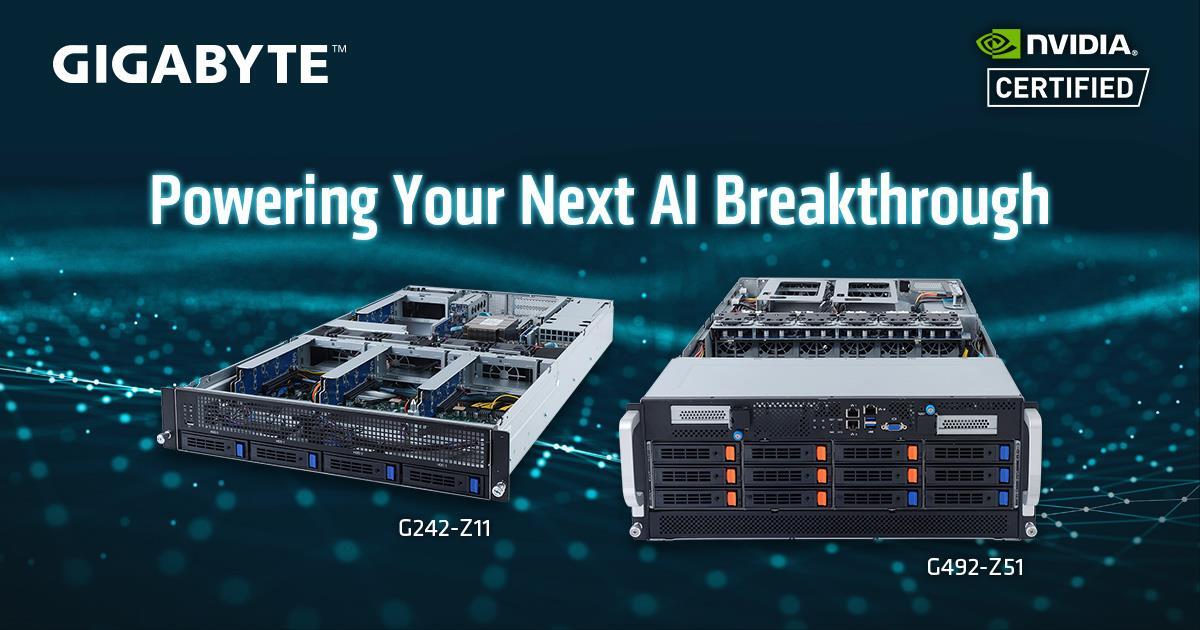

G242-Z11

HPC/AI Server - AMD EPYC™ 7003/7002 - 2U UP 4 x PCIe Gen4 GPUs
  • NVIDIA-Certified Systems™ - Data Center Servers
  • Supports up to 4 x Dual slot Gen4 GPUs
  • Single AMD EPYC™ 7003/7002 Series Processors
  • 8-Channel DDR4 RDIMM/LRDIMM, 8 x DIMMs
  • 4 x 3.5"/2.5" SATA hot-swap bays
  • 2 x 2.5" Gen4 NVMe/SATA/SAS hot-swap bays on the rear side
  • 4 x FHFL PCIe Gen4 x16 slots for GPUs
  • 2 x FHHL PCIe Gen4 x16 and x8 slots
  • 1 x OCP NIC 3.0 PCIe Gen4 x16 slot
  • Dual 1600W 80 PLUS Platinum redundant power supply (-A00)
  • Dual 1600W 80 PLUS Titanium redundant power supply (-AT0)
Get a Quote
* Semua bahan yang tersedia disini adalah hanya untuk referensi. GIGABYTE berhak merubah atau merevisi isi sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
* Semua logo dan merek dagang adalah hak cipta dari masing-masing pemegangnya.
* Sehubungan dengan rancangan standar PC, sebagian jumlah memori dicadangkan untuk penggunaan sistem sehingga ukuran memori yang sesungguhnya lebih kecil dari yang disebutkan.

SPECIFICATIONS

Dimensions (WxHxD, mm)
2U
438 x 87.5 x 820
Motherboard
MZ12-HD3 Rev. 3.0
CPU
AMD EPYC™ 7003 Series Processors
AMD EPYC™ 7002 Series Processors

Single processor, cTDP up to 280W
Socket
1 x LGA 4094
Socket SP3
Chipset
System on Chip
Memory
8 x DIMM slots
DDR4 memory supported
8-Channel memory per processor
RDIMM/LRDIMM: Up to 3200 MT/s
LAN
Rear:
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in ASPEED® AST2500
- 1 x VGA port
Storage
Front hot-swap:
4 x 3.5"/2.5" SATA [1]

Rear hot-swap
2 x 2.5" Gen4 NVMe/SATA/SAS [2]

[1] SATA devices supported only.

[2] SAS card is required to support SAS drives.
SAS
Require SAS add-in cards
RAID
Require RAID add-in cards
PCIe Expansion Slots
4 x FHFL x16 (Gen4 x16), for GPUs

Riser Card CRSG120:
- 1 x FHHL x16 (Gen4 x16 or x8)
- 1 x FHHL x8 (Gen4 x0 or x8)

1 x OCP NIC 3.0 (Gen4 x16)
- Supports NCSI function

[Note] The system is only validated with a uniform GPU model.
Front I/O
1 x USB 3.0 port (Type-A)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x Storage activity LED
1 x System status LED
Rear I/O
2 x USB 3.0 ports (Type-A)
1 x VGA port
1 x MLAN port
1 x ID LED
Backplane Board
Speed and bandwidth:
Front - CBPG041: SATA 6Gb/s
Rear - CBP2021: PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s
Security Modules
1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010
Power Supply
Dual 1600W 80 PLUS Platinum redundant power supply (-A00)

AC Input:
- 100-120V~/ 12A, 50/60Hz
- 200-240V~/ 10A, 50/60Hz

DC Input: (Only for China)
- 240Vdc/ 10A

DC Output:
- Max 1000W/ 100-120V~
+12V/ 81.5A
+12Vsb/ 2.5A
- Max 1600W/ 200-240V~ or 240Vdc Input
+12V/ 133A
+12Vsb/ 2.5A

Dual 1600W 80 PLUS Titanium redundant power supply (-AT0)

AC Input:
- 100-240V~/ 12-9.5A, 50/60Hz

DC Input: (Only for China)
- 240Vdc/ 9.5A

DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 82A
+12Vsb/ 3A
- Max 1600W/ 200-240V~ or 240Vdc Input
+12.2V/ 131.2A
+12Vsb/ 3A
System Management
ASPEED® AST2500 Baseboard Management Controller
GIGABYTE Management Console web interface

  • Dashboard
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage/Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings
OS Compatibility
Citrix Hypervisor 8.2.0 or later

Red Hat Enterprise Linux 8.3 or later
Red Hat Enterprise Linux 9.0 or later

SUSE Linux Enterprise Server 12 SP5 or later
SUSE Linux Enterprise Server 15 SP2 or later

Ubuntu 18.04.5 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later

Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022
System Fans
5 x 80x80x38mm (16,300rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Weight
Net Weight: 18.1 kg
Gross Weight: 27 kg
Gross Weight (AICs included): 56.2 kg
Packaging Dimensions
1077 x 679 x 300 mm
Packaging Content
1 x G242-Z11
1 x CPU heatsink
3 x GPU power cables (2x PCIe 8pin, 360mm)
1 x GPU power cable (2x PCIe 8pin, 480mm)
1 x 2-Section Rail kit
Part Numbers
- Barebone package: 6NG242Z11MR-00-A*
- Motherboard: 9MZ12HD3NR-00*
- 2-Section Rail kit: 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-15320E-J1R
- Front panel board - CFP1000: 9CFP1000NR-00*
- Backplane board - CBPG041: 9CBPG041NR-00*
- Backplane board - CBP2021: 9CBP2021NR-00*
- Fan module: 25ST2-88382A-D0R
- Riser card - CRSG120: 9CRSG120NR-00*
- GPU power cable (2x PCIe 8pin, 360mm): 25CRI-360300-Y4R
- GPU power cable (2x PCIe 8pin, 480mm): 25CRI-480300-Y4R
- Power supply (-A00): 25EP0-216007-L0S
- Power supply (-AT0): 25EP0-21600E-L0S

Optional parts:

- RMA packaging: 6NG242Z11SR-RMA-A100
