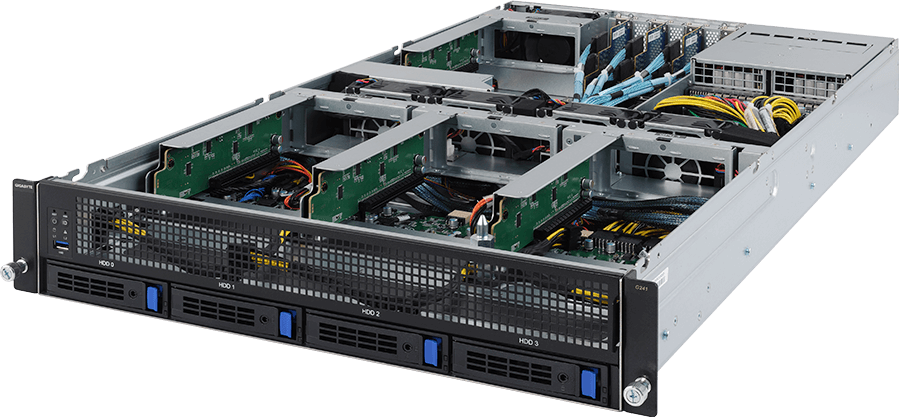

G241-G40
HPC/AI Server - 2nd/1st Gen Intel® Xeon® Scalable - 2U DP 4 x PCIe Gen3 GPUs
- Supports up to 4 x Dual slot Gen3 GPUs
- NVIDIA® validated GPU platform; Supports for NVIDIA® Tesla® GPUs
- NVIDIA® NGC™ Ready server
- Dual 2nd/1st Gen Intel® Xeon® Scalable Processors
- 6-Channel DDR4 RDIMM/LRDIMM, 12 x DIMMs
- 2 x 10Gb/s LAN ports via Intel® X557-AT2
- 2 x 1Gb/s LAN ports via Marvell® 88E1514
- 4 x 3.5"/2.5" SATA hot-swappable bays
- 2 x SATA DOM supported
- 2 x M.2 slots with PCIe Gen3 x4 interface
- 4 x FHFL PCIe Gen3 x16 slots for GPUs
- 3 x LP PCIe Gen3 x16 and x8 slots for add-in cards
- Dual 2000W 80 PLUS Platinum redundant power supply
* Semua bahan yang tersedia disini adalah hanya untuk referensi. GIGABYTE berhak merubah atau merevisi isi sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
* Semua logo dan merek dagang adalah hak cipta dari masing-masing pemegangnya.
* Sehubungan dengan rancangan standar PC, sebagian jumlah memori dicadangkan untuk penggunaan sistem sehingga ukuran memori yang sesungguhnya lebih kecil dari yang disebutkan.
* Semua logo dan merek dagang adalah hak cipta dari masing-masing pemegangnya.
* Sehubungan dengan rancangan standar PC, sebagian jumlah memori dicadangkan untuk penggunaan sistem sehingga ukuran memori yang sesungguhnya lebih kecil dari yang disebutkan.
SPECIFICATIONS
Dimensions (WxHxD, mm)
2U
438 x 87.5 x 820
438 x 87.5 x 820
Motherboard
MD71-HB1
CPU
2nd Generation Intel® Xeon® Scalable Processors
Intel® Xeon® Scalable Processors
Dual processor, TDP up to 165W
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Intel® Xeon® Scalable Processors
Dual processor, TDP up to 165W
Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket
2 x LGA 3647
Socket P
Socket P
Chipset
Intel® C622
Memory
12 x DIMM slots
DDR4 memory supported only
6-channel memory architecture
RDIMM up to 64GB supported
LRDIMM up to 128GB supported
1.2V modules: 2933/2666/2400 MT/s
Note: 2933MT/s memory is supported only with 2nd Generation Intel® Xeon® Scalable Processors.
DDR4 memory supported only
6-channel memory architecture
RDIMM up to 64GB supported
LRDIMM up to 128GB supported
1.2V modules: 2933/2666/2400 MT/s
Note: 2933MT/s memory is supported only with 2nd Generation Intel® Xeon® Scalable Processors.
LAN
Rear side:
2 x 10Gb/s LAN ports (1 x Intel® X557-AT2)
Support NCSI function
2 x 1Gb/s LAN ports
1 x 10/100/1000 Mbps Management LAN
2 x 10Gb/s LAN ports (1 x Intel® X557-AT2)
Support NCSI function
2 x 1Gb/s LAN ports
1 x 10/100/1000 Mbps Management LAN
Video
Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp
Storage
Front side:
4 x 3.5"/2.5" SATA hot-swappable bays
SATA devices supported only
2 x SATA DOM supported
4 x 3.5"/2.5" SATA hot-swappable bays
SATA devices supported only
2 x SATA DOM supported
SATA
Supported
SAS
N/A
RAID
Intel® SATA RAID 0/1/10/5
Expansion Slots
4 x PCIe x16 (Gen3 x16) FHFL slots, for GPUs (Slot_1 / Slot_3 / Slot_5 / Slot_7)
Pre-installed CRSG02A in each slot
Slot_2: 1 x PCIe x8 (Gen3 x8) low-profile slot, from CPU_0, shared with M.2 PCIe Gen3 x4 slot
Slot_4: 1 x PCIe x8 (Gen3 x8) low-profile slot, from CPU_1, shared with slot_5 Slot_6: 1 x PCIe x16 (Gen3 x16) slot, from CPU_1
1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_0
- Supports 22110/2280 cards
1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from PCH
- Supports 22110/2280 cards
- System is validated for population with a uniform GPU model.
- Support is not provided for mixed GPU populations.
Pre-installed CRSG02A in each slot
Slot_2: 1 x PCIe x8 (Gen3 x8) low-profile slot, from CPU_0, shared with M.2 PCIe Gen3 x4 slot
Slot_4: 1 x PCIe x8 (Gen3 x8) low-profile slot, from CPU_1, shared with slot_5 Slot_6: 1 x PCIe x16 (Gen3 x16) slot, from CPU_1
1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_0
- Supports 22110/2280 cards
1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from PCH
- Supports 22110/2280 cards
- System is validated for population with a uniform GPU model.
- Support is not provided for mixed GPU populations.
Internal I/O
1 x TPM header
Front I/O
1 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED
Rear I/O
2 x USB 3.0
1 x VGA
4 x RJ45
1 x MLAN
1 x ID button with LED
1 x VGA
4 x RJ45
1 x MLAN
1 x ID button with LED
Backplane Board
Speed and bandwidth:
SATA 6Gb/s
SATA 6Gb/s
TPM
1 x TPM header with LPC interface
- Optional TPM2.0 kit: CTM000
- Optional TPM2.0 kit: CTM000
Power Supply
Dual 2000W 80 PLUS Platinum redundant power supply
AC Input:
- 100-120V~/ 12A, 50/60Hz
- 180-240V~/ 10A, 50/60Hz
DC Input: (Only for China)
- 240Vdc/ 10A
DC Output:
- Max 1000W/ 100-120V~
+12.2V/ 81.5A
+12Vsb/ 2.5A
- Max 1600W/ 180-199V~
+12.2V/ 131A
+12Vsb/ 2.5A
- Max 1800W/ 200-220V~
+12.2V/ 147.5A
+12Vsb/ 2.5A
- Max 2000W/ 221-240V~ or 240Vdc Input
+12.2V/ 163.5A
+12Vsb/ 2.5A
AC Input:
- 100-120V~/ 12A, 50/60Hz
- 180-240V~/ 10A, 50/60Hz
DC Input: (Only for China)
- 240Vdc/ 10A
DC Output:
- Max 1000W/ 100-120V~
+12.2V/ 81.5A
+12Vsb/ 2.5A
- Max 1600W/ 180-199V~
+12.2V/ 131A
+12Vsb/ 2.5A
- Max 1800W/ 200-220V~
+12.2V/ 147.5A
+12Vsb/ 2.5A
- Max 2000W/ 221-240V~ or 240Vdc Input
+12.2V/ 163.5A
+12Vsb/ 2.5A
System Management
Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface
- Dashboard
- JAVA Based Serial Over LAN
- HTML5 KVM
- Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
- Sensor Reading History Data
- FRU Information
- SEL Log in Linear Storage / Circular Storage Policy
- Hardware Inventory
- Fan Profile
- System Firewall
- Power Consumption
- Power Control
- LDAP / AD / RADIUS Support
- Backup & Restore Configuration
- Remote BIOS/BMC/CPLD Update
- Event Log Filter
- User Management
- Media Redirection Settings
- PAM Order Settings
- SSL Settings
- SMTP Settings
OS Compatibility
For Skylake processors:
Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.4.0 or later
Citrix Hypervisor 8.0.0 or later
Red Hat Enterprise Linux 6.9 or later
Red Hat Enterprise Linux 7.3 or later
Red Hat Enterprise Linux 8.0 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 11 SP4 or later
SUSE Linux Enterprise Server 12 SP2 or later
SUSE Linux Enterprise Server 15 or later
Ubuntu 16.04.1 LTS or later
Ubuntu 18.04 LTS or later
Ubuntu 20.04 LTS or later
VMware ESXi 6.0 Update3 or later
VMware ESXi 6.5 or later
VMware ESXi 6.7 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later
Windows Server 2012 R2 with Update
Windows Server 2016
Windows Server 2019
For Cascade Lake processors:
Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.5.0 or later
Citrix Hypervisor 8.0.0 or later
Red Hat Enterprise Linux 7.6 or later
Red Hat Enterprise Linux 8.0 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP3 or later
SUSE Linux Enterprise Server 15 or later
Ubuntu 18.04 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later
VMware ESXi 6.0 Update3 or later
VMware ESXi 6.5 Update2 or later
VMware ESXi 6.7 Update1 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later
Windows Server 2012 R2 with Update
Windows Server 2016
Windows Server 2019
Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.4.0 or later
Citrix Hypervisor 8.0.0 or later
Red Hat Enterprise Linux 6.9 or later
Red Hat Enterprise Linux 7.3 or later
Red Hat Enterprise Linux 8.0 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 11 SP4 or later
SUSE Linux Enterprise Server 12 SP2 or later
SUSE Linux Enterprise Server 15 or later
Ubuntu 16.04.1 LTS or later
Ubuntu 18.04 LTS or later
Ubuntu 20.04 LTS or later
VMware ESXi 6.0 Update3 or later
VMware ESXi 6.5 or later
VMware ESXi 6.7 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later
Windows Server 2012 R2 with Update
Windows Server 2016
Windows Server 2019
For Cascade Lake processors:
Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.5.0 or later
Citrix Hypervisor 8.0.0 or later
Red Hat Enterprise Linux 7.6 or later
Red Hat Enterprise Linux 8.0 or later
Red Hat Enterprise Linux 9.0 or later
SUSE Linux Enterprise Server 12 SP3 or later
SUSE Linux Enterprise Server 15 or later
Ubuntu 18.04 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later
VMware ESXi 6.0 Update3 or later
VMware ESXi 6.5 Update2 or later
VMware ESXi 6.7 Update1 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later
Windows Server 2012 R2 with Update
Windows Server 2016
Windows Server 2019
System Fans
5 x 80x80x38mm (16,300rpm)
Operating Properties
Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Note: Please contact Technical Support for more information about optimized GPU system operating temperature.
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)
Note: Please contact Technical Support for more information about optimized GPU system operating temperature.
Weight
Net Weight: 25 kg
Gross Weight: 29.96 kg
Gross Weight: 29.96 kg
Packaging Dimensions
1077 x 679 x 300 mm
Packaging Content
1 x G241-G40
2 x CPU heatsinks
2 x Non-fabric CPU carriers
1 x 2-Section Rail kit
2 x CPU heatsinks
2 x Non-fabric CPU carriers
1 x 2-Section Rail kit
Part Numbers
- Barebone package: 6NG241G40MR-00-1*
- Motherboard: 9MD71HB1NR-00
- 2-Section Rail kit: 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-253106-F2R/25ST1-253209-F2R
- Non-fabric CPU carrier: 12KRC-0F3647-50R
- Front panel board - CFP1000: 9CFP1000NR-00
- Backplane board - CBPG041: 9CBPG041NR-00
- Fan module: 25ST2-88382A-D0R
- Power supply: 25EP0-22000A-L0S
- Motherboard: 9MD71HB1NR-00
- 2-Section Rail kit: 25HB2-3A0202-K0R
- CPU heatsink: 25ST1-253106-F2R/25ST1-253209-F2R
- Non-fabric CPU carrier: 12KRC-0F3647-50R
- Front panel board - CFP1000: 9CFP1000NR-00
- Backplane board - CBPG041: 9CBPG041NR-00
- Fan module: 25ST2-88382A-D0R
- Power supply: 25EP0-22000A-L0S
* Semua bahan yang tersedia disini adalah hanya untuk referensi. GIGABYTE berhak merubah atau merevisi isi sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
* Semua logo dan merek dagang adalah hak cipta dari masing-masing pemegangnya.
* Sehubungan dengan rancangan standar PC, sebagian jumlah memori dicadangkan untuk penggunaan sistem sehingga ukuran memori yang sesungguhnya lebih kecil dari yang disebutkan.
* Semua logo dan merek dagang adalah hak cipta dari masing-masing pemegangnya.
* Sehubungan dengan rancangan standar PC, sebagian jumlah memori dicadangkan untuk penggunaan sistem sehingga ukuran memori yang sesungguhnya lebih kecil dari yang disebutkan.
SUPPORT
Driver
BIOS
Utilitas
Firmware
QVL
- All
- All
- Windows Server 2019
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Linux
Chipset
Chipset
Versi
Ukuran
Tanggal
Intel® Chipset Driver
Version : 10.1.17861.8101
3.34 MB
Apr 18, 2019
Sistem Operasi: Windows Server 2012 R2 64bit,Windows Server 2016 64bit,Windows Server 2019
Intel® Chipset Driver
Version : 10.1.18228.8176
3.12 MB
Dec 29, 2019
Sistem Operasi: Windows Server 2012 R2 64bit,Windows Server 2016 64bit,Windows Server 2019
LAN
LAN
Versi
Ukuran
Tanggal
Intel® LAN Driver and Utility
Version : 23.5
487.48 MB
Apr 18, 2019
Sistem Operasi: Windows Server 2012 R2 64bit,Linux,Windows Server 2016 64bit,Windows Server 2019
SATA RAID
SATA RAID
Versi
Ukuran
Tanggal
Intel® SATA Preinstall driver
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
(For AHCI / RAID Mode)
Note: Windows setup to read from USB devices
Version : 6.0.0.1357
6.54 MB
Apr 19, 2019
Sistem Operasi: Windows Server 2012 R2 64bit,Windows Server 2016 64bit,Windows Server 2019
Intel® Rapid Storage Technology enterprise (Intel® RSTe)
Version : 6.0.0.1357
265.09 MB
Apr 21, 2019
Sistem Operasi: Windows Server 2012 R2 64bit,Windows Server 2016 64bit,Windows Server 2019
Utility
BIOS
Deskripsi
Versi
Ukuran
Tanggal
1) Includes multiple security updates:
- CVE-2024-28047, CVE-2024-28956
- CWE-190, iSCSI Remote Memory Corruption and Dos.
- CWE-269, UEFI Variable Access - PlatformLang and Timeout.
2) Includes multiple feature updates.
Version : R20
20.27 MB
Nov 27, 2024
Update for security: Vulnerabilities in EDK2 NetworkPkg include CVE-2023-45236, CVE- 2023-45237.
Version : R18
20.27 MB
May 27, 2024
Windows and UEFI mode flash BIOS SOP
Please download BIOS update tool from AMI Website
Please download BIOS update tool from AMI Website
-
0.31 MB
Jan 29, 2021
Warning:
Karena flash BIOS sangat beresiko, jika Anda tidak mengahadapi masalah dengan versi BIOS yang sekarang, kami merekomendasikan Anda tidak melakukan flash BIOS. Untuk melakukannya, lakukan dengan cermat. flash BIOS yang tidak sempurna akan mengakibatkan kegagalan sistem.
What is a BETA?
BETA menggambarkan bahwa versi terbaru belum stabil sepenuhnya dan mungkin tidak memliki semua fitur yang ada pada produk final. Selama masa ini kami akan merilis fitur baru dan mendapatkan masukan dari pelanggan agar dapat memastikan memberikan pengalaman yang terbaik.
Karena flash BIOS sangat beresiko, jika Anda tidak mengahadapi masalah dengan versi BIOS yang sekarang, kami merekomendasikan Anda tidak melakukan flash BIOS. Untuk melakukannya, lakukan dengan cermat. flash BIOS yang tidak sempurna akan mengakibatkan kegagalan sistem.
What is a BETA?
BETA menggambarkan bahwa versi terbaru belum stabil sepenuhnya dan mungkin tidak memliki semua fitur yang ada pada produk final. Selama masa ini kami akan merilis fitur baru dan mendapatkan masukan dari pelanggan agar dapat memastikan memberikan pengalaman yang terbaik.
- All
- All
- Windows Server 2022
- Windows Server 2019
- Windows Server 2016 R2 64bit
- Windows Server 2016 64bit
- Windows Server 2012 R2 64bit
- Windows Server 2012 64bit
- Windows 10 64bit
- VMware
- Ubuntu
- Linux CentOS
- Linux
Utilitas
Deskripsi
Versi
Ukuran
Tanggal
GSM CLI
Version : 2.1.78
147.79 MB
Dec 12, 2024
Sistem Operasi: Windows Server 2012 64bit,Windows Server 2012 R2 64bit,Linux CentOS,Windows 10 64bit,Ubuntu,Windows Server 2016 R2 64bit,Windows Server 2019,Windows Server 2022
GSM Server
Version : 2.12
926.33 MB
Jan 18, 2023
Sistem Operasi: Linux,Windows Server 2016 64bit,Windows Server 2019
GSM Agent
Version : 2.5
720.29 MB
Dec 27, 2021
Sistem Operasi: Linux,Windows Server 2016 64bit,Windows Server 2019
BMC Restore Default Setting utility
Version : 1.0
0.15 MB
Mar 17, 2020
Sistem Operasi: Ubuntu
Firmware
Deskripsi
Versi
Ukuran
Tanggal
BMC Firmware with embedded GIGABYTE Management Console
(AST2500 AMI)
(AST2500 AMI)
Version : 12.61.21
105.38 MB
Apr 11, 2024
Bahasa Inggris
Manual
Deskripsi
Versi
Ukuran
Tanggal
User Guide - GIGABYTE Management Console (AMI)
Version : 1.0
14.16 MB
Jun 10, 2020
Bahasa Inggris
Deskripsi
Versi
Ukuran
Tanggal
RESOURCES
Success Case
Articles
Video
News
Security & Technical Advisory
Others
Back to G241-G40
