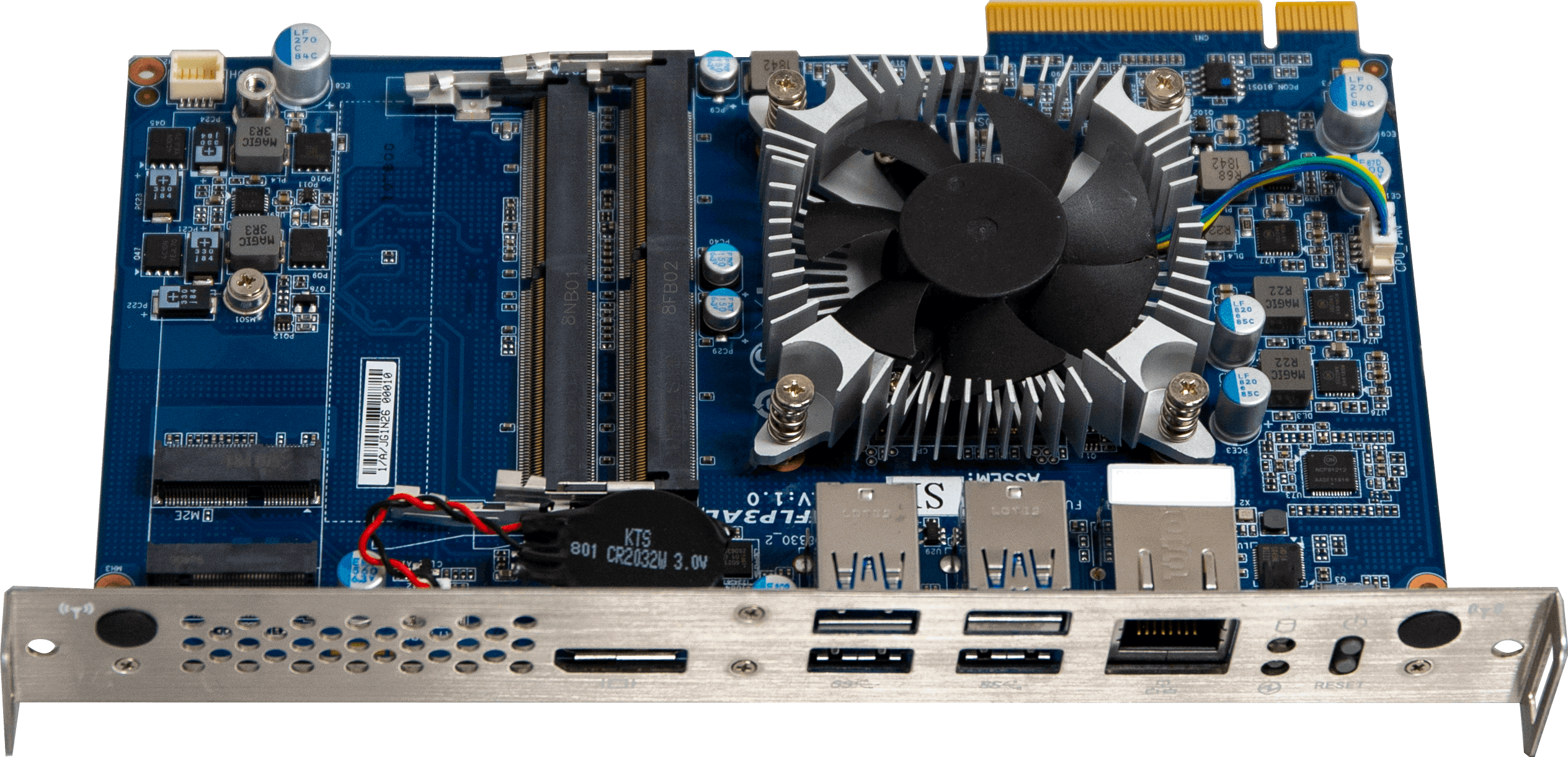

SDM-7300L | Embedded Computing - GIGABYTE Indonesia

7th Generation Intel® Core™ Processor

Intel's blazing fast, feature packed processor family with built-in security is ready to take your productivity, and creativity to the next level. And, by enabling new exciting Windows 10 features, the 7th generation Intel Core processors empower you to unleash your imagination and explore the possibilities.
M.2 Onboard Connector

Providing users PCI-Express connectivity for SSD devices. Delivering up to 10 Gbps data transfer speeds, M.2 offers users considerably faster storage performance than current mSATA and even SATA Revision 3 6Gbps storage devices.
SuperSpeed USB 3.0

With superfast transfer rates of up to 5 Gbps, users are able to experience a theoretical 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users of long term use of their legacy USB 2.0 devices.
Display Port Support

Selected GIGABYTE motherboards feature DisplayPort, a next generation graphics display interface that delivers up to 10.8 Gbps of bandwidth over standard cables, providing billions of colors with the fastest refresh rates and the greatest color depths.
High-Definition Everywhere

HDMI is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.

* Semua bahan yang tersedia disini adalah hanya untuk referensi. GIGABYTE berhak merubah atau merevisi isi sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
* Semua logo dan merek dagang adalah hak cipta dari masing-masing pemegangnya.
* Sehubungan dengan rancangan standar PC, sebagian jumlah memori dicadangkan untuk penggunaan sistem sehingga ukuran memori yang sesungguhnya lebih kecil dari yang disebutkan.

SPECIFICATIONS

Form Factor

SDM-Large
175W x 100D (mm)

Operating Properties

Operating temperature: 0°C to +55°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to +85°C
Non-operating humidity: 0%-95% (non-condensing)

CPU

Intel® Core™ i5-7300U Processor
14nm, 2 cores, 4 threads, up to 3.5 GHz
Intel® vPro support, TDP 15W

Memory

2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB
Support Dual Channel DDR4 2133 MHz memory modules

LAN

1 x GbE LAN Port (Intel® I219LM)

Video

Integrated Graphics Processor - Intel® HD Graphics 620 support:
1 x HDMI 2.0 port (SDM), supporting a maximum resolution of 4096x2160 @60Hz
1 x DP port (Rear/SDM), supporting a maximum resolution of 4096x2160 @60Hz
(2 independent display outputs)

Audio

Intel® Integrated Audio

Expansion Slots

1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)
1 x 2230 M.2 E-key (WiFi/BT)

Rear I/O

1 x Display Port
1 x RJ45 LAN Port
4 x USB 3.2 Gen 1
1 x PWR LED
1 x HDD LED
2 x External Antenna Holes (Optional)
1 x Reset button
1 x Power button

OS Supported

Windows 10 (x64)

Packaging Content

Carton size: 465 x 351 x 217 (mm)
Packing Capacity: 10pcs

Including:
Screw Kit with #0 ZIPLOCK BAG SCREW-BIND M3.0*L5.0 NI x 2pcs (P/N: 25KSD-130053-S0R)

Ordering Information

9MFLP5ALMR-SI (Box packing)
