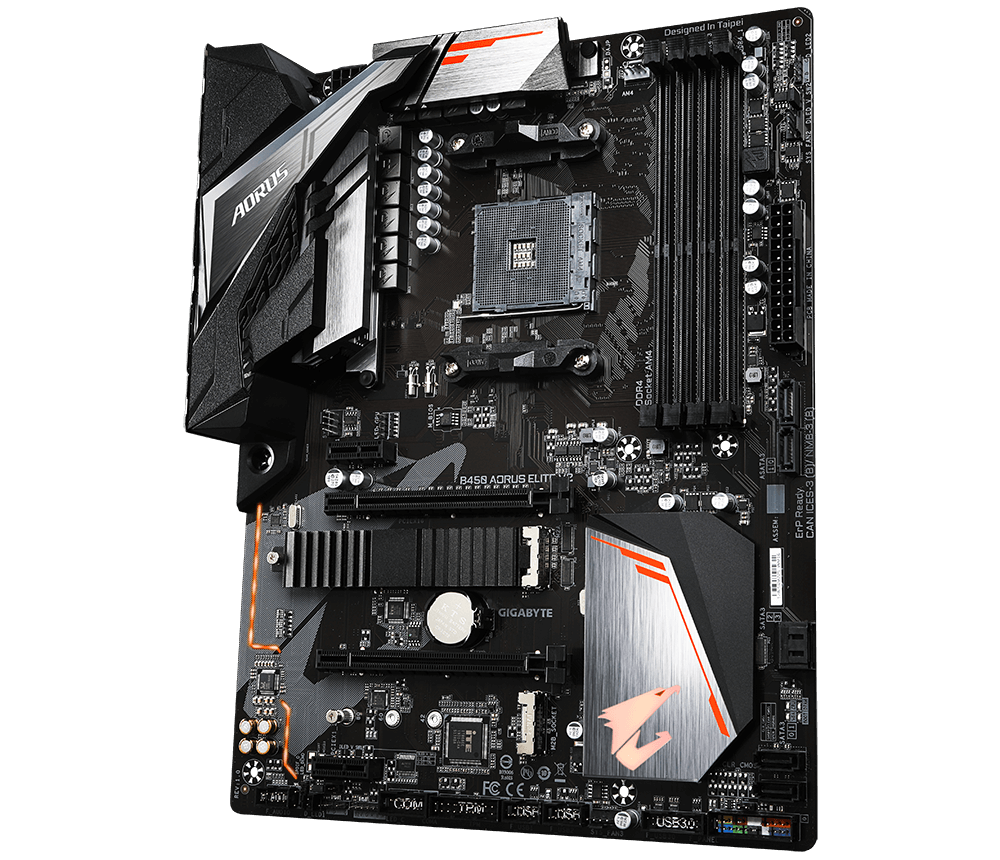

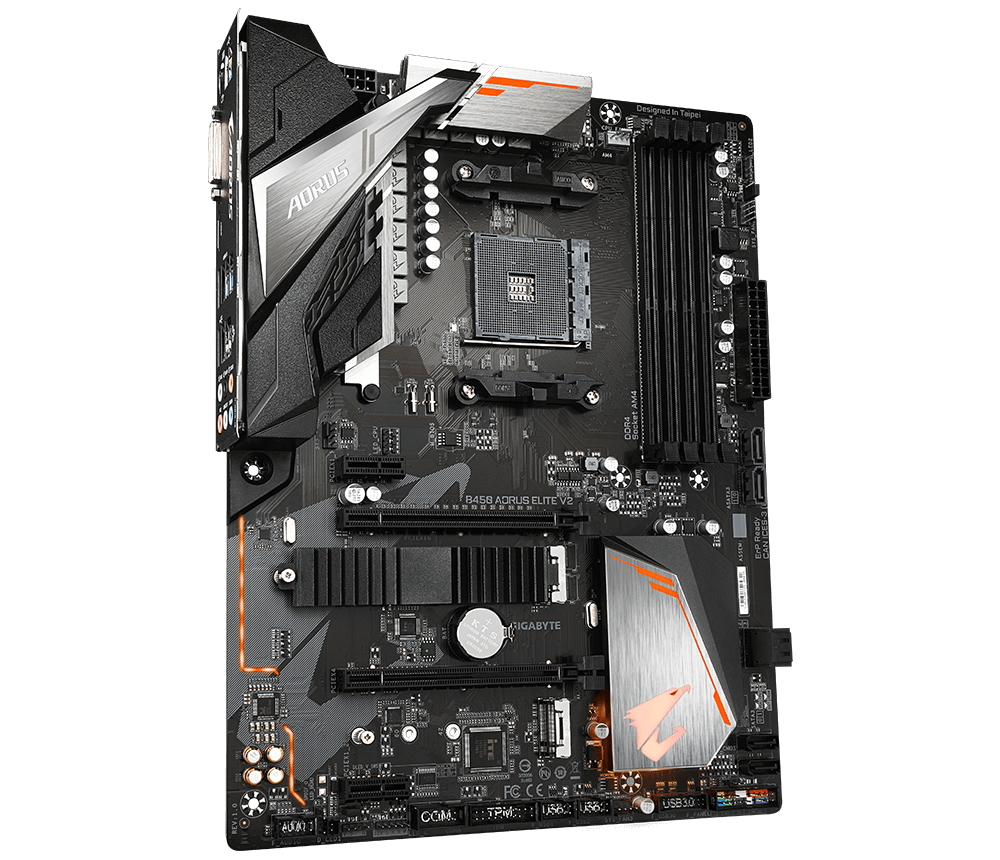

AMD B450 AORUS Alaplap 8+2-Fázisú Digitális Kettős Tápellátási Dizájnnal, Dupla M.2 Egy Thermal Guard Pajzzsal, Realtek GbE LAN vezérlő Sávszélesség-menedzsmenttel, RGB FUSION 2.0, CEC 2019 Ready

  • Támogatja az AMD Ryzen™ 5000 Sorozatú / Ryzen™ 5000 G-Sorozatú/ 3. Generációs Ryzen™/ 2. Generációs Ryzen™/ 1. Generációs Ryzen™/ 2. Generációs Ryzen™ with Radeon™ Vega Graphics/ 1. Generációs Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processzorokat
  • Duplacsatornás nem-ECC-s, puffereletlen DDR4, 4 DIMM foglalat
  • 8+2-Fázisú Digitális Twin Power Tápellátási Dizájn Low RDS(on) MOSFET-ekkel
  • HDMI, DVI-D Portok a többkijelzős működéshez
  • Integrált I/O Shield hátlap Ultra Durable™ Dizájnnal
  • Dupla Ultragyors NVMe PCIe Gen3 M.2 (x4, x2) egy darab Thermal Guard hűtéssel
  • Magas minőségű Audio kondenzátorok és Audio Noise Guard LED Trace Path világíással
  • Realtek GbE LAN with Bandwidth Management
  • Az RGB FUSION 2.0 Támogatja a Címezhető LED- & RGB LED-szalagokat
  • Smart Fan 5 rendszer 6 darab hőmérsékletdiódával és 4 darab 4 Hybrid Fan érintkezővel, FAN STOP technológiával
  • APP Center benne az EasyTune™ és a Cloud Station™ programokkal
  • CEC 2019-Ready, Spórolj a fogyasztással egy kattintásra
SPEC OVERVIEW
AORUS PERFORMANCE
AORUS CONNECTIVITY
AORUS STYLE
AORUS COOLING
AORUS AUDIO
AORUS ULTRA DURABLE
AORUS EXCELLENCE
SPEC OVERVIEW
AORUS PERFORMANCE
AORUS CONNECTIVITY
AORUS STYLE
AORUS COOLING
AORUS AUDIO
AORUS ULTRA DURABLE
AORUS EXCELLENCE
1
DVI-D
2
HDMI
3
USB 3.1 Gen1 Type-A
4
Realtek GbE LAN with Bandwidth Management
5
Audio Noise Guard
6
8-Channel HD Audio
7
High-end Audio Capacitors
8
RGB FUSION 2.0
- Addressable LED Header*2
- RGB LED Header*2
9
8+2 Phases Digital Twin Power Design with Low RDS(on) MOSFETs
10
Dual Channel DDR4, 4 DIMMs
11
Supports AMD Ryzen™ Series Processors
12
Solid Pin Power Connectors
13
M.2 Connector with Thermal Guard
14
SATA3 Connectors
GET READY FOR AMD RYZEN™ 5000 SERIES
GIGABYTE motherboards are ready to support the latest AMD Ryzen™ 5000 Series Processors and are backwards compatible with AMD Ryzen™ 4000, 3000, 2000 and 1000 Series Processors. With a rich list of features on GIGABYTE motherboards such as Ultra Durable™ Armor for PCIe/ memory slots, USB Type-C™ interfaces on select boards, refined audio quality, high speed Ethernet, and the latest standard WIFI design on selected models, GIGABYTE motherboards are perfect for users looking to build the best AMD platform systems.
AMD Ryzen™ 5000, 4000, 3000, 2000, 1000 Series Compatible
AMD StoreMI technology
GIGABYTE 400-series maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.

The benefits of AMD StoreMI:
• Making the PC experience fast, smooth and easy
• Optimizing computer responsiveness from system boot to application launch
• Offering SSD performance with HDD capacity at an affordable cost
• Quickly accessing key files by automatically learning users' computing behaviors

Detail information please refer AMD official website: https://www.amd.com/en/technologies/store-mi
AORUS PERFORMANCE
8*+2 Phases Digital Twin Power Design with Low RDS(on) MOSFETs
B450 AORUS ELITE V2 motherboard use a 8+2 phases Digital Twin Power Design with Low RDS(on) MOSFETs to support the 3rd Gen AMD Ryzen™ CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.
* 4+4 phases parallel power design
Benefits of Lower RDS(on) MOSFETs
‧ Optimized gate charge to minimize switching losses.
‧ Lower temperature, smaller size, better thermal characteristics.
Dual NVMe M.2 PCIe SSDs in RAID

Extreme Performance with NVMe PCIe Gen3 x4, x2 SSDs
With Dual M.2s available on the AORUS 400-series motherboards, configuring RAID Arrays has never been simpler.
AORUS M.2 Thermal Guard
GIGABYTE Ultra-Efficient M.2 Thermal Guard
With durability in mind, GIGABYTE provides a thermal solution for M.2 drives. The M.2 Thermal Guard prevents throttling and bottlenecks from M.2 devices as it helps to reduce and dissipate heat before it becomes an issue.
Thermal Throttling As Temperature Rises
Learn more about AORUS PERFORMANCE
Immersive VR
Gaming Experience

> VR requires more performance than Full HD graphics for a steady 90FPS or greater.
> Only Gaming PCs can provide the best VR experience.

Recommended configuration for VR Gaming PC*
■ Graphics Card: NVIDIA GTX 1050 / AMD R9 290 or greater, Compatible HDMI 1.4 video output
■ CPU: AMD Ryzen™ 7 series processor
■ Motherboard: GIGABYTE AMD X470 / B450 motherboards
■ Memory: 8GB RAM or greater
■ USB Ports: 3x USB 3.0 ports plus 1x USB 2.0 port or greater
■ OS: Windows 10 64-bit or newer
*Please check VR vendor website for full system requirements.

Any copyrighted images or trademarks displayed are the property of their respective owners and are shown for reference purposes only. Reference herein does not constitute or imply affiliation or endorsement of Gigabyte products by the respective trademark owners. VR Gaming photo for reference only.

AORUS CONNECTIVITY
Realtek GbE LAN with Bandwidth Management
Realtek Gigabit LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
AORUS STYLE
RGB Fusion 2.0 with Digital LEDs Support

With AORUS Motherboards, RGB Fusion 2.0 is even better with Digital LEDs.* RGB Fusion 2.0 offers users the option to control onboard RGB and external RGBW / Digital LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion 2.0 on AORUS Motherboards are now upgraded with Digital LED support. With external digital LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.

AORUS Gaming Motherboards will support either 5v or 12v digital LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Digital LEDs comes with 9 new patterns and various speed settings with more to come.

* Digital LEDs are available only on select Motherboards, external LED Strips, Digital LED Strips are not included with Motherboard purchase.

Multi-Zone Light Show Design
Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard.
Note: Lighting effects depicted are for demonstration purposes only. Actual lighting effects may vary by model.
Supports RGBW & UV Light Strips
Independently Programmable Onboard Pin Header for RGBW/UV LED Strips

Not bright enough? You can install standard 12V external RGB, RGBW or RGB/UV light strips on the RGBW pin header and control its color from the RGB Fusion software. Using a RGBW light strip with a dedicated white LED, users will experience brighter and more vibrant shades of colors.

RGBW Pin Header Support True White and RGB/UV LED Strips
RGB/UV Color
RGB/UV light strips can illuminate your PC with a fluorescent glow. With UV reactive cables, paint or liquid your PC can radiate with a luminous glow.
True White Color
RGBW light strips can produce a pure white color instead of mixing R/G/B to produce an inaccurate white.
Richer Color
With dedicated white LEDs, light strips can produce a richer and brighter color on the color scale.
RGB Calibration
Different light strips sometimes have different RGB pin definitions, RGB Fusion software can relocate each pin location for the best compatibility.
RGB Fusion 2.0 Software
RGB Fusion APP
RGB Fusion 2.0 Ready
With an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.
Sync with one click
Individual control as you wish

GIGABYTE RGB Fusion APP

Don't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app users can watch as they control the lighting within their gaming PC. This gives users ease of access as they try and adjust colors and speeds for different modes, all this can be achieved away from the keyboard and monitor of their PC.

With a dazzling array of products supported, RGB Fusion 2.0 is the software that brings it all together, letting your accessories synchronize to the same beat. Customize all your LEDs how you like — have them match, dazzle and impress. Learn more about RGB Fusion 2.0
AORUS COOLING
Smart Fan 5

With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

Fan Pin Headers
Internal Temperature Sensors
Different models have different number of fan pin headers and temperature sensors. Smart Fan 5 function may vary by model.
6 Temperature Sensors
4 Hybrid Fan Headers
■ 4 Fan Pin Headers
■ 6 Temperature Sensors
■ All Fan Pin Headers Upgraded to Hybrid Fan Headers
■ Supports High Current Fans up to 24W(2AX12V) with Over-Current Protection
■ Intuitive UI for Fan Control

Achieve fan silence. With Fan Stop map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.

Intelligent Fan Control Design

Hybrid Fan Pin Headers

Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate through the Hybrid Fan Pin Headers—giving you absolute mastery over your PC.
All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.


New Smart Fan 5 Software
Interoperable Sensors and Fans
Each fan can be customized to operate at different speeds according to any defined temperature source input (except the CPU fan).
AORUS AUDIO
High Quality Onboard Audio Design

Delivers high quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.

The below photos are for reference only.

  • Audio Noise Guard with
    LED Trace Path Lighting
  • High-End Audio Components
AORUS ULTRA DURABLE
Integrated I/O Shield Armor
Durable Design And Easy Installation
With an integrated I/O shield, building a GIGABYTE Ultra Durable PC is even easier and convenient. Users can expect excellent durability with the durable design of the pre-installed I/O shield.
Solid Pin Power Connectors
Make Good Connection and Significantly Lower the Wires Capacity
AORUS 400-series motherboards feature solid plated ATX 24pin & ATX 12V 8pin power connectors for offering stable power supply while CPU overloading.
Solid Pin Power connector advantages
  1. Larger contact area for electricity
  2. More metal quantity to sustain higher power and generated heat
  3. Ultra durable and longer lifespan
GIGABYTE Patented Double Locking Bracket
Learn more about AORUS ULTRA DURABLE

START SULFURIZATION PROTECTION

Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

Diagnostic LEDs
Hardware Troubleshooting at a Glance
Onboard LEDs controlled by the system BIOS indicate if a malfunction is occurring, allowing users to quickly diagnose which major component (CPU/DDR/VGA/HDD) is malfunctioning so they may take action promptly.

* Photo for reference only.
AORUS EXCELLENCE
GIGABYTE Applications
APP CENTER
EasyTune
@BIOS
System Information Viewer
APP CENTER
GIGABYTE APP CENTER is an useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep you updated with latest utilities and drivers version.

EasyTune™
GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

@BIOS
The GIGABYTE @BIOS app allows you to update your system’s BIOS from within Windows using a simple and slick graphical user interface. @BIOS can automatically download the latest version from the GIGABYTE servers or you can update your BIOS from a file on your computer. @BIOS also allows you to save your current BIOS to a file, recover your previous BIOS from an image and backup your BIOS to an image.

System Information Viewer
GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.

CEC 2019 Ready

Save the power as easy as one click
CEC Requirement : PC power consumption must be under a certain level when it's in off mode, idle mode, stand-by mode. With high power efficiency hardware components and fine tuned BIOS, GIGABYTE motherboards can achieve lower power consumption under idle mode and fully comply with new CEC 2019 (California Energy Commission) power consumption requirement.
4K Ultra HD Support

4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated AMD Radeon® Graphics via HDMI.

HDMI™ - The Next Generation Multimedia Interface

HDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.


* A HDMI, a HDMI High-Definition Multimedia Interface és a HDMI Trade dress kifejezések, valamint a HDMI emblémák a HDMI Licensing Administrator, Inc. védjegyei vagy bejegyzett védjegyei.
* Product specifications and product appearance may differ from country to country. We recommend that you check with your local dealers for the specifications and appearance of the products available in your country. Colors of products may not be perfectly accurate due to variations caused by photographic variables and monitor settings so it may vary from images shown on this site. Although we endeavor to present the most accurate and comprehensive information at the time of publication, we reserve the right to make changes without prior notice.
