Engineered for high-performance computing needs
AORUS Gen4 5000E SSD
Level up your gaming experience
Built with a high-quality controller and 3D TLC NAND flash, AORUS Gen4 5000E SSD delivers up to 5,000MB/s sequential read and 4,600MB/s sequential write performance. By utilizing Host Memory Buffer technology, the SSD controller can access the host DRAM without performance loss. As for features, AORUS Gen4 5000E SSD supports TRIM, SMART, and Over-Provision technologies to improve the reliability and durability of SSDs. AORUS Gen4 5000E SSD allows users to enjoy a smoother and faster gaming experience with more power efficiency.
  • + PCIe 4.0 x4, NVMe 1.4 interface
  • + Sequential Read Speed : up to 5,000MB/s**
  • + Sequential Write speed : up to 4,600MB/s**
  • + HMB (Host Memory Buffer) supported
  • + TRIM & S.M.A.R.T supported
  • + Energy-efficient
NAND Flash Selected for High Performance
Selected High Speed 3D TLC NAND Flash (1600+ MT/s)
The ultra high speed─1600+ MT/s throughput─3D TLC NAND, are selected by critical criteria, combined with the AORUS Gen4 5000E SSD's firmware optimizations, lead to superior performance.
2X
1600+ MT/s
NAND Flash Speed (MT/s)
Improve efficiency & responsiveness
Equipped with a robust combination of controller and new generation 3D TLC NAND, AORUS Gen4 5000E SSD delivers blazing speeds: up to 5,000 MB/s for sequential read, and up to 4,600MB/s sequential write. Sequential Read performance of PCIe 4.0 SSDs is up to 30% faster than PCIe 3.0 SSDs. AORUS Gen4 5000E SSD puts you in the computing fast lane.
Sequential Read Speed
AORUS Gen4 5000E SSD
General PCIe 3.0 SSD
Performance (MB/s)
5000
3500
Host Memory Buffer (HMB)
The Host Memory Buffer (HMB) feature utilizes the DMA (Direct Memory Access) of PCI Express to allow SSDs to use some of the DRAM on PC system, instead of requiring the SSD to bring its own DRAM.

* HMB feature is only supported by Windows 10 & 11.
Power Saving While Operating
AORUS Gen4 5000E SSD leverages a controller which produces lower power consumption for all the high-performance computing needs. Compared with regular PCIe 4.0 x4 SSD, AORUS Gen4 5000E SSD reduces about 30% power while operating. The power consumption of AORUS Gen4 5000E SSD is notably improved.
Power Consumption (mW)
GIGABYTE CONTROL CENTER (GCC)

GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.
  1. Unified software platform for all Gigabyte supported products
  2. Intuitive user interface for an eased experience
  3. Modularized control components only for installed hardware
  4. Auto update function to keep system up to date and support future products
LEARN MORE

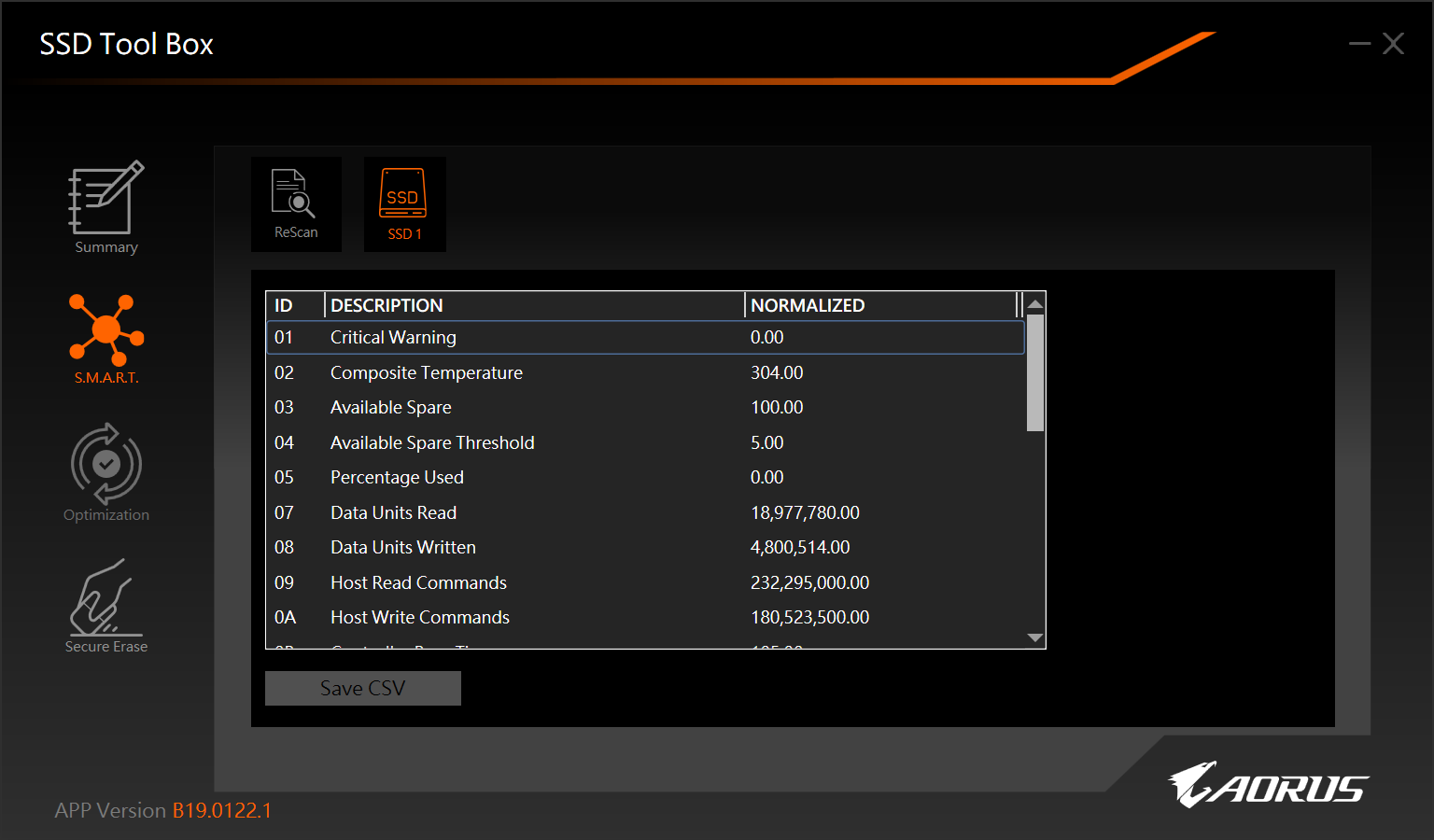

SSD Tool Box
The newly updated SSD Tool Box is a software that gives users an overview of the SSD Status and various aspects such as model name, FW version, health condition and sensor temperature. Moreover, users can clear all the data with the Secure Erase function. You can download the SSD Tool Box from the link.
SSD tool box function may vary by model

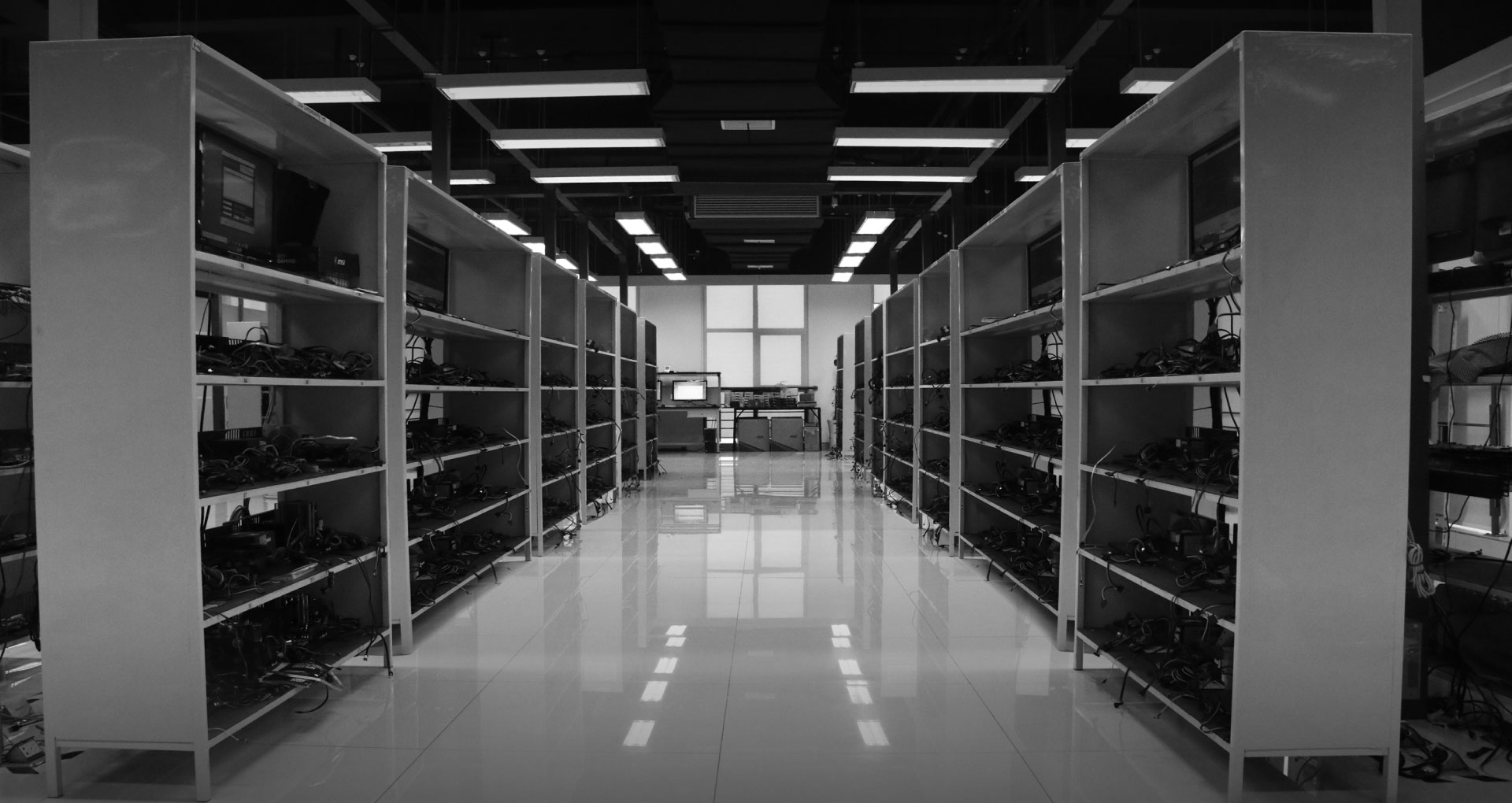

Quality Guaranteed
Extreme Performance
Comes From High Standard Test

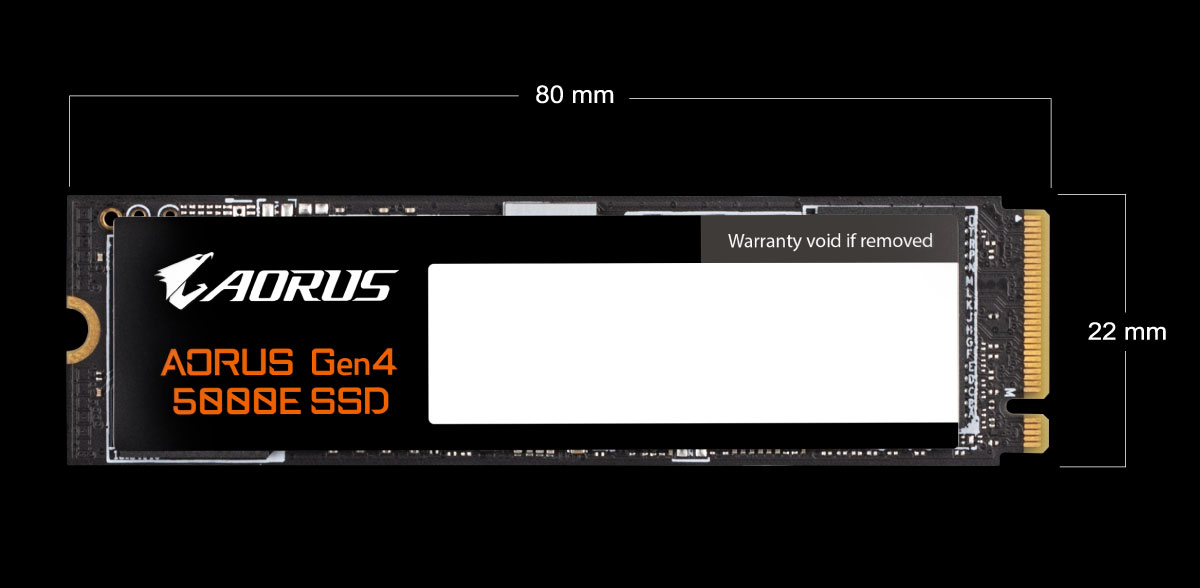

Dimension
AORUS Gen4 5000E SSD
Capacity* Model Sequential Read MB/s**
(Up to)		 Sequential Write MB/s**
(Up to)
500GB AORUS Gen4 5000E SSD 500GB
(AG450E500G-G)
 5,000 MB/s 3,800 MB/s
1000GB AORUS Gen4 5000E SSD 1TB
(AG450E1TB-G)
 5,000 MB/s 4,600 MB/s
1TB (1024GB) AORUS Gen4 5000E SSD 1TB
(AG450E1024-G)
 5,000 MB/s 4,600 MB/s
* Note: 1GB = 1 billion bytes. Real useable capacity may vary by models.
** Speeds based on internal testing. Real performance may vary by models.
Key Feature
  • Form Factor: M.2 2280
  • Interface: PCI-Express 4.0 x4, NVMe 1.4
  • Total Capacity:
    AG450E1TB-G:1000GB*
    AG450E1024-G:1TB (1024GB*)
  • Sequential Read Speed : up to 5,000 MB/s**
  • Sequential Write speed : up to 4,600 MB/s**
  • HMB (Host Memory Buffer) supported
  • TRIM & S.M.A.R.T supported
  • Energy-efficient
  • Warranty: Limited 5-years
*Note: 1GB = 1 billion bytes. Actual useable capacity may vary.
**Speeds based on internal testing. Actual performance may vary.
