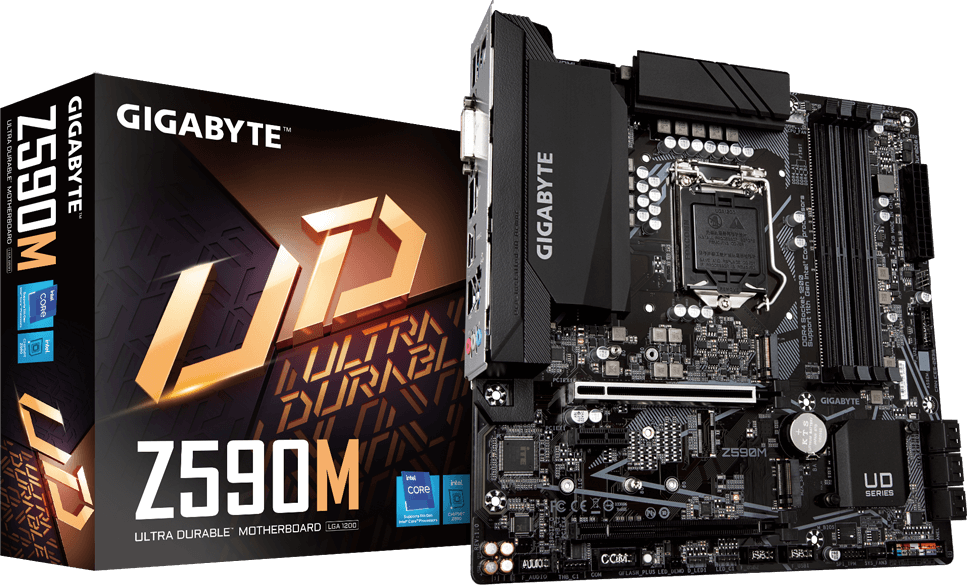

Intel® Z590 Ultra Durable Motherboard with Direct 8+1 Phases Digital VRM and DrMOS, Full PCIe 4.0* Design, Extended Thermal Design with Integrated IO Armor, PCIe 4.0 M.2, Intel® GbE LAN, USB TYPE-C®, RGB FUSION 2.0, Q-Flash Plus

  • Supports 11th and 10th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • Direct 8+1 Phases Digital VRM Solution with 50A DrMOS
  • Shielded Memory Routing for Better Memory Overclocking
  • Enlarged VRM Heatsink with Air-Flow Grooving to increased surface contact
  • Dual Ultra-Fast NVMe PCIe 4.0*/3.0 x4 M.2
  • Intel® GbE LAN with cFosSpeed Internet Accelerator Software
  • USB 3.2 Gen2 and USB Type-C® for Fast and Versatile Connections
  • Pre-installed IO Shield for easy and quick installation
  • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

    • * Actual support may vary by CPU.
OVERVIEW
POWER
PERFORMANCE
CONNECTIVITY
LIGHTING
ULTRA DURABLE
SOFTWARE
OVERVIEW
POWER
PERFORMANCE
CONNECTIVITY
LIGHTING
ULTRA DURABLE
SOFTWARE
1
DisplayPort / HDMI
2
Rear USB 3.2 Gen1 Type-C®
3
Rear USB 3.2 Gen2
4
Intel® GbE LAN
5
Advanced Thermal Design with Integrated IO Armor
6
Full PCIe 4.0 Design
  1. 1*PCIe 4.0 x16 slot
  2. 1*PCIe 4.0 x4 M.2
7
Q-FLASH Onboard Button
8
Solid Pin Power Connector
9
Direct 8+1 Phases Digital Power Design
  1. 50A DrMOS
  2. Premium Choke and Capacitor
  3. 6 Layer PCB
  4. PCIe 4.0 Ready Mid-Loss PCB
10
Supports 11th Gen. Intel® Core™ Processors
11
2* M.2 Connectors
  1. 1*PCIe 4.0 x4 M.2
  2. 1*PCIe 3.0 x4 M.2
12
RGB FUSION 2.0
  1. Addressable LED Header*2
  2. RGB LED Header*2
POWER
8+1 Phases Digital Power Design
Power Architecture
Power Efficiency
Digital PWM
Driver MOSFET
All-solid Capacitor
CPU Power Connector
Direct 8+1 Phases Digital VRM Solution with DrMOS

 Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.
  • Digital PWM Controller to deliver appropriate voltage to the CPU.
  • Direct 8+1 Phases DrMOS without PWM Doublers, each power phase connects directly to the CPU, With capability to handle 400 Amps current in total.
  • All-solid capacitors to improve transient response and minimize oscillation.
  • 8 Solid Pin CPU Power Connector.
Power Design Efficiency
PERFORMANCE
Thermal Design
Smart Fan 6
XMP 4800+
PCIe 4.0 Hardware Design
Hi-End Audio
Advanced Thermal Design with Integrated IO Armor
1. MOSFET Heatsink
Enlarged heatsink surface area improves thermal performance by increasing heat dissipation surface and maintain stylish aesthetic.
2. Grooved for Air-Flow
Grooved for Air-Flow and Increase Total Contact Surface.
3. Thick Thermal Pad
Improved thickness of the thermal pad to 1.5mm, gives superior heat dissipation of MOSFETs.
Full PCIe 4.0* Design
1. PCIe 4.0 M.2 Slot
M.2 PCIe 4.0 x4 slot with lower impedance.
2. 1 x PCIe 4.0 Slot
Reinforced PCIe 4.0 x 16.
3. PCIe 4.0 Ready PCB
Low signal Loss PCB.
* PCIe 4.0 support varies by processor installed, refer product spec for further details.
High-End Audio Capacitors
GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
Audio Noise Guard
GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
CONNECTIVITY
2X PCIe 4.0/3.0 M.2 Slots
Intel® GbE LAN
USB 3.2 Gen1 TYPE-C®
Dual PCIe 4.0/3.0 x4 M.2 Connectors
GIGABYTE Ultra Durable Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their Systems’ potential.
Intel® GbE LAN with cFosSpeed Internet Accelerator Networking
Intel® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.


Connecting the Future - USB Type-C®
The World's Next Universal Connector Reversible USB Type-C® with USB 3.2 Gen1
The USB Type-C® is a new reversible connector that is loaded with useful features such as USB 3.2 Gen1 support for 10Gb/s transfer speed. Powered by the Intel® USB 3.2 Gen1 controller, this little port provides the best USB Type-C® experience possible.
LIGHTING
RGB FUSION
RGB FUSION Software
RGB FUSION APP
RGB FUSION 2.0
With Z590M Motherboard, RGB Fusion 2.0 is even better with Addressable LEDs.* RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion 2.0 on Z590 Series Motherboards are now upgraded with Addressable LED support. With external Addressable LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.

With Z590M Motherboard will support either 5v or 12v Addressable LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come.
* Addressable LEDs are available only on select Motherboards, external LED Strips, Addressable LED Strips are not included with Motherboard purchase.
  • Cycle Color
  • Static
  • Pulse
  • Flash
  • Double Flash
  • Music
  • Random
  • Game
  • Digital A
  • Digital B
  • Digital C
With an integrated intuitive user interface, the RGB Fusion 2.0 provides you a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.
Sync with one click
Individual control as you wish

GIGABYTE RGB Fusion APP
Don't just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app users can watch as they control the lighting within their gaming PC. This gives users ease of access as they try and adjust colors and speeds for different modes, all this can be achieved away from the keyboard and monitor of their PC.
Download the RGB Fusion APP
ULTRA DURABLE
Solid Pin
Q-Flash Plus
Anti-Sulfur
Solid Pin Power Connectors
Z590 motherboards feature solid plated ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.
Solid Pin Power connector advantages
  1. Larger contact area for electricity
  2. More metal quantity to sustain higher power and generated heat
  3. Ultra durable and longer lifespan
START SULFURIZATION PROTECTION

Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.

SOFTWARE
BIOS
APP Center
Easy Tune
System Information Viewer
Refreshed BIOS
The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system. * Photos are for reference only. Product features may vary by model.

APP CENTER
GIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep updated with the latest utilities and drivers version.

EasyTune™
GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

System Information Viewer
GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.
