• Intel® Thunderbolt™ 3 Certified Motherboard
  • Supports 7th / 6th Generation Intel® Core™ Processors
  • Dual Channel DDR4, 4 DIMMs
  • Intel® USB 3.1 with USB Type-C™ - Premier Connecteur Universel Mondial
  • 3-Way Graphics Support with Exclusive Ultra Durable Metal Shielding over the PCIe Slots
  • Dual PCIe Gen3 x4 M.2 Connectors with up to 32Gb/s Data Transfer (PCIe & SATA SSD support)
  • 3 SATA Express Connectors for up to 16Gb/s Data Transfer
  • Compatibilité HDMI 2.0
  • Creative SoundCore™ 3D Gaming Audio
  • Killer™ E2400 and Intel® Gaming Networks
  • LED Trace Path with Multi-Color Choice
  • APP Center Including EasyTune™ and Cloud Station™ Utilities
  • GIGABYTE UEFI DualBIOS™ with Q-Flash Plus USB port


  • Next Generation 40 Gb/s Thunderbolt™ 3
    Thunderbolt™ 3 – The fastest 40Gb/s single-wire connection


    Powered by Intel's own Thunderbolt controller the new Thunderbolt™ 3 protocol, which is available over a USB Type-C™ connector on the back I/O of the GIGABYTE Z170X-Gaming GT, brings an unprecedented single-wire bandwidth of up to 40 Gb/s -- twice more than the previous generation of Thunderbolt! This incredible increase in bandwidth is also accompanied with support for different protocols such as DisplayPort 1.2 and USB 3.1, which is backwards compatible with USB 3.0 and USB 2.0, opening up a world of new possibilities.


  • The Intel® USB 3.1 controller utilizes 4 PCIe Gen3 lanes, offering up to 32 Gb/s total bandwidth, for uncompromised transfer speeds of up to 10 Gb/s per USB 3.1. With twice the bandwidth compared to its previous generation, and backwards compatibility with USB 2.0 and 3.0, the much improved USB 3.1 protocol is available over the new reversible USB Type-C™ and the traditional USB Standard-A connector for better compatibility over a wider range of devices.
    Intel USB 3.1

  • Connecting the Future - USB Type-C™:
    The World's Next Universal Connector
    Reversible USB Type-C™ with USB 3.1
    The USB Type-C™ is a new reversible connector that is loaded with useful features such as USB 3.1 support for 10 Gb/s transfer speed and DisplayPort 1.2 support to connect 4K monitors. Powered by the Intel® controller, this little port is the better USB Type-C™.

    * Display feature may vary by model.


    Connecting the Future - USB Type-C™

  • LED Trace Path with Multi-Color Choices
    Personalize your next PC rig to your liking by selecting the color of your choice to illuminate the LED trace path lighting. A total of 7 colors are available to make your system appearance unique!







    Rear Panel LED
    LED GT / 7
  • GIGABYTE AMP-UP Audio™ Technology
    GIGABYTE motherboard is equipped with the GIGABYTE exclusive AMP-UP Audio Technology, which provides the industry's highest level of onboard audio features and technologies. With GIGABYTE AMP-UP Audio, gamers and audiophiles are able to experience crisp, ultra-realistic sound effects while gaming, and the richest possible sound experience when listening to their favorite music and movies.
    GIGABYTE AMP-UP Audio™ Technology

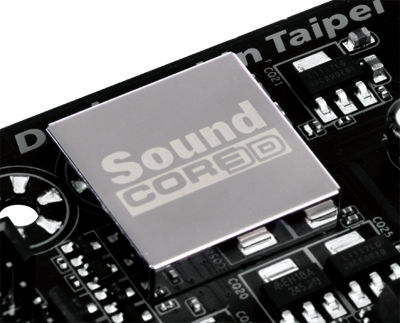

  • Creative® Sound Core3D™ Quad-Core Audio Processor
    Combining world's first Quad-Core Creative Sound Core3D Audio Processor Plus Advanced Creative SBX PROSTUDIO Audio Suite.
    + Harnessing the power of a Dedicated Audio Processor to offload workload from CPU
    + Total solution from Creative (Hardware +Software)
    + Richer overall audio experience

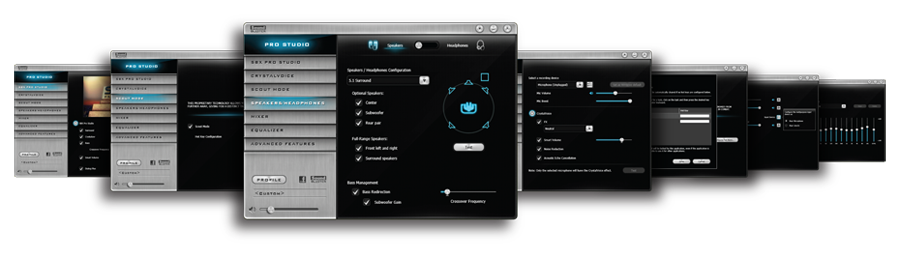

  • Creative SBX Pro Studio™ Audio Suite
    SBX Pro Studio™ suite of audio playback technologies deliver a new level of audio immersion. Realistic surround sound, the ability to clearly hear specific sounds in a gaming environment are just a few elements of SBX Pro Studio that enhances the overall experience, be it movies, games or music.

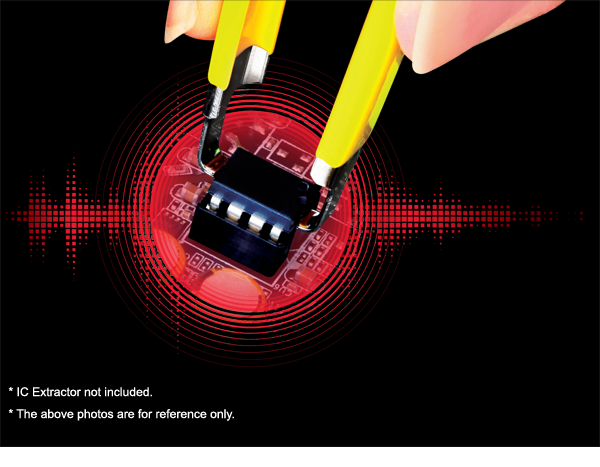

  • GIGABYTE Exclusive : Upgradable OP-AMP
    Customizable
    + Users can choose audio quality based on individual listening preferences.
    + Wide availability of additional OP-AMPs.

    Low Cost way to dramatically improve audio quality
    + Improve audio dynamics and overall sound-quality with little cost.
    + No need for expensive speakers or high-end audio equipment.


    Exclusive onboard 'Gain Boost' selector switches
    + Select either standard 2.5x or high-amplification 6x mode.
    + 6x mode is ideal for high impedance speakers and headphones
    GIGABYTE AMP-UP Audio™ Technology
  • Condensateurs Audio Haut de gamme
    Les cartes mères GIGABYTE G1™ Gaming embarquent des condensateurs Nichicon haut de gamme. Ces condensateurs haut de gamme offrent une excellente qualité audio afin de créer des environnements sonores totalement immersifs.

    High End Audio Capacitors

  • USB DAC-UP


    The above photos are for reference only.

    Clean, low-noise power for your Digital-to-Analog Audio converter

    GIGABYTE USB DAC-UP provides clean, noise-free power delivery to your Digital-to-Analog Converter. DACs can be sensitive to fluctuations in power from the other USB ports, which is why GIGABYTE USB DAC-UP takes advantage of an isolated power source that minimizes potential fluctuations and ensures the best audio experience possible.
  • HDMI 2.0 for 4K/60P/21:9/HDCP 2.2 Support
    HDMI 2.0, which is backwards compatible with HDMI 1.4, offers 18 Gb/s of bandwidth – nearly twice that of the previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), offering the best visual experience for viewers.
    Requires the latest Intel® Graphic Driver from GIGABYTE website.

  • Killer™ E2400 Gaming Network / Intel® Gigabit LAN
    Killer™ E2400 is a high-performance, adaptive gigabit Ethernet controller that offers better online gaming and media performance compared to standard solutions.
    Intel® Gigabit LAN networking, a popular choice with gamers, delivers several performance-enhancing features such as advanced interrupt handling to help reduce CPU overhead and Jumbo Frame support for extra large data packets.
  • Killer Youtube Video

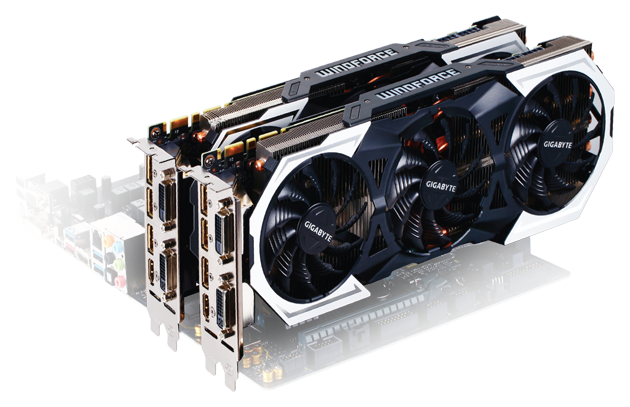

  • 2-Way SLI™/3-Way CrossFire™ Multi-GPU
    La Configuration multi-GPU offre de meilleures performances graphiques pour les amateurs de jeux qui exigent des taux de trame plus élevés sans compromettre la résolution.



    2-Way SLI™/3-Way CrossFire™ Multi-Graphics

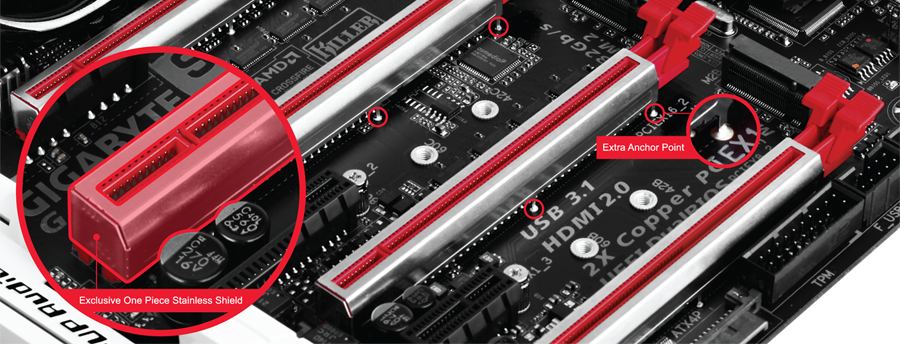

  • Connecteurs PCIe Ultra Durable™ avec Protection Acier
    GIGABYTE assure la durabilité de ses connecteurs PCIe en les protégeant grâce à une couche d’acier inoxydable, permettant l’accueil des cartes graphiques les plus imposantes.


    Industry Leading Ultra Durable™ PCIe Metal Shieldi

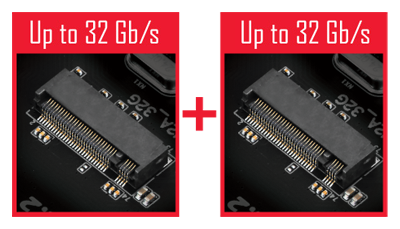

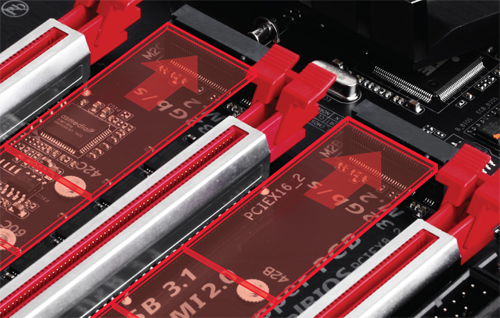

  • Dual PCIe Gen3 x4 M.2
    With two PCIe Gen3 x4 M.2 connectors onboard, GIGABYTE brings to the user PCI-Express connectivity for SSD devices. Delivering up to 32 Gb/s data transfer speed per connector, the dual M.2 provides an ideal storage solution as it also supports RAID modes.

    The above photos are for reference only.

  • Turbo B-Clock:
    Puce de tweaking intégrée

    Grâce à la puce TURBO B-Clock intégrée au cœur de nos cartes mères GIGABYTE, les overclockers auront la chance de pouvoir modifier les fréquences BCLK en toute tranquillité. Les choix de paliers de 90Mhz à 500Mhz sont maintenant accessibles, permettant toujours plus de finesse en éliminant les fameux bridages à 5%.
    Turbo B-Clock

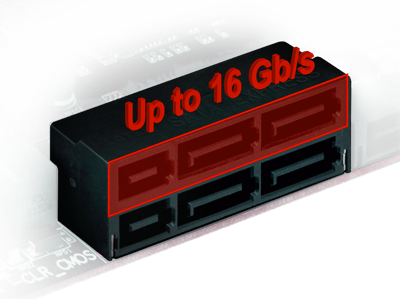

  • Next Generation SATA Express
    SATA Express combines the benefits of PCI Express and SATA to provide much higher bandwidth, featuring data transfer rates of up to 16Gb/s.


    The above photos are for reference only. Features may vary by model.


  • Toute nouvelle interface GIGABYTE APP Center incluant EasyTune™, Cloud Station™ et bien plus encore…

    GIGABYTE EasyTune™ est une interface simple et pratique d’utilisation permettant à tout utilisateur de customiser ses réglages systèmes, par exemple horloges mémoires et tensions, directement depuis Windows. Grâce à Smart Quick Boost, un seul clic sera nécessaire pour automatiquement overclocker votre système pour des performances accrues.


    APP Center

    GIGABYTE APP Center vous permet d’accéder à toutes vos Applications GIGABYTE en un clin d’œil. Grâce à une interface simple et claire, GIGABYTE APP Center vous facilitera l’ouverture de toutes vos applications favorites.

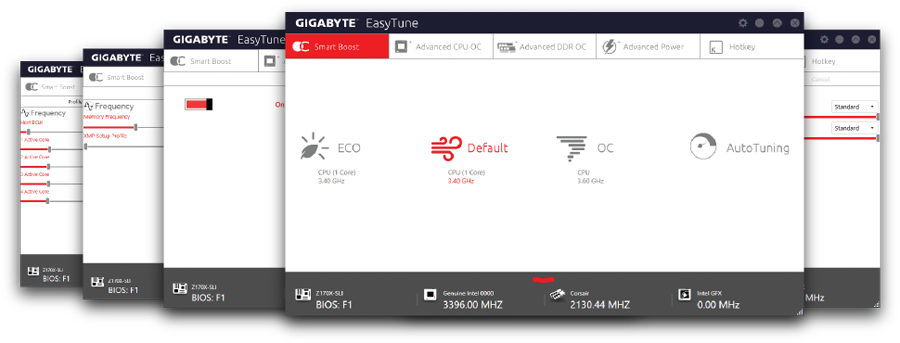

    Easy Tune™
    Boostez les performances de votre système PC grâce à notre utilitaire dédié à l’overclocking.

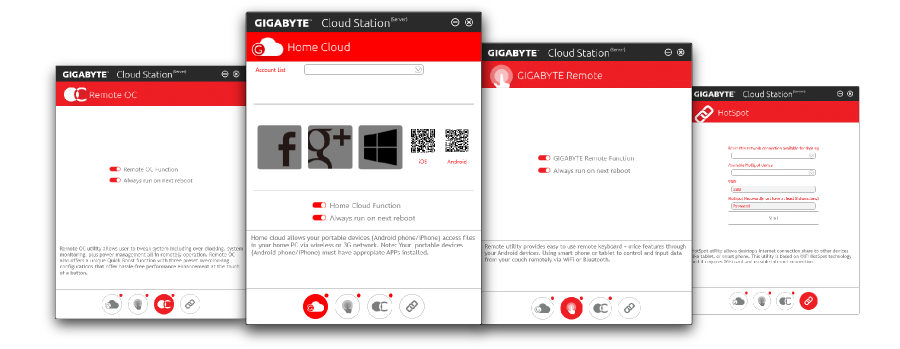

    Cloud Station™
    GIGABYTE Cloud Station™ associe plusieurs innovations GIGABYTE pour vous permettre de contrôler et communiquer avec votre système PC directement depuis votre smartphone ou tablette
    App Center

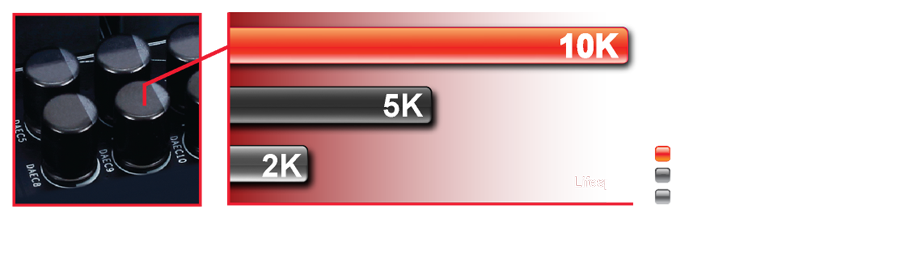

  • Long Lifespan Durable Black™ Solid Caps
    GIGABYTE motherboards integrate the absolute best quality solid state capacitors that are rated to perform at maximum efficiency for extended periods, even in extreme performance configurations. With ultra-low ESR no matter how high the CPU load, this provides peace of mind for end users who want to push their system hard, yet demand absolute reliability and stability. These exclusive capacitors also come in customized jet black, exclusively on GIGABYTE motherboards.





  • Q-Flash Plus
    GIGABYTE Q-Flash Plus allows users to update to the latest BIOS using a thumb drive without the CPU or Memory needing to be installed.

    Updating your BIOS on your GIGABYTE motherboard can be done in a flash – even without memory or CPU onboard. Utilizing the EC Controller, the BIOS on your GIGABYTE Motherboard can now be updated through Q-Flash Plus even if your system is unable to boot. An LED next to the EC controller will notify you once the procedure is complete and you are ready to boot your system normally.

    * USB thumb drive not included.
    Q-Flash Plus

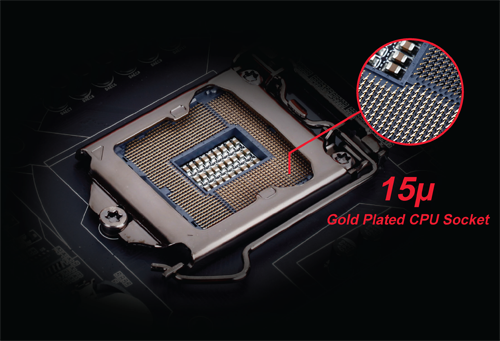

  • 15 Gold Plated CPU Socket Design
    GIGABYTE motherboards come equipped with a 15 micron thick gold plated CPU socket*, which means that enthusiasts can enjoy absolute reliability and longevity for the CPU socket overtime, without having any concerns about corroded pins or bad contacts.

  • Compatibilité 4K Ultra HD
    Les résolutions 4K sont le nouveau standard des configuration vidéo les plus performantes. Avec 4 000 pixels sur l'axe horizontal, soit 4 fois plus que les configurations HD traditionnelles, la technologie 4K est proposée avec nos cartes mères équipées notamment de la puce Intel® HD Graphics et d'une sortie HDMI.
    4K Ultra HD Support
  • HDMI™ - Interface multimédia nouvelle génération
    L'interface HDMI™ est une connectique permettant le traitement de signaux HD avec des bandes passantes de 5Gb/s ainsi que la compatibilité avec des signaux audio 8 canaux au travers d'un câble unique. La connectique HDMI™ permet le décodage des formats 1080p HDCP sans perte de qualité pour une lecture optimale des Blu-ray/HD DVD.
    HDMI
