• Supports 7th / 6th Generation Intel® Core™ Processors
  • Dual Channel DDR4 SO-DIMM, 2 DIMMs
  • 2 x RS232 / 422 / 485, 2 x RS232, Digital I/O 4-in/4-out
  • Mini-PCIe Slot for Full / Half-Height WIFI Card Support
  • Mini-PCIe Dual Purpose Slot for mSATA SSD Support
  • LVDS Header for System Integrated Flat Panel Display Support
  • Rear Panel DisplayPort, HDMI 1.4 Ports & D-Sub Header for Multi-Display Connection
  • Amplified Speaker Header Able to Drive Up to 3W System Integrated Speaker
  • Dual Intel® GbE LAN for WOL and PXE Support
  • Features 4 USB 3.0 and 4 USB 2.0 Ports
  • GIGABYTE UEFI BIOS Technology
  • Thin Mini-ITX 170x170mm Form Factor with 12~24V DC-In Power Design
  • Intel® vPro Technology Support
  • GIGABYTE Ultra Durable of Thin Mini-ITX Motherboard

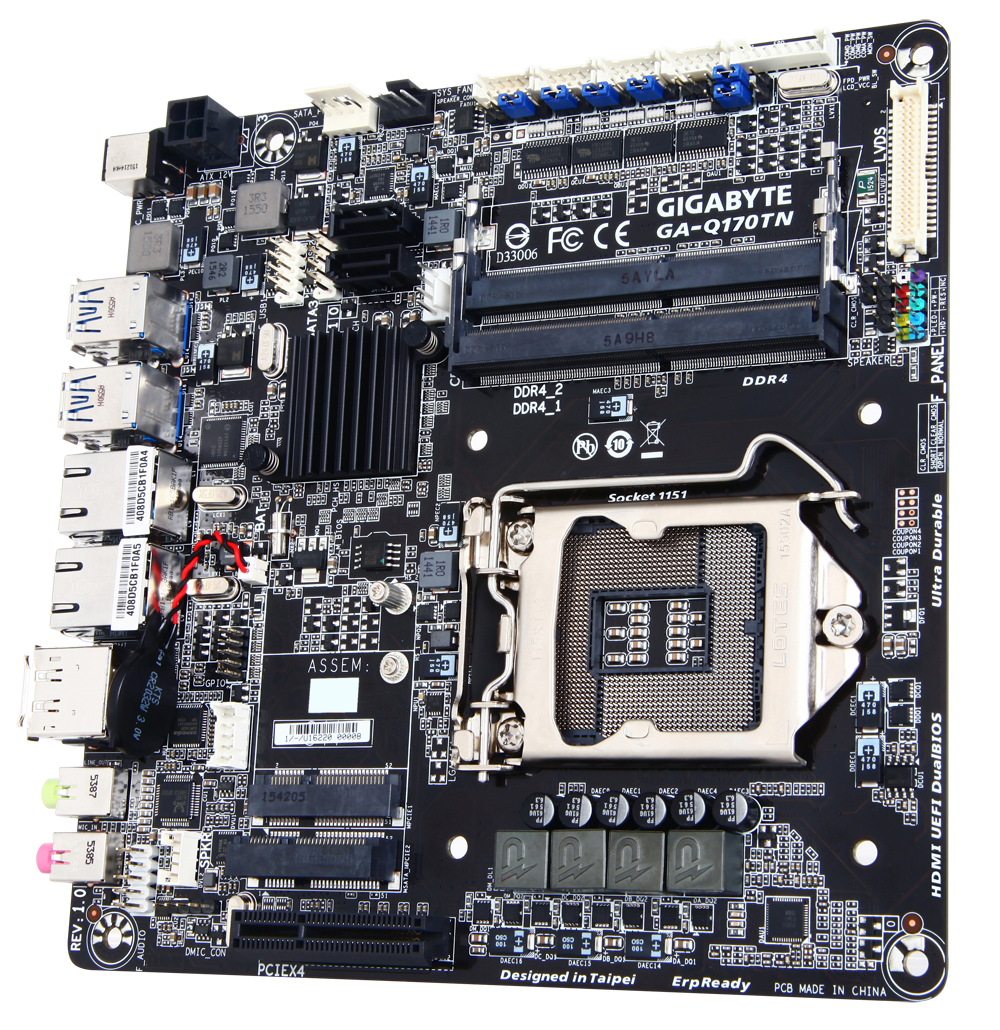

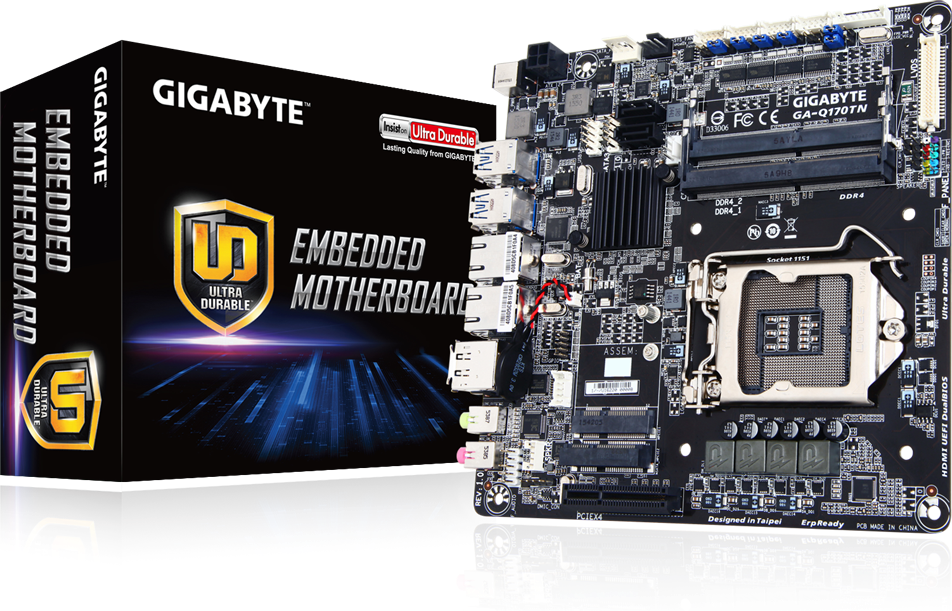

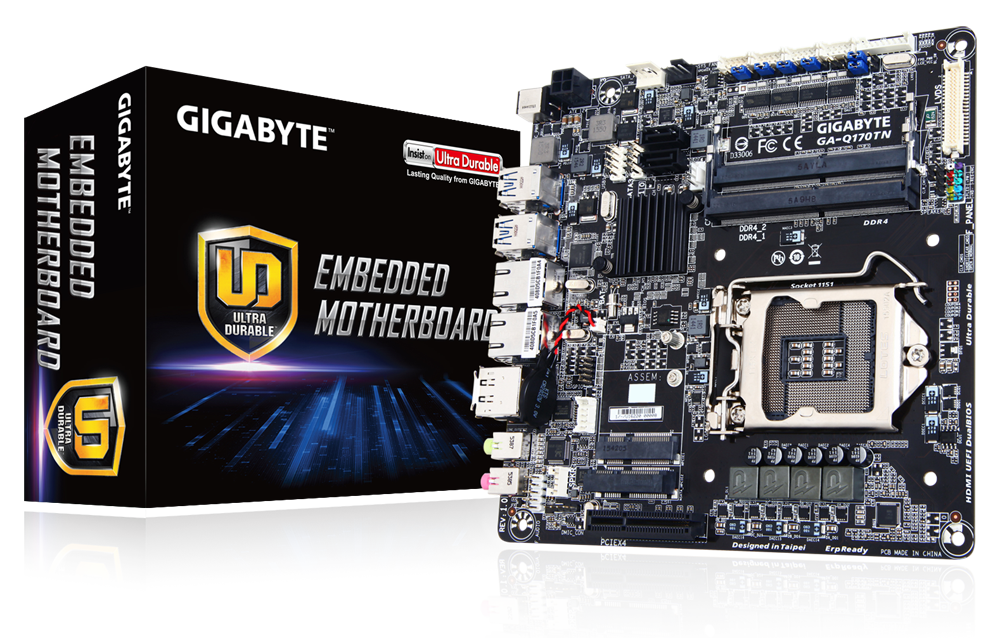

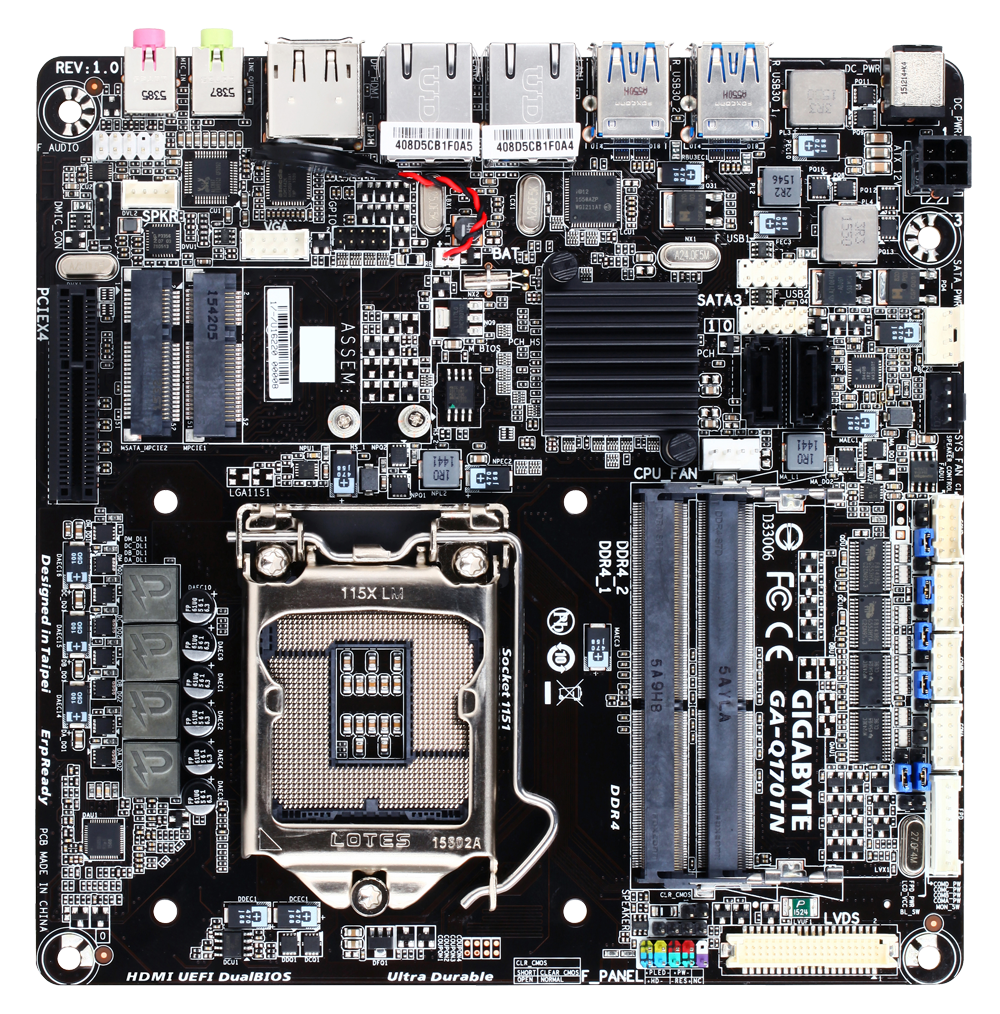

    GIGABYTE Q170 Thin Mini-ITX motherboards support the latest 6th Generation Intel® Core™ processors, a 14nm desktop CPU which features improved performance, power efficiency and support for DDR4 memory, bringing cutting edge features and ultimate performance to your next PC build. Offering an All-in-One, small form factor and slim profile PC experience, GIGABYTE Q170 Thin Mini-ITX motherboards are 43% thinner than traditional Mini-ITX designs. Complying with the latest Thin Mini-ITX guidelines, GIGABYTE motherboards offer additional flexibility making them suited to broad range of innovative PC designs.
  • Dual Intel® GbE LAN with cFosSpeed
    The Dual Intel® Gigabit LAN with cFosSpeed features advanced technology to help deliver better network responsiveness in crowded LAN environments and allows optimization and improved network performance for specific applications, making it a popular choice amongst gamers.
  • USB 3.0 Ports Onboard
    With superfast transfer rates of up to 5 Gbps, users are able to experience an almost a 10x improvement over USB 2.0. Additionally, backwards compatibility with USB 2.0 assures users legacy USB 2.0 devices will still work.


    * USB 3.0 10x performance is a maximum theoretical value.
    Actual performance may vary by system configuration.

  • High Definition Digital Outputs
    Enjoy true HD display capability using the most commonly integrated digital output technologies on today’s HD displays and TVs.
     * Support for up to 2 displays at the same time.
  • 4K Ultra HD Support
    4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel® HD Graphics via HDMI.
  • HDMI™-The Next Generation Multimedia Interface
    HDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.
  • Support Display Port
    Notre référence supporte la norme Display Port offrant une bande passant de 10.8 Gbps.
  • Low Power Loss - Ferrite Core Choke Design
    Ferrite core chokes comprised of a compound of iron oxide and other metal elements whose properties hold energy much longer than common iron core at high frequency.

    Low Power Loss

  • Intel® vPro™ Technology
    Intel® vPro™ technology is a set of security and manageability capabilities built into Intel® Core™ processor family, Intel® chipsets, and network adapters which can simplify and accelerate critical IT functions...more
  • INTEL® SMALL BUSINESS ADVANTAGE
    With 6th Generation Intel® Core™ Processor
    Hardware-enhanced Security and Productivity Solution with built in IT
    Combination of Firmware and Software usages in one intuitive Customizable UI


* Les termes HDMI, interface multimédia haute définition HDMI et habillage commercial HDMI, et les logos HDMI sont des marques commerciales et des marques déposées de HDMI Licensing Administrator, Inc.
* Les informations ici proposées le sont pour référence uniquement. GIGABYTE se réserve le droit de modifier ce contenu à tout moment et sans préavis.
* Marques et logos appartiennent aux détenteurs respectifs de leurs droits.
* L'architecture de grand nombre de PC affectera directement la capacité mémoire, en effet, une certaine quantité de RAM sera affectée au système, la quantité totale affichée pourra alors varier de celle insérée sur votre carte mère
