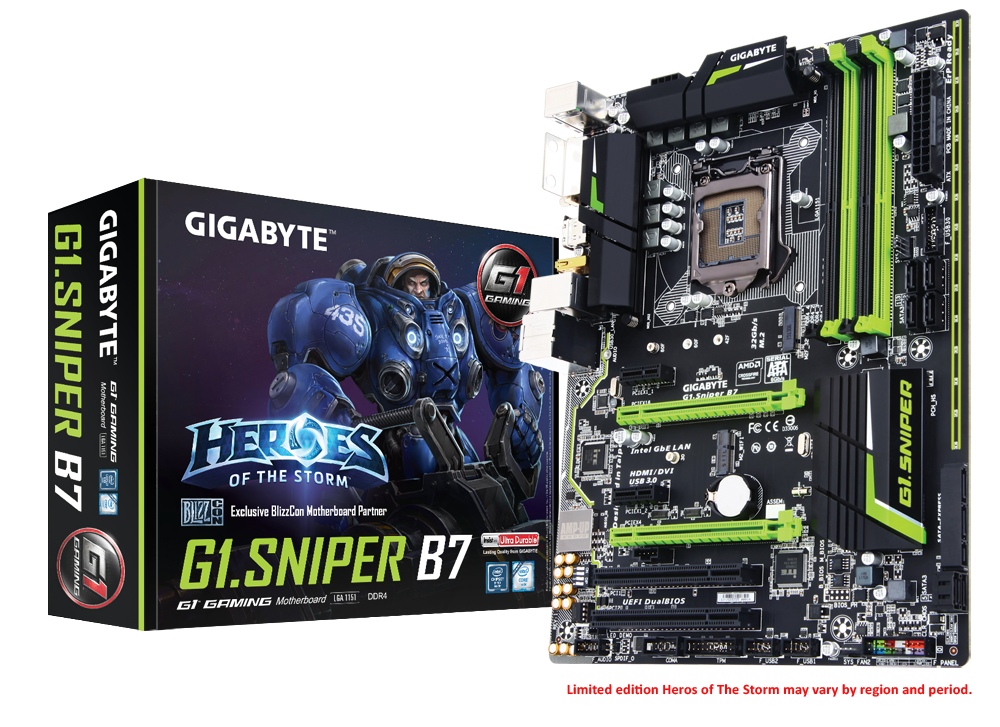

• Supports 7th / 6th Generation Intel® Core™ Processors
  • Dual Channel DDR4, 4 DIMMs
  • 2-Way Graphics with Premium PCIe Lane
  • PCIe Gen3 x4 M.2 Connector with up to 32Gb/s Data Transfer (PCIe & SATA SSD support)
  • SATA Express Connector for up to 16Gb/s Data Transfer
  • 115dB SNR HD Audio with Built-in Rear Audio Amplifier
  • 8-channel HD Audio with High Quality Audio Capacitors
  • Audio Noise Guard with Ambient LED Trace Path Lighting
  • Intel® GbE LAN with cFosSpeed Internet Accelerator Software
  • Triple USB DAC-UP ports
  • APP Center Including EasyTune™ and Cloud Station™ Utilities
  • GIGABYTE UEFI DualBIOS™ Technology
  • Support Intel® Small Business Basics
  • Realtek ALC1150 115dB SNR HD Audio
    The ALC1150 is a high-performance multi-channel High Definition Audio Codec that delivers an exceptional audio listening experience with up to 115dB SNR, ensuring users get the best possible audio quality from their PC.

    The ALC1150 provides ten DAC channels that simultaneously support 7.1-channel sound playback, plus 2 channels of independent stereo sound output (multiple streaming) through the front panel stereo outputs. Two stereo ADCs are integrated and can support a microphone array with Acoustic Echo Cancellation (AEC), Beam Forming (BF), and Noise Suppression (NS) technologies. The ALC1150 incorporates Realtek proprietary converter technology to achieve Front differential output 115dB Signal-to-Noise ratio (SNR) playback (DAC) quality and 104dB SNR recording (ADC) quality.

    Realtek ALC1150 115dB SNR HD Audio
  • GIGABYTE Exclusive : Upgradable OP-AMP
    Customizable
    + Users can choose audio quality based on individual listening preferences.
    + Wide availability of additional OP-AMPs.

    Low Cost way to dramatically improve audio quality
    + Improve audio dynamics and overall sound-quality with little cost.
    + No need for expensive speakers or high-end audio equipment.


    Exclusive onboard 'Gain Boost' selector switches
    + Select either standard 2.5x or high-amplification 6x mode.
    + 6x mode is ideal for high impedance speakers and headphones
    GIGABYTE Exclusive : Upgradable OP-AMP
  • High End Audio Capacitors
    GIGABYTE G1™ Gaming motherboards use high end, Japanese branded Nichicon audio capacitors. These professional audio capacitors deliver the highest quality sound resolution and sound expansion to create the most realistic sound effects for professional gamers.

    High End Audio Capacitors


  • USB DAC-UP


    The above photos are for reference only.

    Clean, low-noise power for your Digital-to-Analog Audio converter

    GIGABYTE USB DAC-UP provides clean, noise-free power delivery to your Digital-to-Analog Converter. DACs can be sensitive to fluctuations in power from the other USB ports, which is why GIGABYTE USB DAC-UP takes advantage of an isolated power source that minimizes potential fluctuations and ensures the best audio experience possible.
    USB DAC-UP
  • 2-Way CrossFire™ Multi-Graphics
    Multi-graphics configuration offers better graphics performance for gaming enthusiasts who demand the highest frame rates without compromising on resolution.


    2-Way CrossFire™ Multi-Graphics
  • Intel® GbE LAN with cFosSpeed
    Intel® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency, maintaining low ping times to deliver better responsiveness in a crowded LAN environments.

  • Fast Onboard Storage with 32Gb/s M.2
    GIGABYTE M.2 solution offers considerably faster storage performance and support for both PCIe and SATA interface for M.2 SSD devices.

    Fast Onboard Storage with 32Gb/s M.2
  • Next Generation SATA Express
    SATA Express combines the benefits of PCI Express and SATA to provide much higher bandwidth, featuring data transfer rates of up to 16Gb/s.

    The above photos are for reference only.
    Next Generation SATA Express
  • Ambient LED
    GIGABYTE motherboards feature LED lighting for the audio guard path, providing a cool, custom look to your rig. Not only does the Audio Noise Guard protect the board's sensitive analog audio components, but its LEDs can also be programed to beat at the rhythm of the music you are listening to, or pulse at a soothing pace to create a great atmosphere to enhance the environment of your game, movie or music.


    Ambient LED
  • Gold Plated CPU Socket Design
    GIGABYTE motherboards come equipped with a gold plated CPU socket, which means that enthusiasts can enjoy absolute reliability and longevity for the CPU socket overtime, without having any concerns about corroded pins or bad contacts.
    Gold Plated CPU Socket Design
  • All New GIGABYTE App Center Including EasyTune™, Cloud Station™ Utilities and More...
    GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

    APP Center
    GIGABYTE APP Center gives you easy access to a wealth of GIGABYTE APPs that help you get the most from your GIGABYTE motherboard. Using a simple, unified user interface, GIGABYTE APP Center allows you to launch all GIGABYTE APPs installed on your system.


    Easy Tune™
    Get the highest levels of performance from your PC with easy to use GIGABYTE overclocking features.

    Cloud Station™
    GIGABYTE Cloud Station™ is composed of several GIGABYTE unique apps that allow your smart phones/tablet devices to communicate, share resources, and control your desktop PC via a wireless connection.

  • GIGABYTE Patented DualBIOS™ (UEFI) Design
    GIGABYTE Ultra Durable™ motherboards feature GIGABYTE DualBIOS™, an exclusive technology from GIGABYTE that protects arguably one of your PC's most crucial components, the BIOS. GIGABYTE DualBIOS™ means that your motherboard has both a 'Main BIOS' and a 'Backup BIOS', making users protected from BIOS failure due to virus attack, hardware malfunction, improper OC settings or power failure during the update process.

  • 4K Ultra HD Support
    4K resolution is the next technological milestone in high-definition content delivery, utilizing approximately 4,000 pixels on the horizontal axis, more than four times today's standard HD pixel density. GIGABYTE motherboards provide native 4K support with integrated Intel® HD Graphics via HDMI.
  • HDMI™ - The Next Generation Multimedia Interface
    HDMI™ is a High-Definition Multimedia Interface which provides up to 5Gb/s video transmitting bandwidth and 8-channel high quality audio all through a single cable. Able to transmit superior, uncompressed digital video and audio, HDMI™ ensures the crispest rendering of digital content up to 1080p without the quality losses associated with analog interfaces and their digital-to-analog conversion. In addition, HDMI™ is compatible with HDCP (High-bandwidth Digital Content Protection), allowing the playback of Blu-ray/HD DVD and other protected media content.
  • INTEL® SMALL BUSINESS BASICS
    With 6th Generation Intel® Core™ Processor
    Security and Productivity Solution with built in IT
    New compelling usages in one intuitive Customizable UI
    INTEL® SMALL BUSINESS BASICS
