1. Supports 800MHz FSB Pentium® 4 Processor with HT Technology
  2. Enhances system performance with DDR 400* memory
  3. Supports AGP 8X interface for outstanding graphics performance
  4. Integrated Ethernet 10/100Mb Network Connection
  5. Integrated high quality 6-channel AC’97 audio
  6. Provides 6 USB 2.0 ports for high-speed connectivity
*Available with 3 DIMM slots supporting up to 3GB of DDR266/DDR333 or 2 DIMM supporting up to 2GB of DDR400 memory
  • Introduction

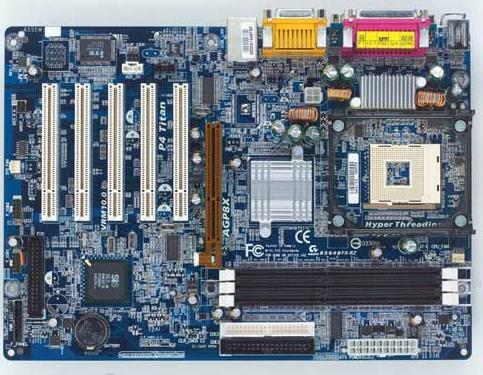

    8S648FX-RZ is designed for high performance Intel® Pentium® 4 platform, especially for the latest 90nm process (Prescott) Pentium® 4 processor with Hyper-Threading Technology. Empowered by the latest SiS 648FX and 963L chipsets, 8S648FX-RZ delivers a new architecture to uplift the system performance. The brand new 800MHz processor bus and DDR400 memory support are provided to unleash the full power of Intel® Pentium® 4 800MHz FSB processors. The AGP 8X graphics interface is built to derive the maximum performance from the most powerful graphics accelerator. The MuTIOL 1G® Technology with 1GB/s bandwidth is applied to speed up the internal traffic between SiS 648FX and 963L chipsets. 8S648FX-RZ also provides a variety of features such as 6 USB2.0 ports, 6-channel audio, 10/100Mbps network connection, and high speed Ultra ATA133 interface. 8S648FX-RZ is designed to provide the new levels of performance and fulfill the requirement for full range of applications now and future.
  • RZ Series Motherboard
    The RZ motherboard series is founded on the motto of Reliability, Real Performance and Right value (Three R's) and is dedicated to providing users with a complete featured platform at affordable price.
  • Ready for Intel 90nm process (Prescott) Pentium® 4 processor
    This platform is ready for the latest Pentium® 4 processor (Prescott), built on the new 90 nm technology for levels of performance, stability and productivity higher than ever before.
  • Supports Intel® Pentium® 4 800MHz FSB Processor with Hyper-Threading Technology
    Experiencing the extraordinary computing power of Pentium 4 processor with Hyper-Threading Technology. Enabling the system to multitask more efficiently than ever before when running the most demanding applications at the same time.
  • Superb bandwidth AGP 8X graphics interface
    AGP8X the new generation VGA interface specification that enables enhanced graphics performance with high bandwidth speeds up to 2.12GB/s. With a bus of 533MHz, AGP8X is twice as fast as AGP4X.
  • SiS MuTIOL 1G® Technology
    The new generation SiS MuTIOL 1G® Technology offer the proprietary interconnection between SiS648FX and SiS963L with Bi-Directional 16-bit data bus at 533MHz operating frequency. It provides a bandwidth of 1GB/sec, two times of previous generation, to further speed up the internal traffic of the system.
  • Supports DDR 400/333/266 up to 3GB Memory
    Available with 3 DIMM slots supporting up to 3GB of DDR266/DDR333 or 2GB of DDR400 memory, 8S648FX-RZ provides the highest performance platform with the high-bandwidth (3.2GB/s) mainstream DDR memory solution.
  • Integrated SiS HyperStreaming Engine
    The HyperStreaming Engine, developed for users that have strong needs for bandwidth and speed, optimizes the performance of the entire computer system. It smartly manages the data streaming to flow effortlessly from the peripherals to the core logic chipsets, between the North and South bridge and to the front side bus, memory and graphic interface. This greatly improves the total performance of desktop platform.
  • Great Expandability of 6 USB 2.0 ports
    USB 2.0 interface, with data transfer rate up to 480Mbps, is 40 times faster than USB1.1, providing a faster interface for computer peripherals.
  • Integrated High quality 6-Channel AC97 Audio
    Integrated Realtek ALC662 audio CODEC chip, enabling users to experience the seamless high quality 6-channel audio while watching movies or gaming
  • Ethernet 10/100Mbps Network Connection
    On-board 10/100 Mbps Ethernet LAN connectivity for value-minded users who need straightforward network connectivity.
  • EasyTune(TM) 4 - User Friendly Overclocking Utility
    A user-friendly windows based utility developed by GIGABYTE provides a brand new experience of easily operation and enjoyment for overclocking on your platform.
  • Norton Internet Security(TM) Included
    Norton Internet Security(TM) 2004 is the essential protection from viruses,hackers, and privacy threats. It protects user during the online activities such as e-mailing, shopping, banking, and game playing.
