Ultra Durable 3
Revolutionary Ultra Durable™ 3 technology from GIGABYTE features the industry's firstconsumer desktop motherboard design with 2 oz copper Power and Ground layersfordramatically lower system temperature,improved energy efficiency and enhanced stability for overclocking.


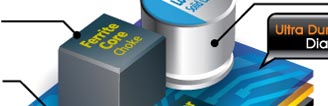

Ferrite Core
Choke

 Japanese Solid Capacitor

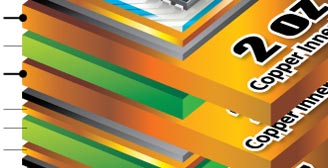

2 oz Copper
Inner Layer
Lower RDS(on)
MOSFET

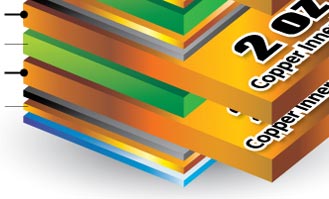

Signal Layer
Power/Ground
layer ( 2oz )
Core
Power/Ground
layer ( 2oz )
Signal Layer
Core
Signal Layer
Ground
layer ( 2oz )
Core
Ground
layer ( 2oz )
Signal Layer

*The above photo is for reference only.





  Benefits of 2 oz Copper PCB


  • Cooler than traditional
    motherboards
     • Enhanced durability
         • Improved energy
             efficiency
                • Greater margins
                    for overclocking
                       • Lower EMI




  2X Lower Impedance

  Impedance Ω Lower is better


  Lower
  Doubling the amount of copper improves power efficiency by reducing circuit impedance by 50% and allowing more bandwidth for electron passage.
  2 OZ Copper PCB
  1 OZ Copper PCB

  Electron
  Electron


In addition, doubling the amount of copper lowers the PCB impedance by 50%. Impedance is a measure of how much the circuit impedes the flow of current. The less the flow of current is impeded, the less amount of energy is wasted. For GIGABYTE Ultra Durable 3 motherboards, this means total PCB electrical waste is reduced by 50%, which also means less heat is generated. 2 ounces of copper also provides improved signal quality, providing better system stability and allowing greater margins for overclocking.
